Foot measuring instrument
Foot Measuring Instrument
Customer Name: Foot Technology
Project Content: Design Research | Appearance Design | Structure Design

With the development of the elderly industry, many problems in the life of the elderly have been gradually discovered by designers, such as the physiological degradation of the foot arch, which leads to a decrease in the tolerance of walking. Designers use customized insoles to hold up the arch to maintain the original physiological characteristics and improve the comfort of walking.
This equipment is through the image recognition technology to the foot three-dimensional shape construction, for the insole customization service.
Below from the perspective of industrial design with everyone to analyze its characteristics.
Functional features
1. rotate to take pictures

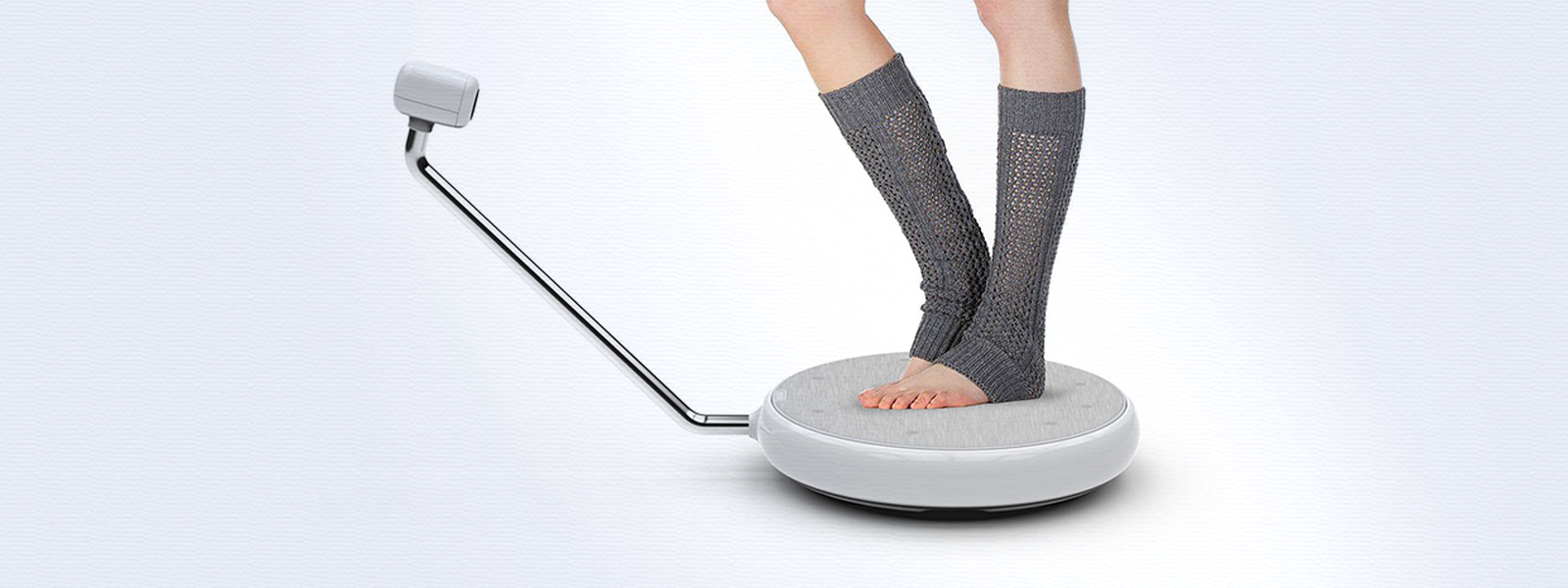

Through the rotation of the ring motor at the bottom, the camera can shoot all the foot features;
2. 360 ° image synthesis
All images are synthesized into a set of three-dimensional model, providing standard size for customization;
3. provide a comparison report
Compare the data with the data in the system and give a comparison report;

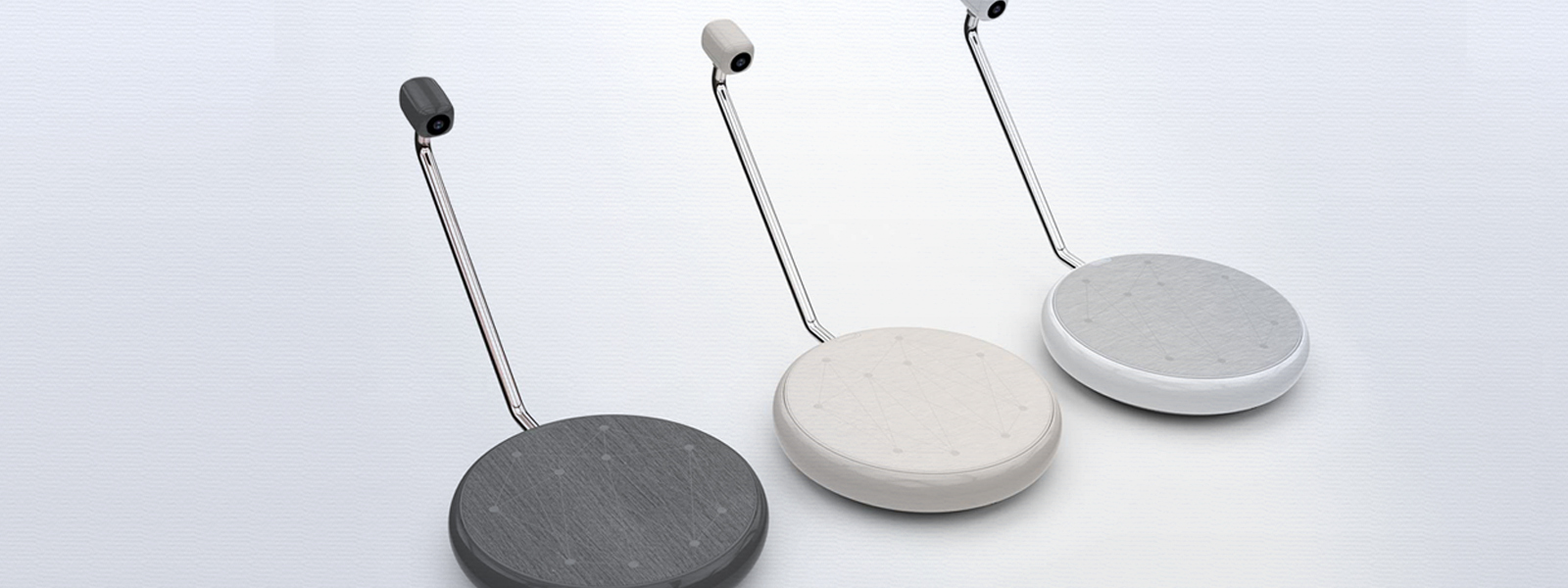

Design Features

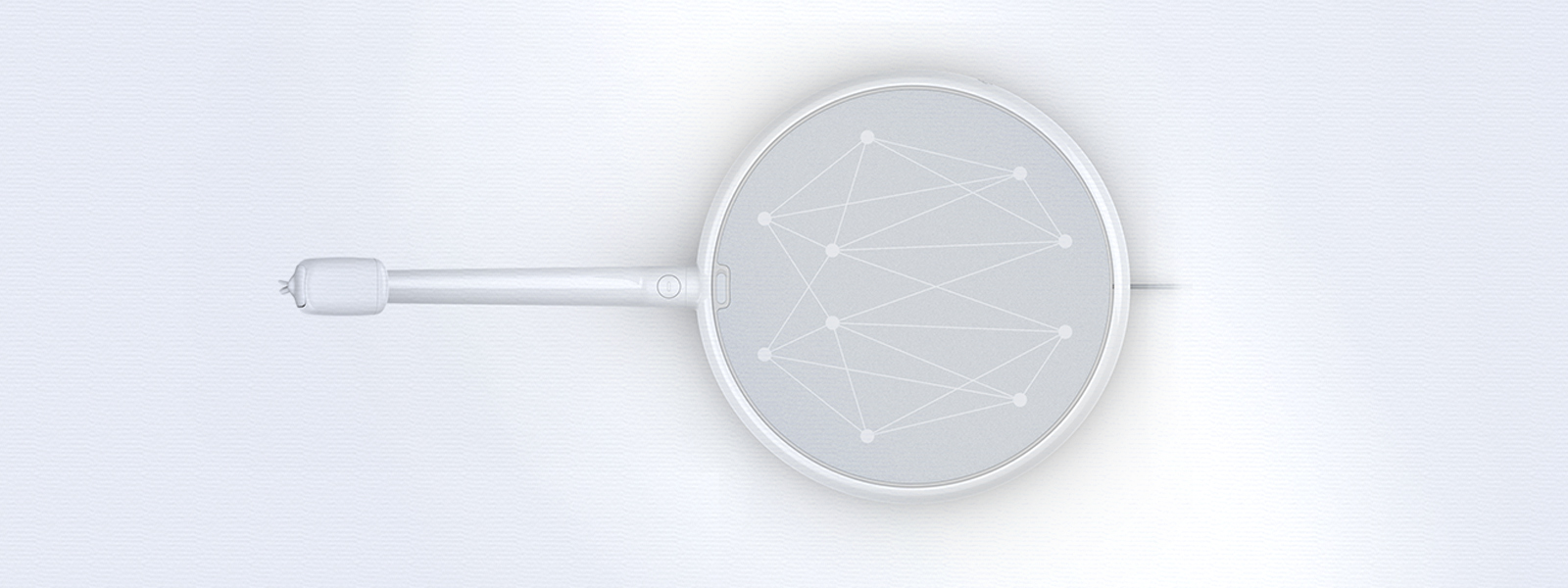

The 1. equipment is flat as a whole and occupies a small space, which is in line with the rationality of transportation and use; the surface is pasted with positioning points to reduce the difficulty of use.

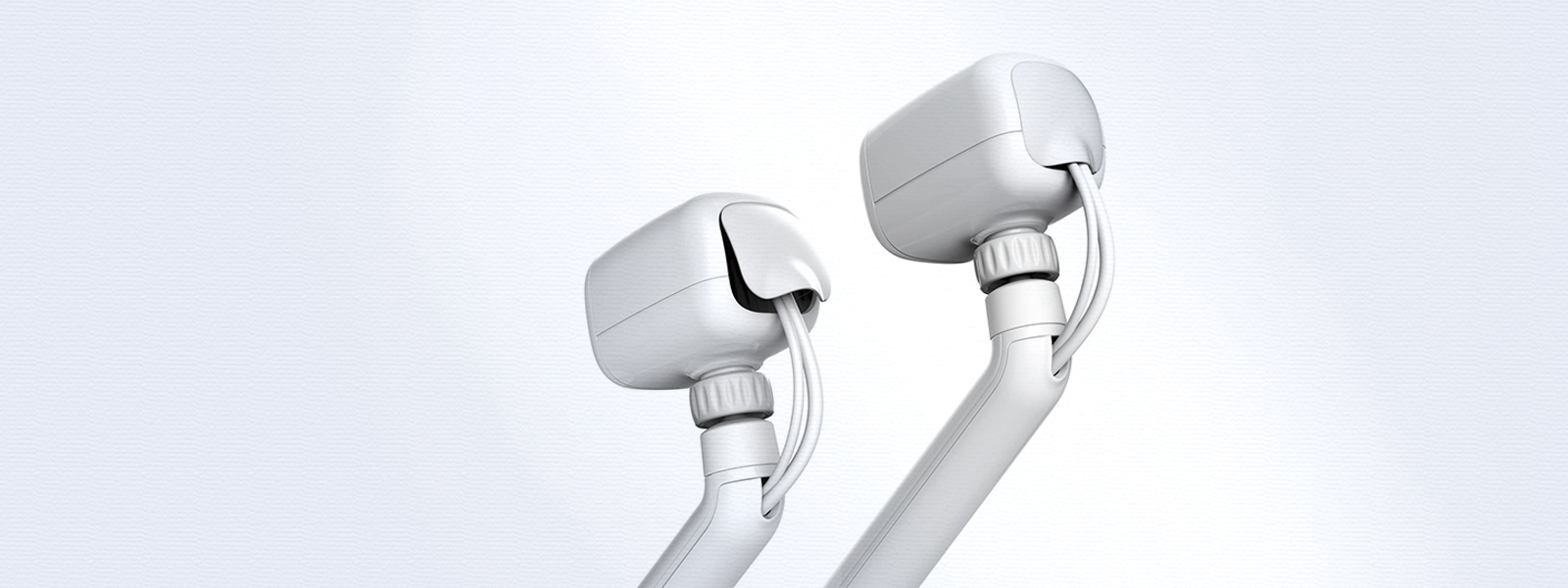

The 2. camera is connected by a spherical structure, and the angle can be fine-tuned according to the actual situation.

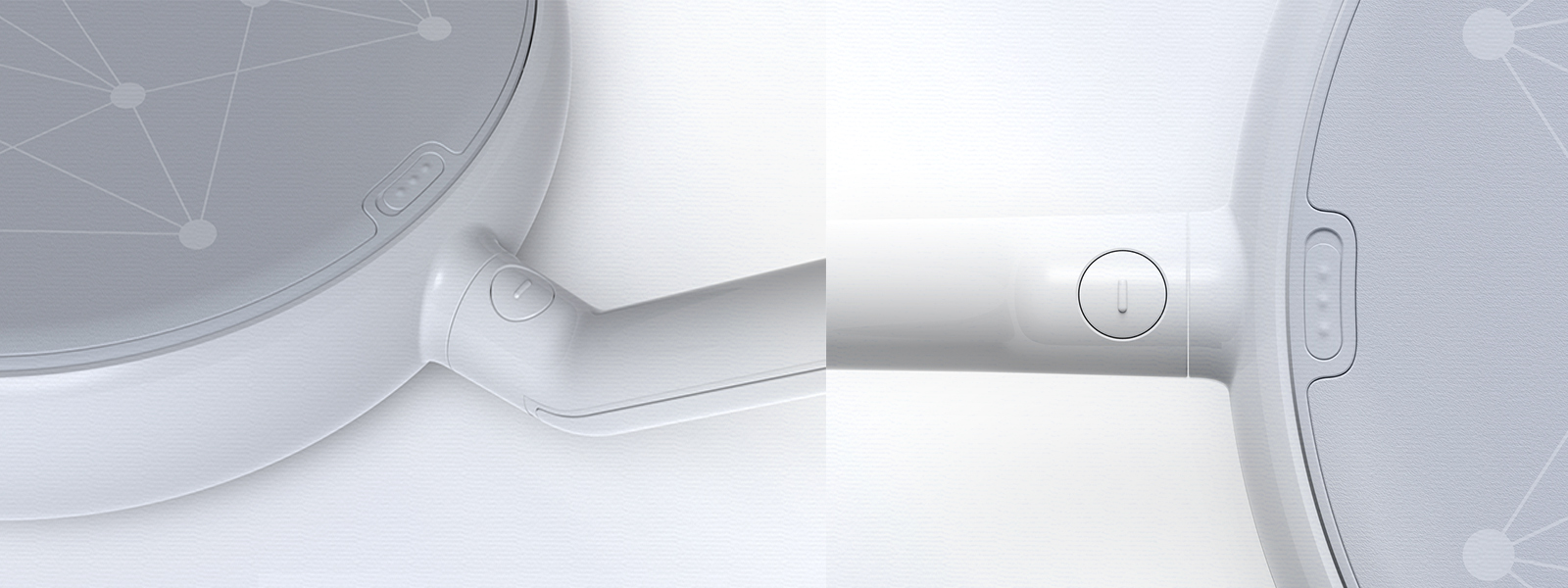

The 3. body and the connecting rod adopt a quick-release structure for easy movement and installation.

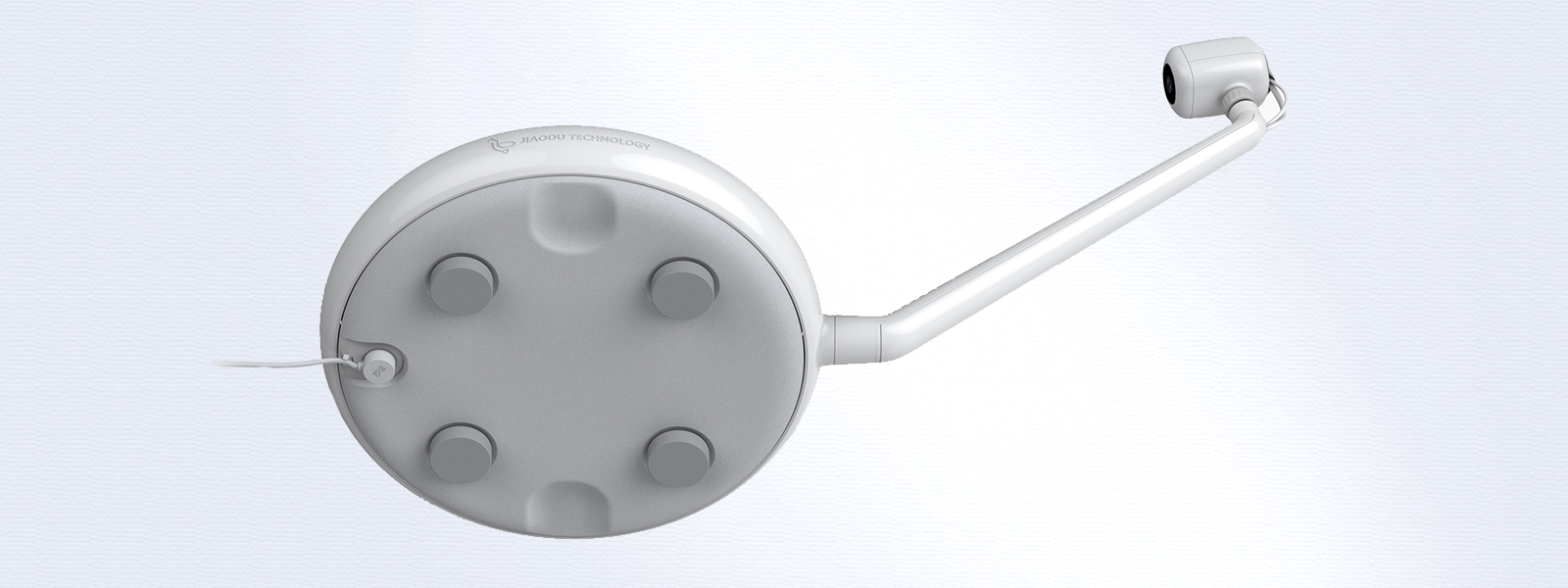

The bottom of the 4. is provided with 4 cushioning feet to improve the consumer's interactive sense and increase the overall hierarchy.

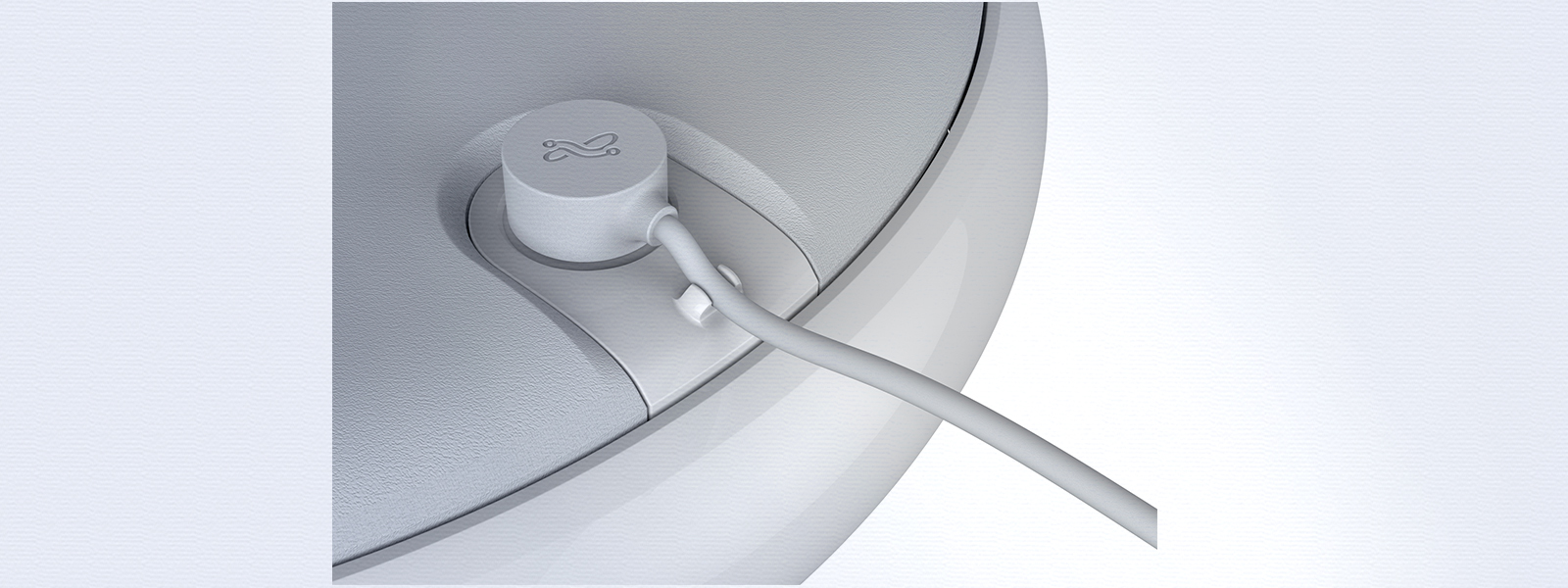

The rear end of the 5. adopts a magnetic charging head, which is convenient to use.
