This is the design of a sweeping robot! When Brook's Design first received this project, it needed to make clear the positioning of this product and continue its concise design language in appearance. It maintained the same design tone in both overall appearance and color matching! Needless to say, let's get down to business one by one to clear up the problems encountered by Brook's Design in the design process of this product and the design solutions given!

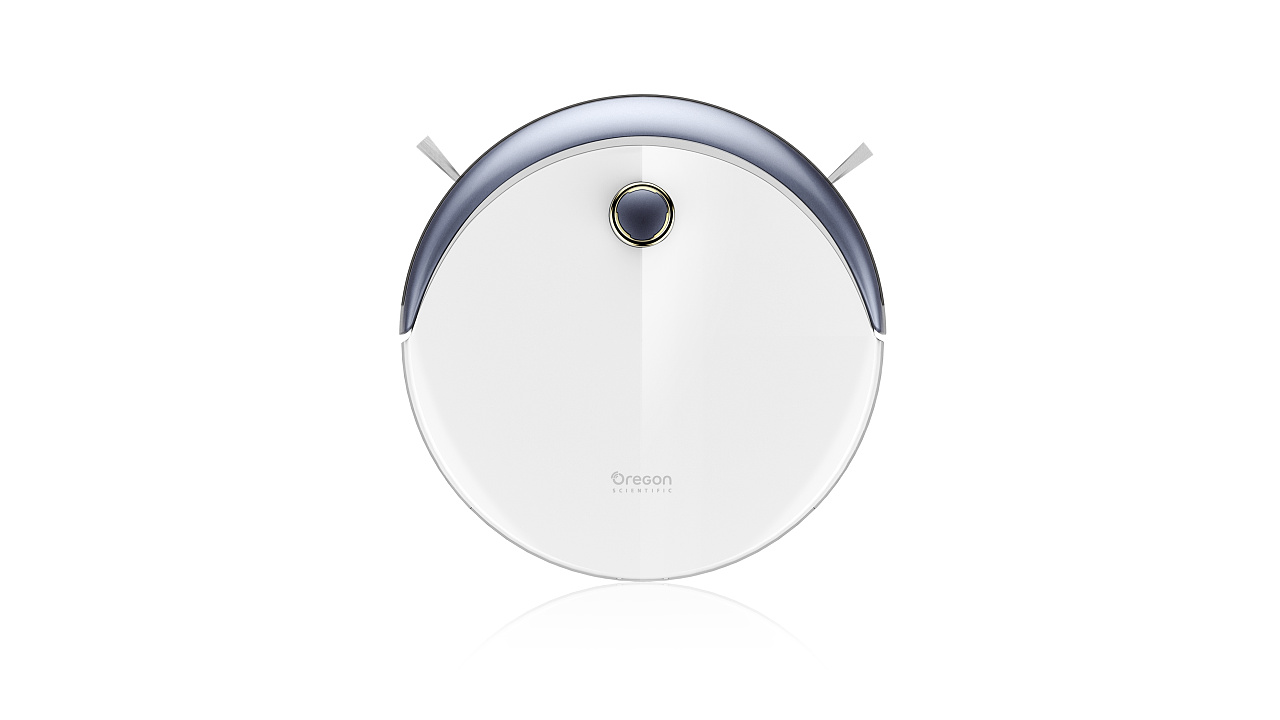

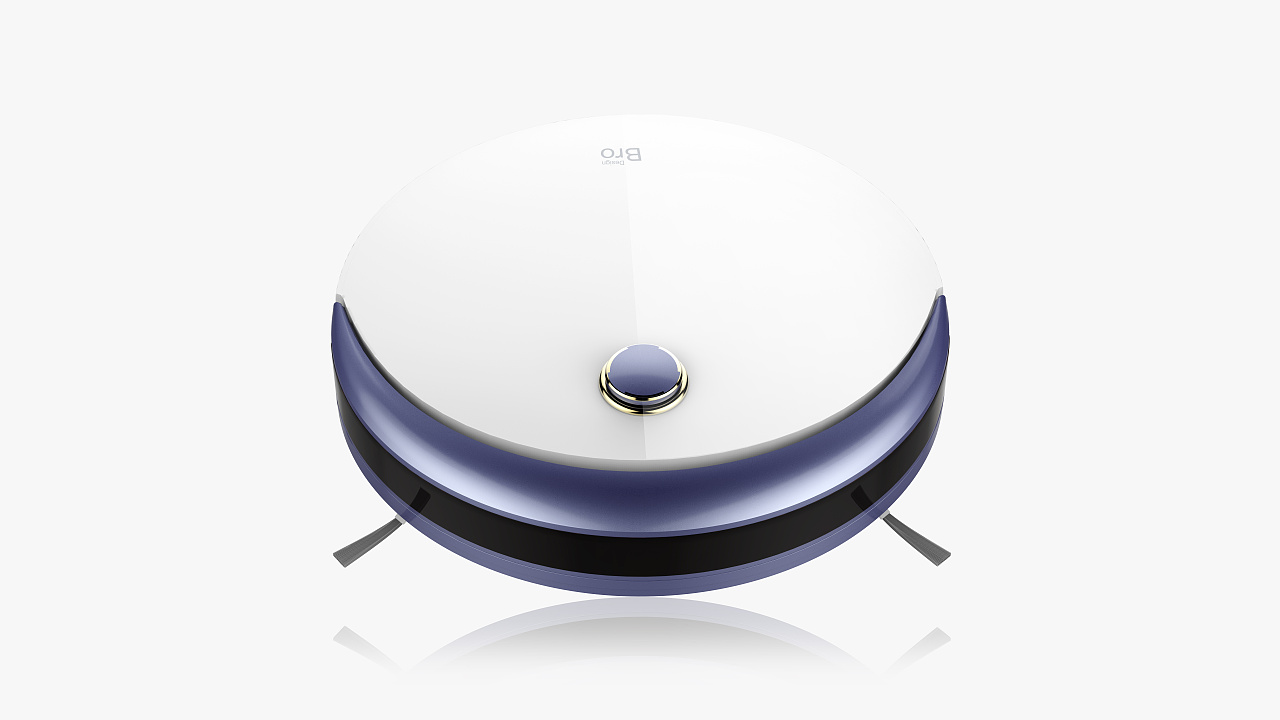

A simple meniscus design-sweeping robot. This is the front design and display effect of the whole product of this sweeping robot! The simple appearance design is suitable for the family and home environment, and the simplicity of color matching is very good to echo the modern simple style! The whole product has been cut geometrically. The designer's initial idea is a design idea shaped like a crescent moon. The edge of the upper front cover part is made of metallic starlight purple, and the lower part is made of white metal powder sprayed with milk in the plastic shell. The surface treatment and texture can also come out! The key is to give people a clean and lively visual effect!

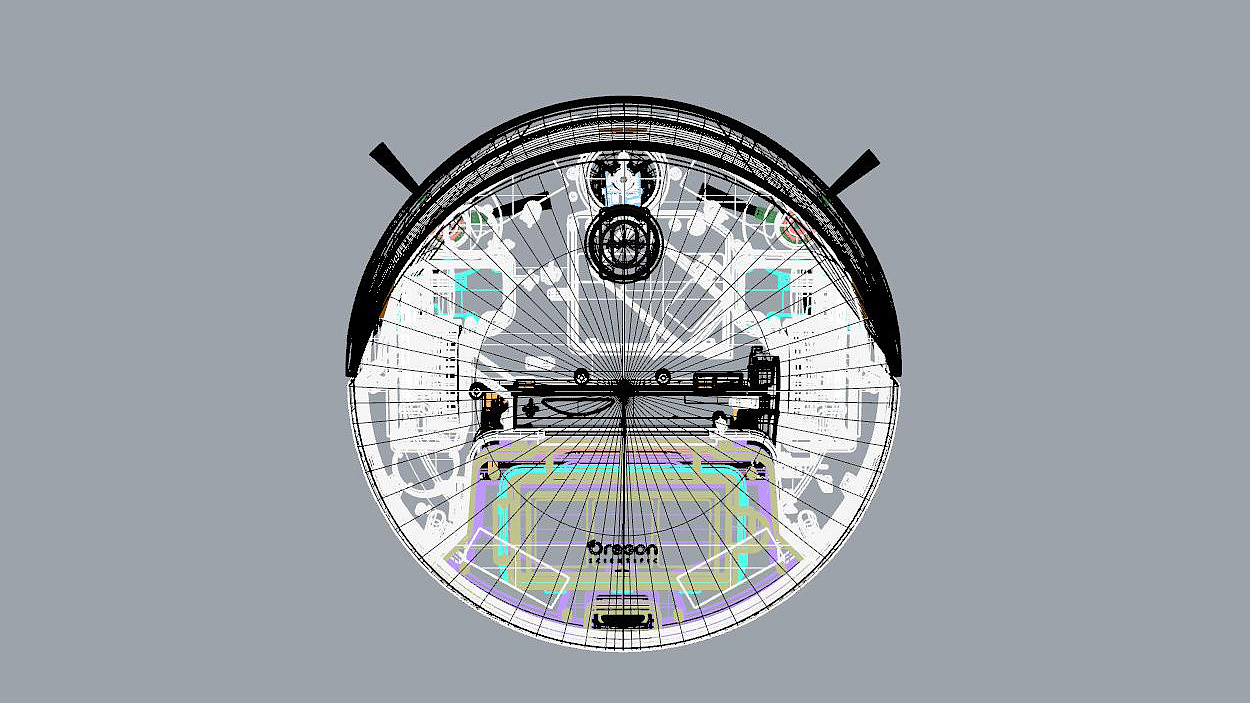

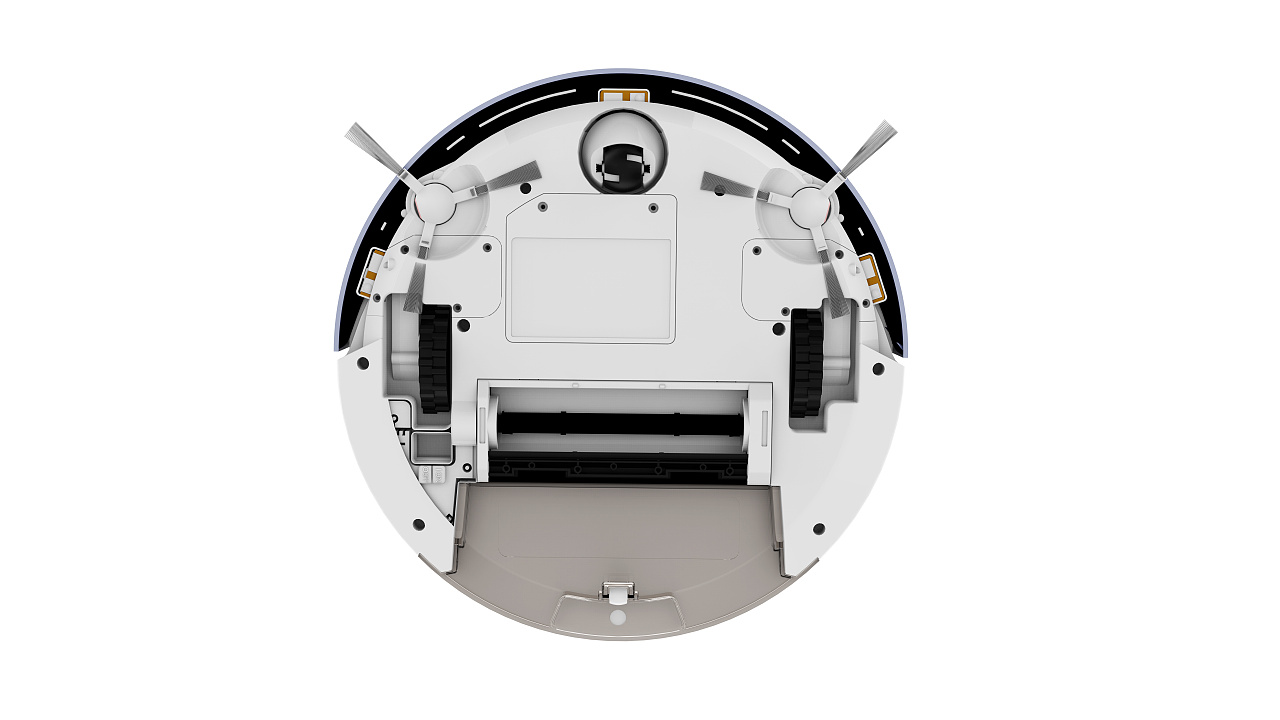

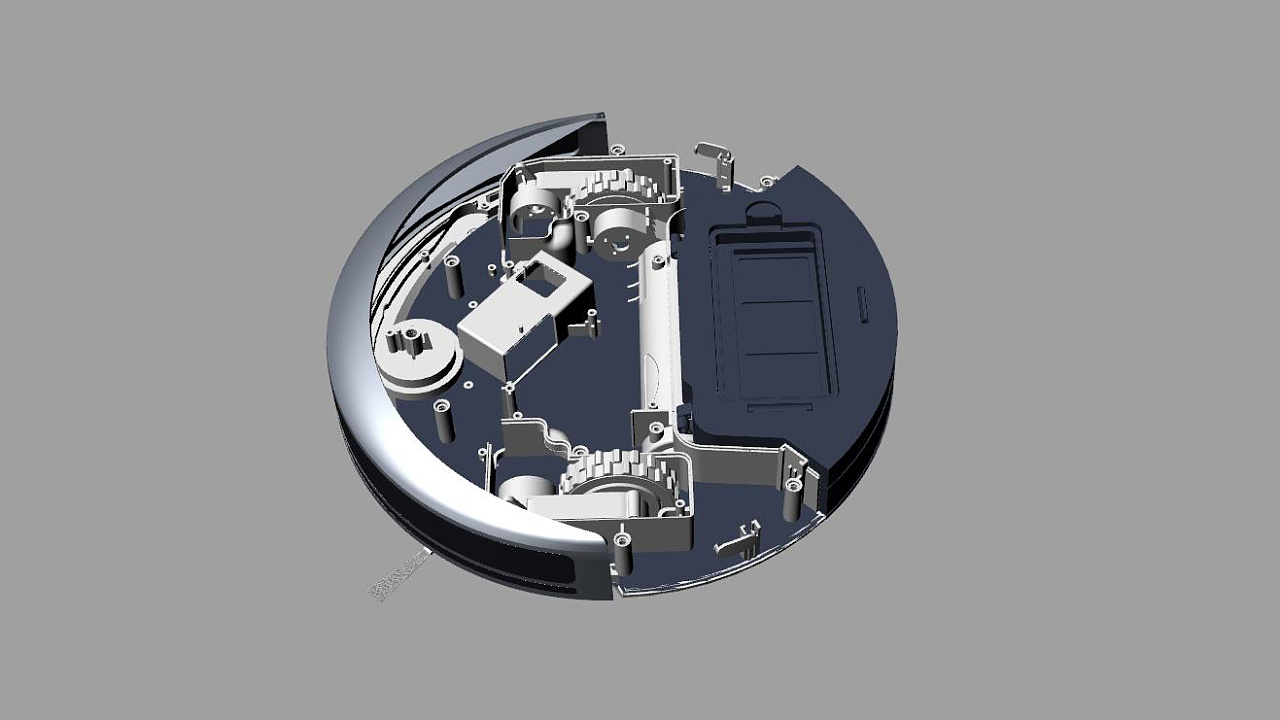

Brook's Design will first show you the internal 3D drawing of this sweeper and the stacking layout of related parts (the size of this second generation product is the same as that of the first generation, except that some internal hardware are upgraded differently). Since there is no physical photo of the product, I will give you a code 1.3 D picture first, so that you can better understand the garbage brush inside the machine. The front part has universal wheels, which is convenient for the machine to move quickly on the ground. The back part has a detachable water tank and garbage storage area, so that you can have a preliminary and intuitive understanding of this product!

Finally, let's take a picture of the product's scene! The black (PS is actually dark brown) shell in front of the product has complicated internal hardware, including positioning sensor, infrared sensor, etc. Because these can only work normally in dark light environment, it is also a hardware problem that cannot be bypassed. The design has made some compromises here, but it is also great to solve the problem!

Well, this product Brook's Design is here! If you like, pay more attention and praise!
