Project demands: 1. Meet the basic strength requirements, grasp and use meet the needs of man-machine; 2. Different from the modeling design of similar products in the market; 3. It has strong product attributes. Bottle type process: blow molding bottle cap process: PP injection molding

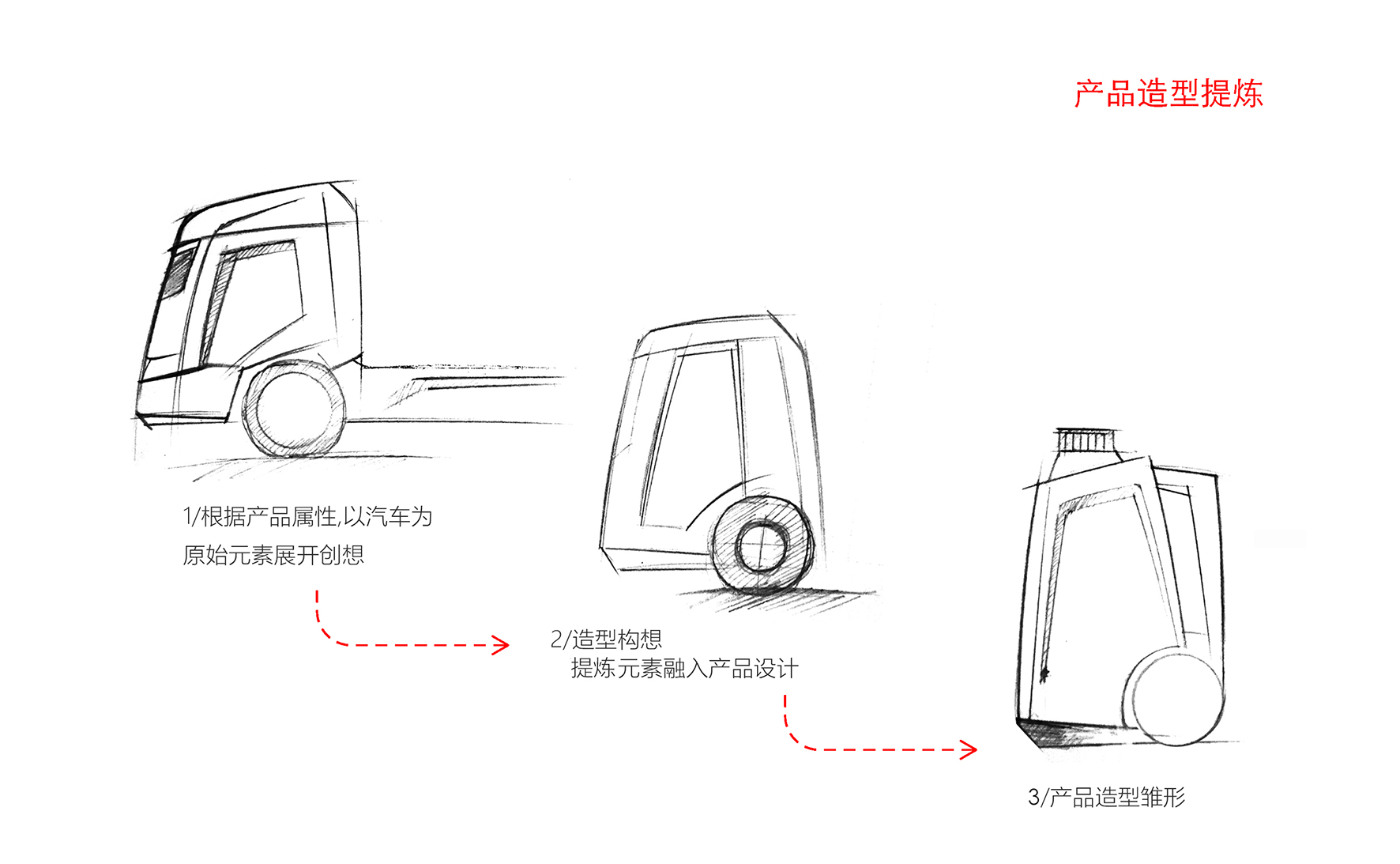

▲ Focus on industry characteristics, find inspiration and refine design elements

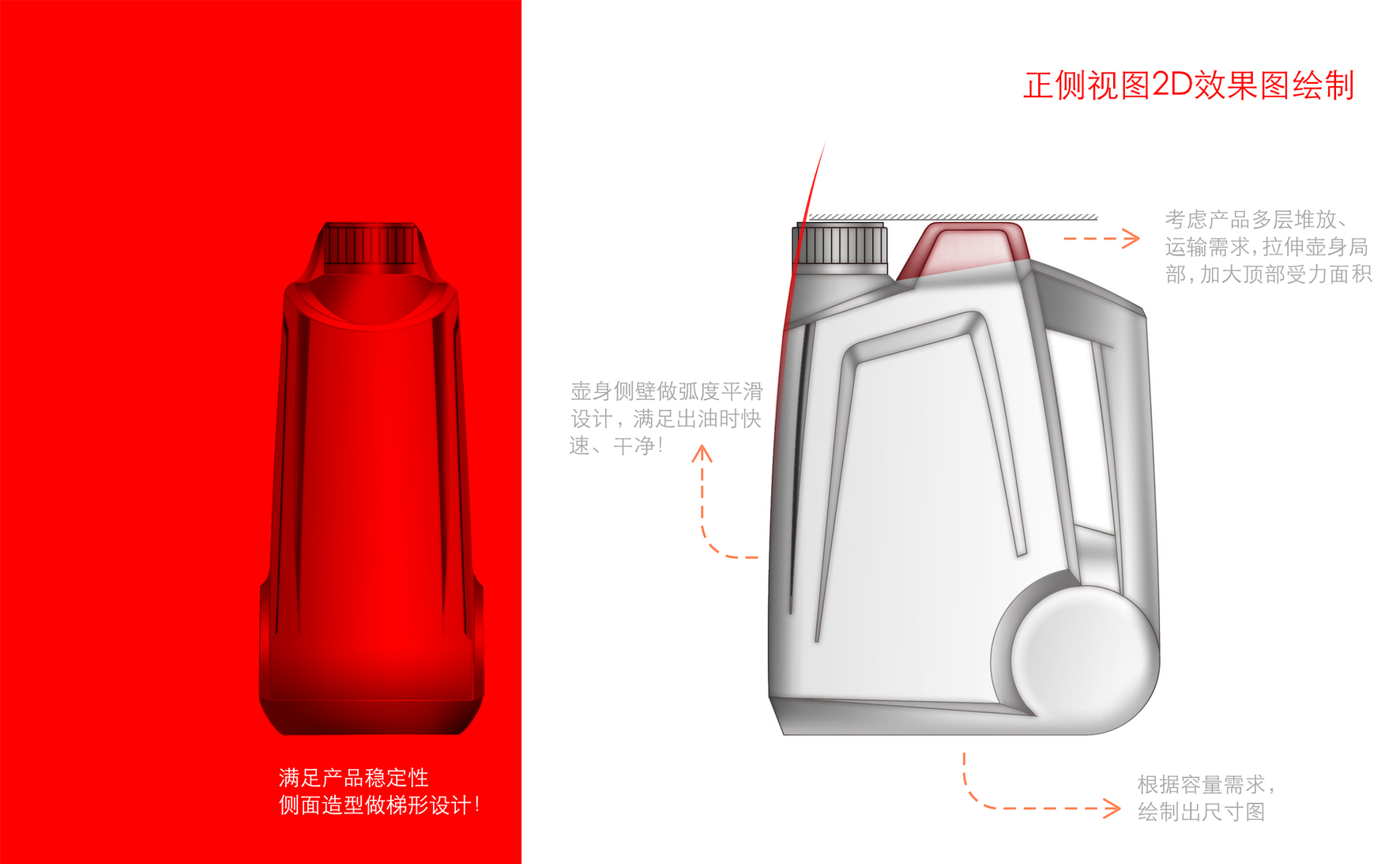

▲ 2D drawing drawing
Focus on the following points:
1. In order to meet the stability of the product, the side shape is designed to be trapezoidal!
2. The side wall of the kettle body is designed with smooth radian to meet the requirements of fast and clean oil discharge!
3, consider the product multi-layer stacking, transportation needs, stretch the pot body part, increase the top stress area
4, according to the capacity requirements, draw a size map

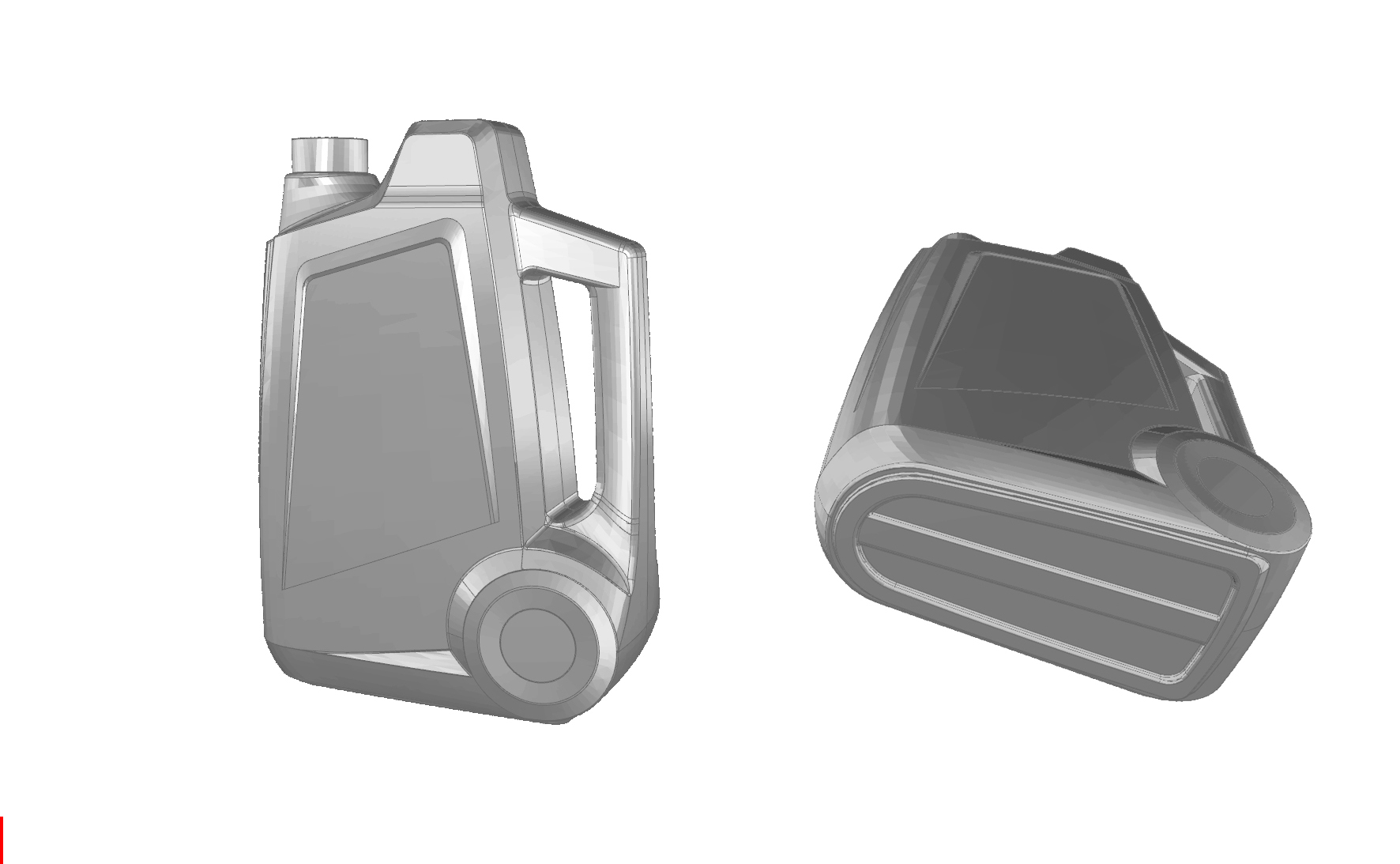

▲ 3D modeling drawing
Focus on the following points:
1. Comfort and size of grip
2. The strength of the joint between the handle and the kettle body
3. Layout of reinforcing ribs at the bottom of the pot
4. Feasibility of blow molding and demoulding
5. Whether the edges and corners of the details of the kettle body are too large (it is related to whether the feeding is uniform)
