Copy X handset access card reader x semicircle design

The main points of our design for the whole product: so we combine PM3 with hand-held replicator, focusing on comprehensiveness, high speed, stability, portability, ease of use, playability, professionalism and product creation, striving to do better in every aspect;
1. High speed and comprehensive: decrypt menu pictures, display speed is fast, there is no need to connect the network to identify massive cards;
2. Stable and reliable: PM3 part follows the design of RDV4.01, on the basis of which the high-frequency transmission power is reduced, the heat is no longer generated after long-term work, the FPGA front-end code is optimized, the blind area is completely eliminated, and any position within the range is stable and reliable. Gone are the days when you need to move to find the best position when reading a card. Low frequency optimizes the timing accuracy of the transmitting circuit at high Q values to achieve long-distance and stable reading and writing of T5577 and EM4305

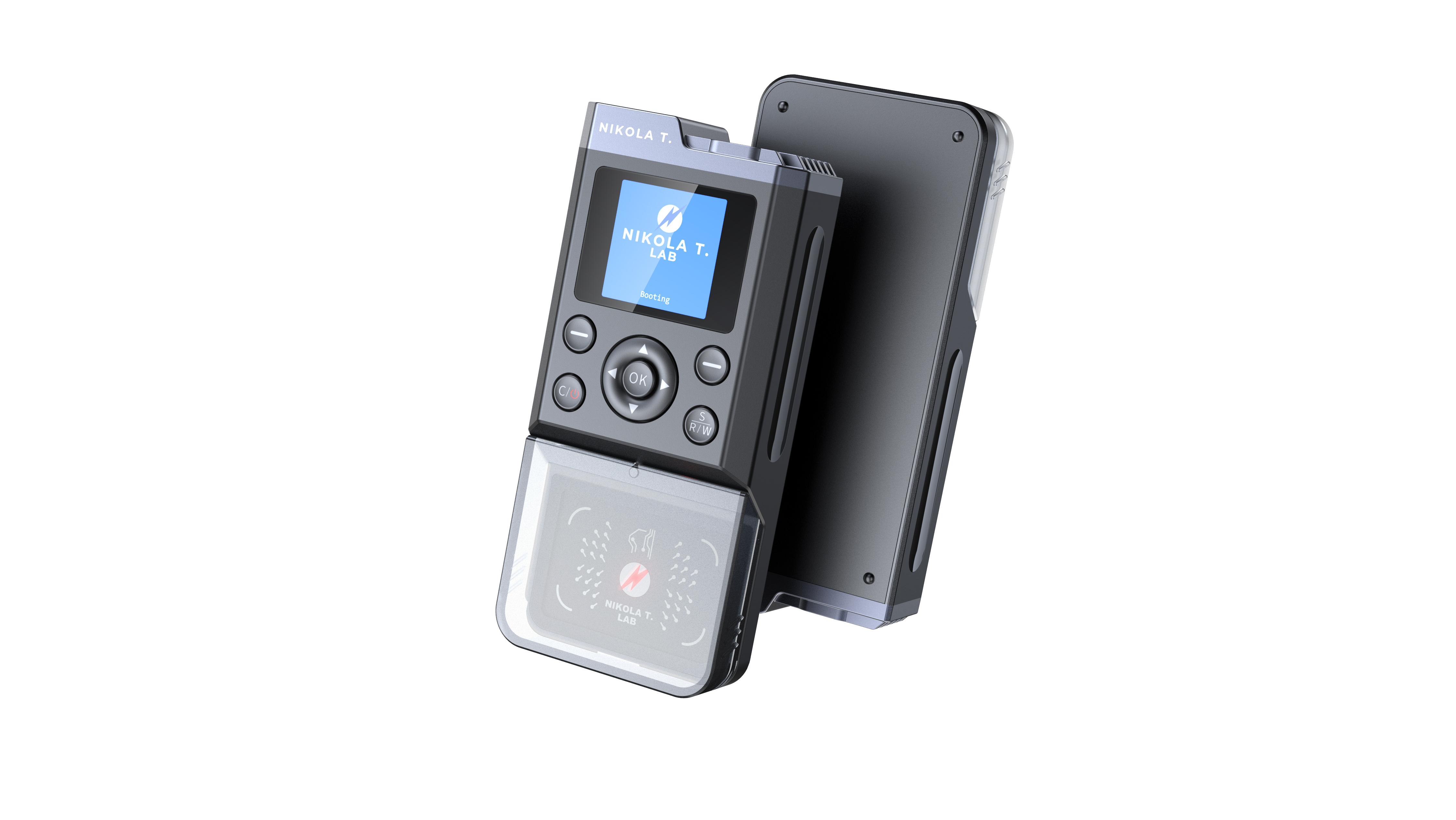

3. Portable: We have added large-capacity lithium batteries and coprocessors to manage the charging and discharging of BMS batteries. In addition, a drawer box for card reading is carefully designed, and the key chain is put into it. When carrying the equipment, it is stable and uninterrupted. Compact appearance, button anti-accidental touch, is the perfect EDC(Every Day Carry)

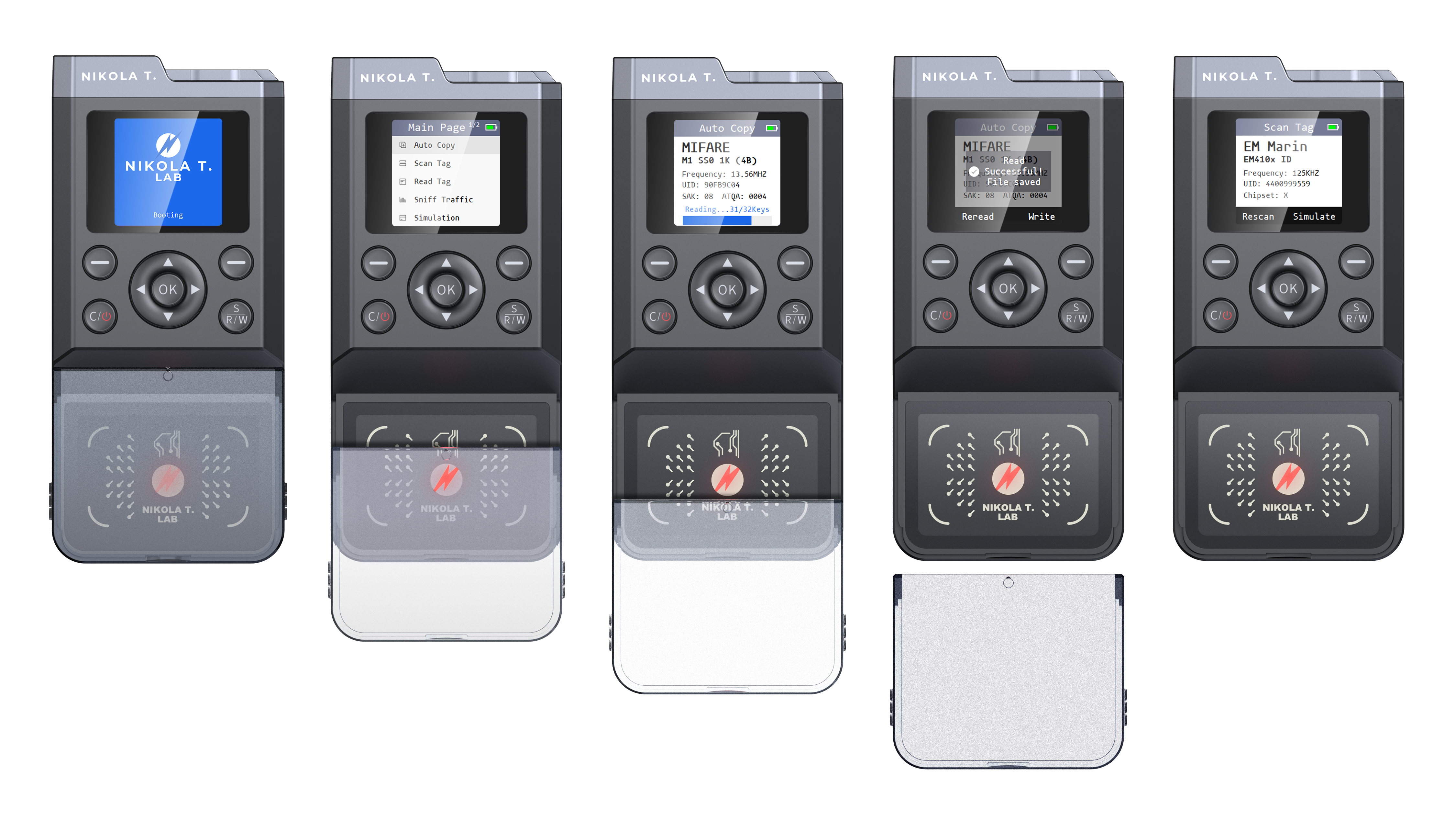

4. Simple and easy to use: We have designed a set of silly operation logic to find the shortest uncard path automatically. No need to watch video learning usage, network registration, input instructions, and other complicated operations, take out the equipment anytime and anywhere, and immediately make a business card. Voice reminder for the whole process, all operations can be completed by pressing only one button;
5. Playability: In order to retain playability, additional small functions such as high and low frequency analog cards, high and low frequency sniffing, etc. are added. At the same time, the original function of the Proxmark3 is retained to the greatest extent. The command line can be opened in the U disk of the device and used directly;
6. Professionalism: We have built a 16G U disk in the equipment, and the decoded data file is automatically saved in it, which can be retrieved and edited at any time. It also includes a free PM3 command line and a free GUI software. There is also a paid professional GUI software. Its professional functions can satisfy professional users.
2. About hardware configuration
(1) Processor: Cortex-A7 0.6GHz
(2) Storage: 256MB 16GB
(3) Screen: 1.3 "240x 240 Color IPS 50Hz Refresh
(4)RF front end: Proxmark3 RDV4.01(ARM7 FPGA)
(5) Operating System: Linux-NIUI1
(6) Battery: 2000mAh 7.4Wh
(7)BMS coprocessor: STM32F103C8T6
