Design Concept for the Form

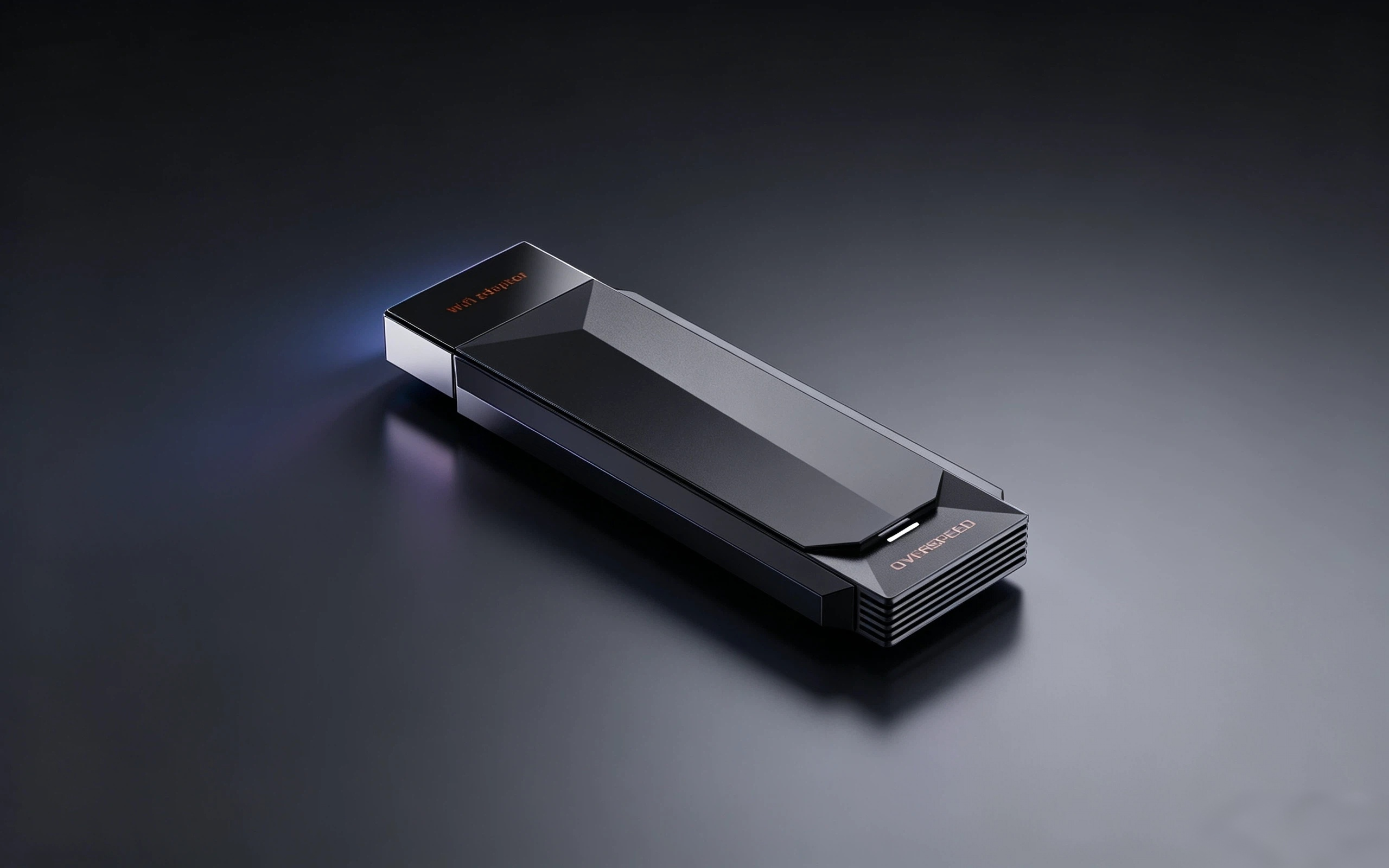

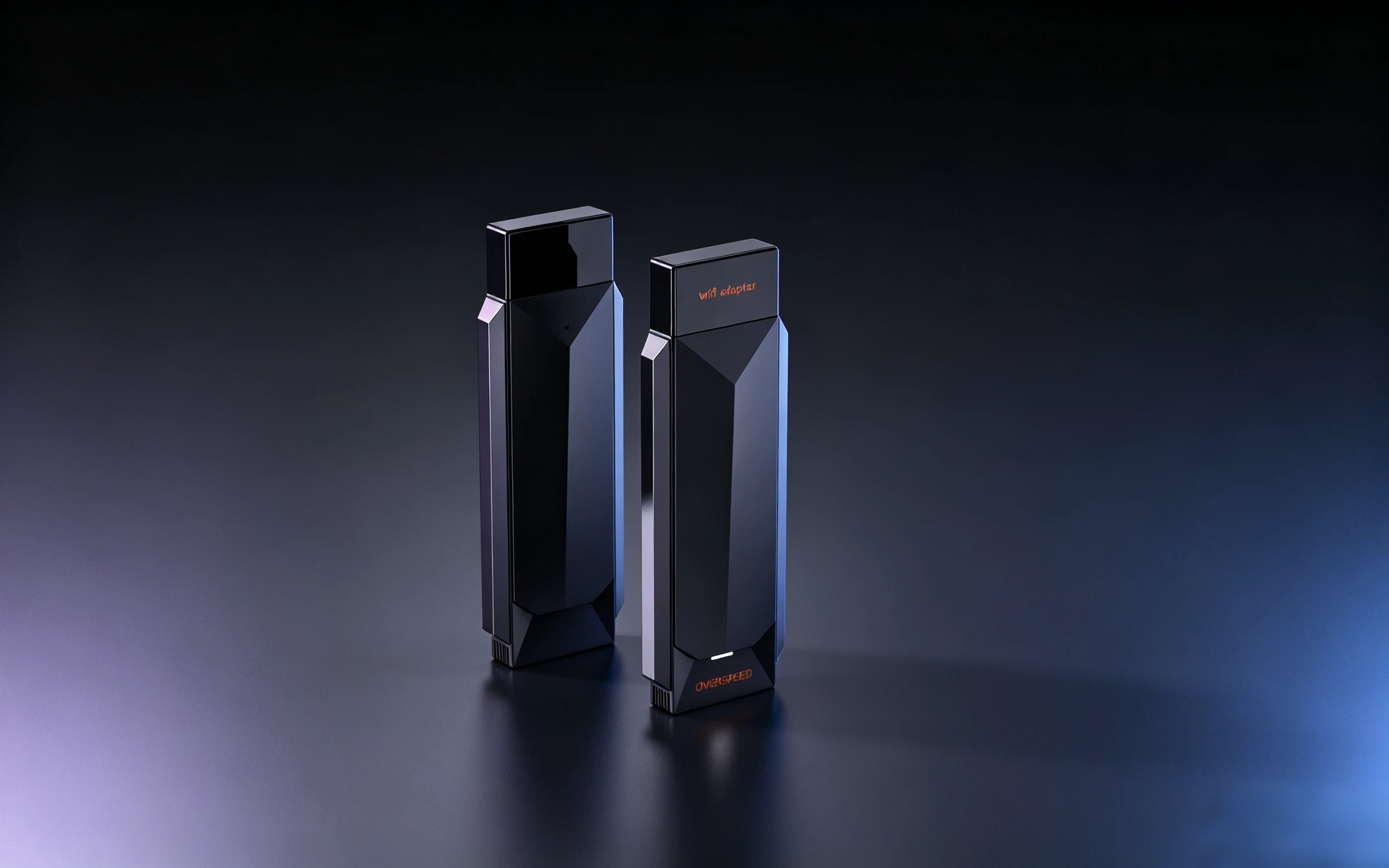

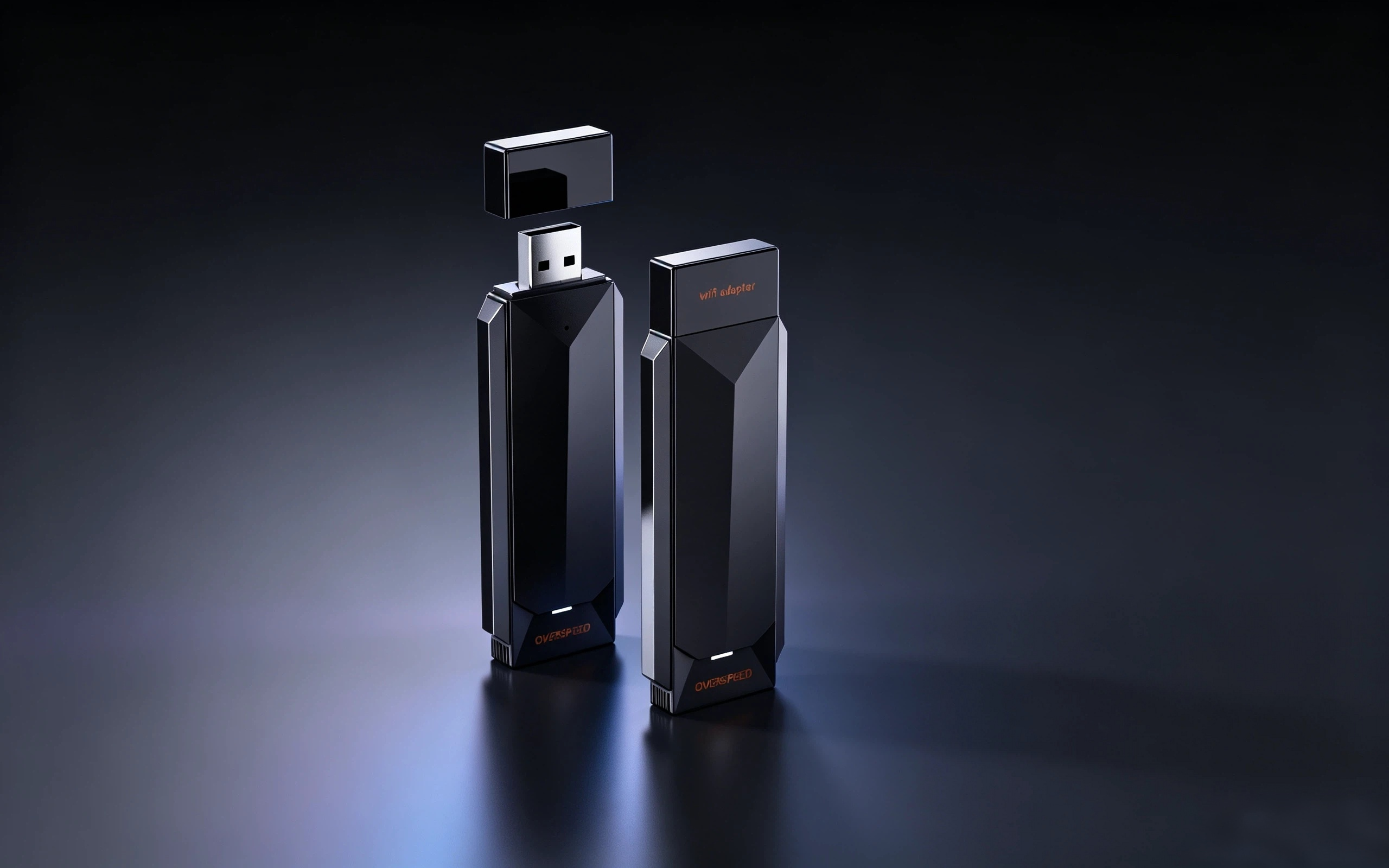

1: angular mecha geometry language
The whole machine adopts a multi-section folding surface hale and hearty shape, a large number of oblique cutting edges and corners, and a stepped layered structure to create a sense of digital hard core strength in electronic competition, which is different from the round and cheap common USB network card on the market. The upper and lower layers of the fuselage are miscut, the three-dimensional layering is strong, the visual texture of more precise professional equipment, and the technological tonality of electronic competition and office digital.

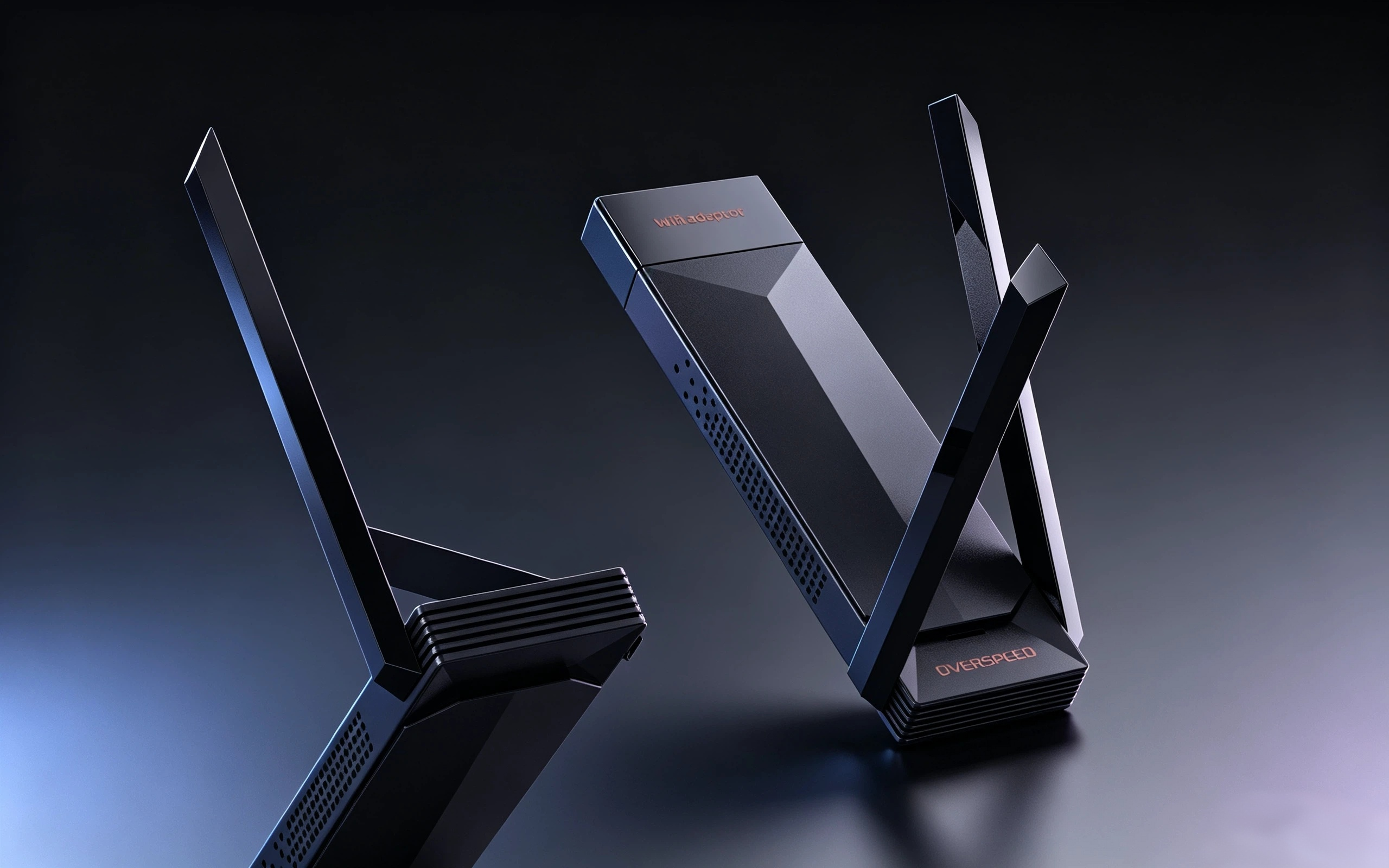

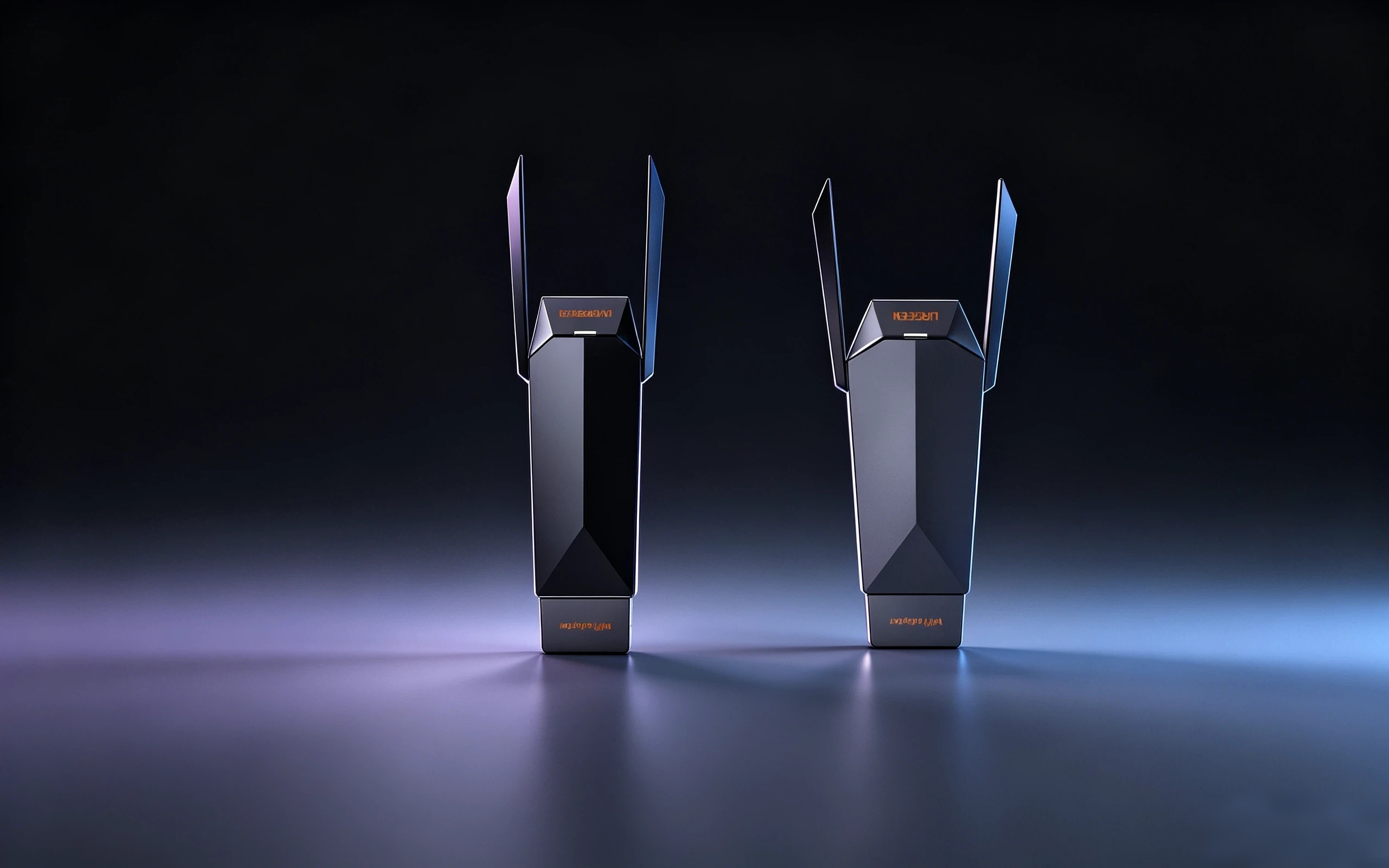

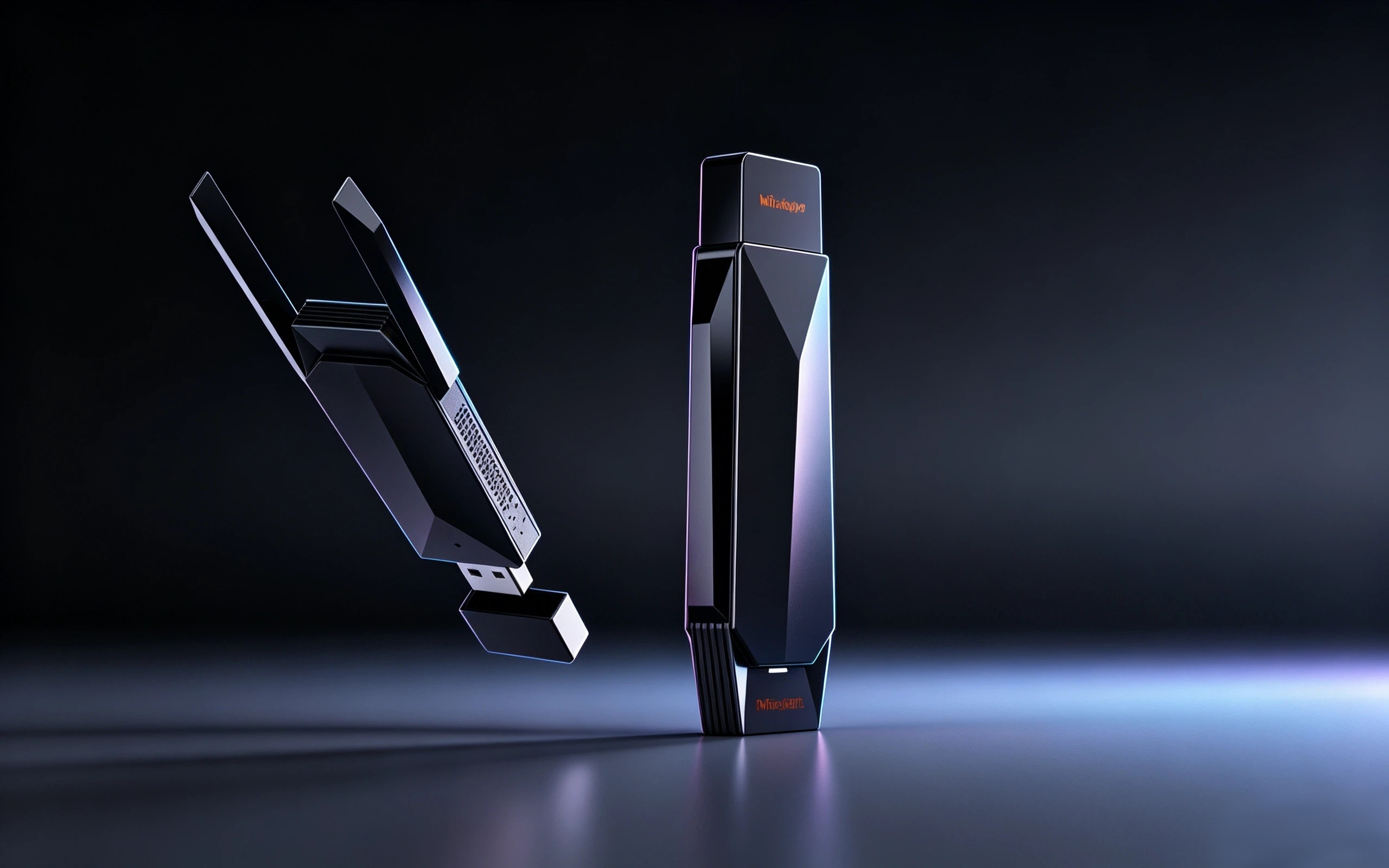

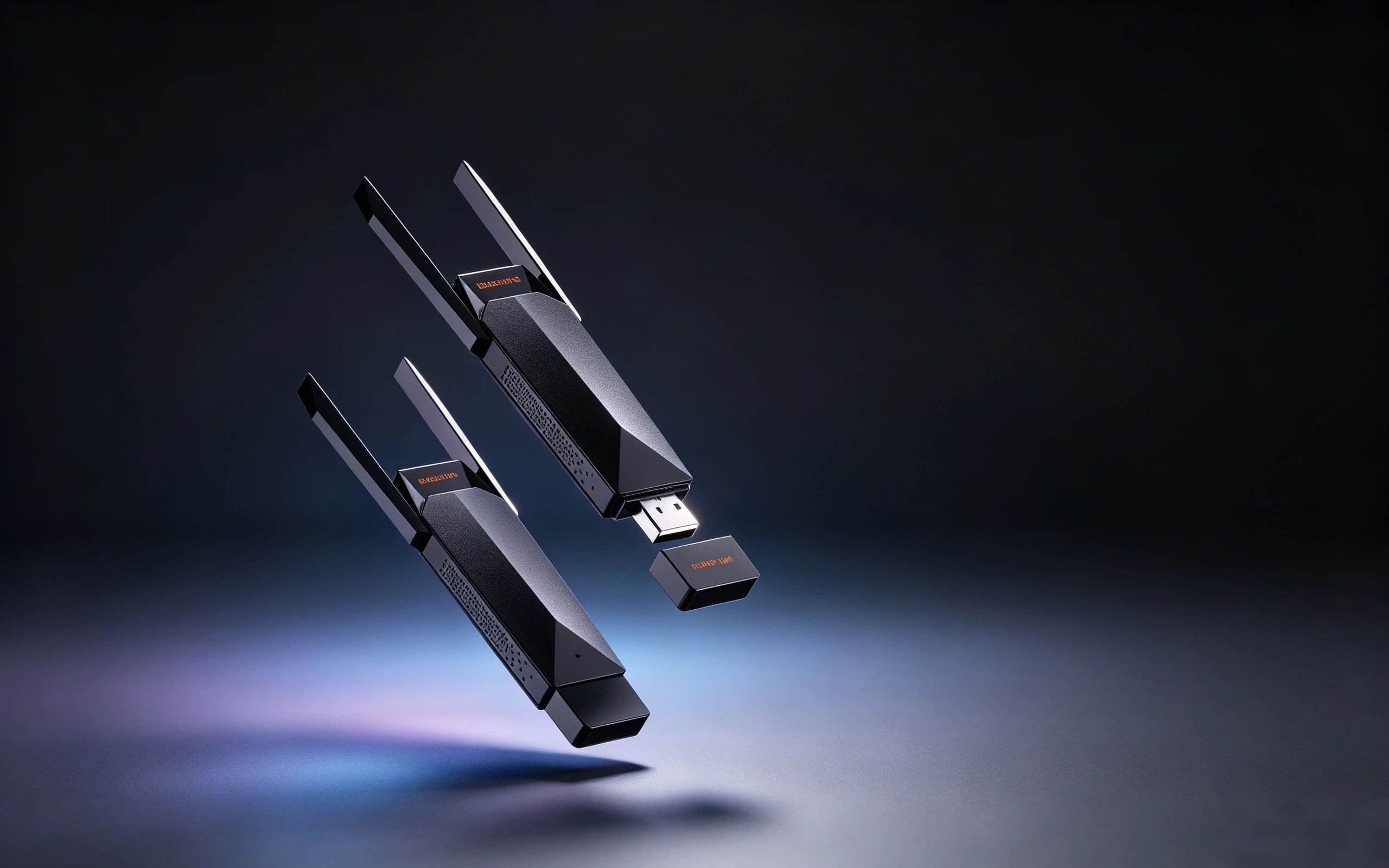

2: Foldable dual high gain antenna structure
The independent long antenna on both sides adopts a hinge folding design, which can be adjusted up, down, left and right at multiple angles, which can be vertically erected to enhance long-distance signal sending and receiving, and when idle, it can be folded inward to reduce the volume, which is convenient to carry and store. The antenna and the fuselage are integrated with a broken line shape, and the lines are coherent and unified without a sense of separation.

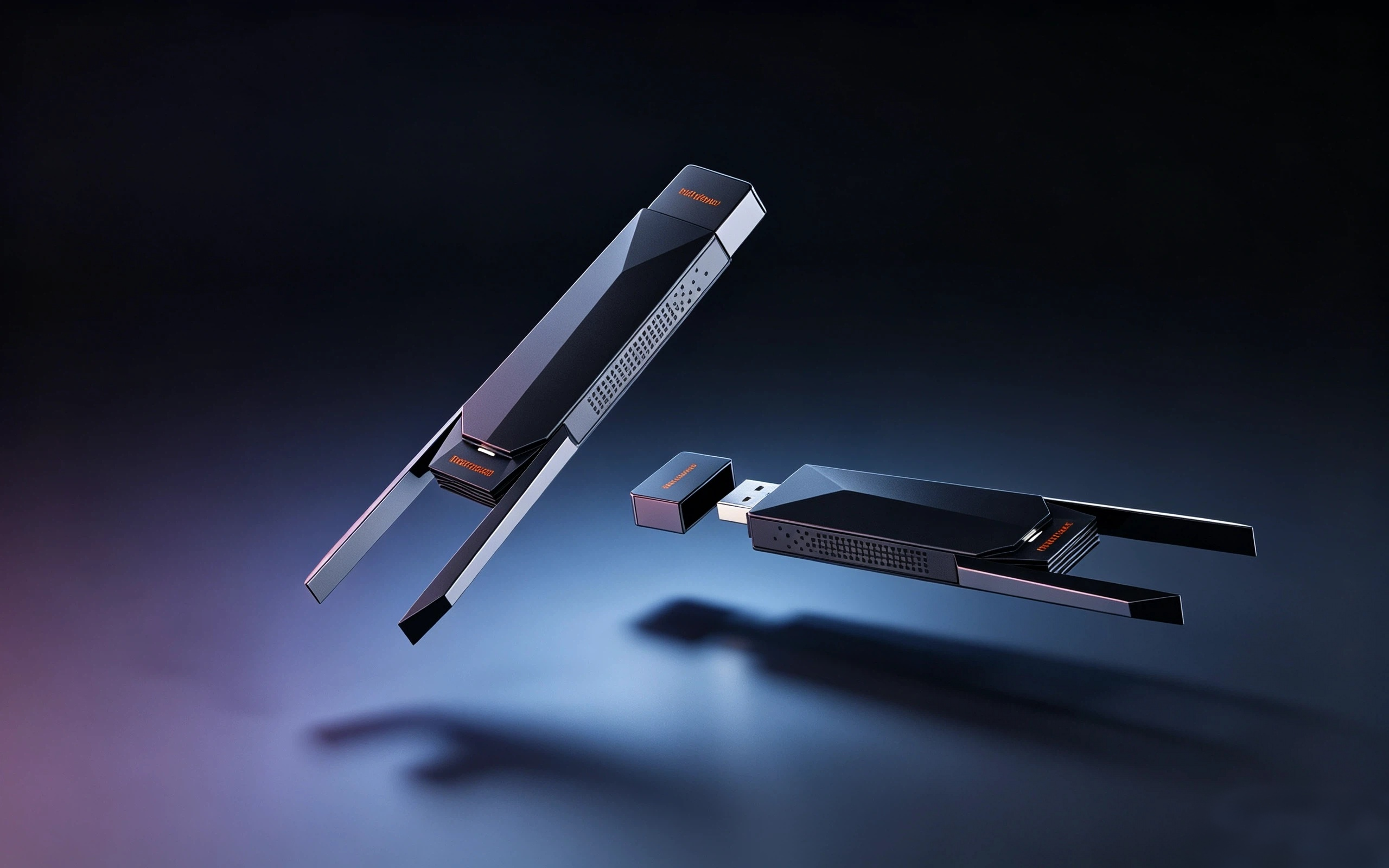

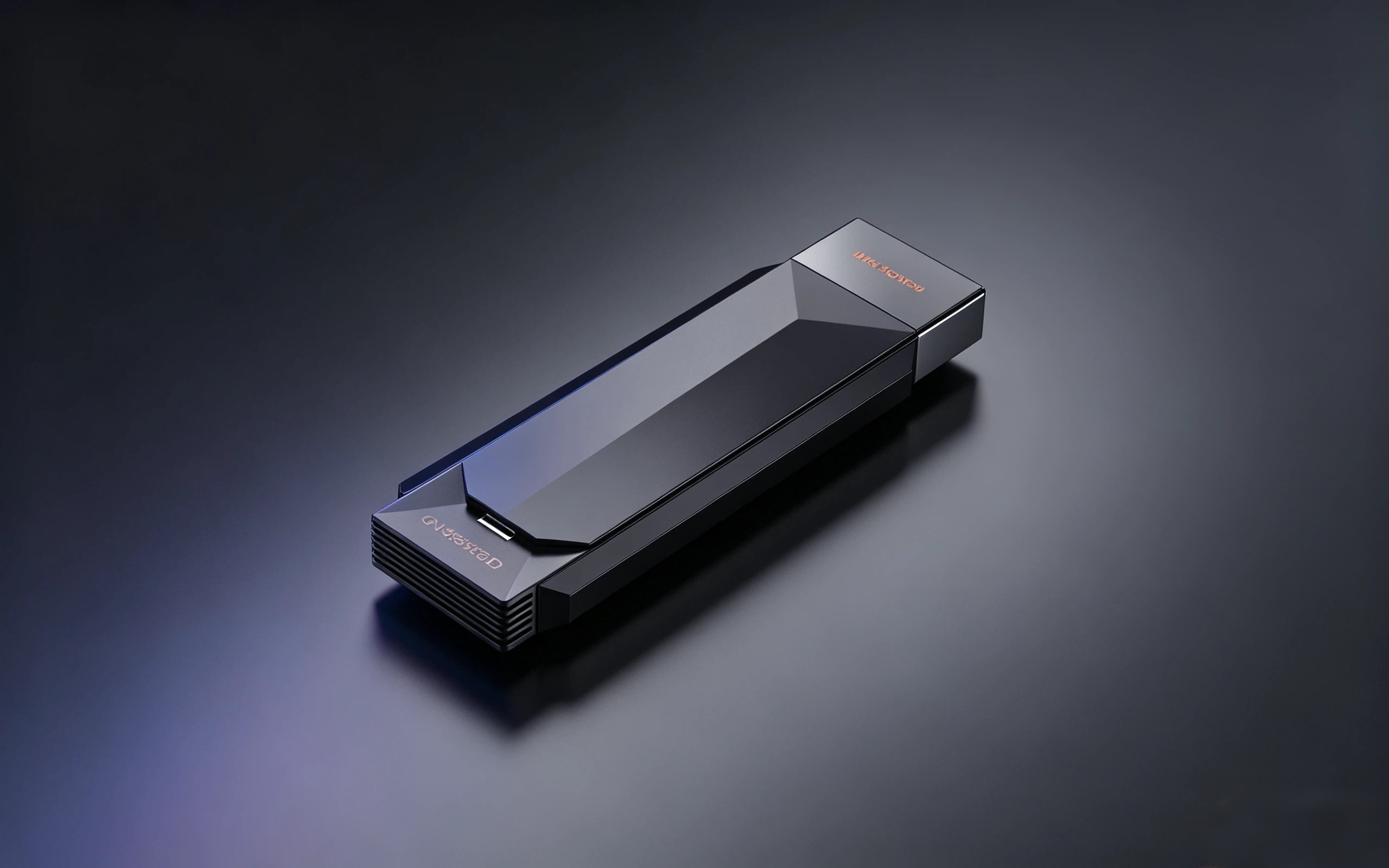

3: layered heat dissipation texture design
The two sides and bottom of the fuselage are covered with horizontal stepped heat dissipation grilles, and the grilles are progressive synchronously with the inclined planes of the body. It is not only a functional heat dissipation channel, but also a visual texture decoration, making the monotonous black fuselage rich in layers, and at the same time solving the problem of long-term heat accumulation and speed reduction of high-power network cards.
