Beisi Sucker Wireless Charger

Sean

China · Digital Intelligence

Brand: ba-seus
Material: plastic silicone
Color: black/gray
Input: 5V 2A,9V 1.67A(Max)
Output: 5W/7.5W/10W(Max)
Applicable mobile phones: mobile phones that support wireless charging

The third product listed after coming to Beisi is also one that I am satisfied. From putting forward this idea in the early stage, making a simple sketch, to the final effect, gradually presenting the plan in mind. After engineers design the internal structure, give complete functions, and then conduct many tests, the real product is finally displayed. The ID was handed over to the engineering design structure and then to the factory to open the mold. I really understood the whole process of the product. I would also like to thank all colleagues for their cooperation.

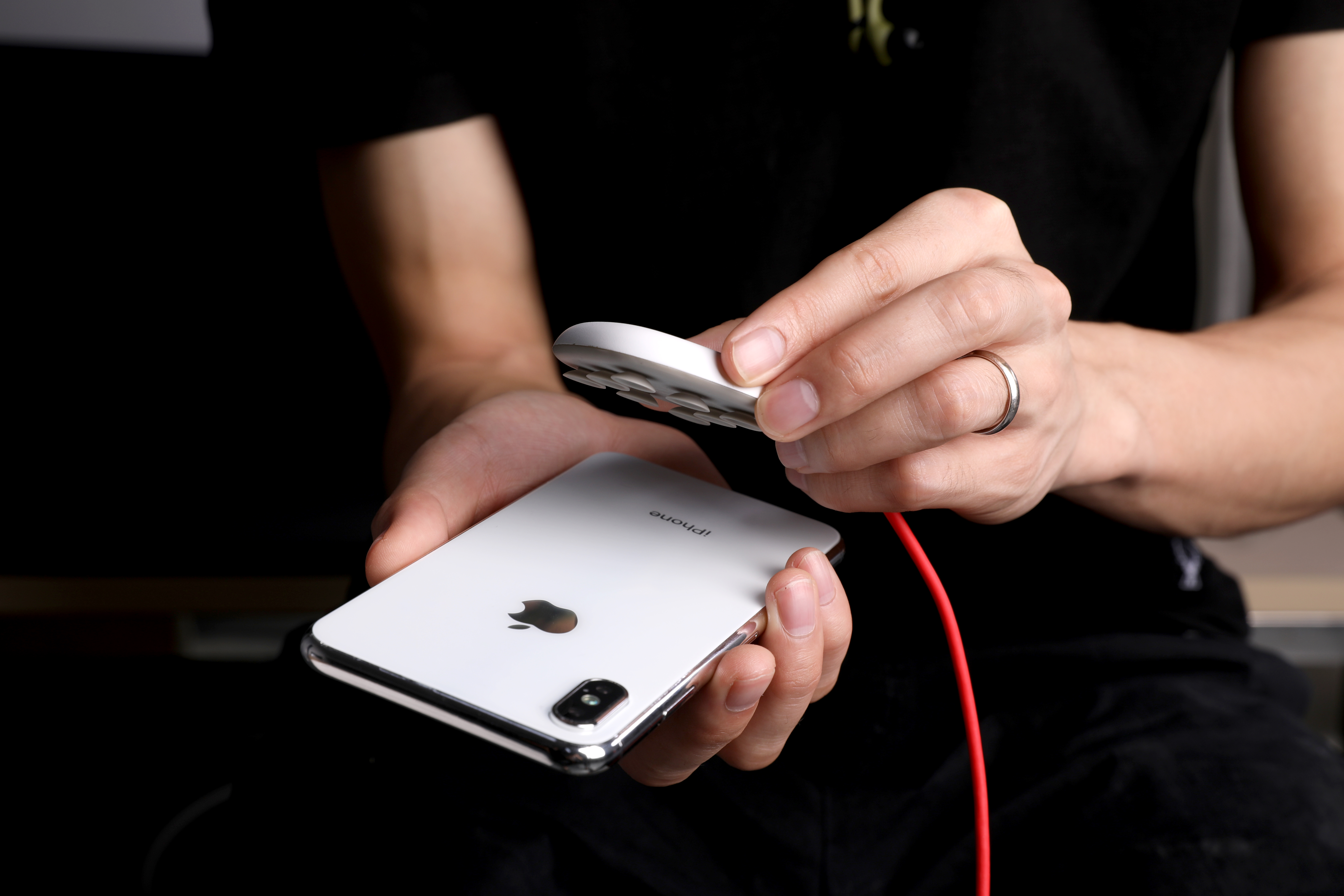

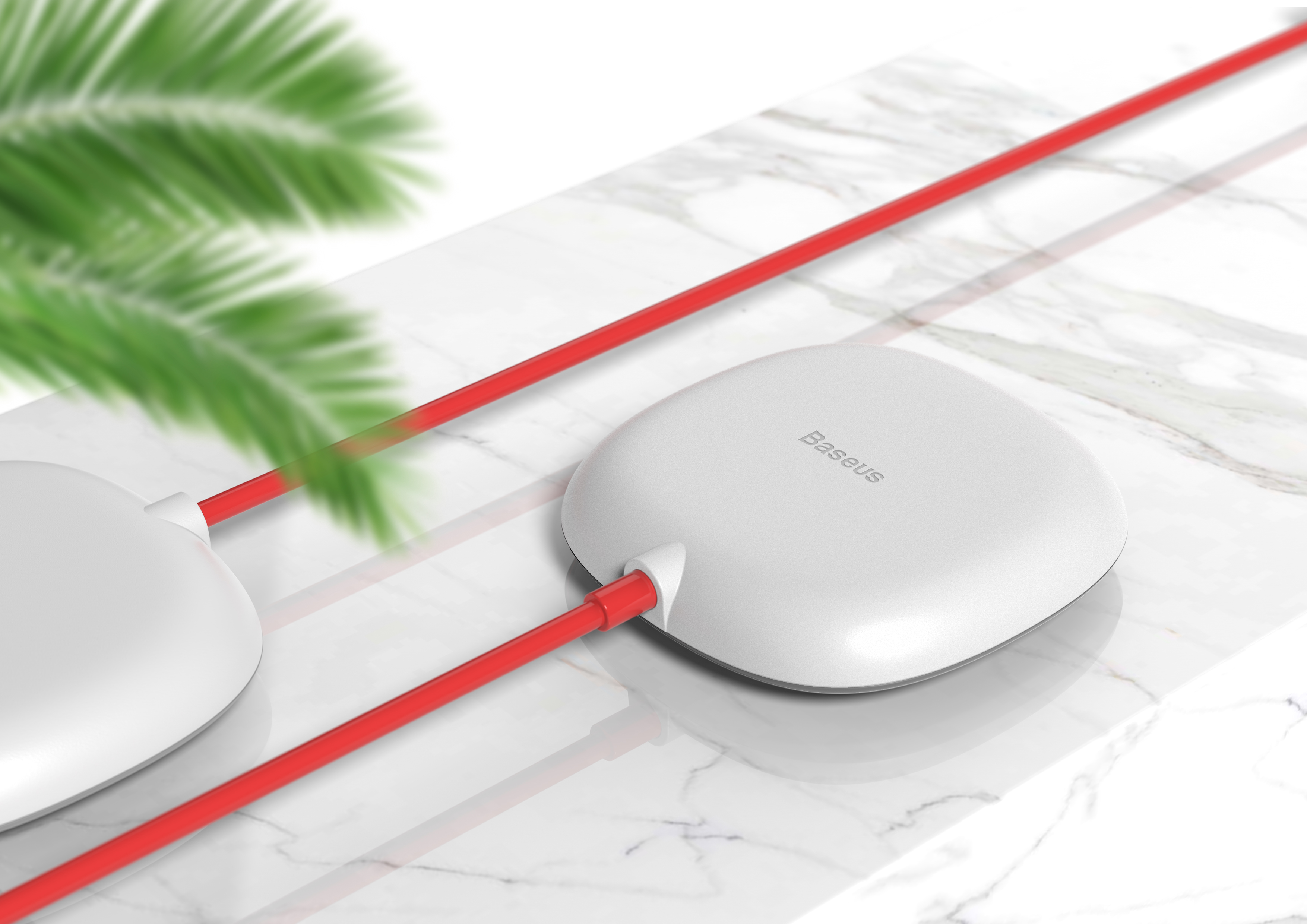

This suction cup wireless charging is a new mode of wireless charging. It mainly solves the positioning problem of wireless charging and the problem that the charging line will block the hand when using the mobile phone and charging. The suction cup is directly attached to the back of the mobile phone. You can adjust to a comfortable angle of use at will.

Add the suction cup function on the basis of the existing wireless charging, and bid farewell to the situation that the mobile phone can only be placed on the desktop during wireless charging in the past. It solves the problems of easy movement and non-charging during wireless charging and blocking hands when charging with data lines.

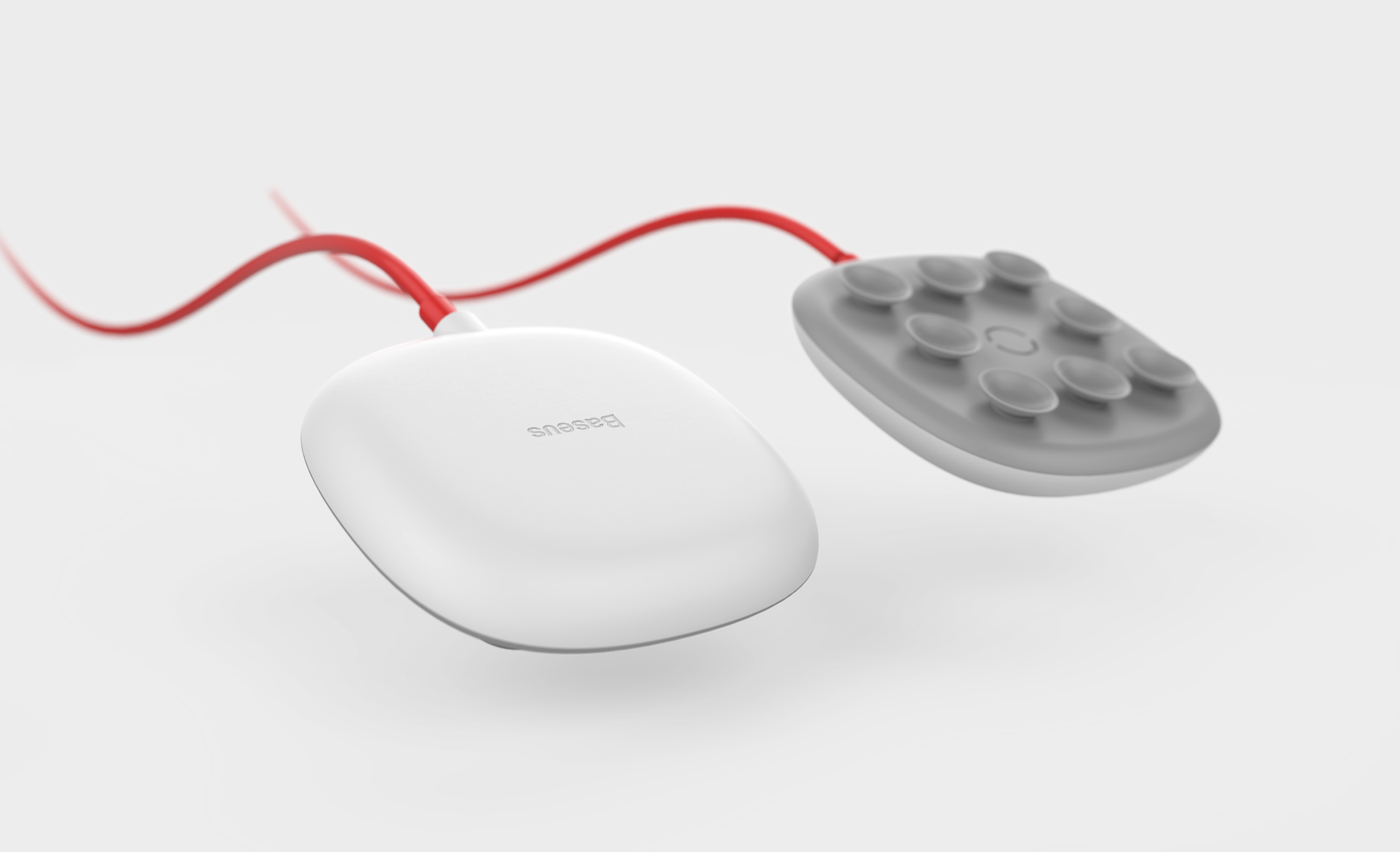

The suction cup and charging method are completely designed. The suction cup achieves the strongest suction and the best weight lifting under the same size products. The suction cup wall is thinner and imported silica gel raw materials are used to ensure that it will not be torn.

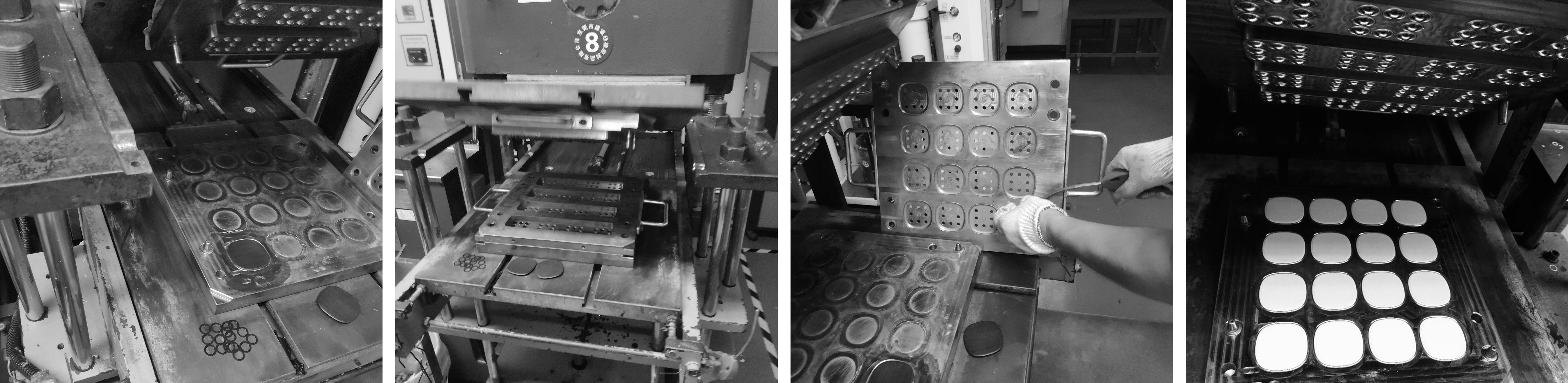

In order to ensure that the products will go to the mold factory many times to solve the problem and communicate during the time of listing, because solving the problem face to face will save a lot of time and improve efficiency.

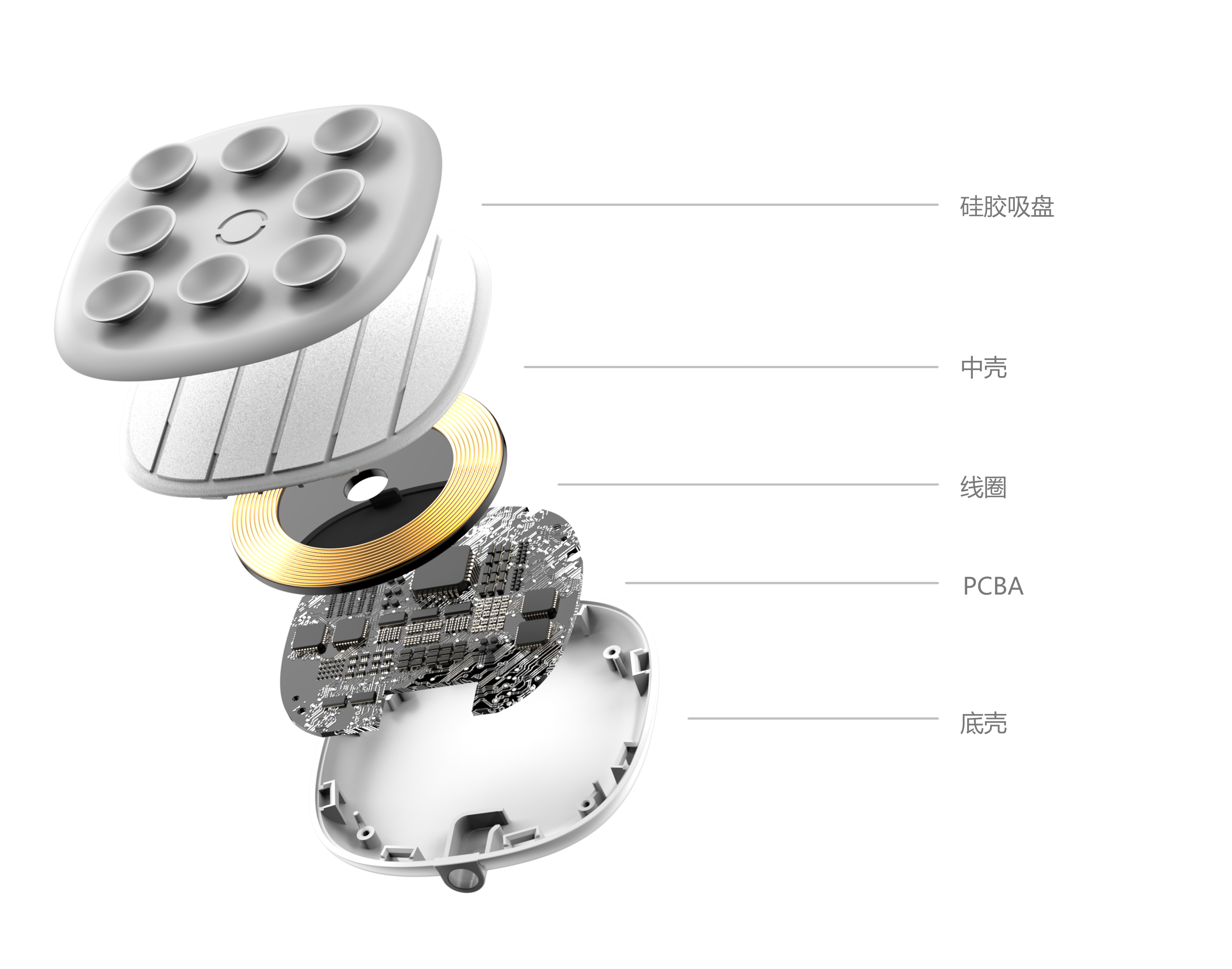

The middle shell and silicone sleeve beer are molded, because the molding temperature is relatively high, high temperature resistant nylon material and low temperature molded silicone raw material are used.

53 98

meng 2024-06-22

Great

183****0923 2019-12-26

Is there any sticky wireless charging treasure on the market?

做产品不如喂猪 2019-09-28

It's great. I like it very much.

Maikebi 2019-08-20

Nice idea!

JohnLam 2019-07-31

Looking back, I found that fortunately I didn't send my own works... my personality would quarrel!!

Ha, ha, ha, ha!!!

Write a comment

Ye-PPP 2019-05-13

If it is changed to a charging treasure, it can be pulled out without connecting when playing games, and it can be put back as a charging stand at ordinary times, which is quite good.

SeanOwner 2019-05-13

In the case of charging treasure, there is already a similar practice on the market.

JohnLam 2019-04-10

Actually!!!! When you spray this work, do you want to see the sales volume of Tmall Jingdong!! After all, this is still quite true! Although the order may be brushed, the data of Tmall Jingdong is very beautiful!

SeanOwner 2019-04-11

Yes, last year's double eleven shipped more than 1w

JohnLam 2019-04-12

I have also done wireless charging. In fact, consumers will not worry about the conversion rate. They know that the convenience of playing games is the first choice, and it is enough to play games!

Get lucky 2019-07-30

Yes, consumers may not care about many of the issues they worry about when designing.

Yes! At this point, I don't like the spraying method with subjective consciousness. When they judge the product standard, they don't research the product behind the back and let the objective data speak. For many products, at the beginning of the design, the data should be displayed in front, and the problems should be selected and the irrelevant ones should be eliminated. And after so long of design, I feel that the integrated design is not a good design, and a product will not be too perfect!

龙门孩子 2019-10-19

Why not buy a charging line with a corner connector? Compared with this wireless charging, it is necessary to connect the charging line when playing games anyway, and it is also necessary to press and unplug when charging at ordinary times. In contrast, the charging line is lighter, cheaper and faster to charge. When I first saw the IF logo, I was almost misled by the authority, but now I occasionally find that these competitions are not well judged. I have also seen a design that can remove the hair from the massage comb and won the prize, but I did not consider that the trouble of putting the cleaning film back according to the comb teeth is more terrible than cleaning the hair. In fact, the hair can be cleaned quickly with another single comb. In addition, as far as I know, the convenient place for wireless charging now is only that it can be put down and picked up at will when charging. However, this design removes all the only advantages. After checking Taobao, it is not very popular to sell more than 100 per month in a single store, and users will soon find it inconvenient to use.

JohnLam 2019-10-28

because when I play games, there is a handle behind it that is too uncomfortable!!! That's the head of the data cable!

龙门孩子 2019-10-30

Well, this is personal subjective consciousness. But now look at this work, I think the heat generated when playing games will cause a small amount of air inside the suction cup to expand, resulting in reduced suction, while charging while playing games may fall off. In addition, even if it is charged flat, it is possible that the mobile phone is farther away from wireless charging and the charging efficiency is lower due to air expansion. According to my impression of taking a small wireless charging test last year, it is probably impossible to charge the mobile phone at a distance of 3mm with shell materials. At present, wireless charging cannot be achieved without heating, and the problem of air expansion cannot be avoided.

Or you can buy one and try to see if this problem will arise. What may be more difficult to accept is that there is no full charge for one night.

JohnLam 2019-10-30

There are indeed many on the market with only 5W, but in fact it is less than 4W, so it is possible to be dissatisfied all night! However, Beisi is 7.5W, which should be good. I don't know if there will be any problems after upgrading to IOS13!

龙门孩子 2019-11-02

The electronic side does not dare to make a conclusion. It is estimated that distance has the greatest impact. This sentence is followed by the previous analysis. After the temperature rises, it may also cause the suction cup to deform and suck in air, causing it to fall off, or increase the charging distance. If wireless charging is necessary, other fixing methods can be considered, and suction cups are not necessary.

孙凡 2018-10-29

This kind of suction disc idea is quite good, that is, it will cause the charging efficiency to become very slow. If the mobile phone is separated from the coil too far, the closer the coil is to the mobile phone, the faster the charging will be.

SeanOwner 2018-11-01

Yes, there may be these problems. Our next generation will improve

Lemon tree 2018-11-05

It can be solved with that kind of "traceless glue"

牧春的寒风 2018-10-29

A good show!

Thank you

Have you○ 2018-10-25

Excellent, awesome!

饭大头 2018-10-25

Would you like to ask whether the structure is the most important? When designing a thing? Does the design change with the structure?

喜物-大海 2020-06-08

The necessary structure will affect the appearance, and you can also think of a suitable structure for appearance or function. There is also cost, in fact, industrial design is a comprehensive consideration process.

不喝阔乐 2018-10-25

What is the meaning of emmmm??

I have this kind of demand very urgently when using mobile games. This product should solve some people's pain points

It is true that some people... have you ever thought that playing games on mobile phones takes a long life during charging?

However, it is true that I feel a little chicken ribs.

_土川 2019-03-16

There is nothing to say about this, too many people are charging electricity while playing games.

不喝阔乐 2019-04-18

I tried it with my friend's, but it was not bad, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha

Xinz-c 2018-10-24

If the wireless charging speed has not been improved, it is better to use wire charging.

小桥子上坎の大龙 2018-10-23

To be honest, this involves the design itself, is it for the design and practical? Another look is really beautiful, thinking of octopus ha ha I want to find a place to beer string, squid beard. Another look makes me a little messy... I took a look at my own line filling. It is purely personal humble opinion, no meaning of spraying, the author is highly forgiven!

品创工业设计 2018-10-23

I specially registered an account to spit out this product, WTF, and such things were actually mass produced. Party A's boss had a brain bubble. I might as well use my own charging cable directly for this design.

SeanOwner 2018-10-23

Ha, ha, ha, it's really an honor to work hard for you.

rm 2018-10-25

Cable horizontal screen playing games is uncomfortable! Ha ha ha!

Different people will bring different feelings to users and should not be generalized.
