With the continuous progress of medical level, extracorporeal shock wave is more and more widely used in the field of orthopedics. Orthopedic shock wave therapy instrument is a new type of treatment between conservative treatment and surgical treatment. It is very effective in the treatment of musculoskeletal. It is often used for frozen shoulder, tennis elbow, iliac tendinitis and other diseases. It has the characteristics of strong professionalism, high safety factor, less injury and fewer complications.
In the design process of the orthopedic shock wave treatment instrument, after sufficient market research and brainstorming to determine the general design idea, draw a sketch and then perform three-dimensional modeling, and carry out design innovation from the aspects of appearance design, color matching, material selection, etc., giving the product Unique charm.

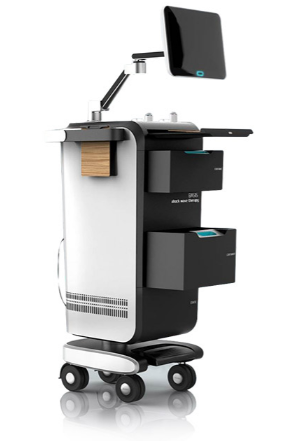

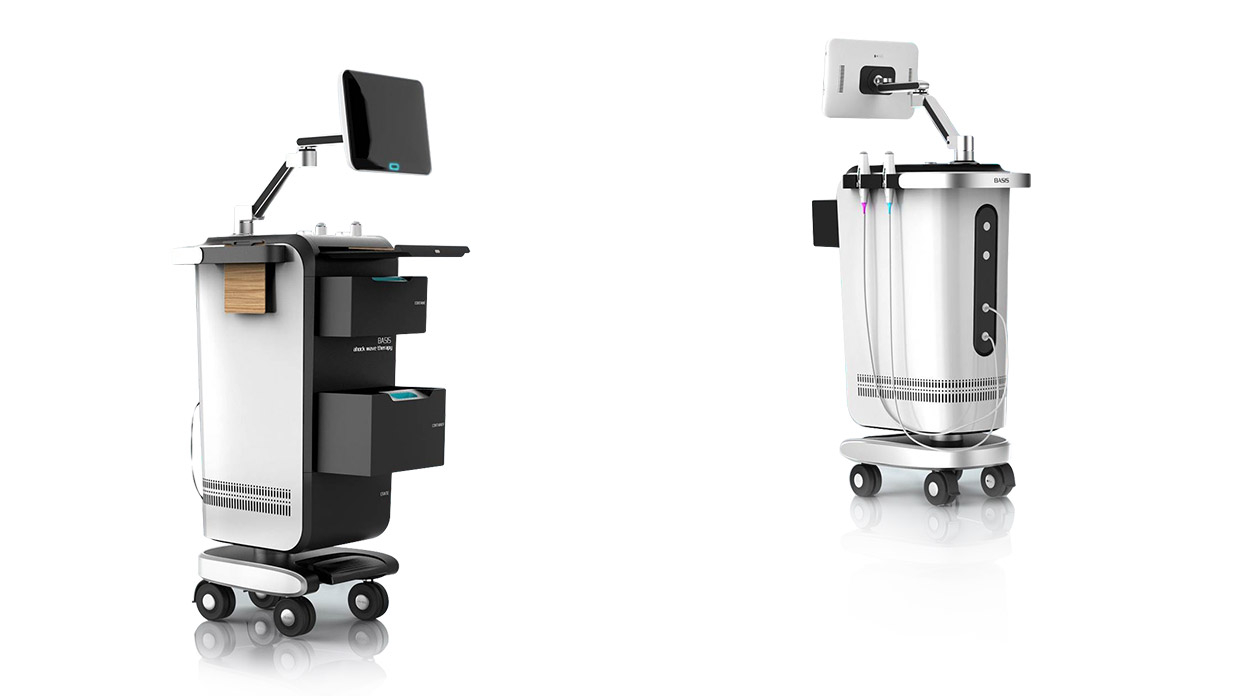

The appearance design of the orthopedic shock wave therapy instrument is simple, with curve design and simple black and white colors matching each other. In the design process, attention is paid to detail treatment, and the surface process is exquisite. Reasonable material selection, easy post-processing, and floor production.

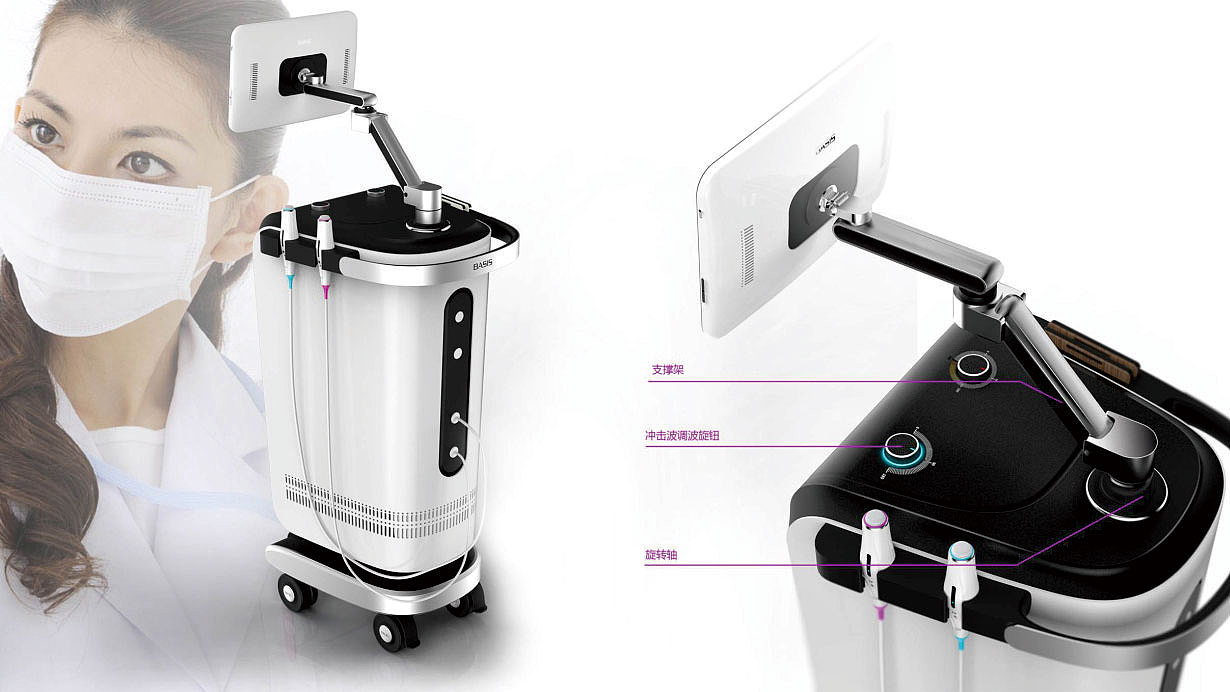

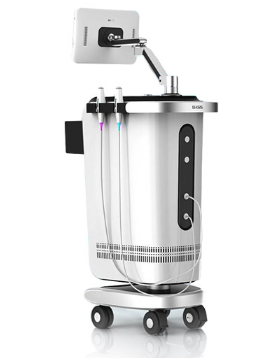

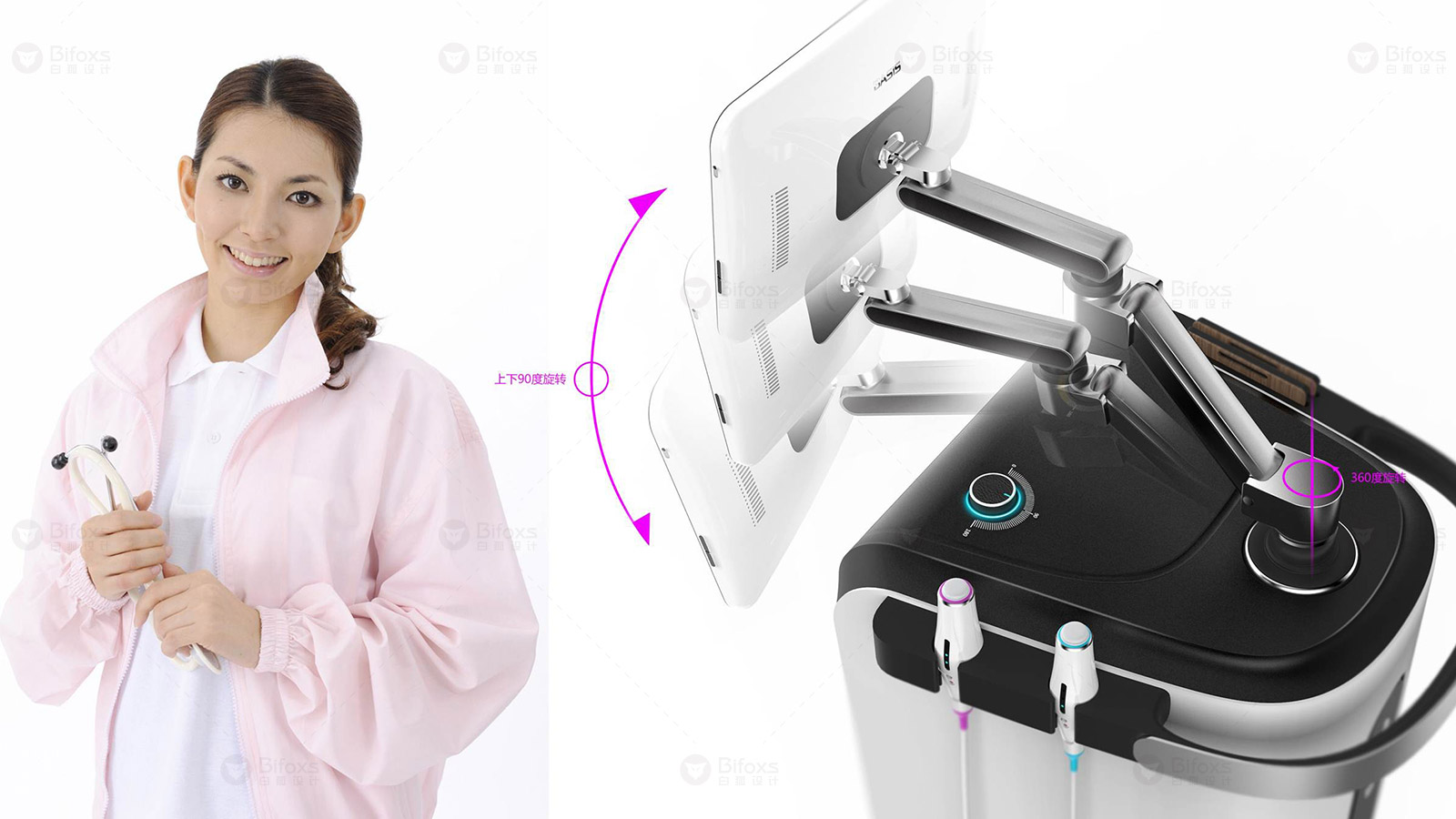

The body of the orthopedic shock wave treatment instrument is compact, mainly composed of three parts: head, body, and base. The head is composed of a liquid crystal display and a bracket. The liquid crystal display can be turned up and down 90 degrees, and there is a rotating shaft at the junction of the bracket and the body. It can rotate freely at 360 degrees, which is very flexible; the body design is ingenious, the internal structure design is reasonable, the front has a working, it is convenient to place the shock wave probe to improve the practicability; the base can adjust the height, and the appropriate height can be adjusted according to its own usage habits to improve the comfort of use; the base has a pulley design, which has the functions of braking and fixing the direction, and is very convenient to move.
