The main safety drone MARVEL

2019-09-28 Digital Intelligence 3714 7 10

Sam哥好誒~

China · Digital Intelligence

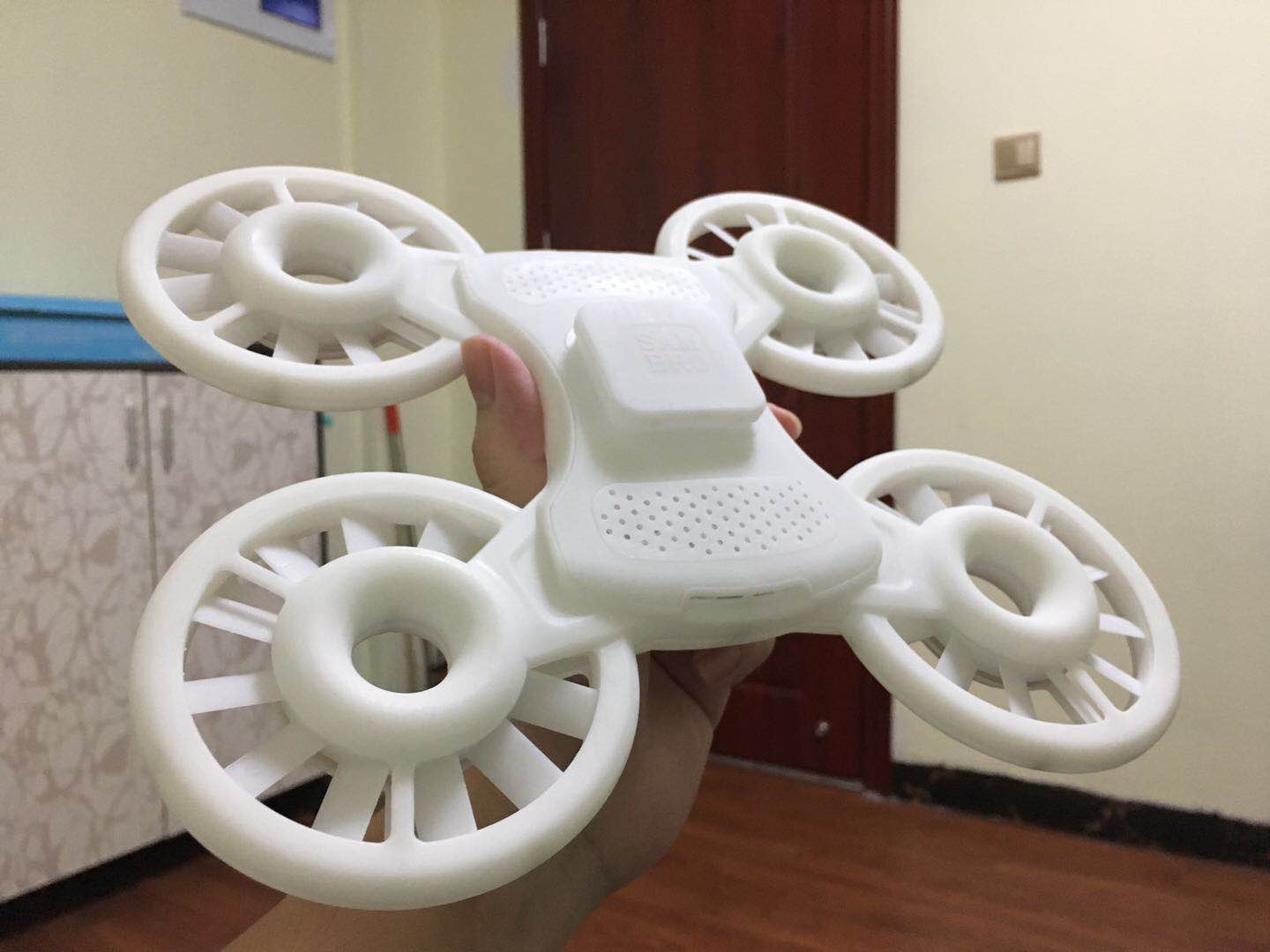

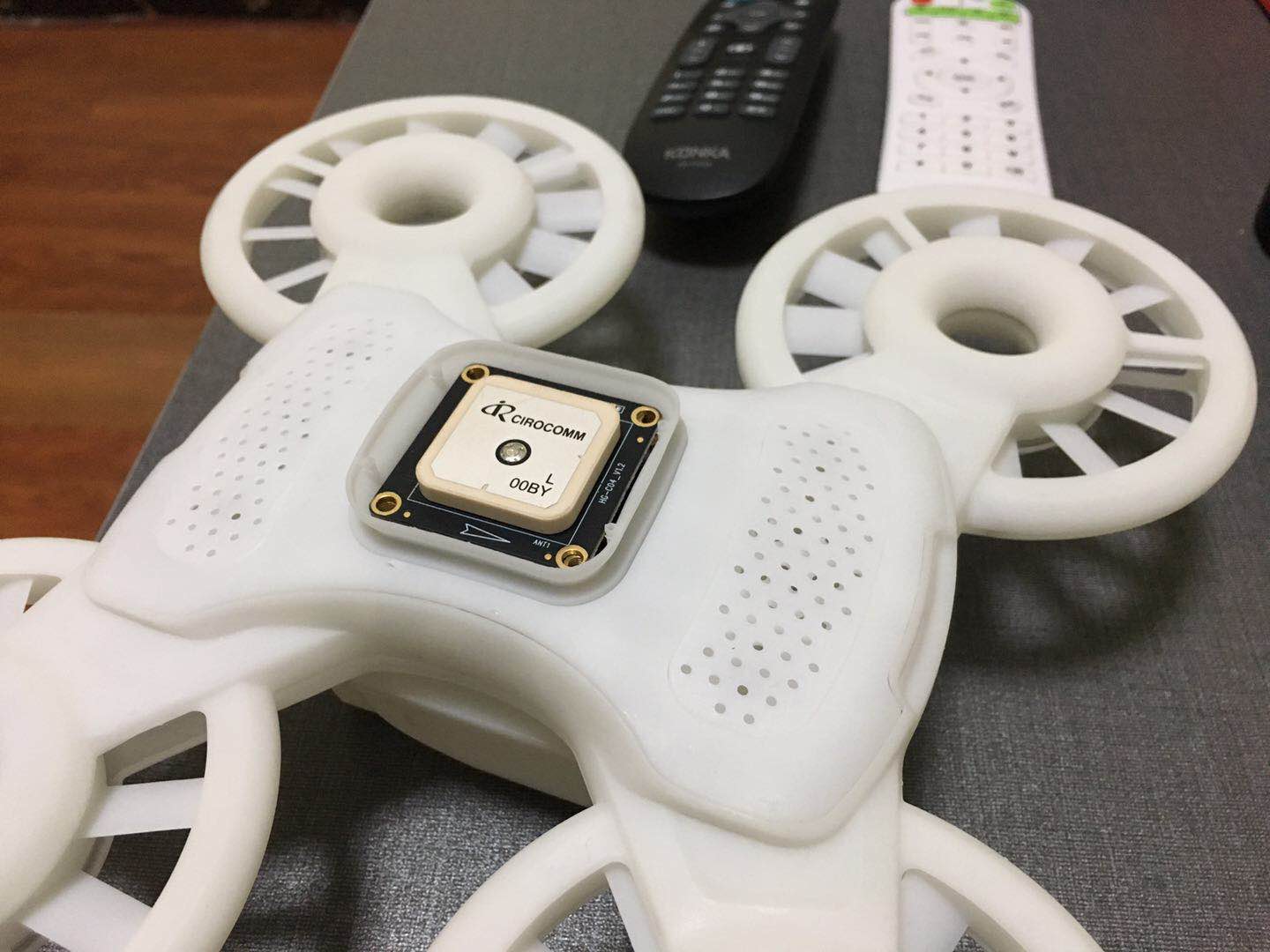

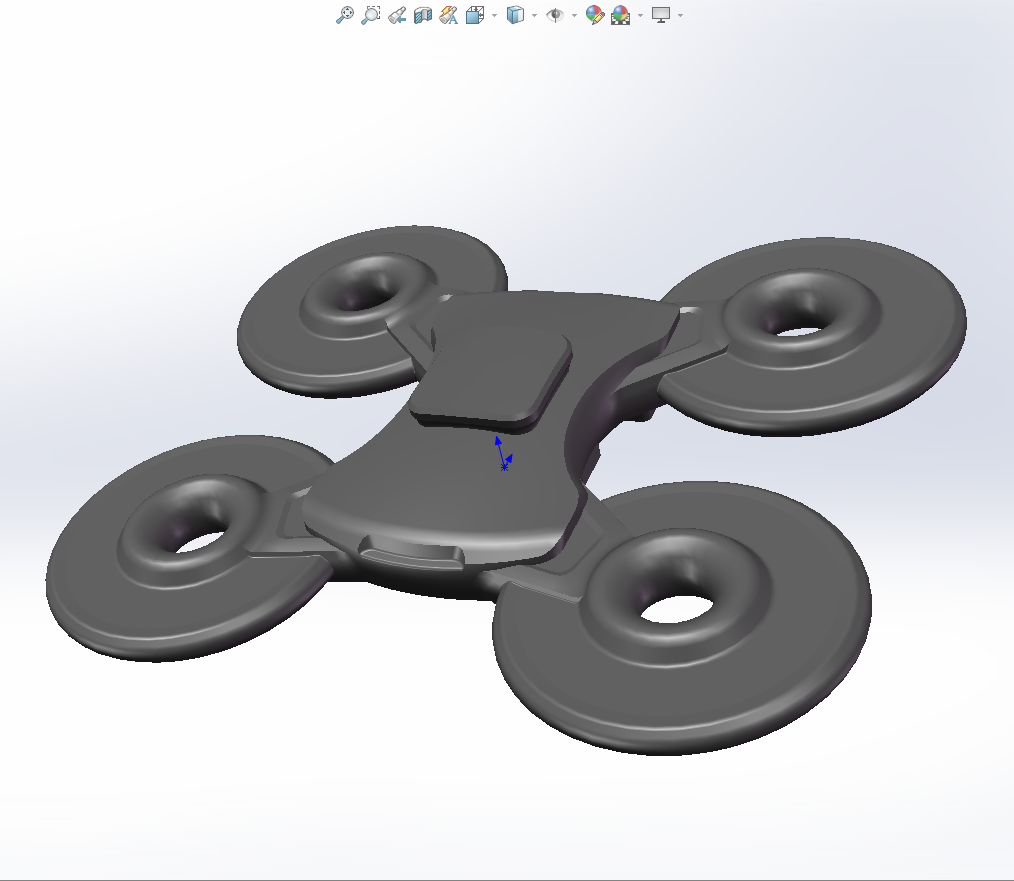

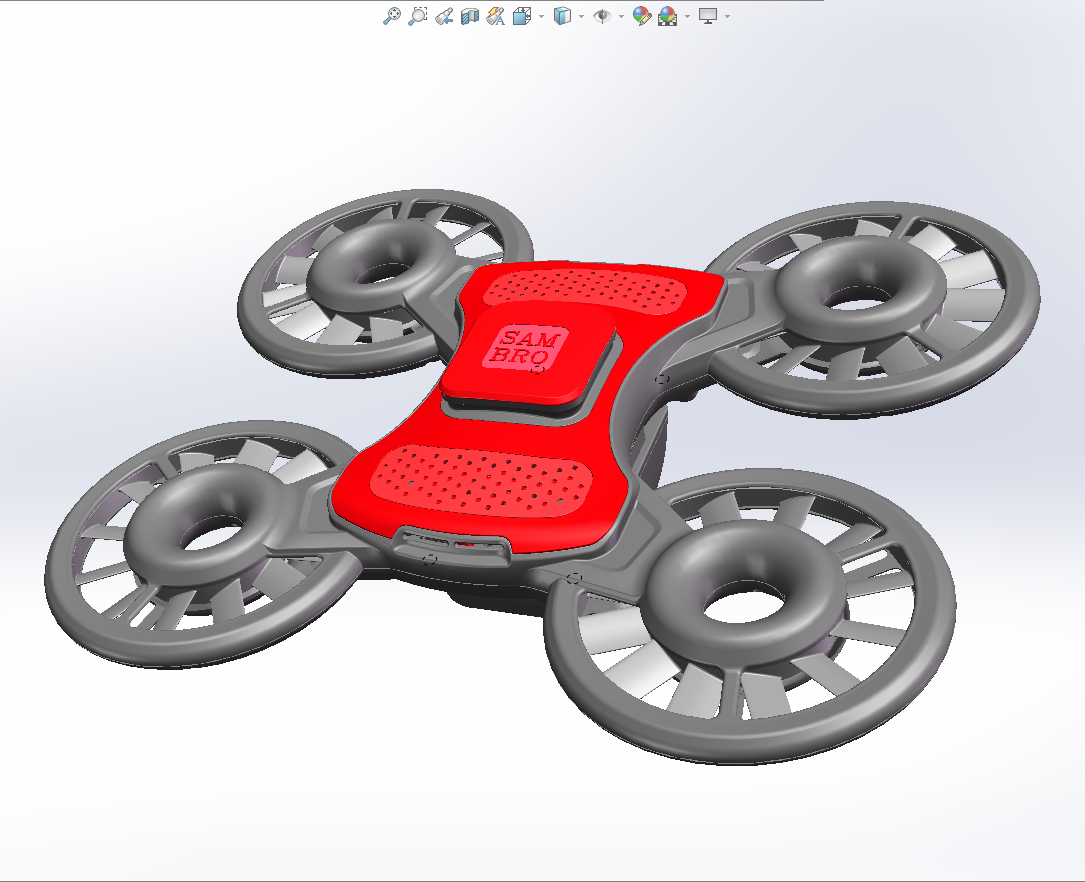

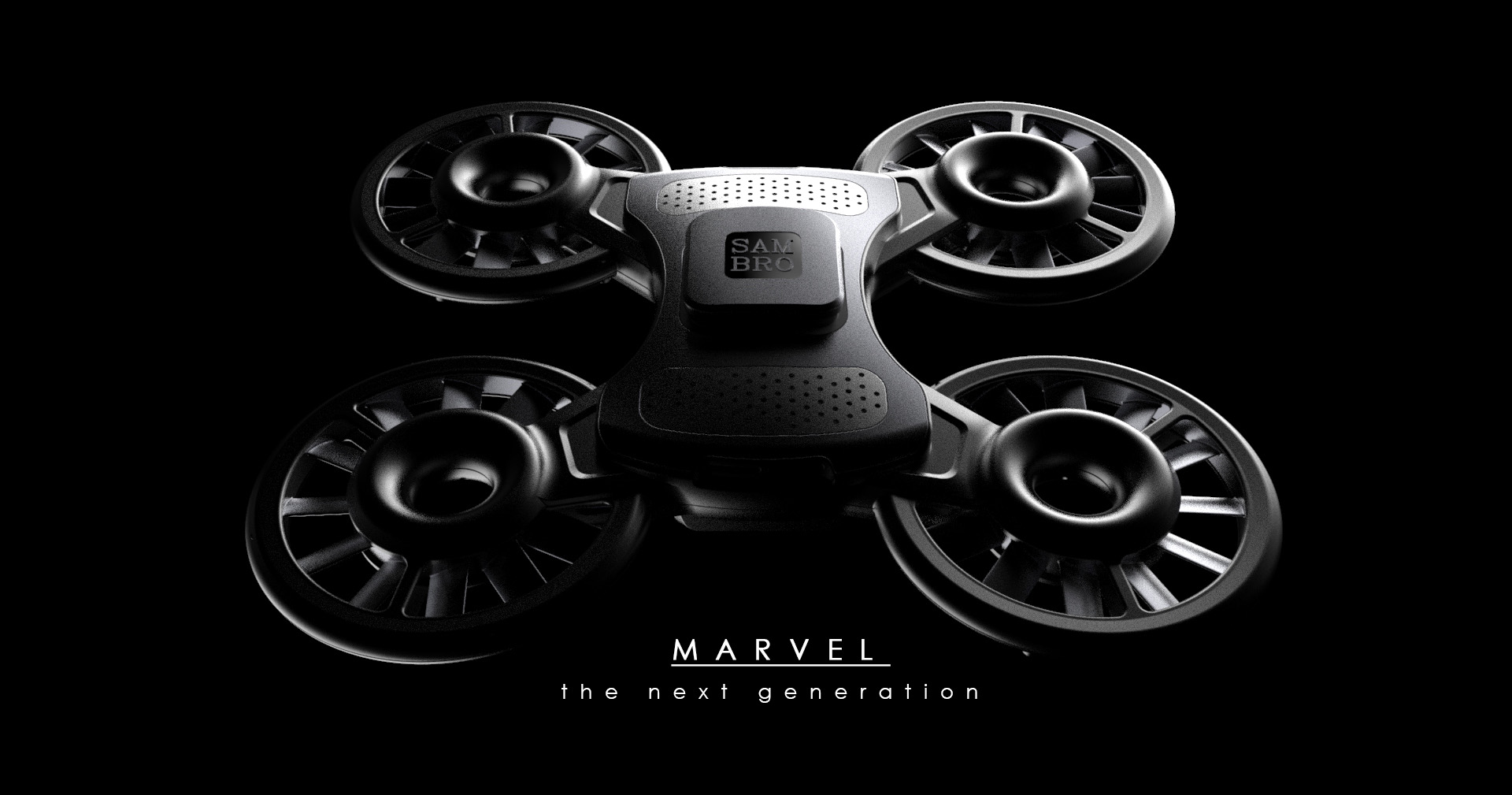

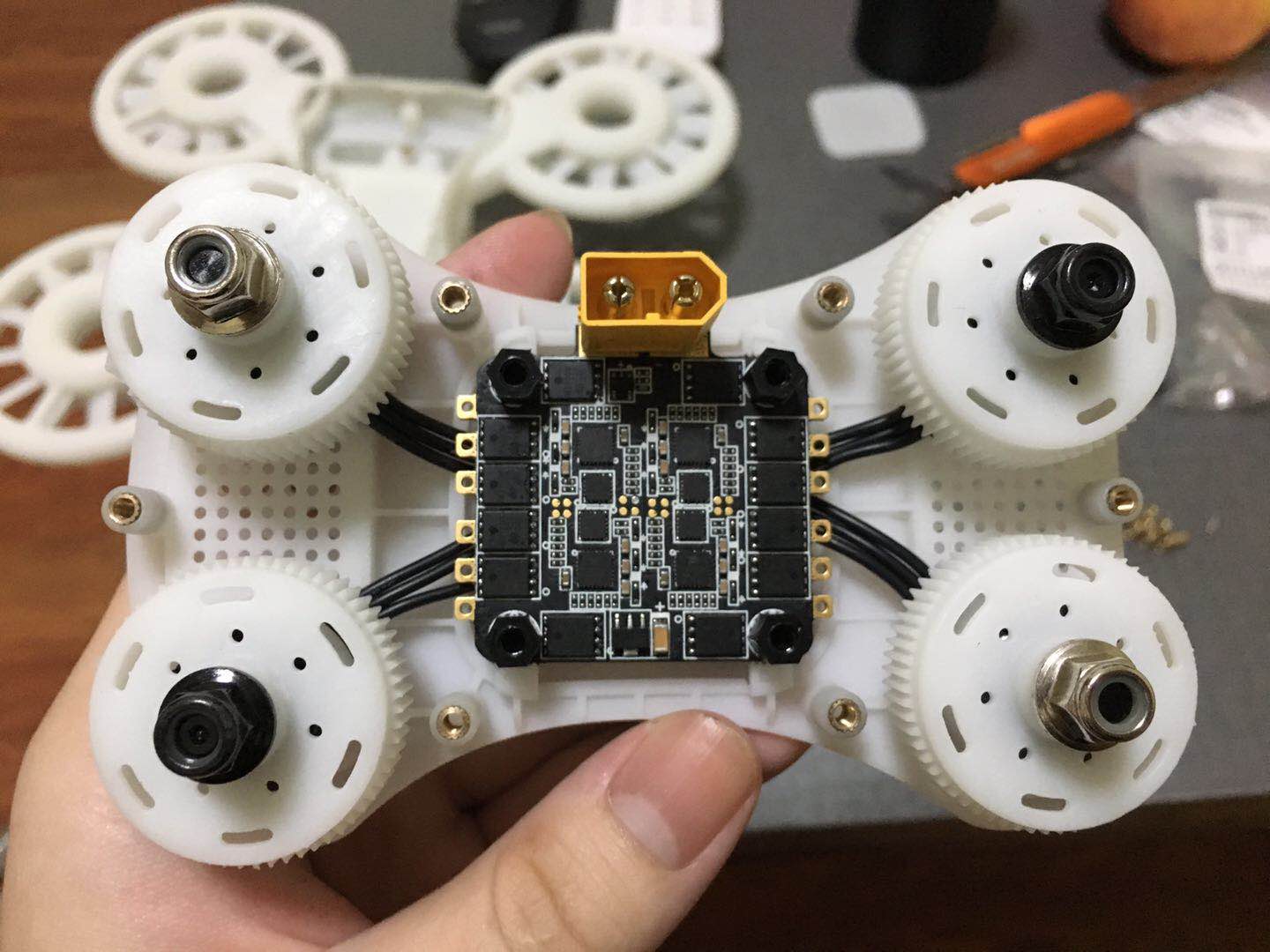

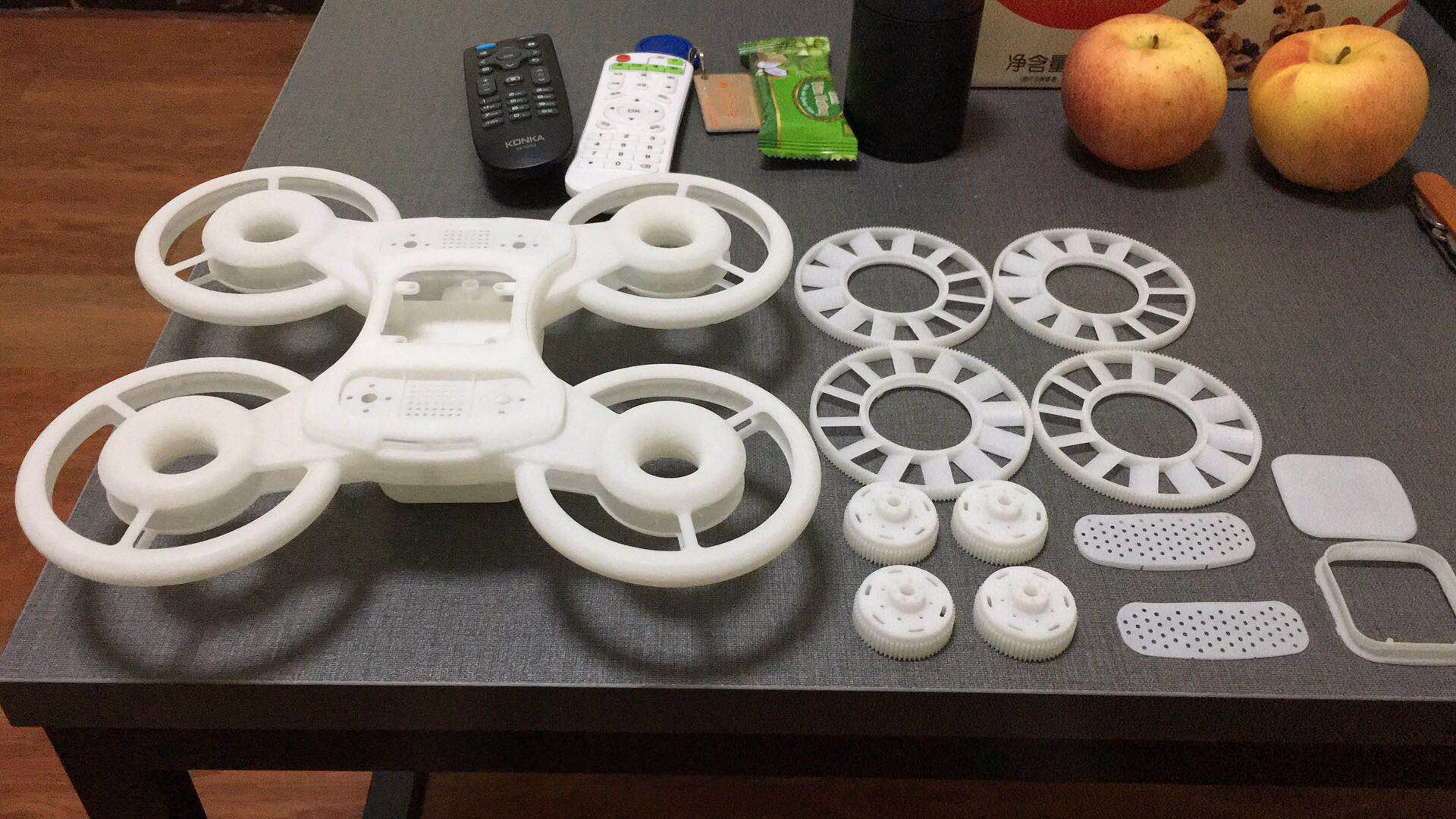

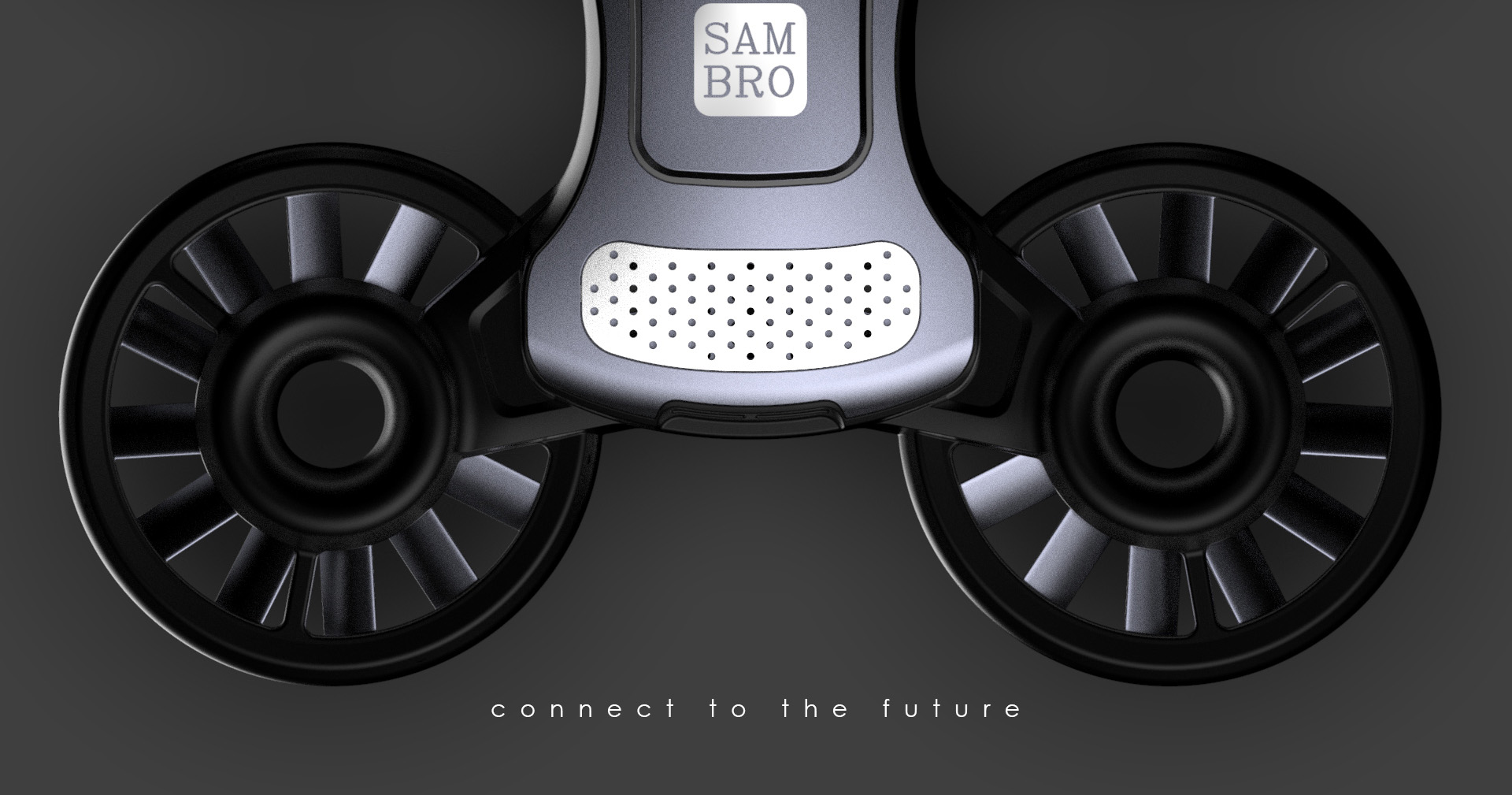

I am a non-industrial design practitioner, but the problem of the exposed UAV blades has been bothering me for a long time. Can I make some shape changes and ensure safety without wrapping the entire UAV blades? Then I pondered over making this work last year ~ Now the consumer UAV industry is in decline, and I wonder if it is better to make everyone happy or not.

UAV design，
UAV design，
UAV design，
UAV design，
UAV design，
UAV design，
UAV design，
UAV design，
10 27
Users’ other works View More

Wood art, DIY an exclusive truck model
Comment

Comment Board （7）

皇霸霸🧩 2019-10-02
Reply

It's not that increasing the number of blades can improve the power. You can't fly.

Sam哥好誒~Owner 2019-10-02
Reply
In fact, before doing this work, there is a special test module to test how much thrust can be generated. According to the results, it should be able to fly, but it is very difficult and inefficient. I also understand the truth that the three-leaf paddle is less efficient than the two-leaf paddle. To be honest, it does require a lot of analysis work, but I am not an expert in this field. As a DIY enthusiast, later, I realized that the problem of landing stopped and continued to deepen. In fact, at first I wanted to get a leafless drone.
无 2021-08-11
Reply
Did your sample finally fly or turn around?
Write a comment
AABB 2019-09-29
Reply

Is there no protective shell for the current UAV leaf paddle?

Sam哥好誒~Owner 2019-09-29
Reply
Yes, but there is still a greater risk.
Write a comment
天然呆 2019-09-29
Reply

Will the actual package affect the power or is it a purely appearance problem?

Sam哥好誒~Owner 2019-09-29
Reply
The aerodynamic efficiency of the package is low. If the original endurance can reach more than 20 minutes, the endurance of the full package paddle guard is only more than ten minutes left. In fact, the efficiency of my work is also low. Due to the size limitation, I have to increase the number of paddle blades to improve the power.
Write a comment
