Name of Project: Physiotherapy Instrument Industrial Design Appearance Design
Cooperation content: design analysis | appearance design | structural design | prototype production | accompanying running assistance
As a professional equipment for rehabilitation physiotherapy scene, this physiotherapy instrument is designed with "clinical practicability and patient comfort" as the core. Through systematic design language, refined detail processing and humanized ergonomic optimization, a product experience with both professional medical sense and humanistic care is constructed, which makes rehabilitation treatment efficient and rigorous, and can make patients feel the designed temperature.
1. Design Orientation: Dual Bearing of Medical Professional Attribute and Rehabilitation Experience
The core positioning of this physiotherapy instrument is "professional medical equipment rehabilitation care carrier". It should not only meet the functional requirements of clinical physiotherapy, but also become an interactive medium connecting medical staff and patients. Starting from the "whole process of rehabilitation scene", the design should not only allow medical staff to operate conveniently and accurately control treatment parameters, but also keep patients comfortable during long-term treatment. At the same time, the professional recognition of the brand should be strengthened through "design continuity"-this positioning determines that its design logic is not a single function stack, but a deep integration of medical professional attributes and humanistic care.
2. Design Language: The Transference of Medical Professionalism by the Aesthetics of Suppression
In the context of medical equipment design, "restraint" is the core language to convey a sense of professionalism. The design language of this physiotherapy instrument is the embodiment of restraint aesthetics:
Color system: with pure white as the base, light gray fabric bed surface and metal silver bracket, low saturation tone not only conforms to the "calm and reassuring" atmosphere of the medical scene, but also avoids the stimulation of high color on the patient's mood; The light blue indicator light on the side of the handpiece serves as a functional prompt, which not only does not destroy the overall visual unity, but also enables medical personnel to quickly identify the equipment status.
Morphological language: the bed body adopts a smooth linear frame, with rounded corners to weaken the sense of industry; the treatment head is mainly in a simple cylindrical shape, connected with the bed body through a rotatable arm, and the overall line is neat but soft, which not only conveys the professional rigor of medical equipment, but also weakens the cold mechanical sense.
Material logic: the bed surface is made of breathable and skin-friendly fabric, giving consideration to both support and comfort. The head is made of medical grade ABS plastic, which is wear-resistant and easy to clean. The bracket is made of stainless steel, which not only ensures structural stability, but also strengthens professional attributes through metal texture. The combination of different materials enables the equipment to achieve a balance between durability and experience.
3. design details: function-oriented precision landing
Detail handling is the key to the balance between "professional" and "experience" of this physiotherapy machine:

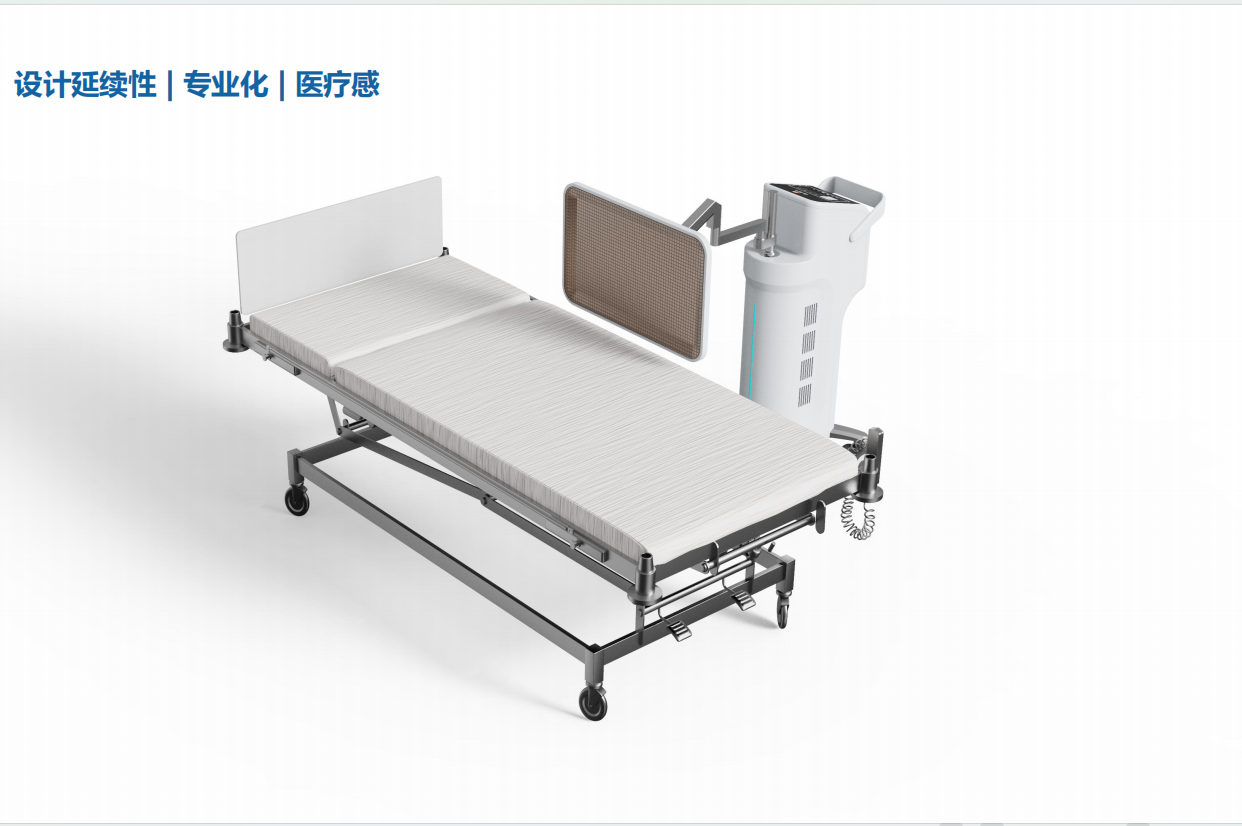

Modular design of the bed body: the bed surface adopts a block structure, and the backrest area can be independently lifted to meet the needs of patients in different physiotherapy postures such as sitting and lying, half lying, etc. At the same time, the texture design of the fabric surface enhances the air permeability, thus avoiding the sultry feeling of patients lying for a long time.

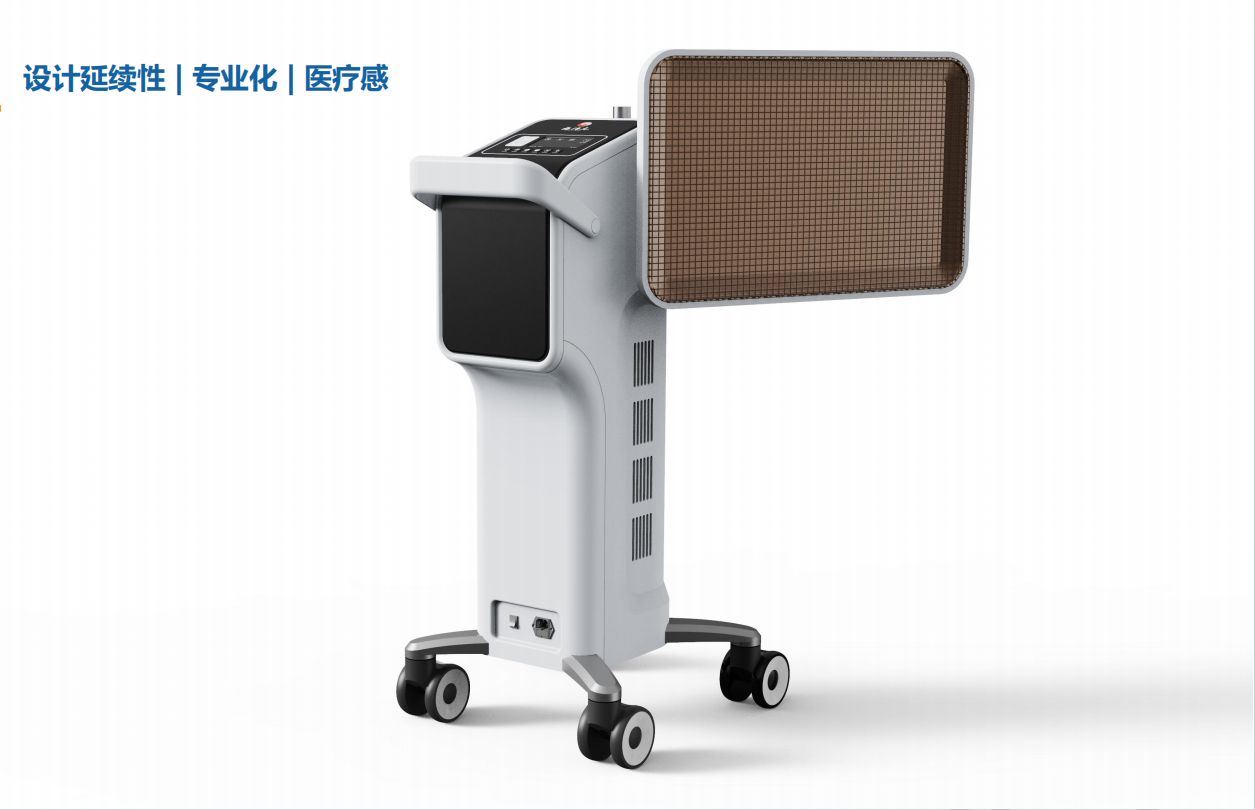

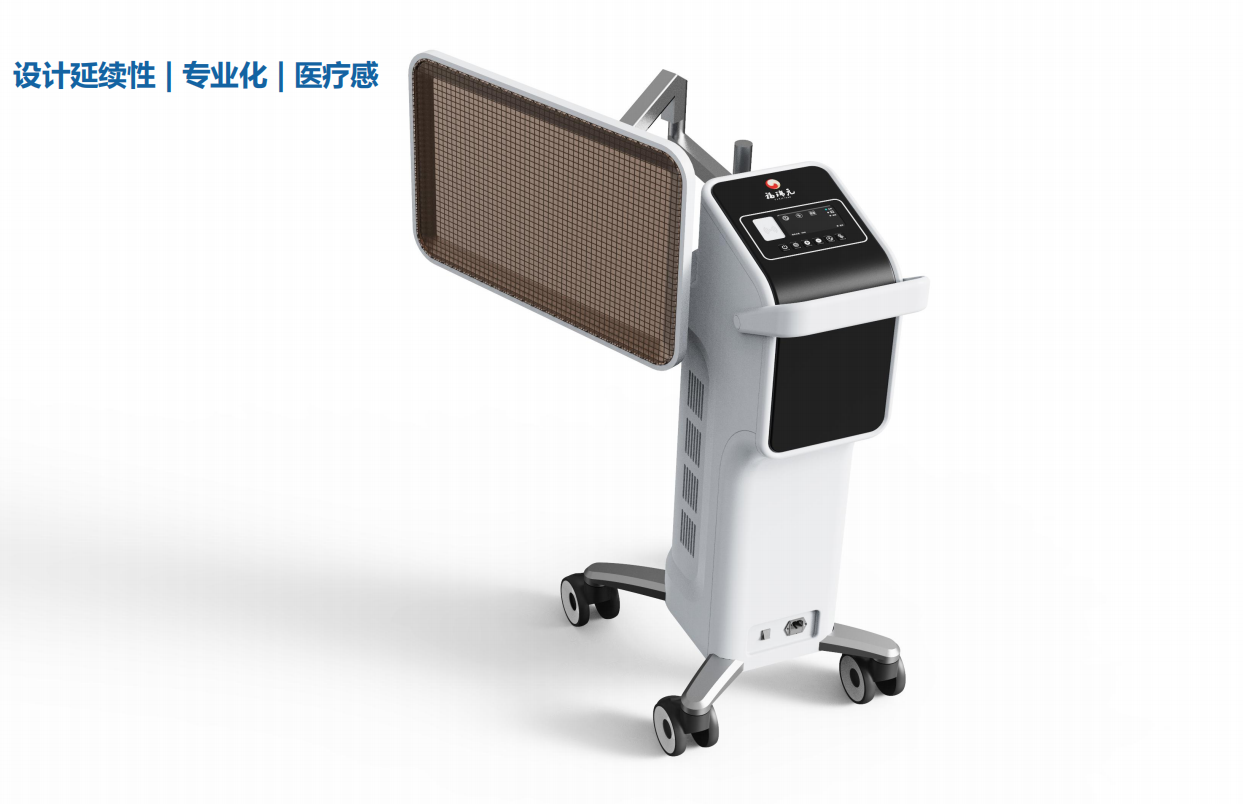

Flexible design of the treatment handpiece: the handpiece is connected by a rotatable cantilever, supports multi-angle adjustment, can accurately align different treatment parts such as shoulder, neck, waist and back, etc., and can complete multi-area physical therapy without frequent body movement of patients, thus improving treatment efficiency.
Mobile and safety details: the bottom of the bed is equipped with casters with brakes, so that medical staff can easily push the equipment to realize ward transfer, and the stability of treatment can be ensured after the brakes are locked. The rounded corners of the edge of the bed and the anti-pinch design of the cantilever of the machine head further reduce the operation risks of patients and medical staff.
Heat dissipation and maintenance details: the grille ventilation hole design on the fuselage ensures the heat dissipation efficiency of the equipment for long-term operation; The detachable bed surface fabric is convenient for postoperative cleaning and replacement, which meets the requirements of aseptic management in medical scenarios.
4. Ergonomics: Optimizing the Experience of Adapting Both Doctors and Patients
The ergonomic design of this physiotherapy instrument takes into account the operating efficiency of medical staff and the rehabilitation experience of patients:
Medical operation adaptation: the bed body supports height adjustment, adapts to the standing operation of medical personnel of different heights, and can complete the head positioning and parameter setting without bending down; The damping design of the cantilever makes the head adjustment smoother and avoids the positioning deviation caused by excessive force.
Optimization of patient experience: the width and length of the bed surface can be ergonomically calculated to adapt to patients of different sizes and avoid cramped feeling when lying down; The adjustment range of the backrest angle conforms to the human spine curve, reducing the fatigue feeling of keeping the same posture for a long time. The softness and support of the fabric bed surface are balanced, making it easier for patients to relax during treatment.
Safety interaction design: The caster brake adopts a pedaling design, and the medical staff can complete the locking without bending down; the low noise design during the operation of the equipment reduces the interference to the patient and further improves the rehabilitation experience.
From the fabric texture of the bed surface to the cantilever adjustment of the handpiece, this physiotherapy instrument is always designed around the "real needs of both doctors and patients. It conveys professionalism with restrained design language, lands functional requirements with precise details, optimizes experience with humanized ergonomics, and finally realizes the symbiosis of "medical professional attribute" and "humanistic care", which provides a practical paradigm for the design of rehabilitation physiotherapy equipment. Sogo Design: www.soogot.com
