Soko Design... Ten years of focus on medical health the only track.
Partner Client: Weidu Medical
Project Name: Ultrasonic Knife Handle Appearance Design (Scheme D) and Summary
Cooperation content: design analysis | appearance design | structural design | prototype production | accompanying running assistance

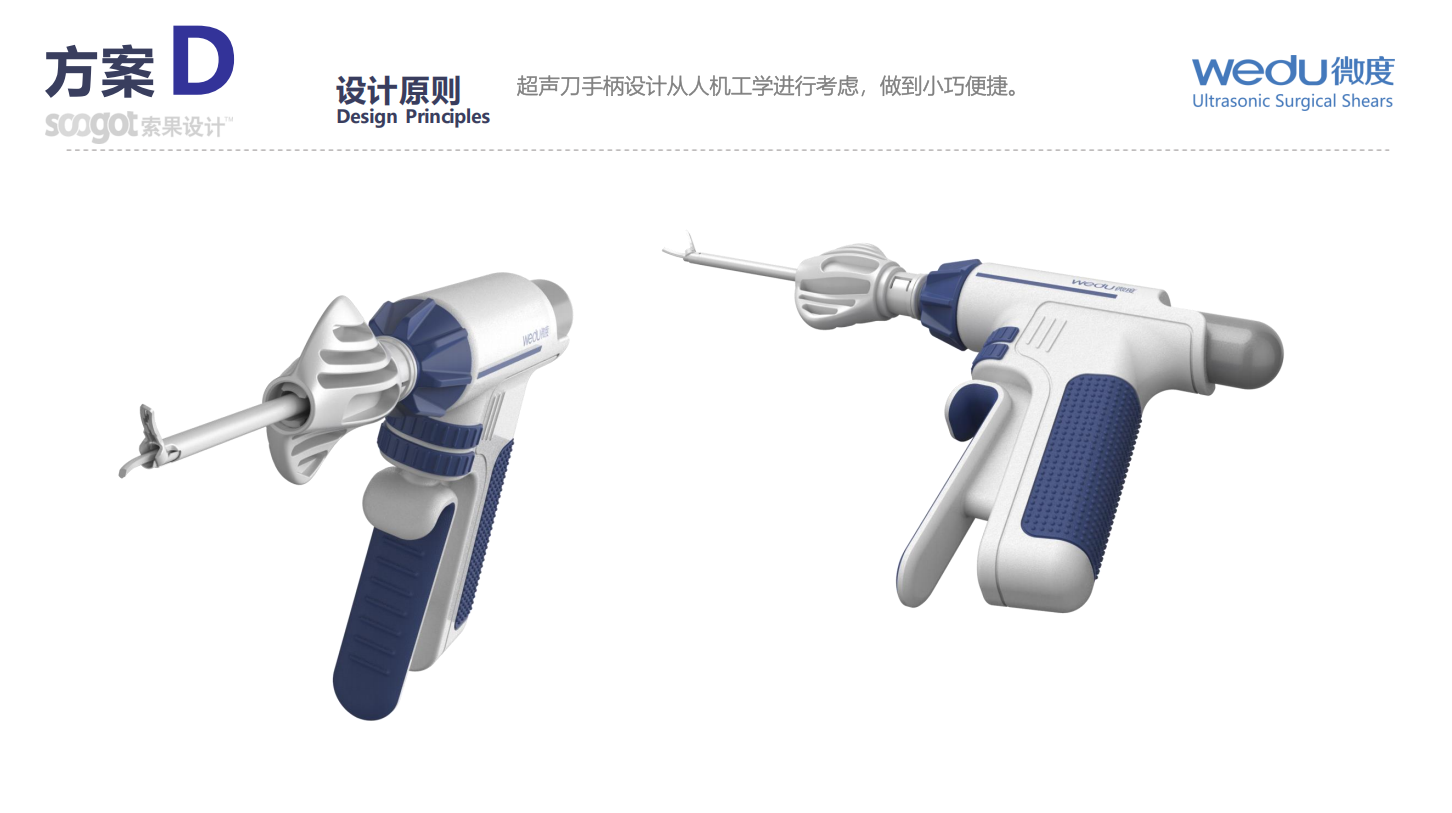

1. Scheme D Analysis of Depth Design of Ultrasound Knife Handle
1. Design orientation and core principles
Scheme D is an ultrasonic scalpel handle design for the "wedu micro degree" brand. The core design principle is to take the machine engineering as the core to realize the small and convenient products. The goal is to adapt to the minimally invasive surgery scene, meet the needs of surgeons for long-term and high-precision operation, and strengthen the brand's professional medical science and technology image.
2. Design Language Analysis
Scheme D adopts the design language of "professional medical style modern industrial sense", and the overall style is unified and highly recognizable:
Modeling language: it is mainly based on hard lines combined with straight lines and large rounded corners. The gun-style modeling conforms to the classic cognition of medical surgical instruments. At the same time, it weakens the mechanical feeling through smooth curved surface transition, giving consideration to both professionalism and holding comfort.
Color system: the classic medical color matching of white and dark blue is adopted. The white body conveys clean and safe medical attributes. Dark blue is used as embellishment color for anti-skid area, function knob and brand logo, which not only strengthens the visual level, but also highlights the operation area through high contrast, which conforms to the color specification of medical products.
Brand language: the front of the fuselage clearly marked "wedu micro" brand name and English "Ultrasonic Surgical Shears", color and brand vision system unity, strengthen brand recognition, while maintaining the simplicity of medical products, no redundant decoration.
3. Dismantling of key design details

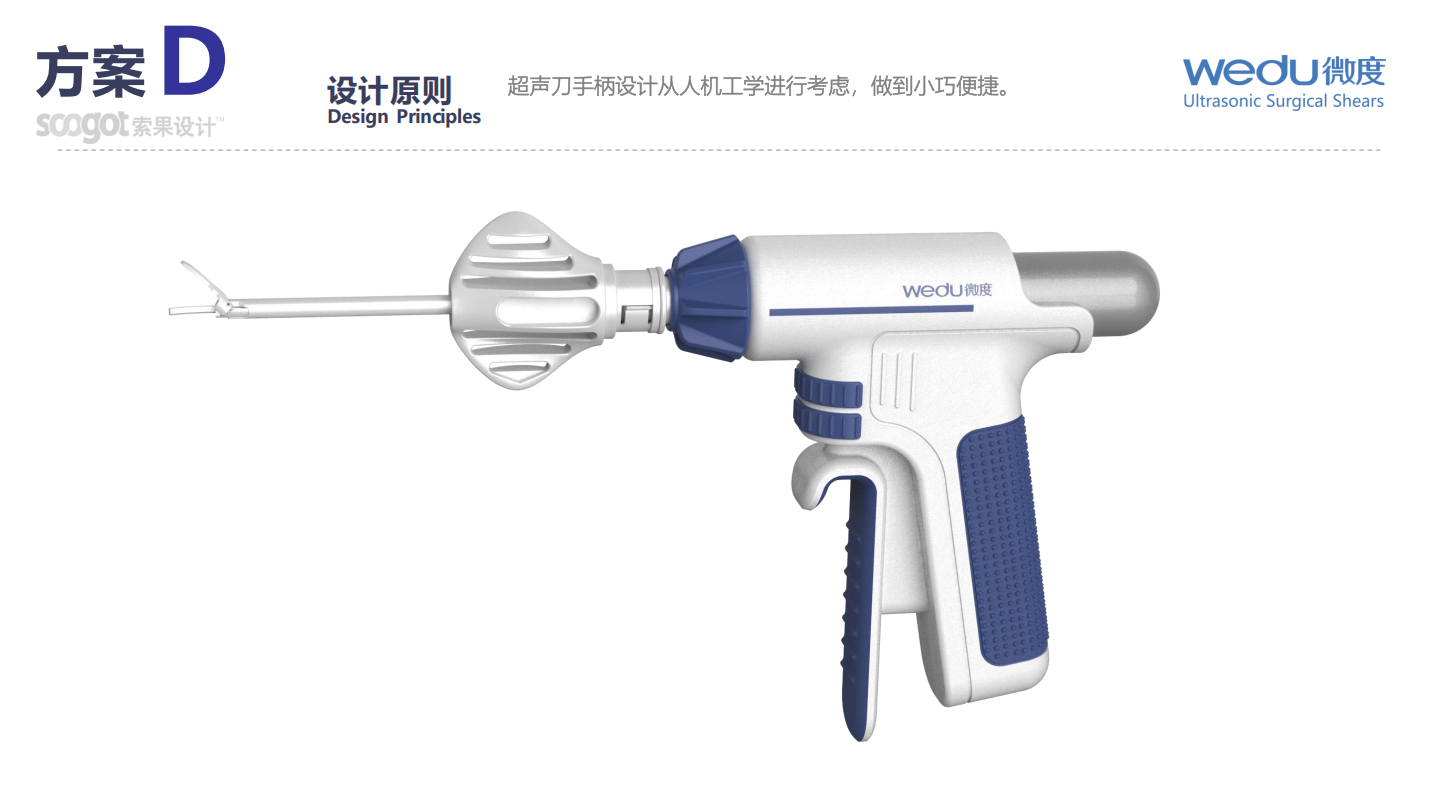

Front end working end design:
The connecting section of the cutter head adopts a hollow heat dissipation structure, which not only reduces the overall weight, but also optimizes the conduction efficiency of ultrasonic vibration. At the same time, the shape conforms to fluid mechanics and reduces the risk of tissue scratching during operation. The knife rod is slim, suitable for the puncture caliber of minimally invasive surgery, and the end jaw has a clear structure to meet the functional requirements of tissue cutting and coagulation.
Middle Ribbon Design:
A dark blue rotating locking structure is arranged between the knife bar and the handle, and the shape is multi-edge anti-skid design, which is convenient for doctors to complete the disassembly and angle locking of the instrument with one hand. The side of the fuselage is designed with vertical anti-skid texture to assist in positioning and exerting force during operation.
Grip area design:
The grip area is made of a large area of dark blue bump non-slip soft rubber, with dense texture and soft touch, which can ensure stable grip even if the hand sweats during the operation. The trigger area is shaped like a curved surface that fits the fingers, and the side of the trigger is increased with longitudinal anti-slip lines to improve the accuracy and comfort of the operation.
Tail structure design:
The tail is a cylindrical cable connection end with a rounded transition shape to avoid interference caused by sharp edges and corners to the operation, while meeting the structural requirements of cable plugging and unplugging, and ensuring stable transmission of ultrasonic energy.
4. Highlights of ergonomic design
The ergonomic design of Scheme D is the core advantage, which is completely optimized around the surgical operation scenario:
Optimized holding posture: the classic gun grip shape conforms to the physiological curve of natural holding of human hands. The length and radian of the grip are suitable for different hand shapes. Long-term holding is not easy to fatigue and meets the needs of long-term operation during surgery.
Optimization of operation logic: the trigger position fits the trajectory of the index finger force, the stroke design is reasonable, the doctor can accurately control the opening and closing of the cutter head through a single finger, and the operation feedback is clear; The position of the function knob is adapted to the thumb operation area, and the parameter adjustment and instrument locking can be completed with one hand, without changing hands, thus improving the operation efficiency.
Optimization of weight and balance: through hollow structure and lightweight material design, the overall weight distribution is balanced, and the weight of the front working end and the rear handle is balanced, thus avoiding the problem of top-heavy and light-heavy operation and reducing the burden on doctors' wrists.
Safety and anti-mistouch design: the functional area and the grip area are clearly distinguished by color and shape, and the anti-slip soft rubber area only covers the grip position to avoid mistouching the function button; The trigger shape is designed to prevent mistouch to prevent accidental triggering during operation.
Summary and Comparison of Host Design for 2. Full Scheme (A/B/C/D)

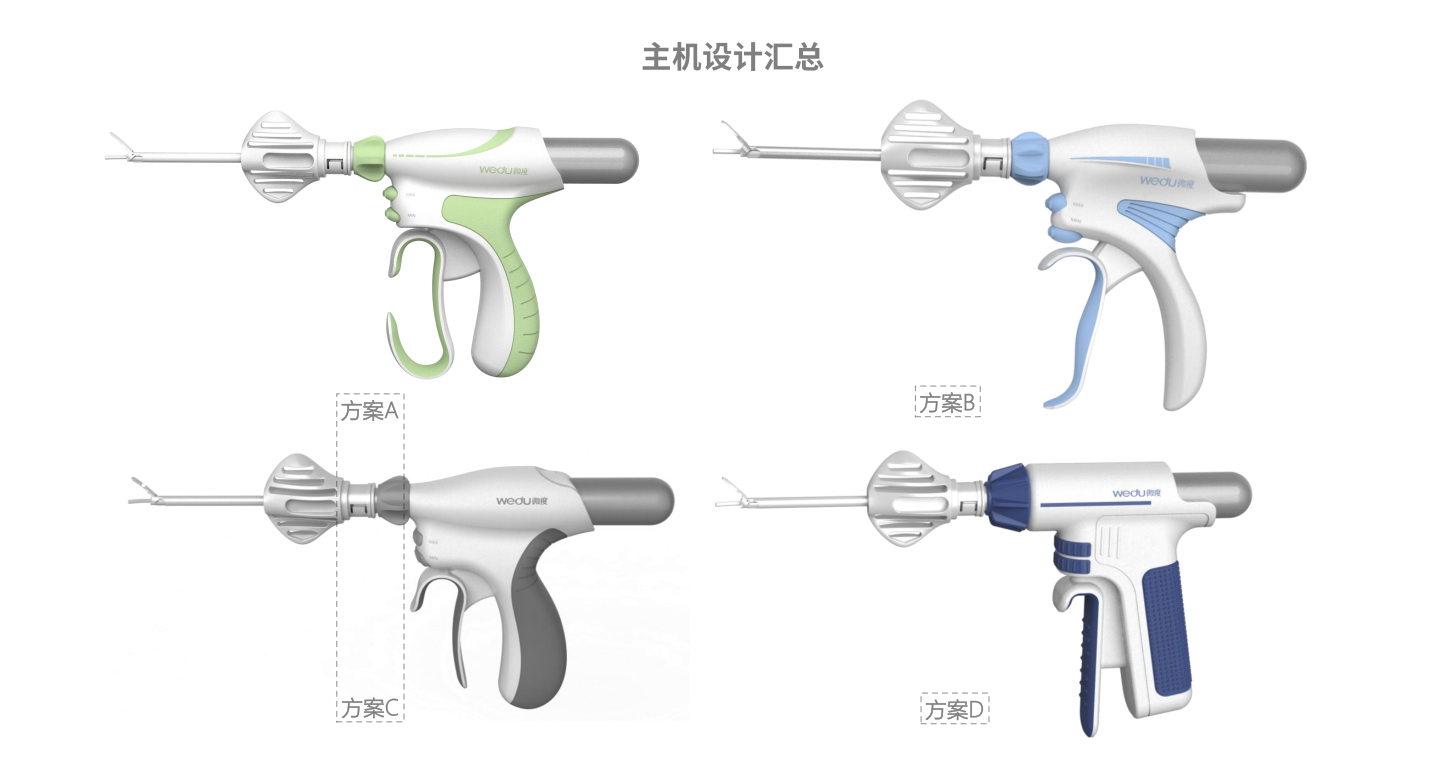

The third picture is a summary of 4 ultrasonic scalpel handle schemes. We make a comprehensive comparison from the dimensions of design language, ergonomics and brand adaptation:
Table
Compare dimension scheme a, scheme B, scheme c, scheme d (this core)
The color design is white and light green, fresh and soft, biased towards humanized white and light blue, refreshing and professional, visually light white and dark gray, minimalist industrial style, low-key and calm white and dark blue, professional medical style, high recognition
Modeling language, large curved surface, smooth modeling, round lines, strong affinity, streamlined integrated design, flexible lines, strong sense of science and technology, minimalist geometric modeling, tough lines, industrial sense, prominent combination of straight lines and rounded corners, gun-style modeling, professional sense
Ergonomics open trigger, grip fit hand shape, suitable for long-term operation of large radian trigger, high grip fit, labor-saving operation, traditional double trigger structure, classic shape, mature operation logic, anti-skid soft rubber grip, accurate trigger, optimal holding stability
brand adaptation fresh style, suitable for home/minimally invasive scene light technology style, suitable for high-end surgical instruments minimalist industrial style, suitable for professional medical equipment professional medical style, perfect match "wedu micro" brand positioning
Core advantages: friendly modeling, comfortable operation, visual friendliness, smooth lines, strong sense of science and technology, lightweight design, classic structure, high reliability, cost control, extreme ergonomics, anti-skid and anti-misoperation, outstanding sense of professionalism
Applicable scenarios Outpatient minimally invasive surgery, home medical equipment High-end endoscopic surgery, precision operation scenarios Traditional surgery, universal surgical instruments Laparoscopic surgery, long-term complex surgery scenarios
Comprehensive Evaluation and Summary of 3. Scheme D
1. core advantages of scheme d
Ergonomic ceiling: among the four schemes, scheme d has the best holding stability, operation accuracy and long-term use comfort, which completely matches the surgical operation requirements of surgeons.
The highest brand fit: white and dark blue color matching, professional gun style, perfect fit "wedu micro" high-end medical brand positioning, strengthen the brand's professional and reliable image.
The detailed design is perfect: the anti-skid structure, anti-accidental touch design, heat dissipation structure, disassembly structure and other details are comprehensive, taking into account the function, safety and user experience.
Strong suitability for mass production: the modeling structure conforms to the processing technology of medical devices, and the modular design is convenient for production, disinfection and maintenance, which is suitable for mass production.
2. Scheme D optimization direction (optional)
The force feedback structure can be added in the trigger area, so that the doctor can obtain clearer tactile feedback during operation, and further improve the operation accuracy.
It can optimize the shape of the front-end heat dissipation structure, further reduce the weight and improve the operation flexibility while ensuring the heat dissipation efficiency.
The adaptive structure of the sterile handle sleeve can be increased, which is convenient for rapid replacement during the operation and improves the operation efficiency.
3. Summary of the whole program
Four programs around the "ultrasonic knife handle" core requirements, from different design directions to give a complete solution:
Scheme A/B focuses on humanization and sense of science and technology, and is suitable for scenes that pursue visual differentiation and operational comfort;
Scheme C focuses on classic, reliable, suitable for the pursuit of mature structure, cost-controllable general-purpose products;
Scheme D focuses on specialty and ergonomics. It is the best scheme suitable for high-end minimally invasive surgery and brand professional image in the four models. It perfectly meets the design principle of "small and convenient, ergonomics.
4. added: ultrasonic scalpel handle design industry background
The ultrasonic scalpel is the core instrument in laparoscopic surgery, which is used for tissue cutting and coagulation. The design of the handle directly affects the operation efficiency and the doctor's operation experience:
Core design requirements: lightweight, high grip stability, precise operation, anti-touch, easy disinfection;
Industry trends: from traditional mechanical structure to ergonomic optimization, brand design upgrade, while taking into account intelligent, modular, adapted to the fine needs of minimally invasive surgery.
The design of scheme D is fully in line with the industry trend. On the basis of meeting the functional requirements, the competitiveness and brand value of the product are improved through design. SOGOT DESIGN: www.soogot.com
