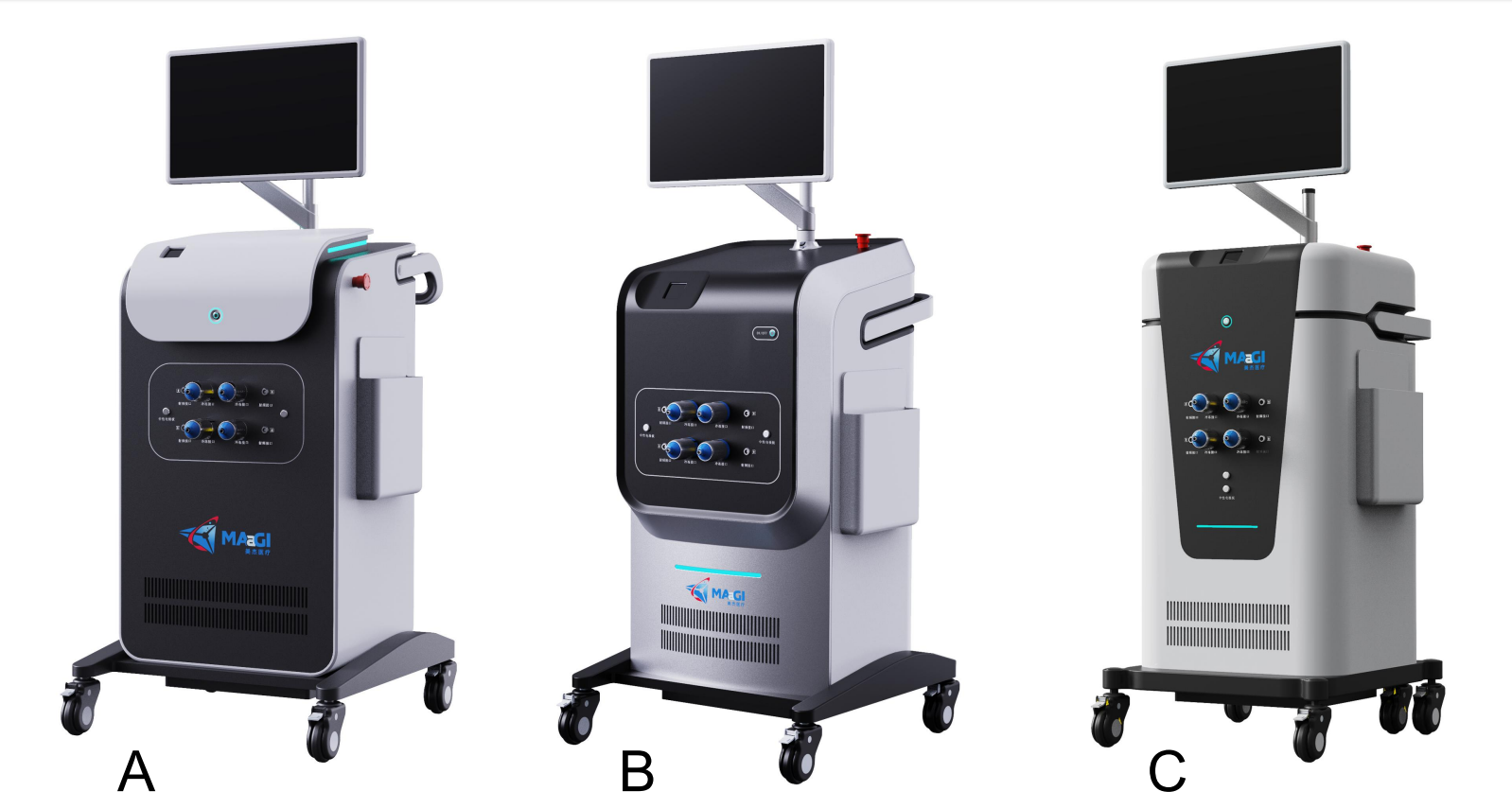

Project Name: Scheme Design of Second Generation Cart (Scheme C and Summary)
Cooperation content: design analysis | appearance design | structural design | prototype production | accompanying running assistance
As a medical cart solution for clinical diagnosis and treatment and the mass market, Direction C takes "simple, round and professional" as the core design logic, achieving a precise balance between professional medical attributes and public-friendly experience. Through rounded curved surface modeling, integrated visual language and humanized ergonomic optimization, professional medical equipment not only has a sense of clinical reliability, but also provides an efficient and comfortable use experience in high-frequency mobile operation. it has become a typical example of "inheritance and innovation" in medical cart design.
1. Design Analysis: A Mass Market-Oriented Affinity Medical Carrier
The core design orientation of direction C is an affinity mobile medical carrier serving clinical diagnosis and treatment and mass market. The design starts from the dual needs of "acceptance of the mass market" and "practicality of clinical operation": it not only meets the portability needs of medical staff in the ward and consultation room for rapid transfer of equipment, but also weakens the cold feeling of medical equipment through round and friendly visual language, and improves the acceptance of home users and ordinary patients. This positioning determines that the design is based on the continuation of the core functions of the first generation of products, through the optimization of form and details, to achieve the deep unity of "professional performance and public-friendly mobile efficiency.
2. design language: simple and round affinity aesthetics
The design language of direction C takes "round surface integrated vision" as the core, and delivers professional and friendly visual experience through the combination of form, color and material:

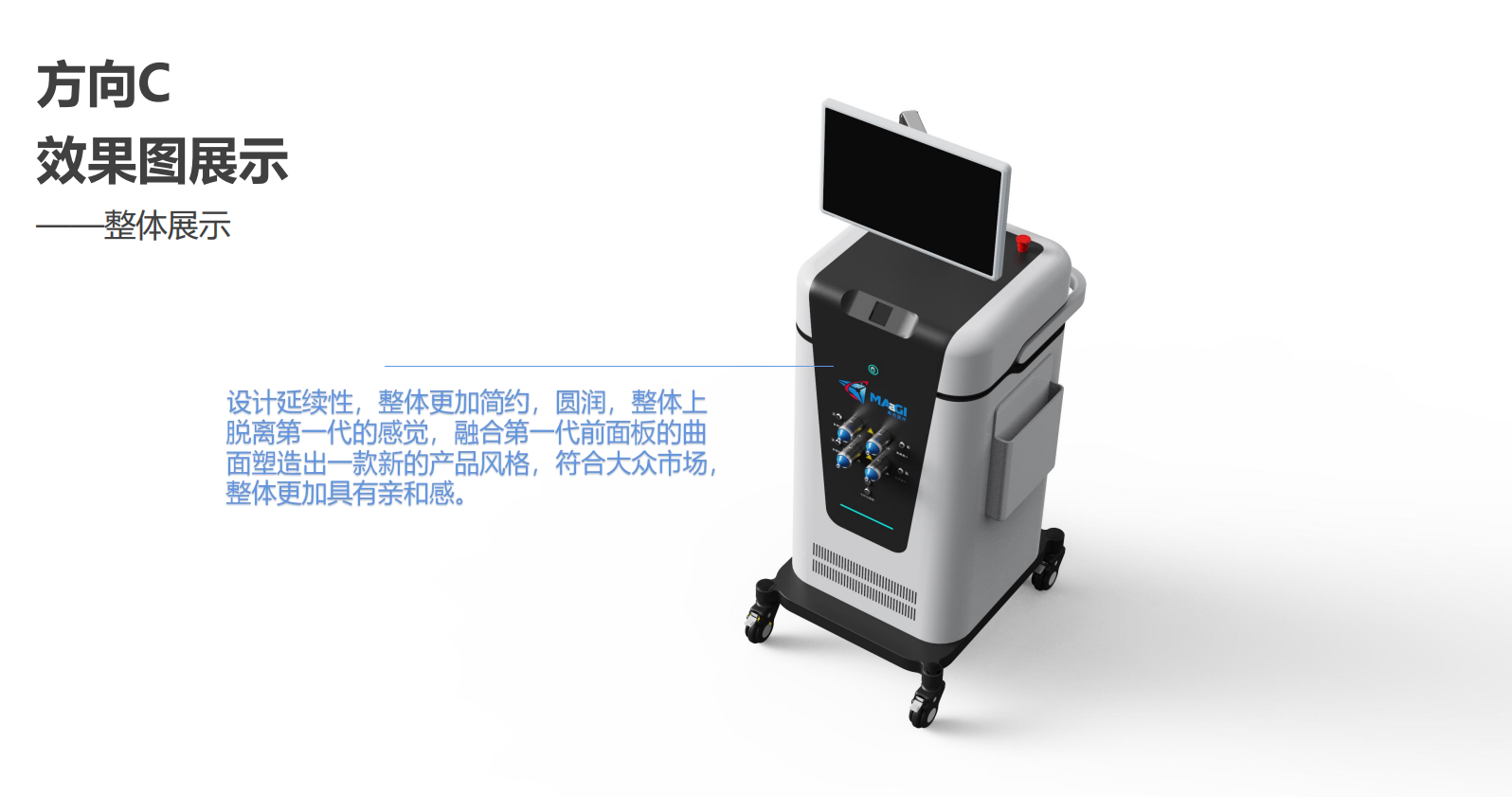

Morphological language: the whole adopts round curved surface modeling, reduces sharp and hard edges, and the outline of the body is smooth and soft, which not only avoids the risk of collision in use, but also conveys the product temperament of "safety and affinity"; The rounded transition at the top and the integrated front panel design integrate the curved surface genes of the first generation of products, and at the same time break away from the heavy feeling of traditional medical equipment, and more conform to the aesthetic preference of the mass market.

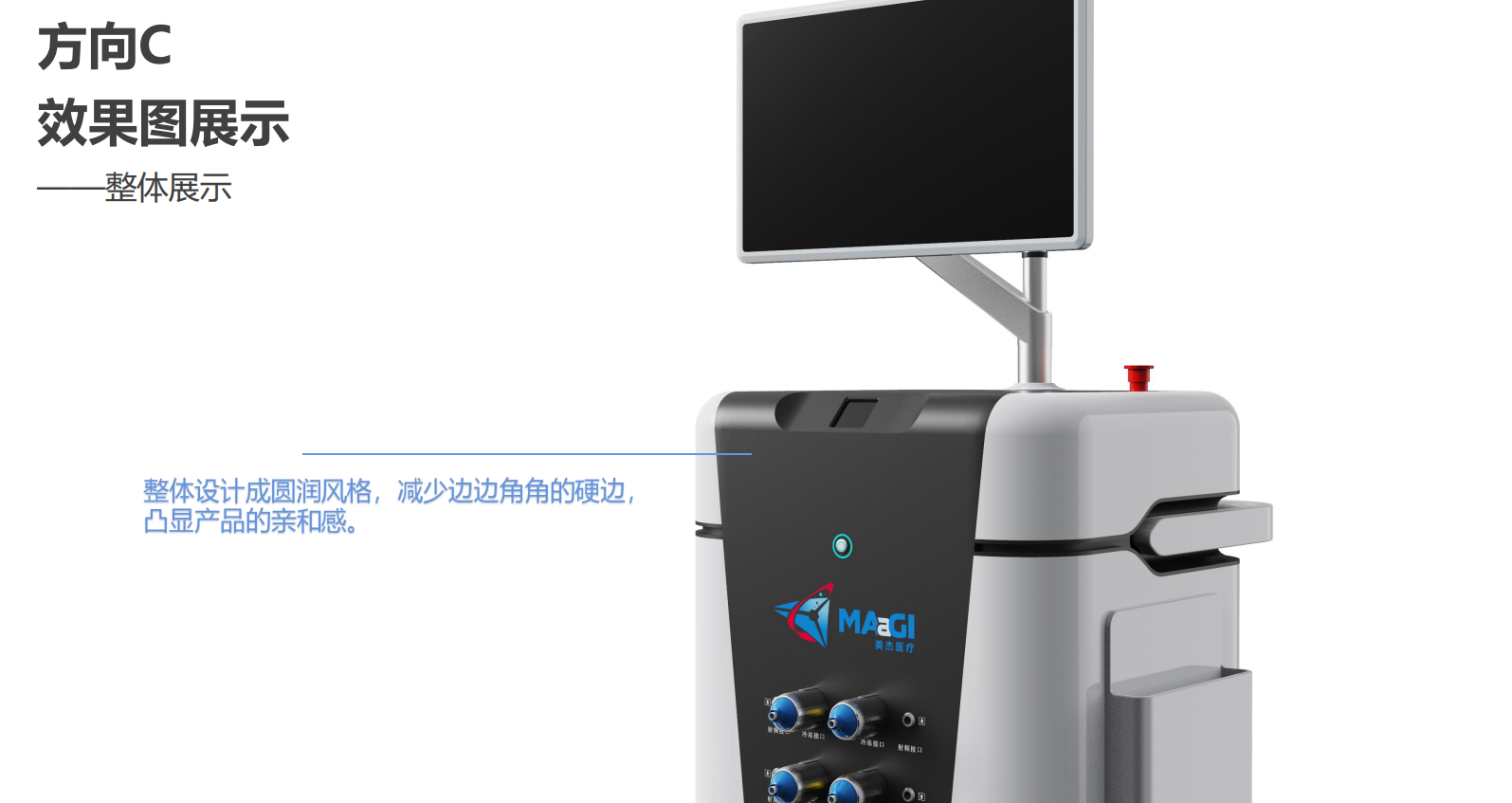

Color system: medical grade pure white is used as the base, with black front panel and cyan atmosphere lamp. The main color of low saturation conveys the clean and professional feeling of medical equipment. The blue interface logo and the red emergency stop button serve as functional prompts, which not only form the visual focus, but also make the core operation area clear at a glance and improve the operation efficiency. The brand logo "MAAGI" is embedded in the front panel with red and blue colors, which not only strengthens brand identification but also does not interfere the operation vision.
Material logic: the main body is made of medical-grade ABS plastic, and the surface is matte frosted to improve slip resistance and durability while avoiding fingerprint residue. The front panel interface adopts a blue knob with metallic texture, which forms a material contrast with the black panel and highlights the functional partition. The bottom caster is made of silent rubber material to reduce noise interference during movement and adapt to quiet environments such as wards.
3. design details: functional-oriented affinity landing
The detail processing of direction C embodies the design thinking of "taking public friendship as the core" everywhere, and every detail serves the actual use scene:
Interaction and operation details: the four blue knobs on the front panel are clearly marked with functions such as "flushing interface" and "radio frequency interface". the damping feeling of the knobs is optimized, and the adjustment is accurate and smooth to avoid misoperation. The red emergency stop button at the top adopts a convex design, which can be triggered accurately when wearing gloves, thus improving the safety of diagnosis and treatment. The cyan atmosphere light and circular indicator light on the front panel feed back the status of the equipment in real time, allow medical staff to quickly identify without looking down.

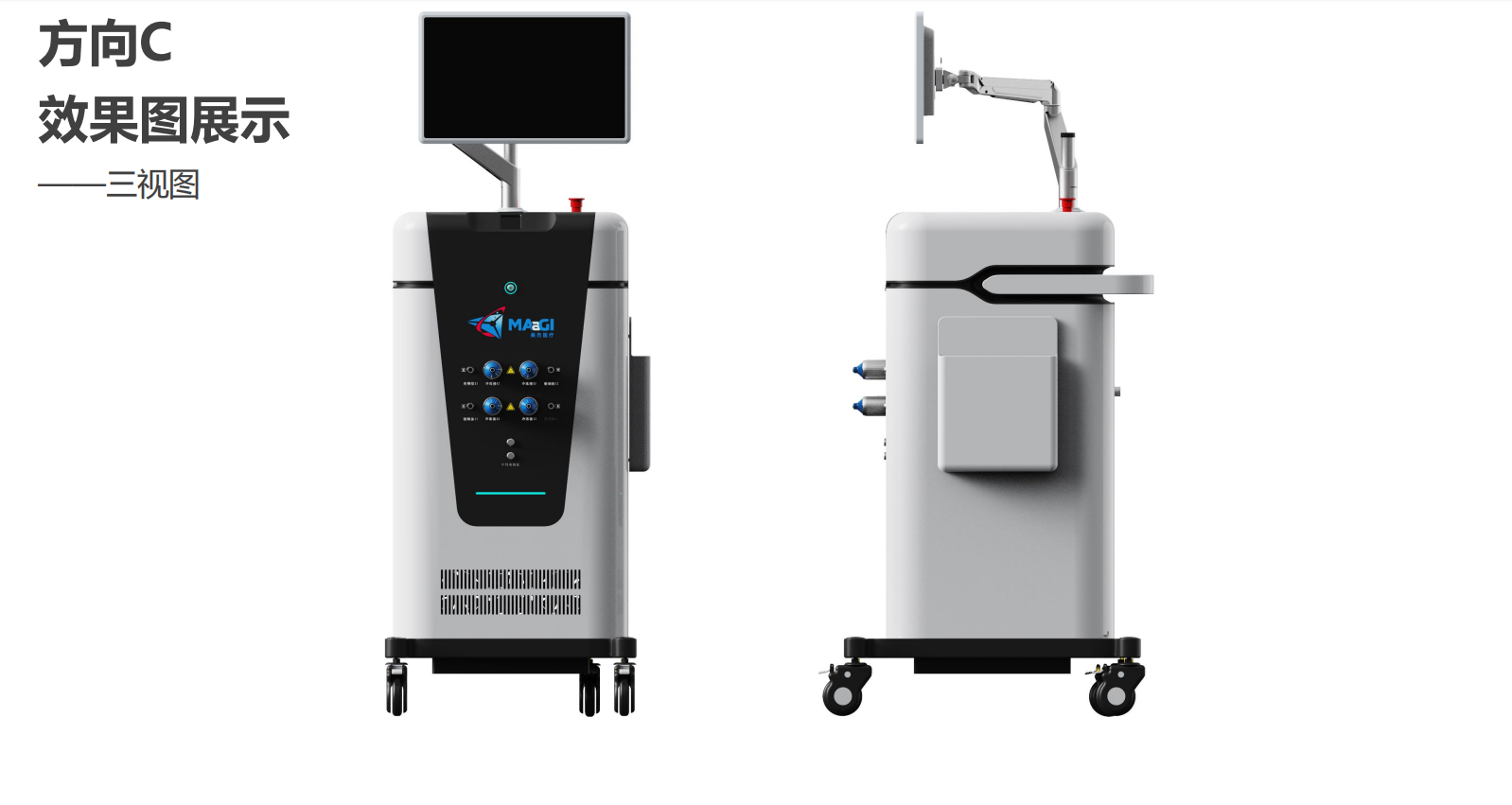

Details of movement and storage: the bottom is equipped with four silent casters with brakes, so that medical staff can easily push the equipment to realize ward transfer, and the stability of treatment can be ensured after the brakes are locked. The hidden storage box on the right side can place pipes, consumables and other items to avoid clutter and interference during operation. The adjustable display bracket at the top supports multi-angle rotation and adapts to the operating viewing angles of medical personnel of different heights.
Details of heat dissipation and maintenance: the large-area grille ventilation holes at the bottom ensure the heat dissipation efficiency of the equipment for long-term operation; The gap of the fuselage is controlled within the medical-grade standard, which is convenient for postoperative high-temperature disinfection and meets the requirements of aseptic management in clinical scenarios. The dust-proof design at the interface avoids dust pollution and ensures the treatment accuracy.
4. Ergonomics: Optimizing the Public and Clinical Experience
The ergonomic design of direction C is deeply in line with the needs of the "public-friendly clinical operation" dual scene, optimizing the experience from the three dimensions of holding, vision and operation:

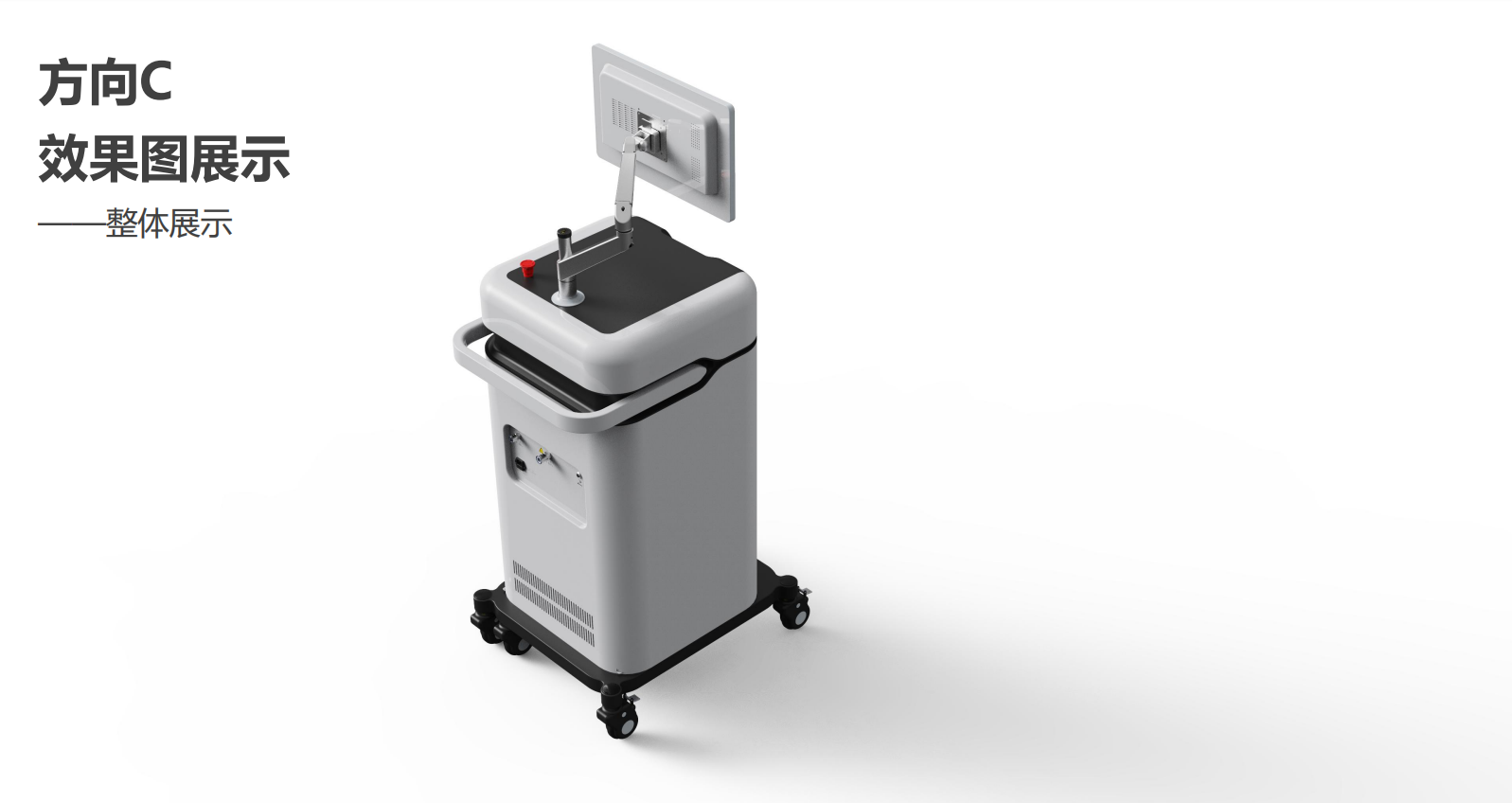

Optimized holding experience: the rounded outline of the body fits the natural radian of the palm, the matte frosted material improves the holding friction, the weight of the body is controlled within the portable range, and it is not easy to fatigue during long-term high-frequency operation. The arc-shaped handle on the right side fits the palm of the hand in a natural force posture, so medical staff can easily push the device with one hand, and it is not easy to fatigue when moving for a long time.
Visual interaction optimization: large-size display screen occupies the core area of the top of the fuselage, and graphical detection results and large font display design (preset) enable medical staff to quickly interpret the data; The color contrast between the black area of the front panel and the blue knob makes the functional area easier to identify and reduces the visual search time. The rounded body design reduces visual oppression and improves the acceptance of public users.

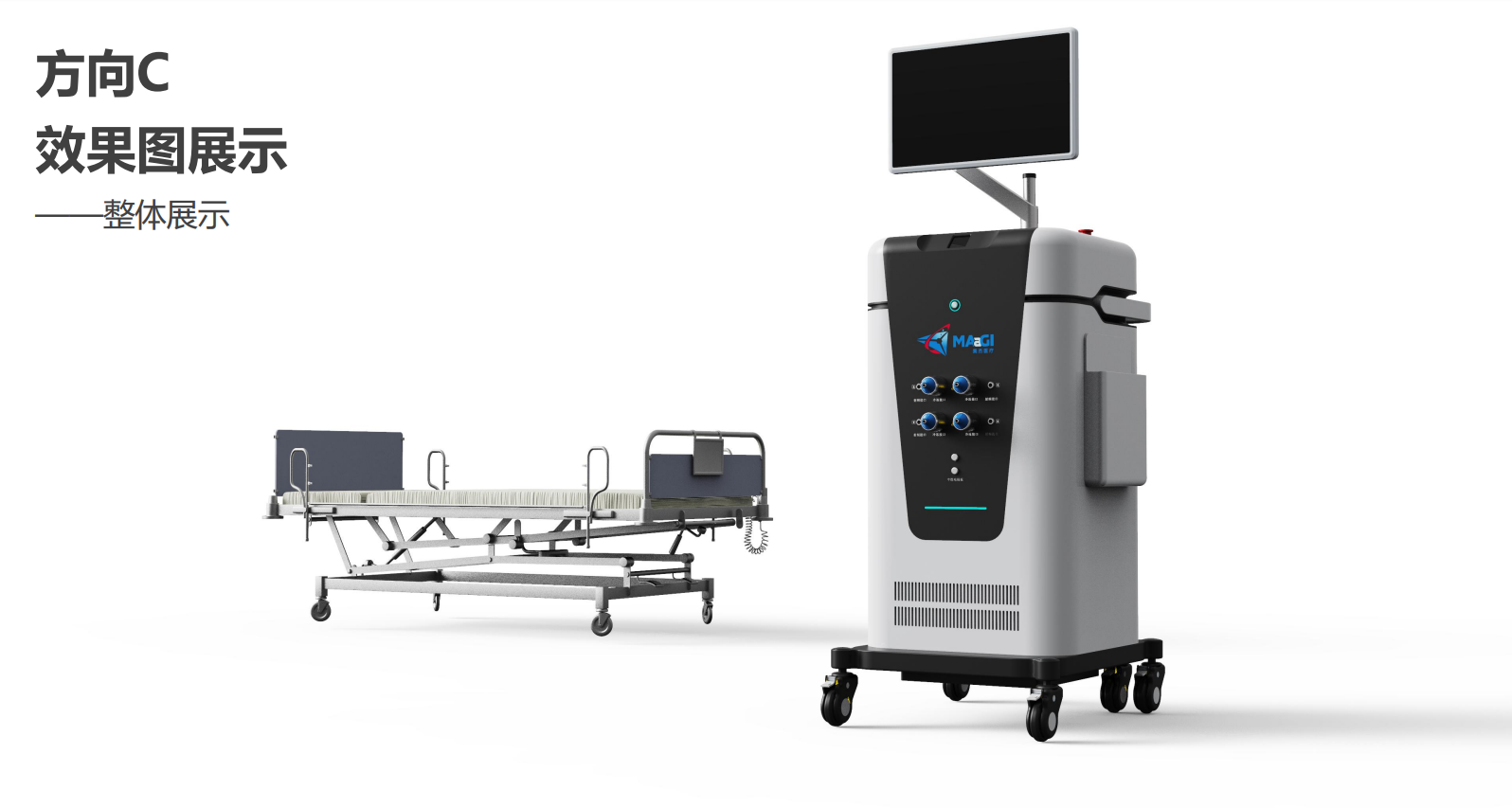

Scene adaptation optimization: the round and friendly appearance design not only adapts to the professional atmosphere of clinical medical scenes, but also weakens the tension of users in the family environment and improves the acceptance of family self-test. The combination of portability and efficient operation enables the equipment to be flexibly applied to multiple scenes such as bedside detection and mobile free clinic to meet the needs of different detection environments.
From the morphological design of rounded curved surfaces to the detail optimization of silent casters, the medical cart in direction C has always been around the core goal of "public-friendly clinical utility. It conveys professional medical sense with simple and friendly aesthetics, solves operation pain points with fine details, optimizes mobile experience with humanized design, and finally realizes the symbiosis of "professional medical attribute" and "public friendly experience", which provides a practical paradigm for the mass market design of medical equipment. Sogo Design: www.soogot.com
