Project Name: Negative Pressure Suction Instrument Industrial Design
Cooperation content: design analysis | appearance design | structural design | prototype production | accompanying running assistance
1. Design Analysis
Use scenario: emergency transport, operating room, ICU, home care, need to establish a safe and stable negative pressure suction anytime and anywhere.
Core appeal:
Instant start-up to -80 kPa in 1 second, battery life ≥ 4 h.
• Zero backflow-one-way valve + anti-overflow protection to prevent liquid backflow.
Lightweight and portable-the whole machine ≤ 1.2kg, can be carried with one hand.
2. Design Language

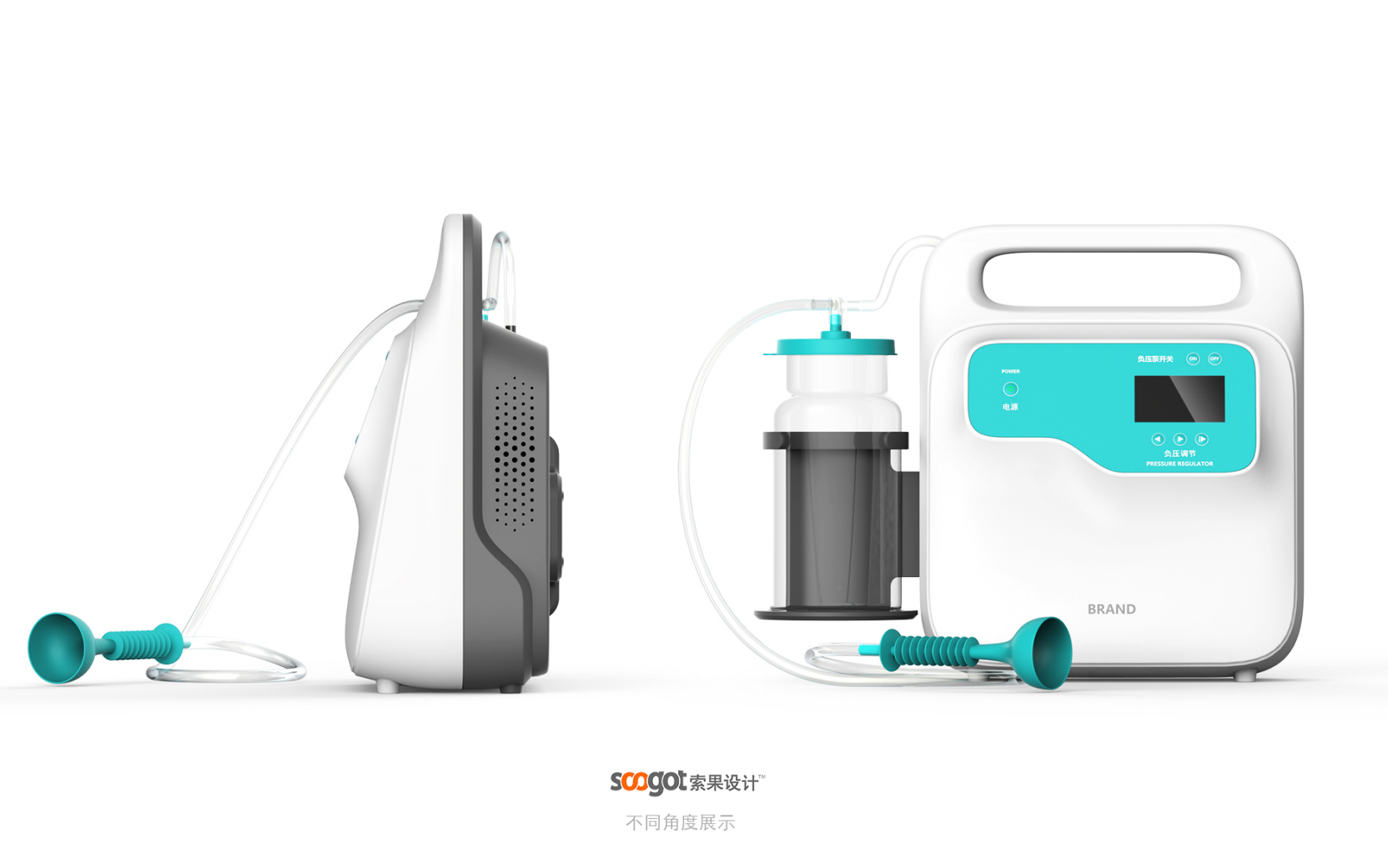

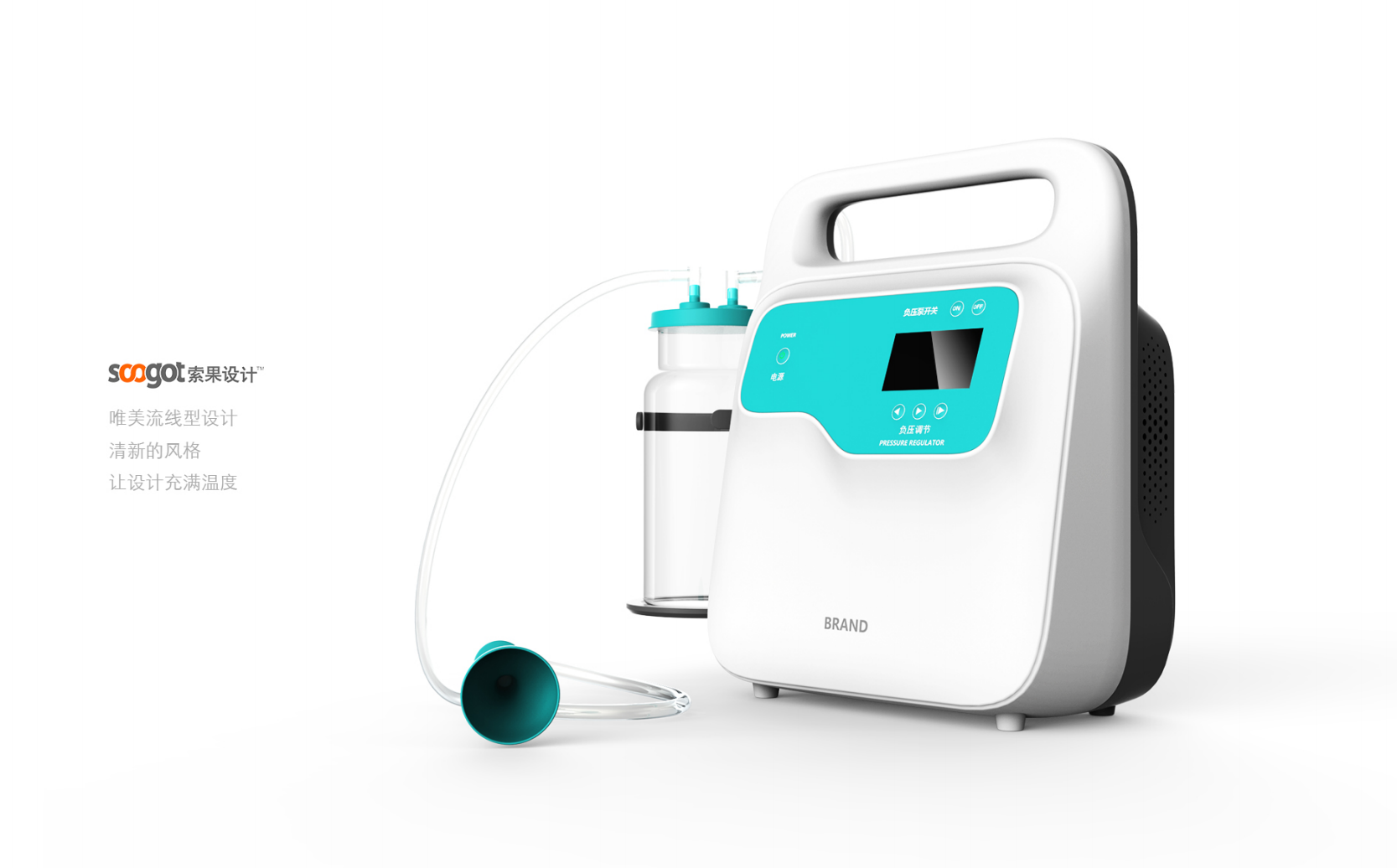

Shape: cobblestone flattened cylinder, R30mm continuous curved surface, reduce the "industrial equipment" cold sense.

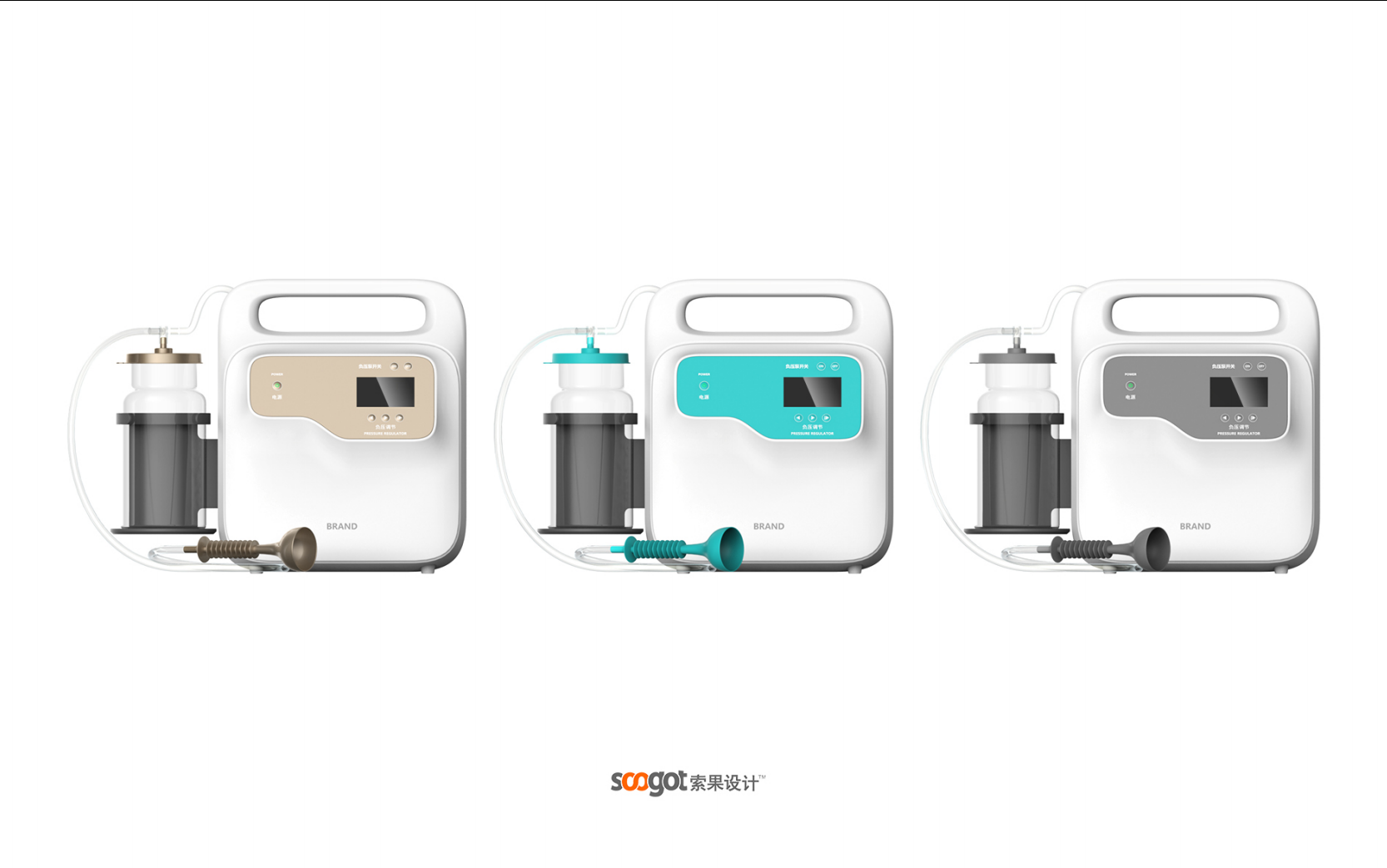

Color: medical white + deep sea blue waist line, waist line is also a light belt, conveying clean and professional.
Material: shell PC + 15% GF, alcohol-resistant, resistant to 1 m drop; The surface is finely bitten, non-slip and does not leave fingerprints.
3. Design Details
Hidden interface: suction nozzle, USB-C charging port, drain port three-in-one silicone plug, plug life 5000 times, IPX4 splash.

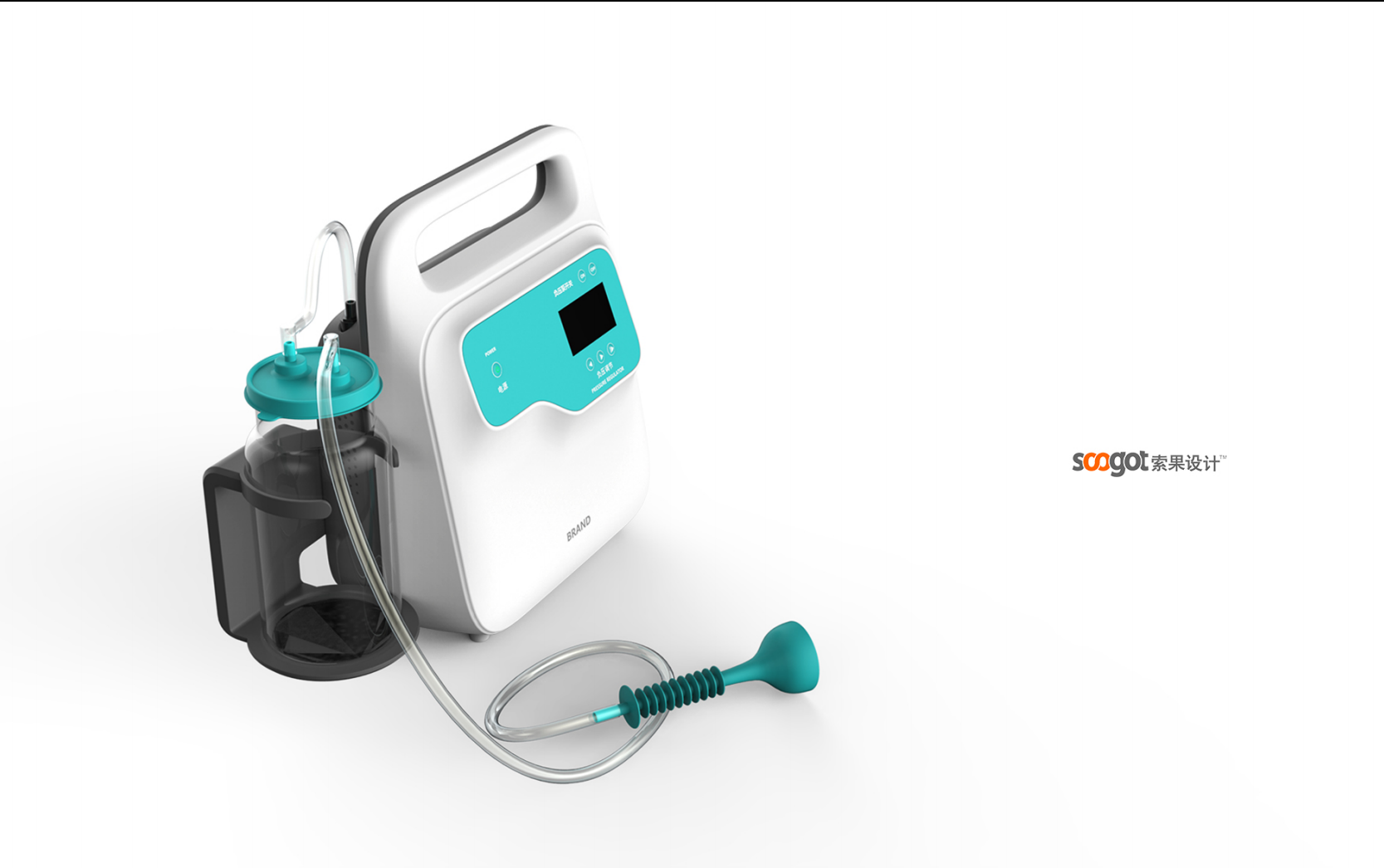

Magnetic suction waste liquid tank: transparent PC tank + silica gel sealing ring, which can be removed and cleaned by rotating 15 degrees with one hand; Full liquid magnetic spring induction, automatic shutdown and red light prompt.
One-click interaction: single 18 mm metal key with CD pattern on the surface, supports three modes of long press/short press/double click, and can be operated blindly with gloves.
Silent turbine: centrifugal micro pump + silica gel shock absorption pad, working noise ≤ 45 dB, and the patient will not be disturbed when used in the ward at night.
Visual lighting: waist line with three-stage color-blue standby, green operation, red alarm/full liquid.
4. ergonomics
Holding: the maximum width is 85mm, the center of gravity is centered, and the holding force is ≤ 8 N; The back is recessed with 2 mm finger groove to prevent slippage.
Operating height: flat or hanging two modes, random attached 360 ° rotating hook, suitable for stretcher, bed rail.
Viewing angle: The top 0.96 "OLED screen is 20 degrees from the horizontal plane, standing or lying down can directly look at the negative pressure value.
Maintenance posture: waste liquid tank low drawer type, height 120mm, squat can be removed without bending over.
Compatible pipe diameter: standard 6mm/10mm double specification silicone tube quick connector, a plug and lock, 15 seconds to complete the connection.
Summary
This negative pressure suction instrument hides the professional medical function in the living appearance with soft cobblestone shape + deep sea blue waist line. Magnetic suction waste liquid tank, one-button interaction, mute turbine and light belt prompt make the attraction operation in critical scenes "affordable, understandable and stable", and truly realize safe and silent negative pressure rescue anytime, anywhere. SOGOT DESIGN: www.soogot.com
