Project Name: Human Crown Medical
Cooperation content: design analysis | appearance design | structural design | prototype production | accompanying running assistance
1. Design Analysis
Scenario: home self-test, community clinic, ambulance transfer -12-lead ECG collection and AI primary screening are required at any time.
Core appeal:
Small and hidden: can be put into the pocket, not embarrassing in public.
One-click diagnosis: ECG + AI report + cloud push doctor in 30 seconds.
• Medical compliance: YY 0885-2013, IEC60601-2-25.
2. Design Language
Form: cobblestone flat oval card, R8mm continuous curved surface, softening the traditional "square box" ECG box.
Color: medical white main shell + matte silver middle frame; The side silk screen LOGO adopts 15% gray scale, which is low-key and not eye-catching.
Material: PC + ABS medical grade antibacterial material, fine surface bite, alcohol resistant wipe 10 000 times.
3. Design Details

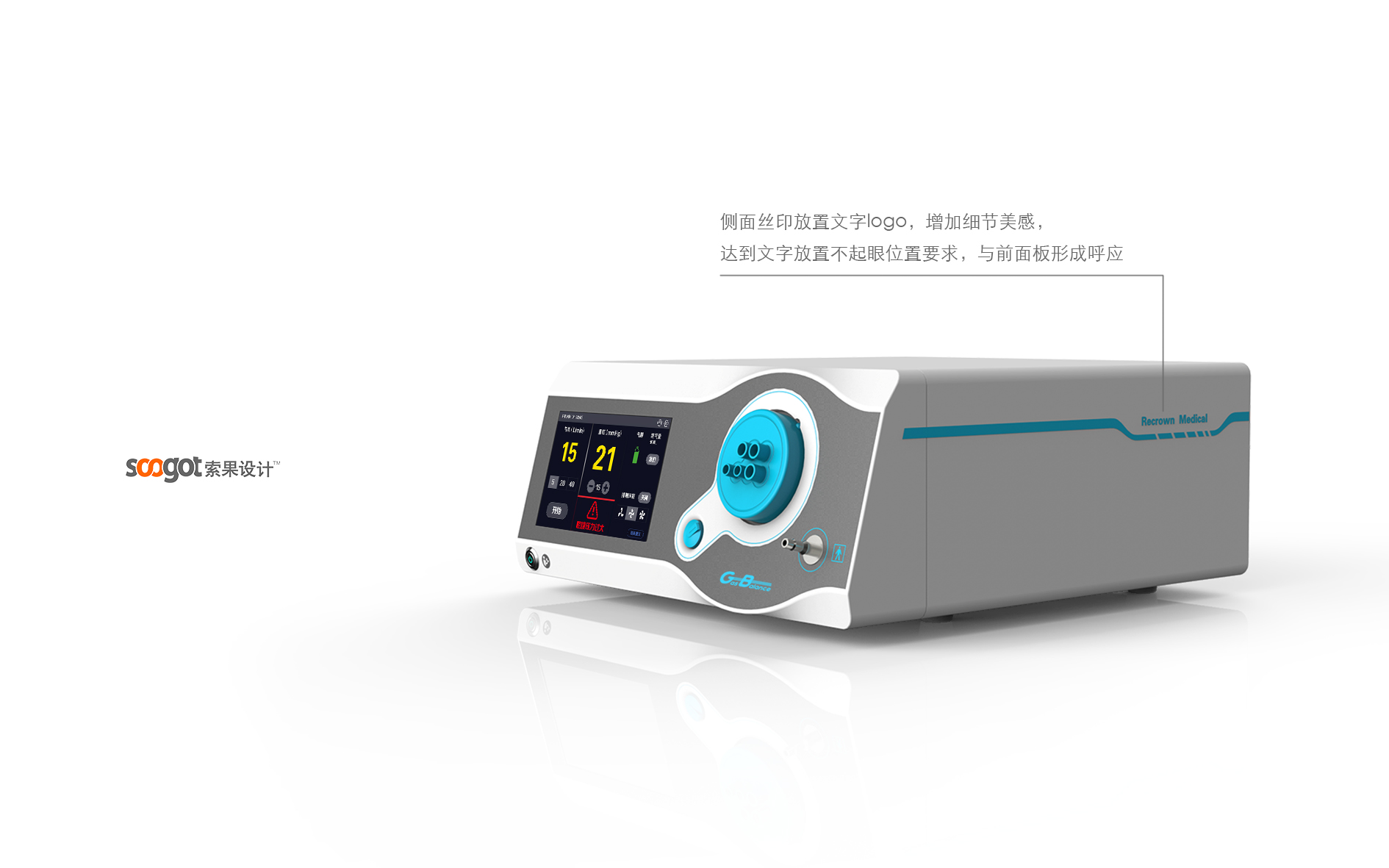

Invisible LOGO: screen-printed text on the side can only be seen at a viewing angle of more than 30 degrees, meeting the requirement of "inconspicuous text placement" and echoing the front LED breathing light.
One-piece electrode: Two 304 stainless steel electrodes are flush with the shell, and the thickness is only 0.4mm to avoid "metal bumps" to scratch the skin.
Magnetic charging: hide 4-pin Pogo Pin on the back, aim at the desktop charging stand and absorb it, and measure 500 times continuously at full power for 2 h.
Status prompt: 1 mm microporous transparent LED on the front, standby ice blue, breathing green during collection, abnormal flash red.
Anti-touch: 2 mm slightly convex anti-touch ridge on both sides, one-handed grip automatically avoids the electrode area to avoid false start.
4. ergonomics
Holding: 102 × 52 × 8mm,65g; The back 3 arc surface fits the palm, the thumb naturally falls on electrode 1, the index finger falls on electrode 2, and the wrist has zero distortion.
Operating height: standing, sitting, lying posture can be, the arm naturally drooping to fit the chest wall, without the assistance of others.
Viewing angle: The OLED screen is tilted 5 degrees from the horizontal plane, and there is no need to raise the wrist to read the heart rate/report.
Cleaning: The whole machine is IP22, the electrode and the shell have no steps, and the alcohol cotton sheet is disinfected in 5 seconds.
Mobile: with 3 mm thick silicone lanyard, can hang neck, can key chain, carry no burden.
Summary
The "Human Crown Medical" ECG monitor uses pebble card shape, invisible silk screen LOGO and magnetic charging to compress the 12-lead medical accuracy to 65 g pocket volume. Low-key appearance and 30-second one-button AI diagnosis make heart monitoring as easy and natural as swiping a card. SOGOT DESIGN: www.soogot.com
