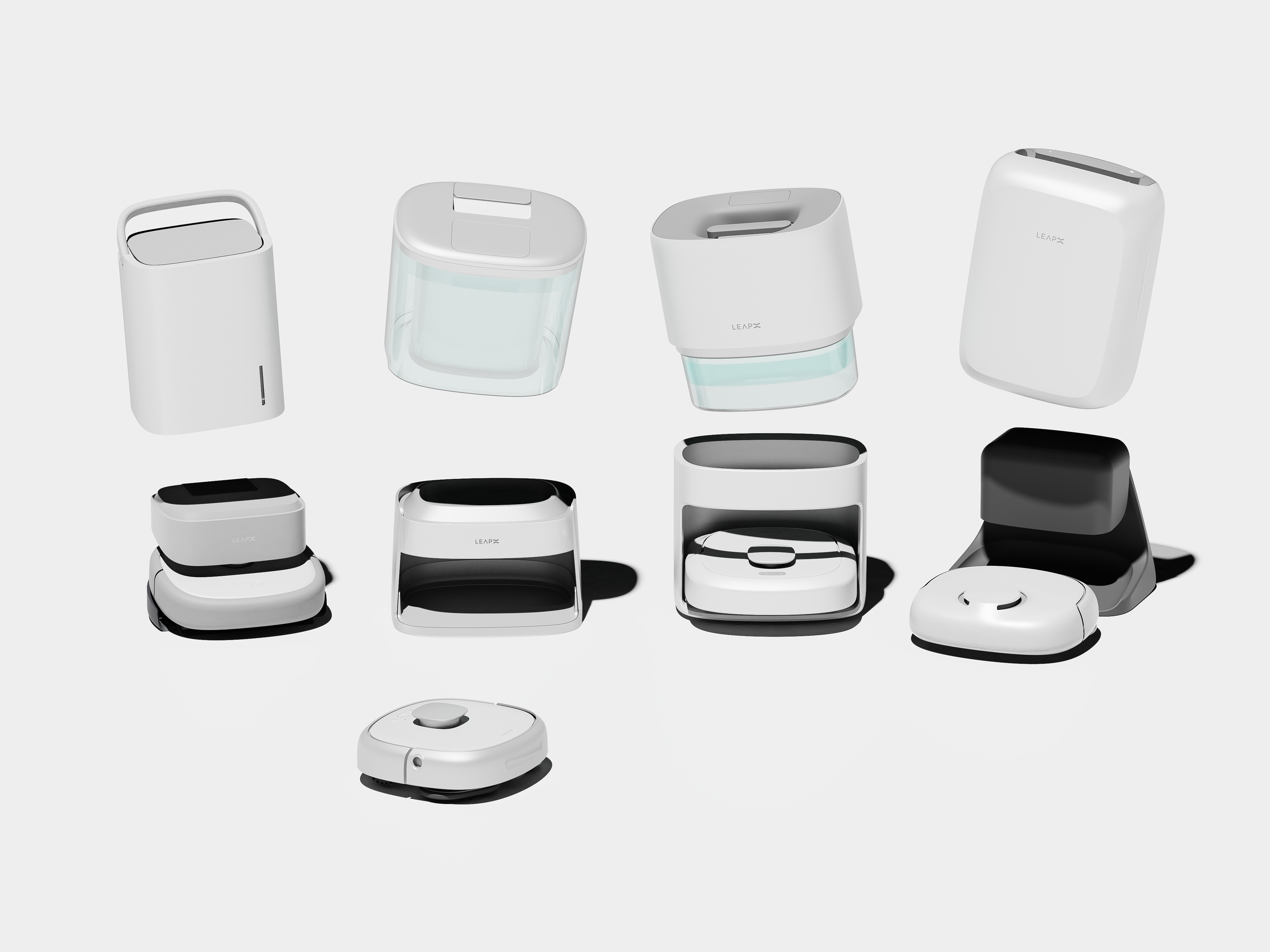

In 2019, Cloud Whale Narwal launched the world's first home rag self-cleaning mopping robot. In the same year, Narwal got in touch with the newly established LEAPX, hoping that LEAPX could help them design a newly defined pure mopping robot. After extensive conception and testing, LEAPX team has proposed many new design directions to improve user experience.

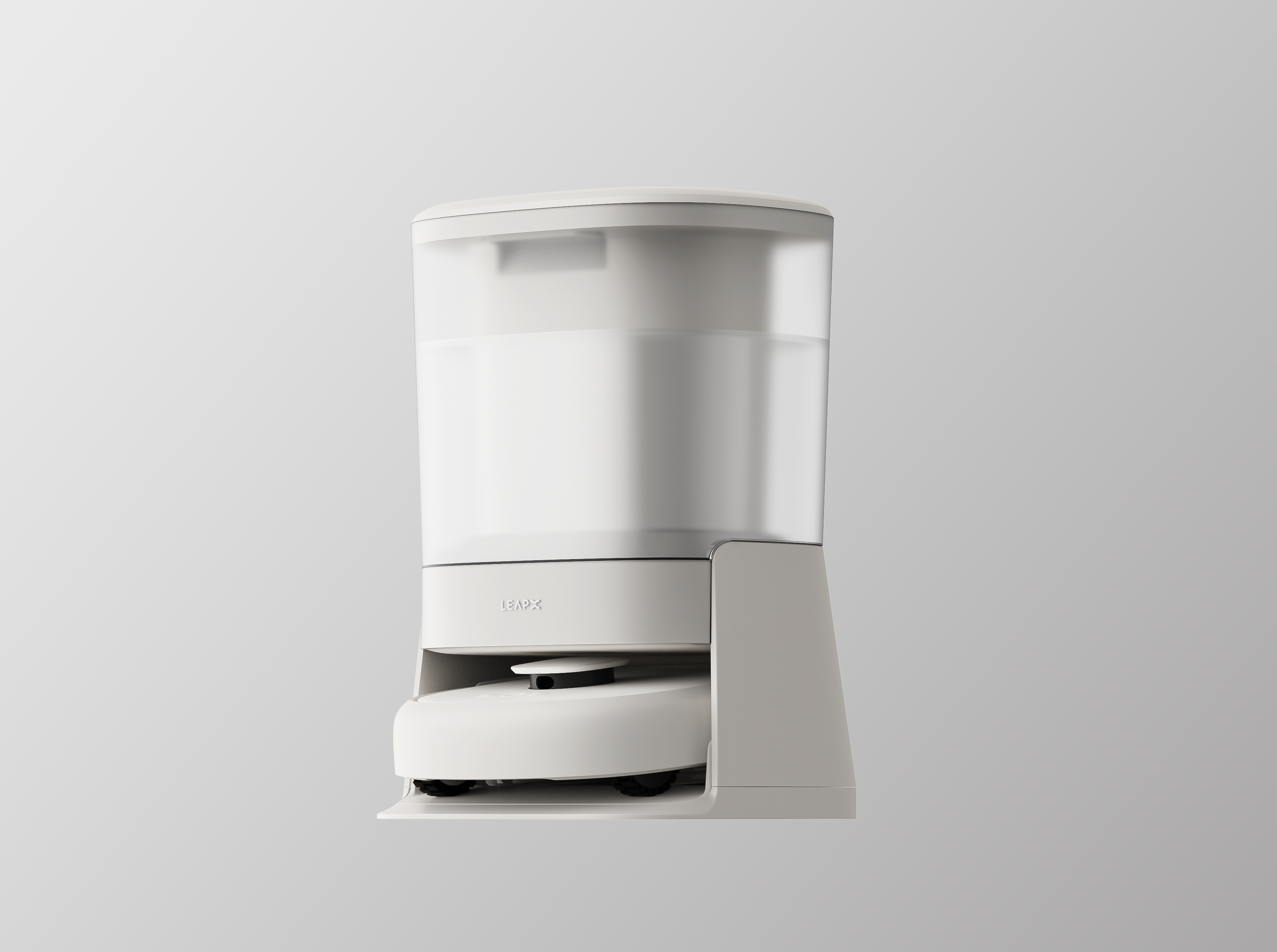

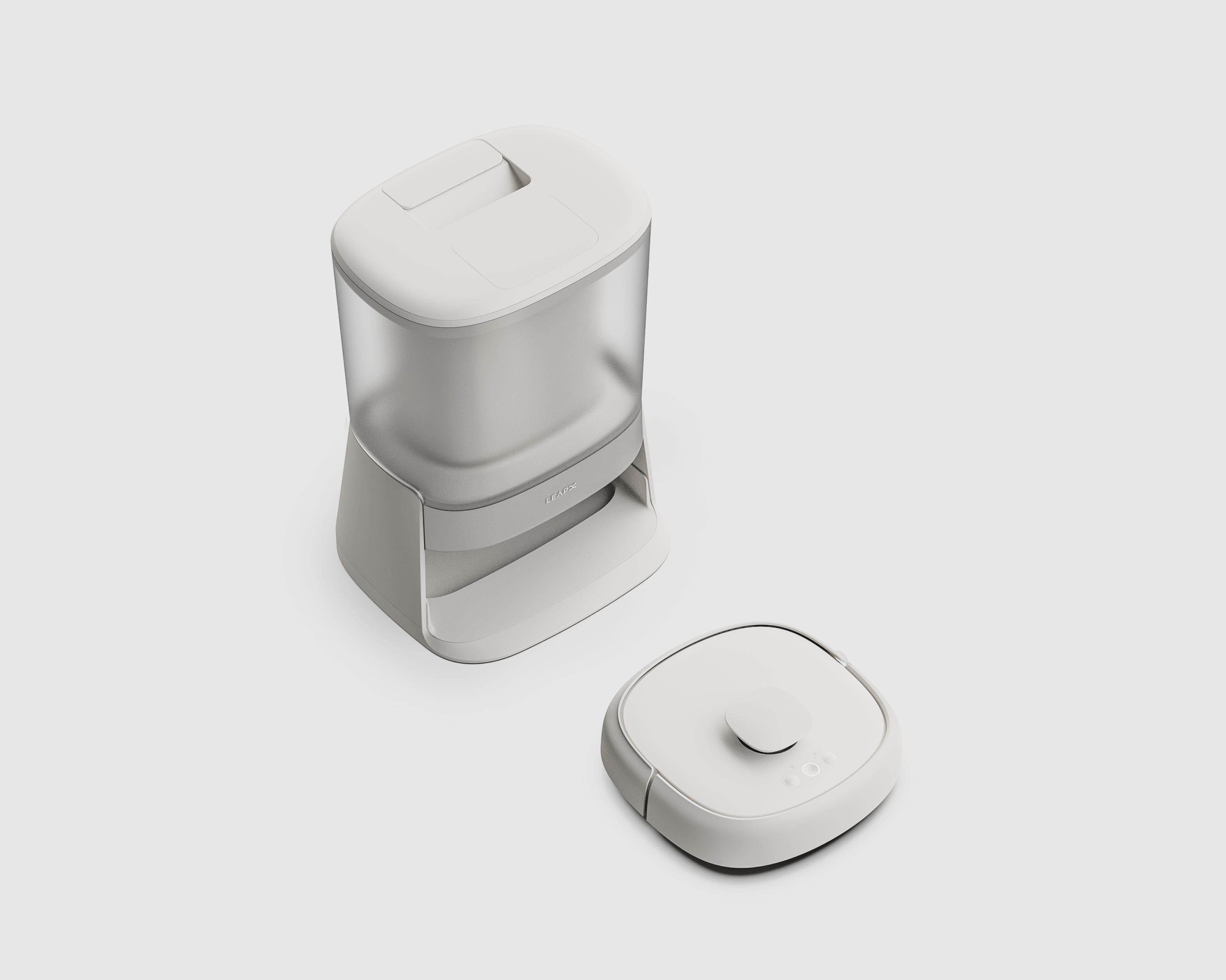

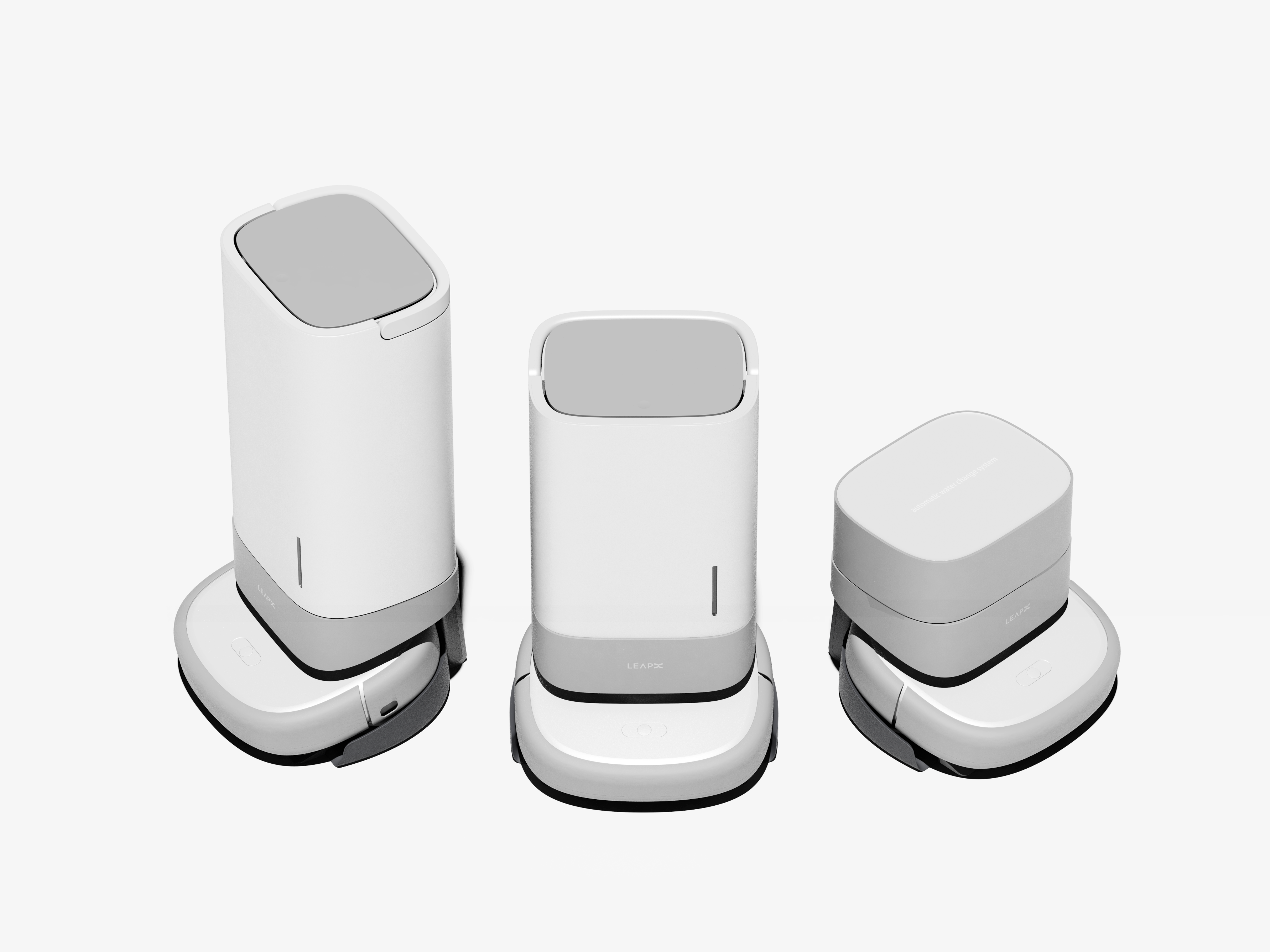

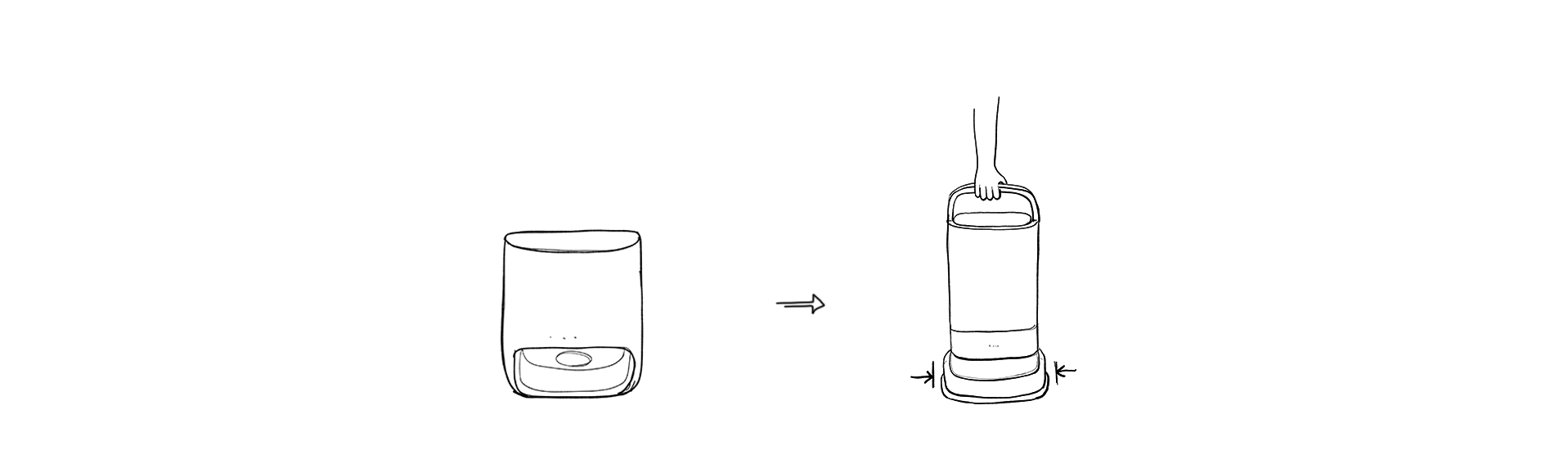

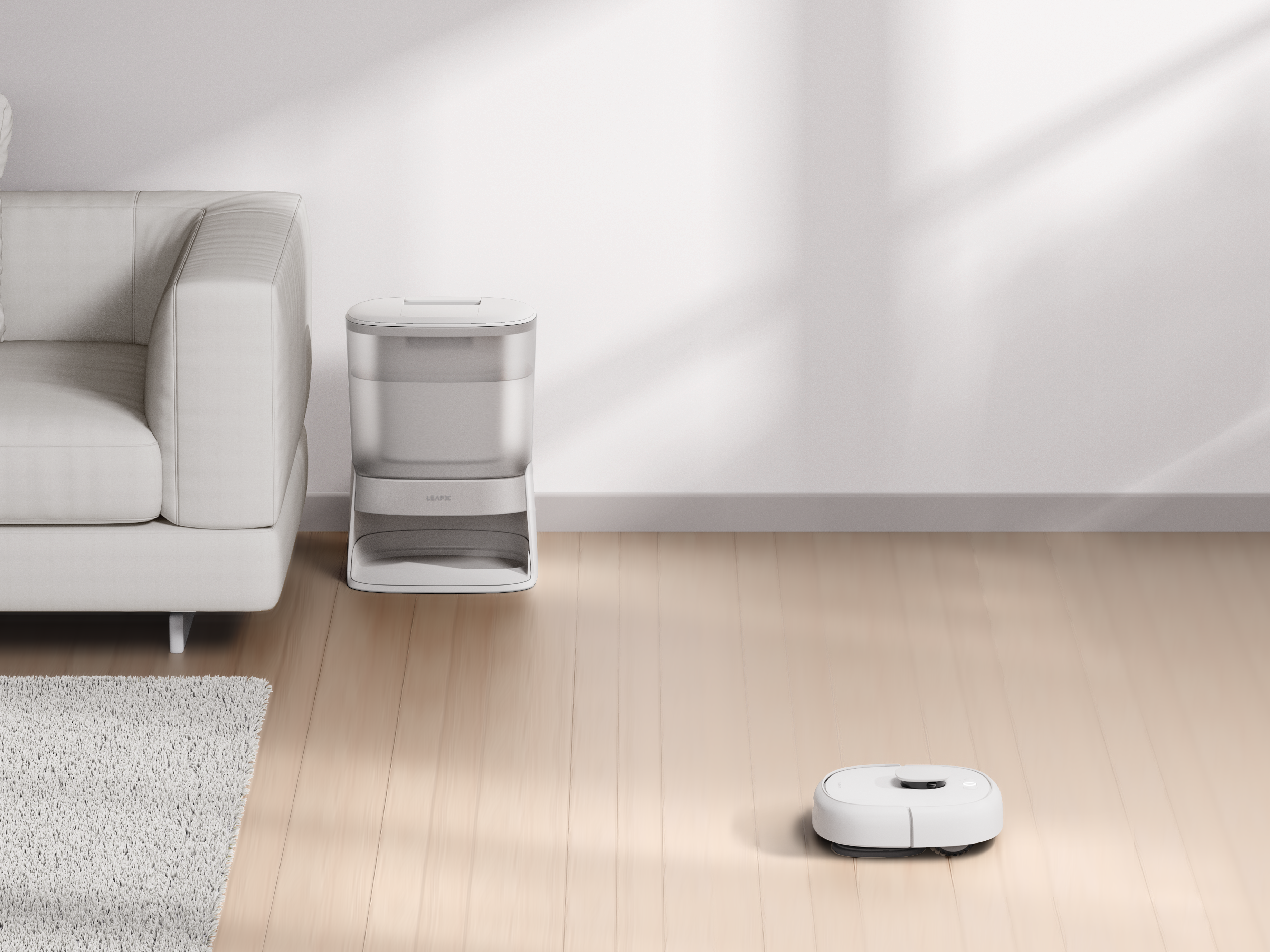

Urban housing prices are getting higher and higher, and the living area of families is becoming more and more compact. However, the base station volume and floor area of the current product J1 are relatively large, which is equivalent to a higher hidden use cost and psychological barrier to prevent purchase for users. We hope to reduce the footprint of the product and free up the living space of users.

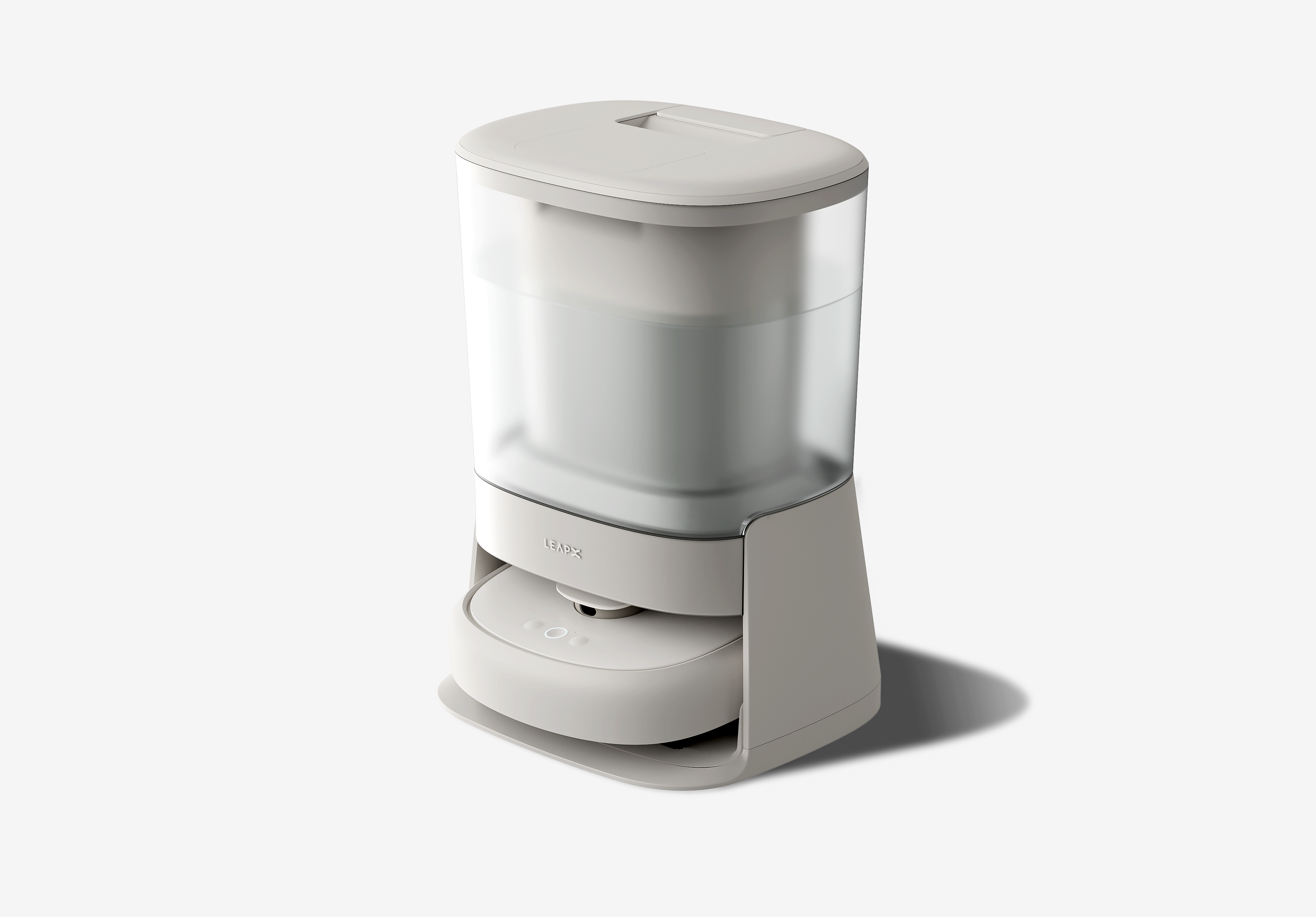

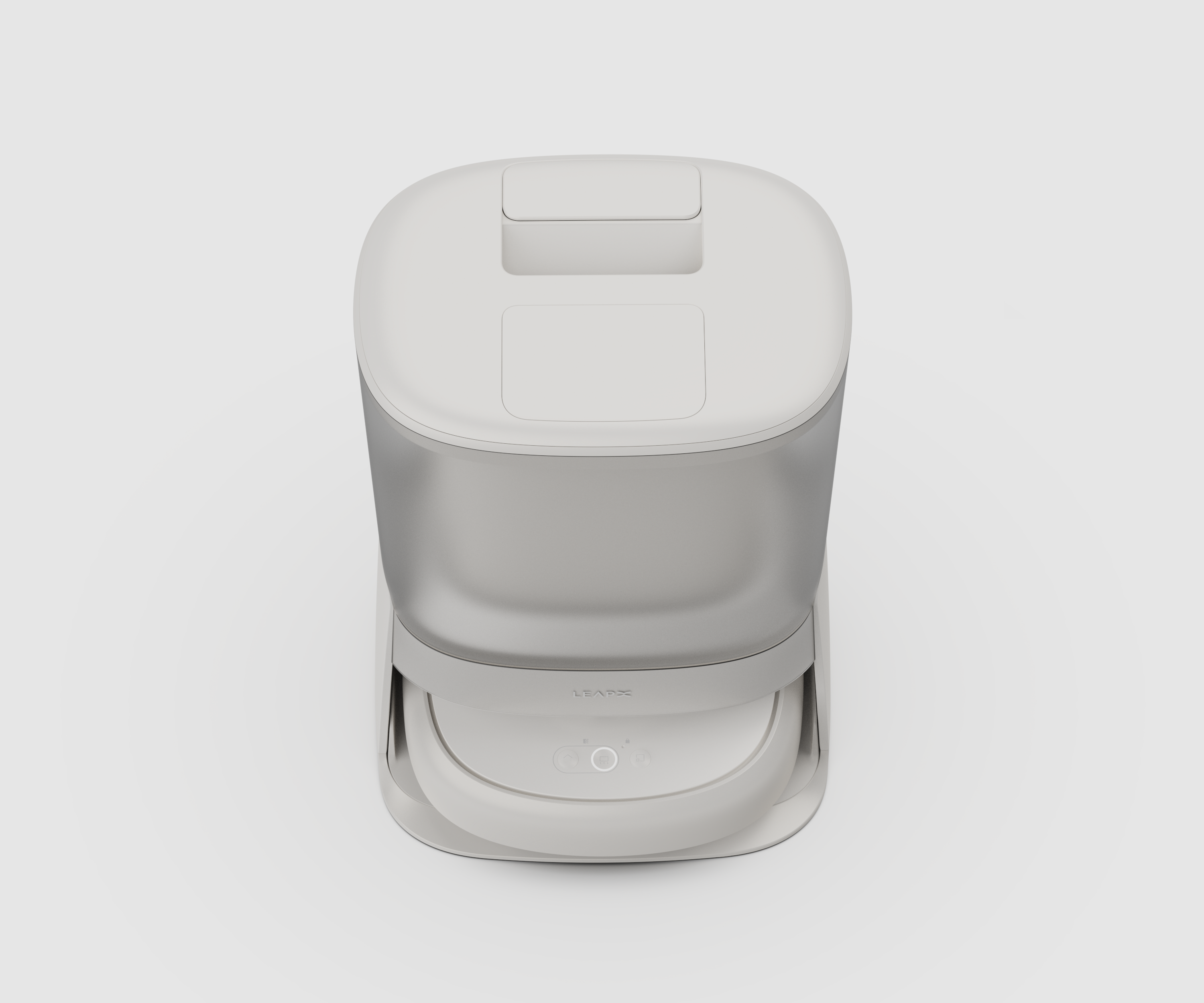

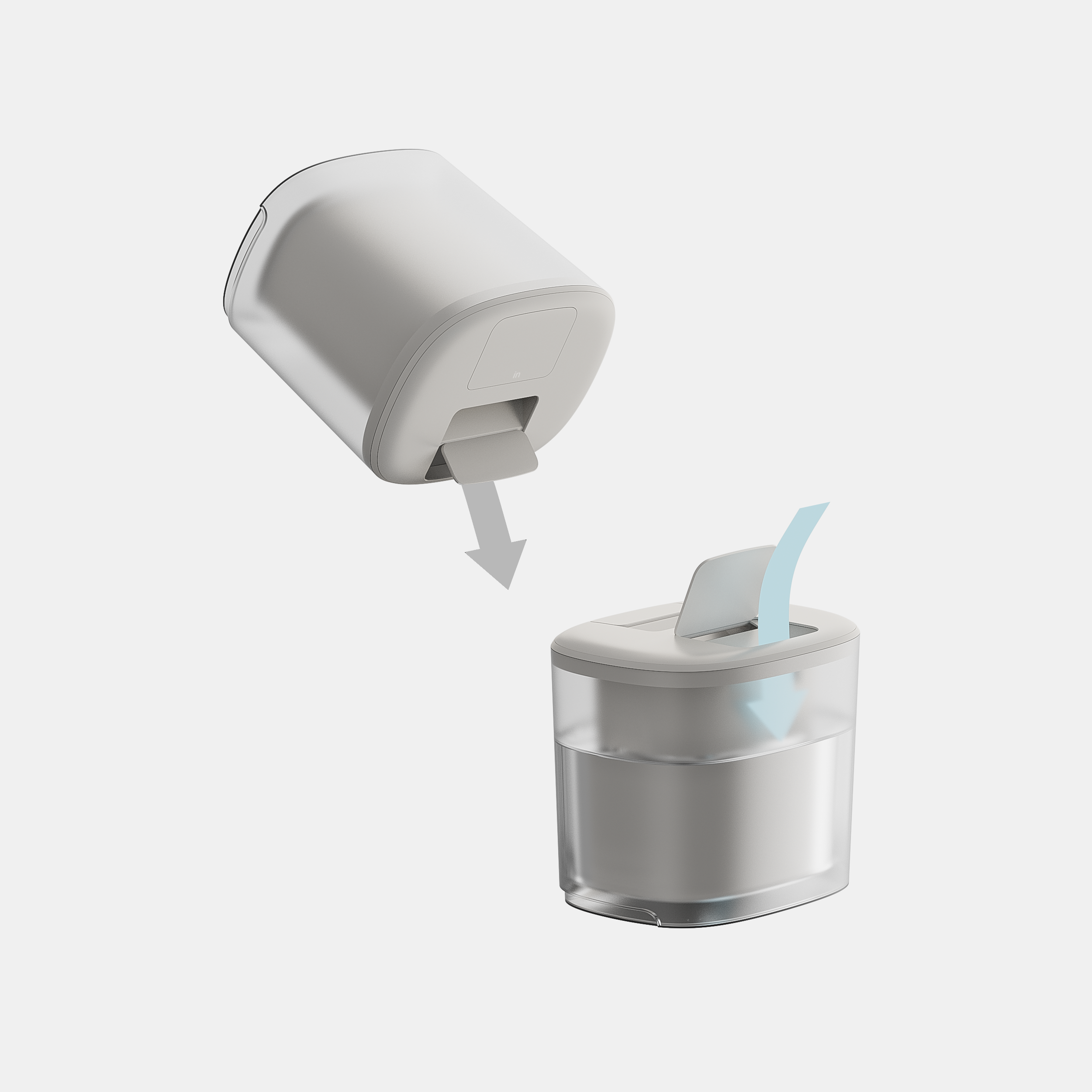

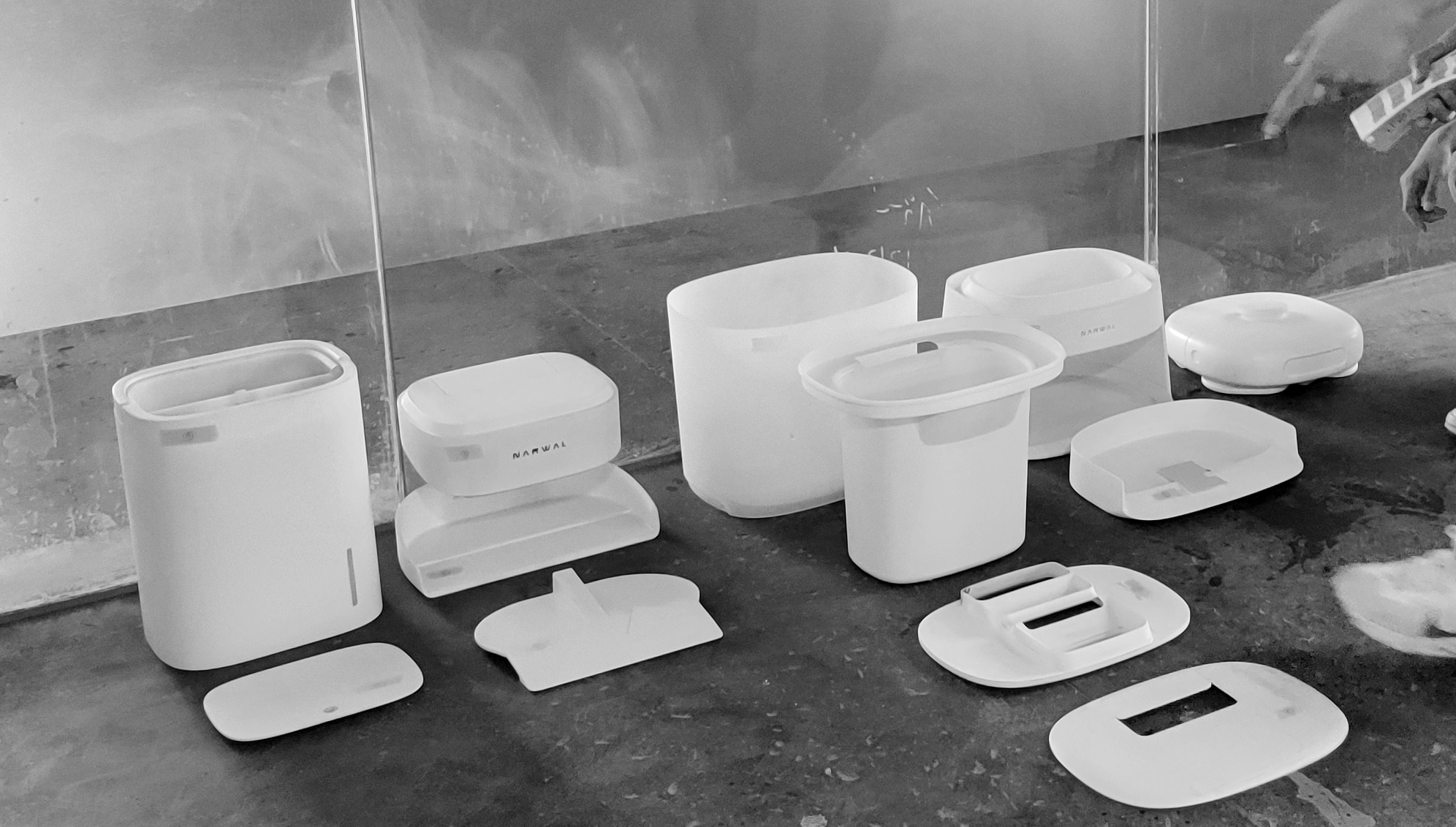

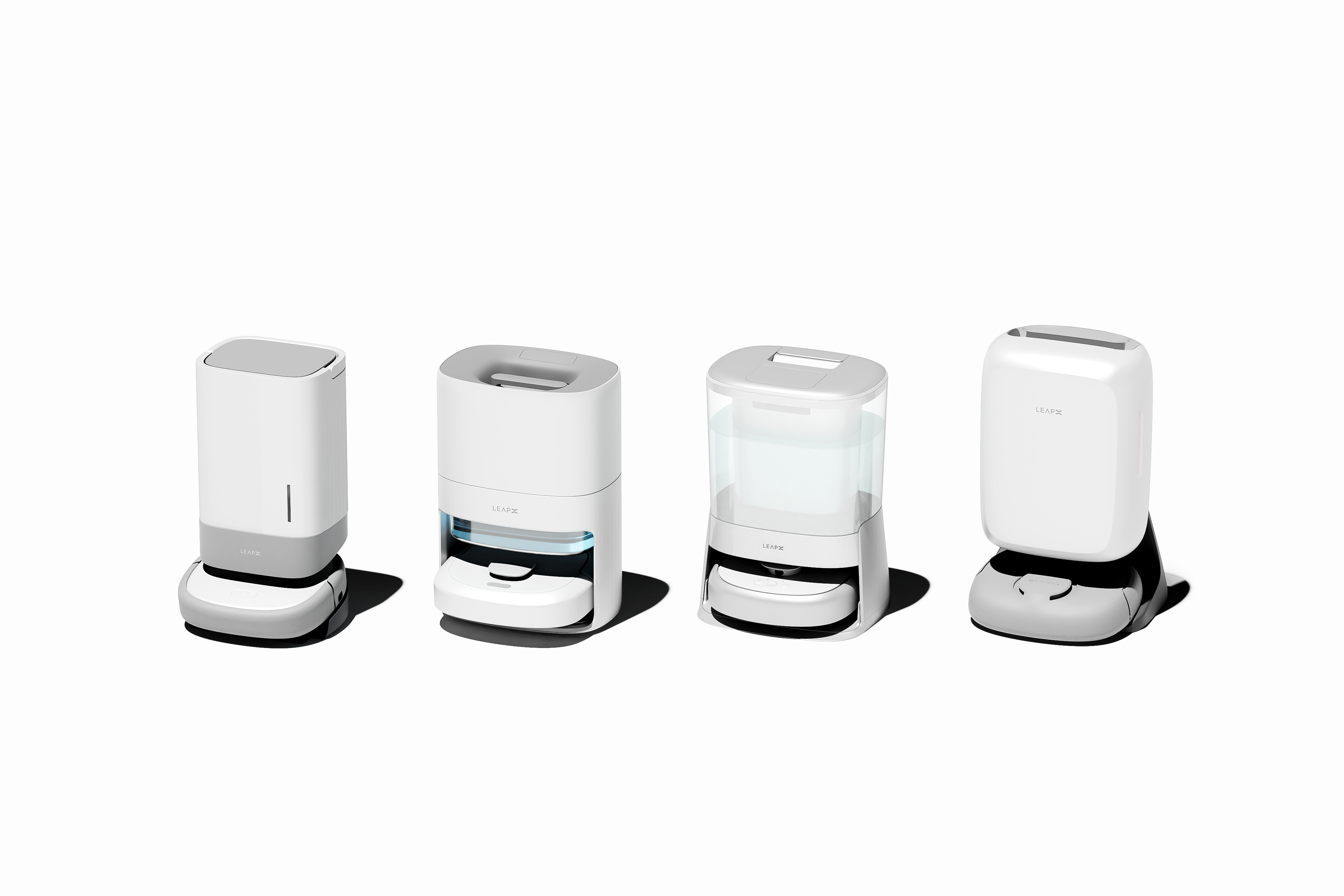

Modular water tank design, on the left are two water tanks with different capacity sizes, which is convenient for users to choose the appropriate capacity according to the space size, avoiding that the water tank is too small and needs to be replaced frequently; it also avoids the problem that the water tank is too large, causing sewage deposition and odor. The water tank can also be completely removed, and the automatic water change module on the right can be installed, which can directly connect the household clean water pipeline and the sewage discharge port to realize automatic water change in the whole process.

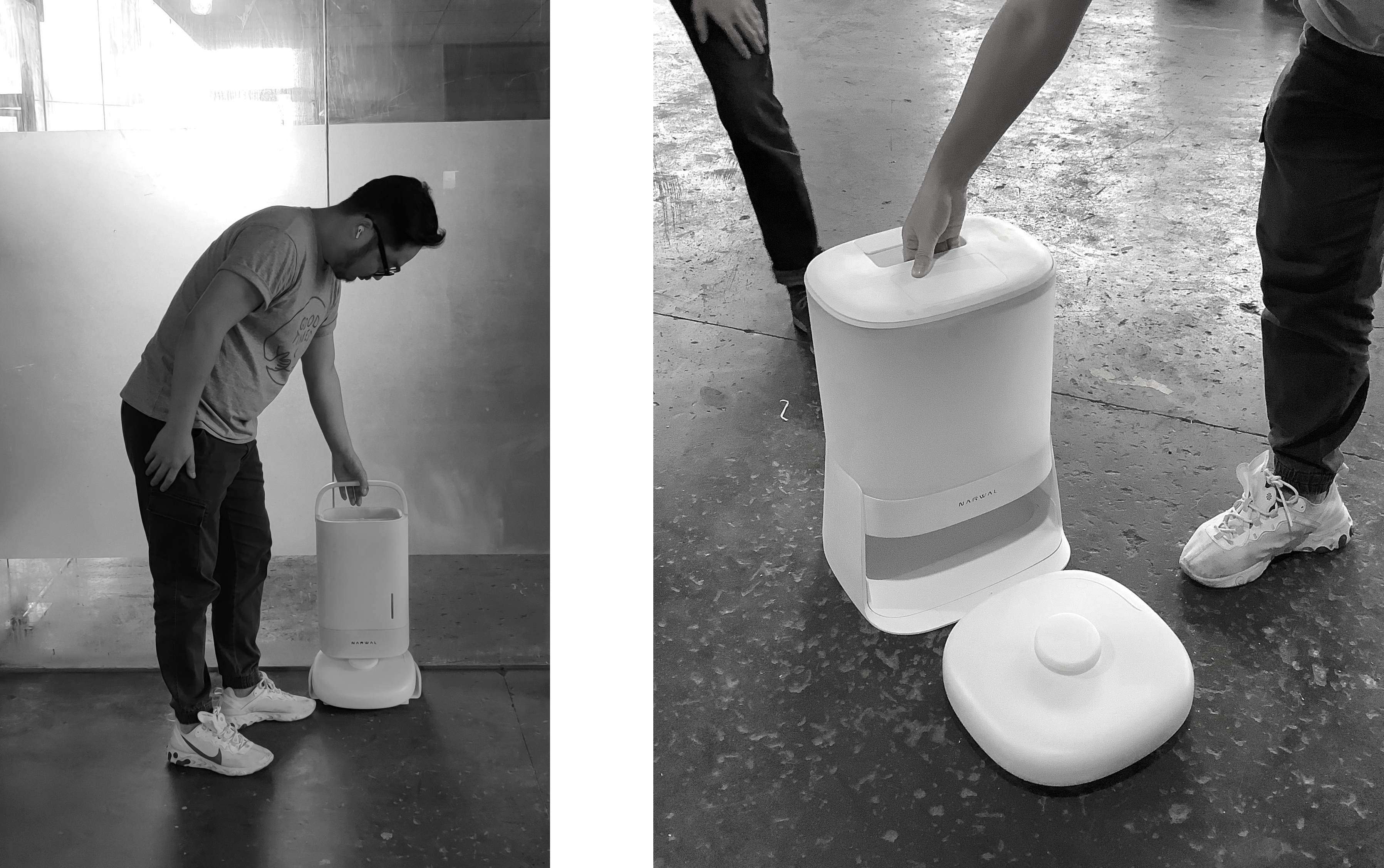

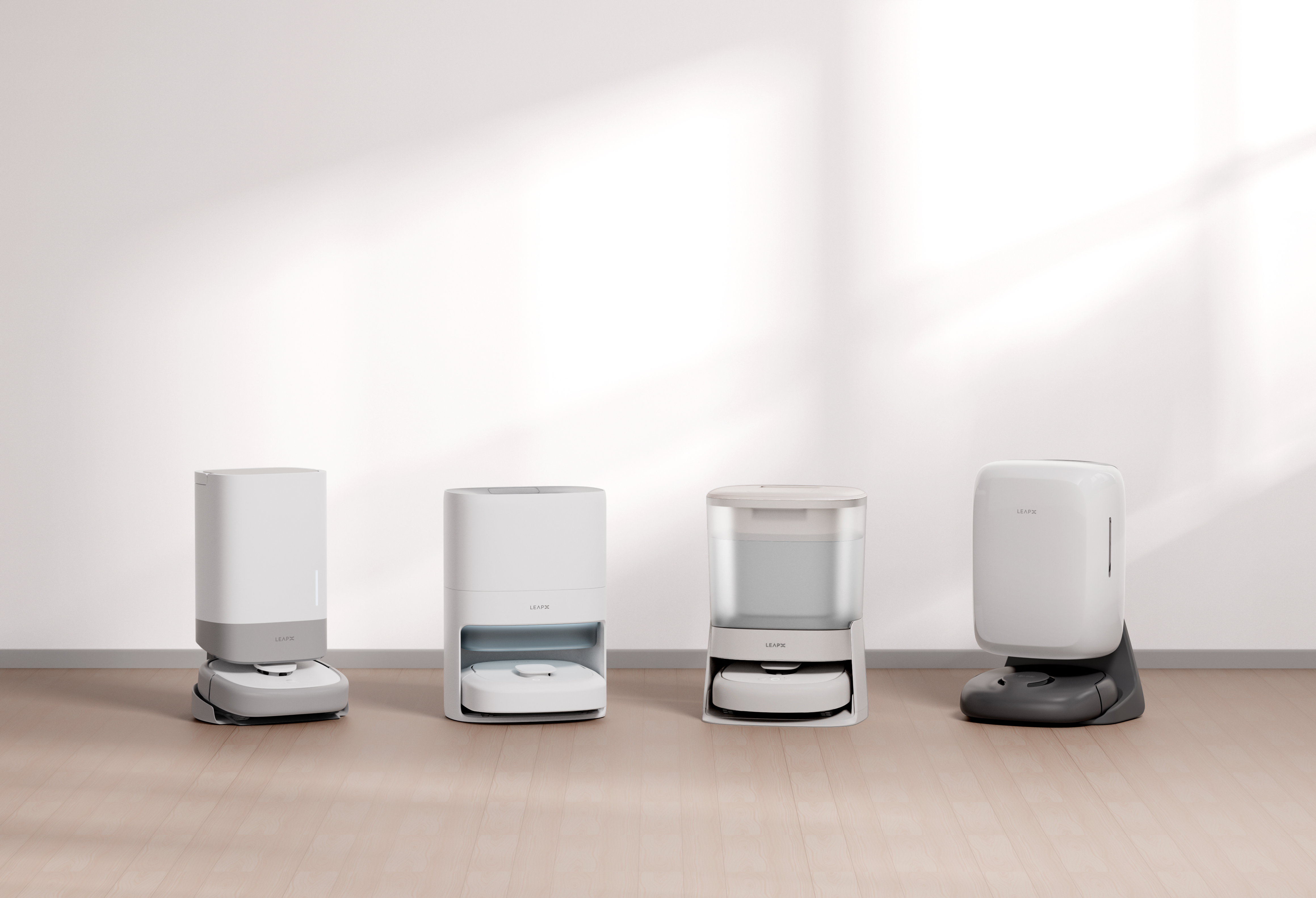

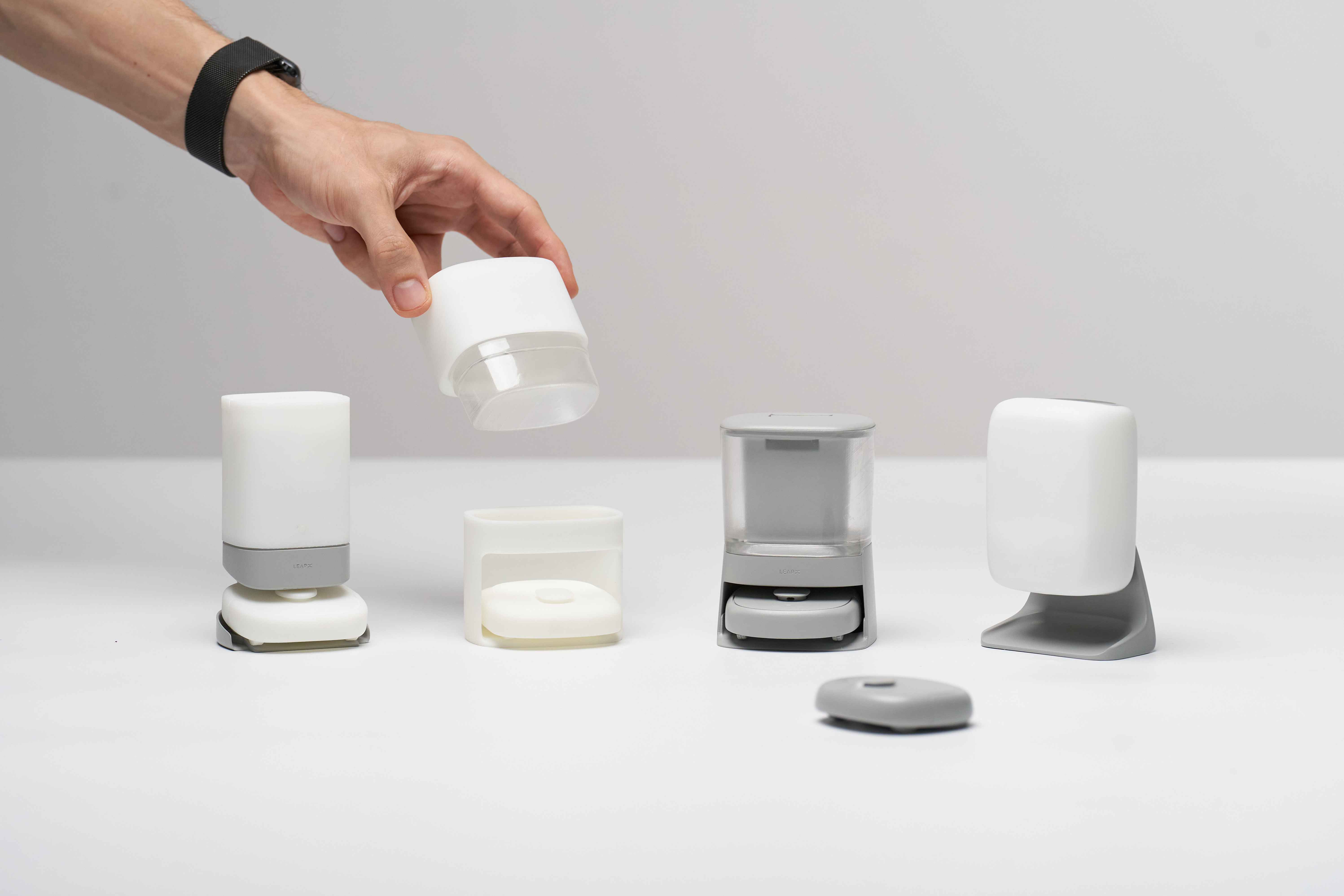

In the early stage of the project, we used the AR function of iPad Pro to quickly feel the size of the design and the integration effect with the home background. The project is old, and LEAPX has used AR headsets to feel the design model more intuitively.

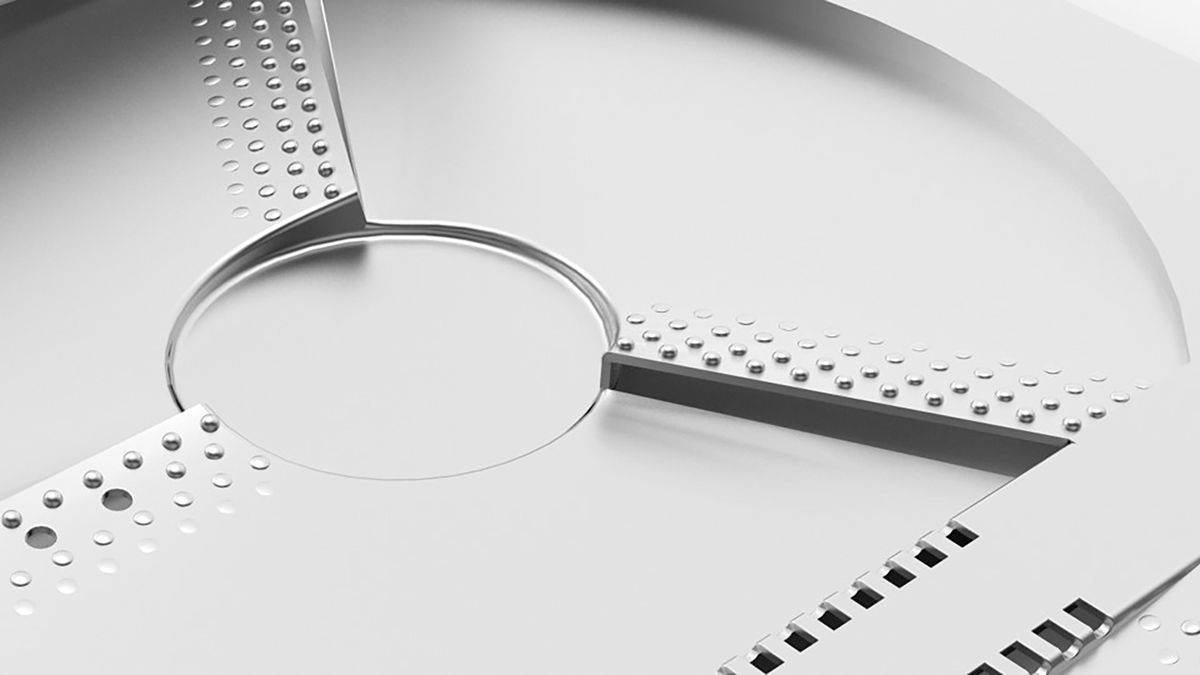

We also redesigned the cleaning tray, rotating clockwise to clean the mop, rotating counterclockwise to scrape the residual water on the mop, improving the drying efficiency, and the stainless steel tray is also more convenient to clean.
For more details of this project, please refer to the article on LEAPX Public Number
Design Team|Siyoon Kim, Kaihuang Chen, Yumian Deng, Hai Wu.
Visualization| Kaihuang Chen, Caijin Chen, Katrina Wang, Barney Mason.
Client|Narwal Robotics
