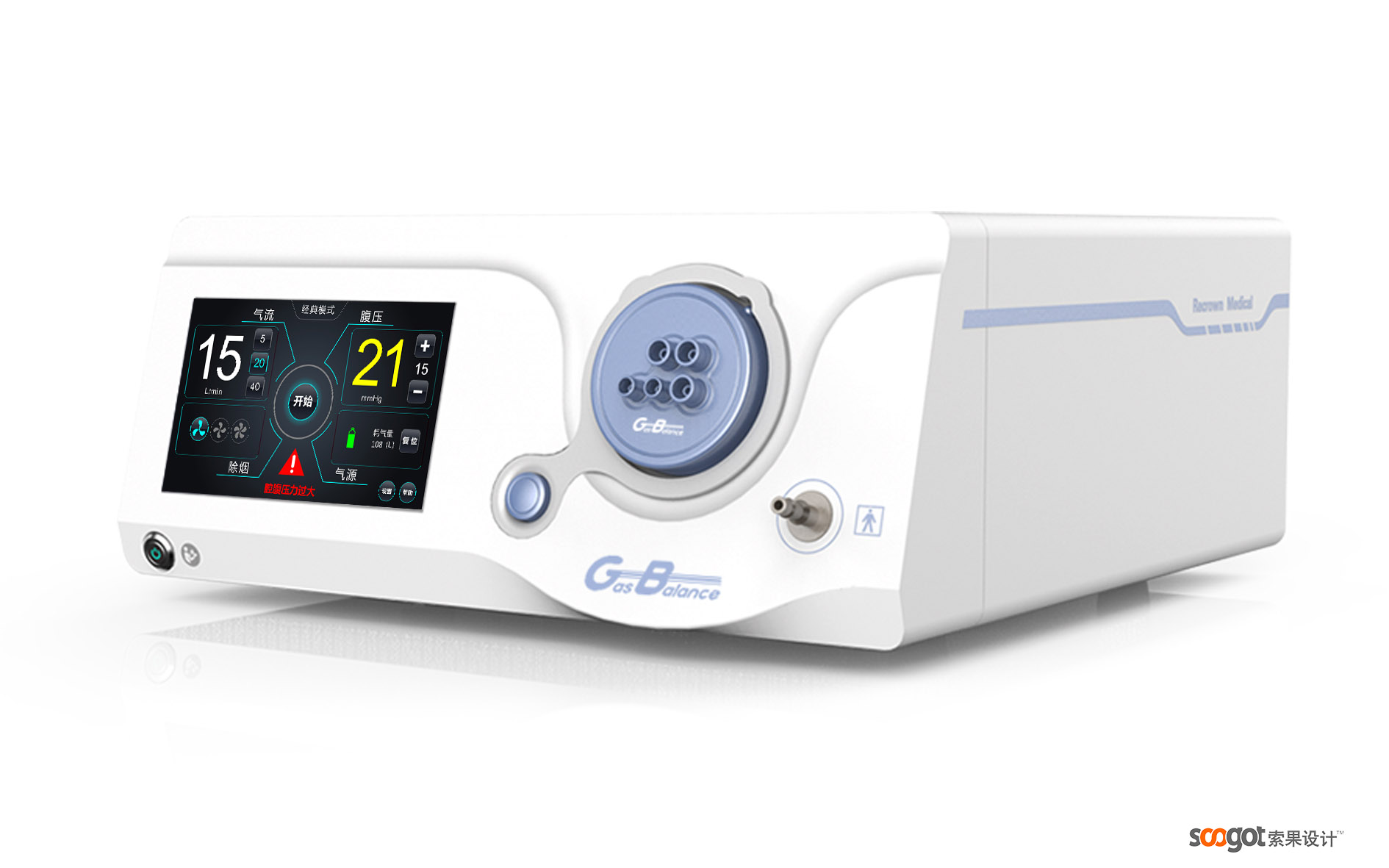

Project Name: Pneumoperitoneum Machine Industrial Design
Cooperation content: design analysis | appearance design | structural design | prototype production | accompanying running assistance
1. design analysis
Scenario: Laparoscopic establishment/maintenance of pneumoperitoneum in the operating room, providing a stable pressure of 4-30 mmHg, a maximum flow rate of 45 L/min, and real-time monitoring of gas temperature and pressure.
Core appeal:
Safety-overpressure, overcurrent, pipeline blockage triple alarm, a key pressure relief.
• Mute-run ≤ 40 dB near the surgical light/microscope.
Space saving-can be hung and stood, occupying <0.05 m².

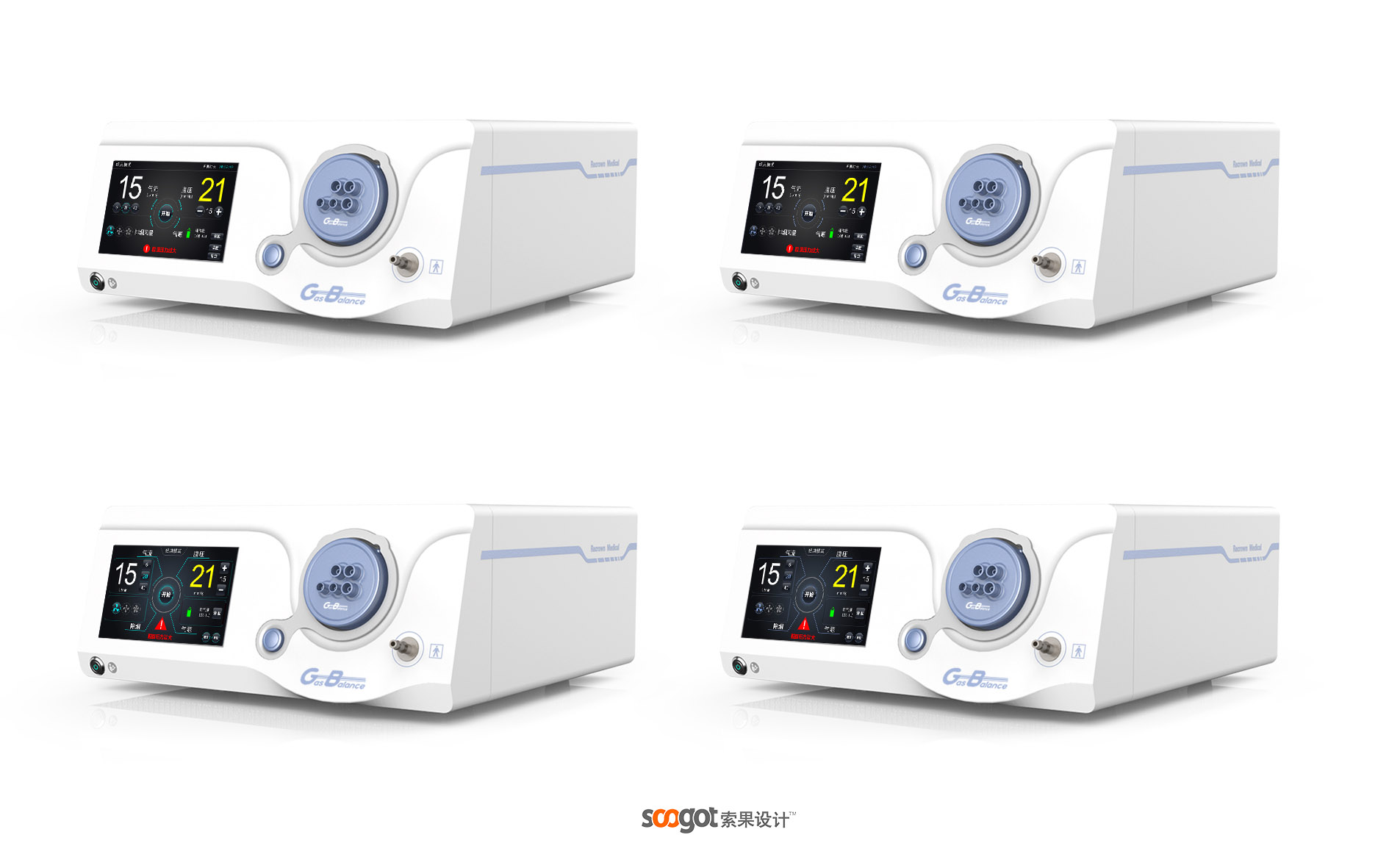

2. Design Language
Form: vertical "small tower" forward 7 ° operating surface, to avoid the traditional horizontal "square brick" to occupy the platform.
Color: medical white main body deep space gray heat dissipation grid brand lake blue light belt, conveying cleanliness and professionalism.
Material: ABS PC flame retardant shell, surface antibacterial coating; top metal handle and hook, can be rotated 180 °.
3. Design Details
Quick gas path: top hidden CO₂ inlet and outlet gas double quick plug, completed in 1 second with bare hands; built-in one-way valve to prevent backflow.
No fan heat dissipation: vertical chimney air duct aluminum extrusion heat sink, no fan, zero noise, zero dust.
Tips for light strip: 2 mm micro-slit RGB light strip on the front-blue standby/green operation/red alarm, 30 m visible.
Magnetic suction filter bottle: transparent PC bottle 200 ml, magnetic spring to detect liquid level, full bottle automatic shutdown and flashing red light.
One-key pressure relief: 18 mm metal emergency stop key, bump blind touch, long press for 1 s to quickly empty the gas circuit.
4. ergonomics
Operating height: the whole machine is 260 mm high, hung on the infusion stand or standing on the table, the center of the screen is 850-1200mm away from the eye, standing without bending over.
Interactive angle: 7 forward tilt panel 2.8 "touch screen, vertical line of sight error ≤ 10, gloves can be accurately pressed.
One-handed movement: the diameter of the top handle is 28mm, the whole machine is 2.3kg, one hand can lift and hang the frame, and the moving thrust is ≤ 25 N.
Cable management: the back is hidden in the wire slot, and the air pipe and power cord go down at 90 degrees to avoid winding on the table.
Maintenance: The side plate is snap-in for 3 seconds, and the water filter bottle and desiccant can be replaced without tools.
Summary
This pneumoperitoneum machine breaks the traditional horizontal bulky impression in the form of a vertical "small tower". Through the fan-free chimney heat dissipation, fast gas insertion, magnetic water filter bottle and lamp belt prompt, the high flow CO₂ is controlled and concentrated in the 2.3kg body. The forward touch surface and the top rotating handle allow doctors to "read when lifting their eyes and hang when lifting their hands" on the operating table, thus realizing the pneumoperitoneum experience of real zero noise, zero and zero occupation and zero operation. SOGOT DESIGN: www.soogot.com
