Project Name: Electronic Waterproof Scale Design
Cooperation content: design analysis | appearance design | structural design | prototype production | accompanying running assistance

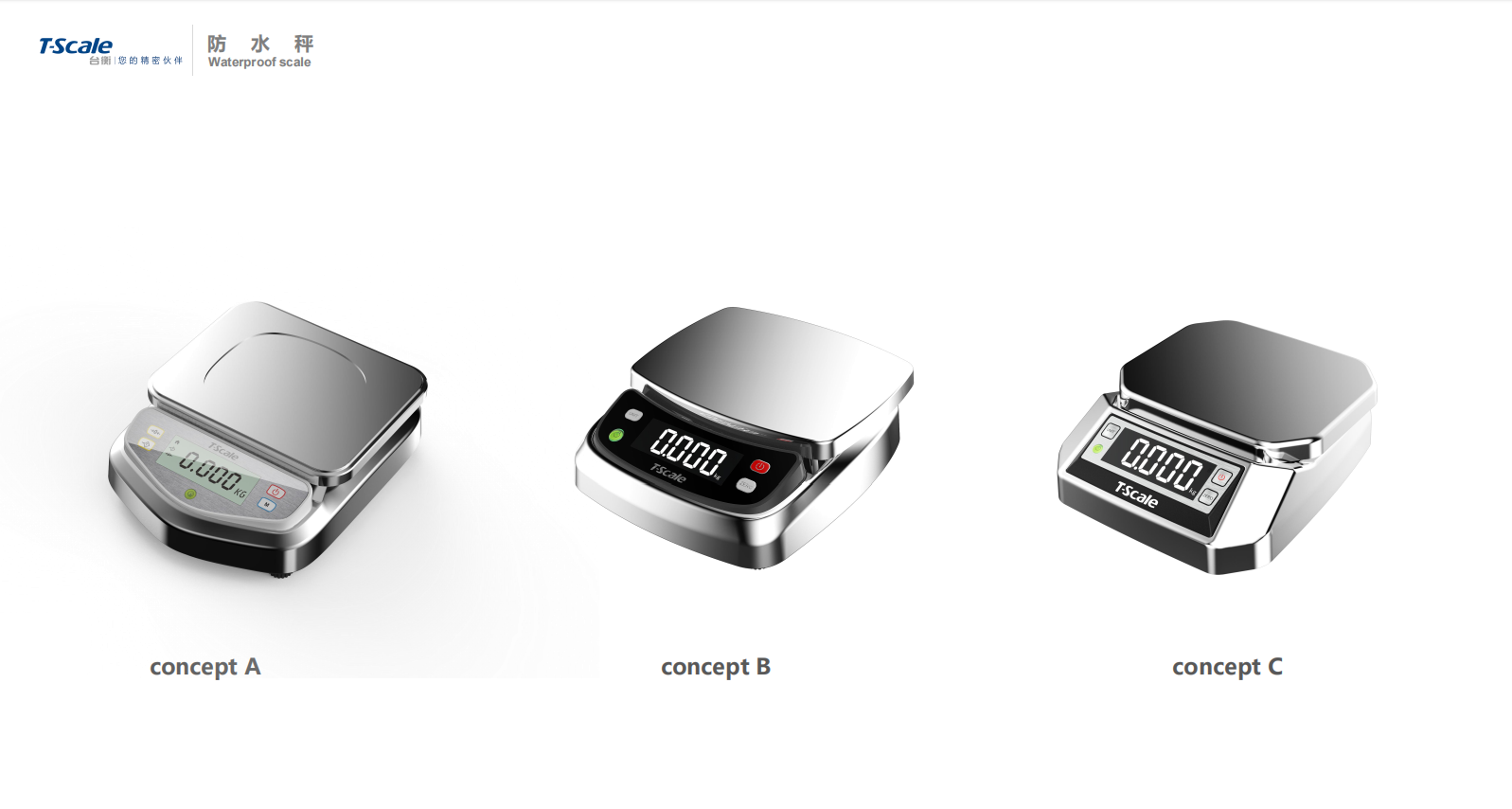

As a professional equipment for wet operation scenarios such as food processing and aquatic product transportation, the three design schemes (A, B and C) of TScale electronic waterproof scale take "waterproof performance and weighing accuracy" as the core, and construct a product form with both professional industrial attributes and practical experience through systematic design language, fine detail processing and humanized ergonomic optimization, become a typical example of commercial weighing instrument design.
1. design positioning: precision weighing carrier with multi-scene adaptation
The core positioning of this group of electronic waterproof scales is "professional weighing tools for serving wet industrial scenes". The design starts from the pain points of different operation scenarios: Scheme A focuses on the frequent cleaning requirements of food processing workshops, Scheme B adapts to the high humidity weighing scenarios of aquatic products market, and Scheme C targets the corrosion-resistant operation requirements of chemical raw materials. The three schemes not only strengthen brand recognition through family design, but also meet the subdivision scene in a differentiated form, achieving the dual goals of "professional performance" and "scene adaptation.
2. Design Language: Restraint Aesthetics Delivers Industrial Professionalism
In the wet industrial scene, the visual language of the weighing instrument needs to take into account "professional rigor" and "practical and durable". The design language of this group of waterproof scales is the embodiment of restraint aesthetics:
Color system: with stainless steel metal silver as the base, with black operation panel and high-brightness digital display, the metal texture transmits the durability of industrial equipment, while the black panel strengthens the visual focus of the display area, making the weighing data easier to read.
Form language: the whole adopts square and tough geometric shape, and the edge of the scale platform is rounded, which not only ensures the structural strength, but also avoids collision damage during handling and cleaning. The transition between the fuselage and the scale platform is simple and neat, without redundant decoration, which is in line with the design logic of "function priority" of industrial equipment.
Material logic: the platform is made of 304 stainless steel, which has both waterproof, anti-corrosion and impact resistance. The fuselage shell is made of ABS engineering plastic, and the surface is coated with anti-fingerprint coating, which is not only convenient for cleaning, but also improves the visual cleanliness for long-term use.
3. design details: function-oriented precision landing
Every adjustment of the appearance details points to the actual pain points of the wet scene:
Waterproof and sealing design: IP67 waterproof and sealing structure is adopted for all three schemes. Silicone waterproof rubber strip is embedded in the joint between the panel and the fuselage. The digital display area adopts glue filling and sealing technology, which can cope with the erosion of high-pressure water gun flushing and long-term humid environment.

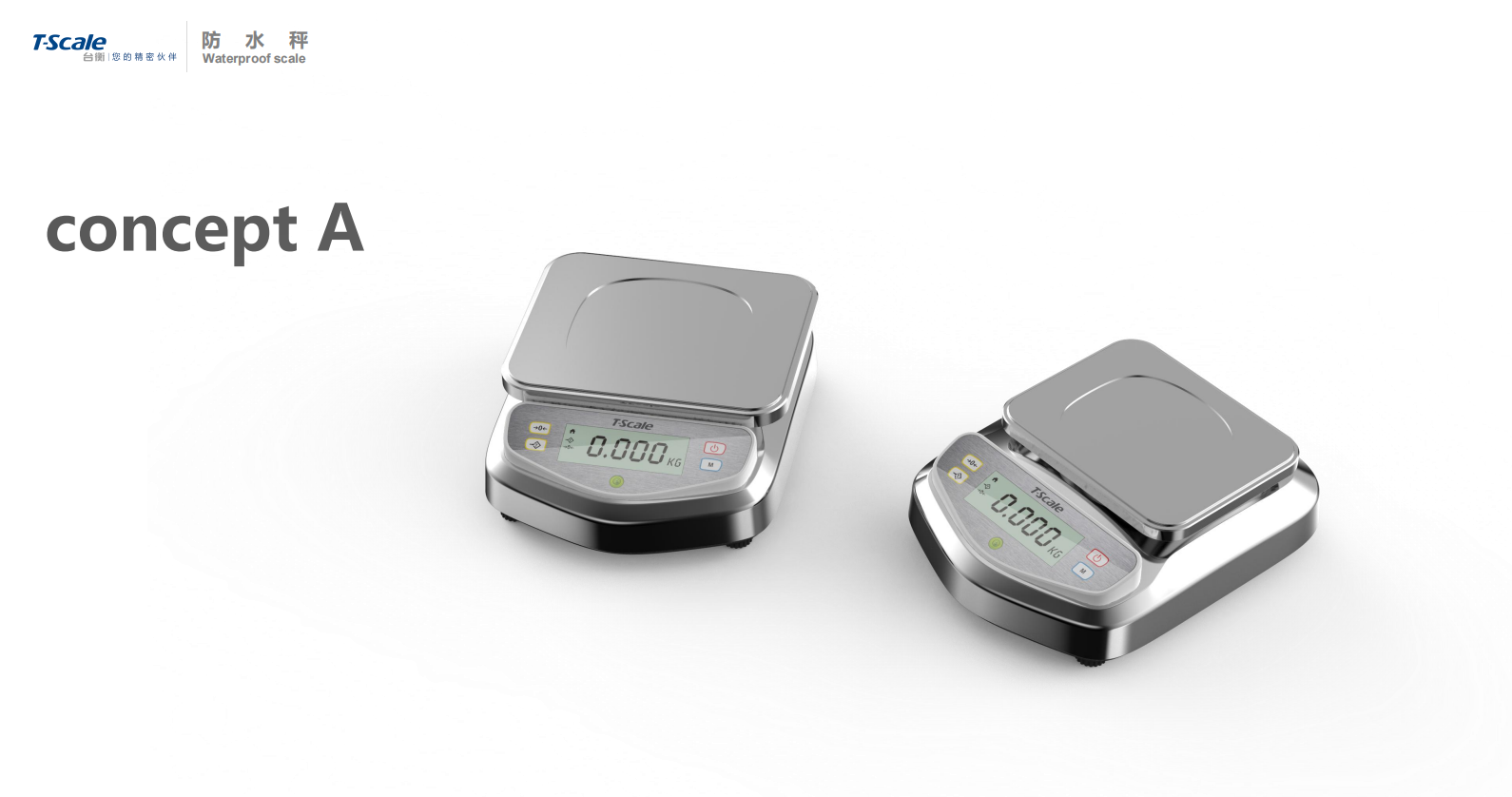

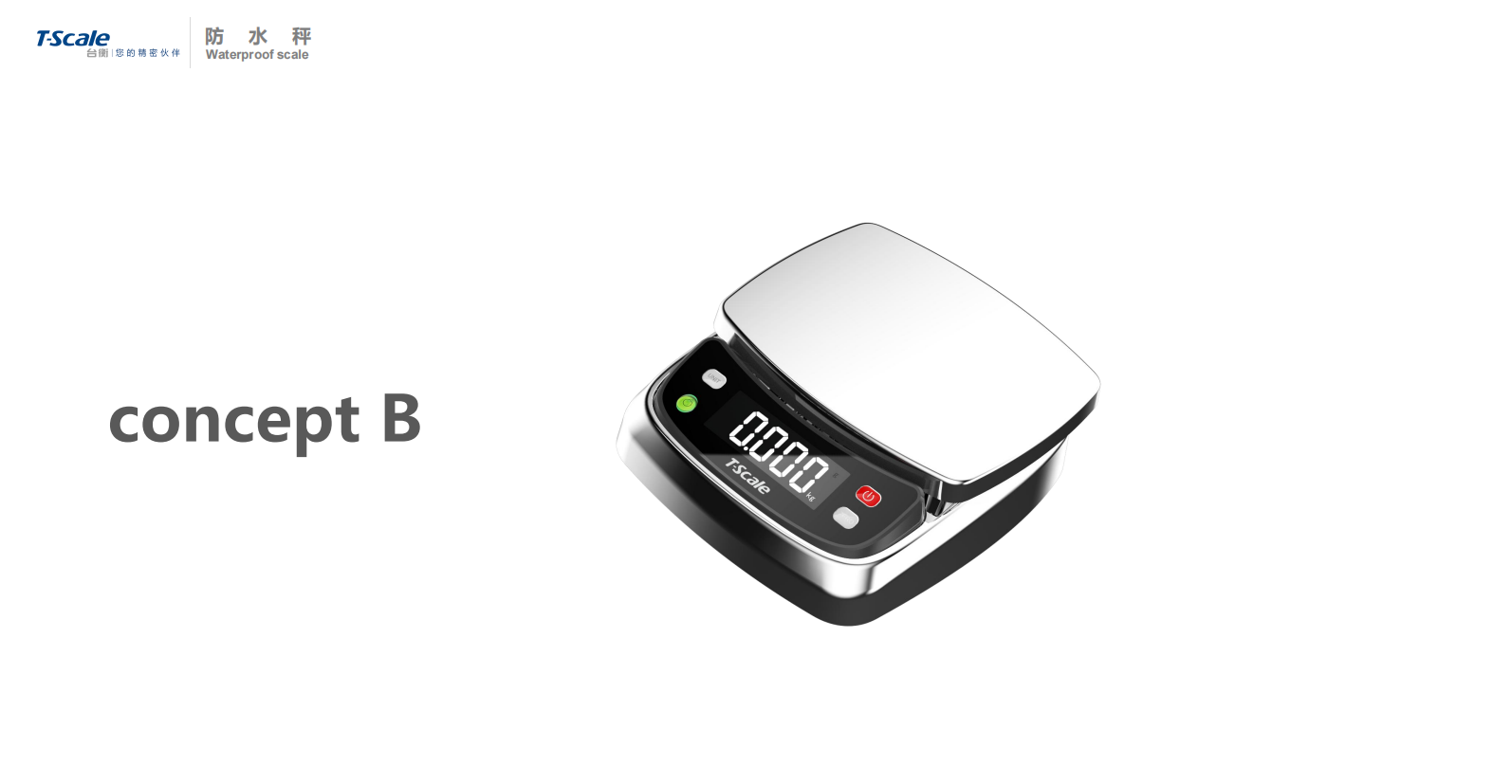

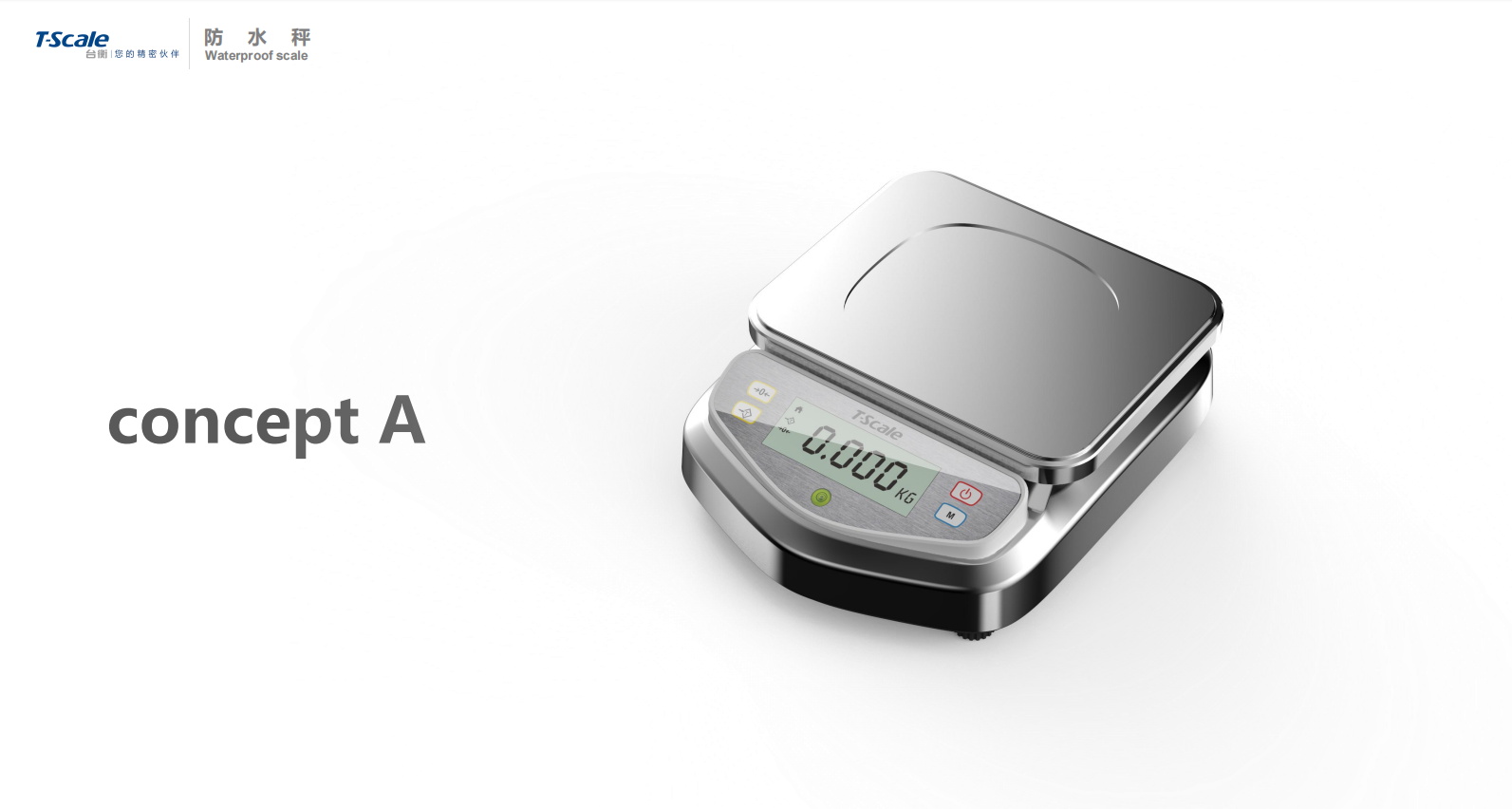

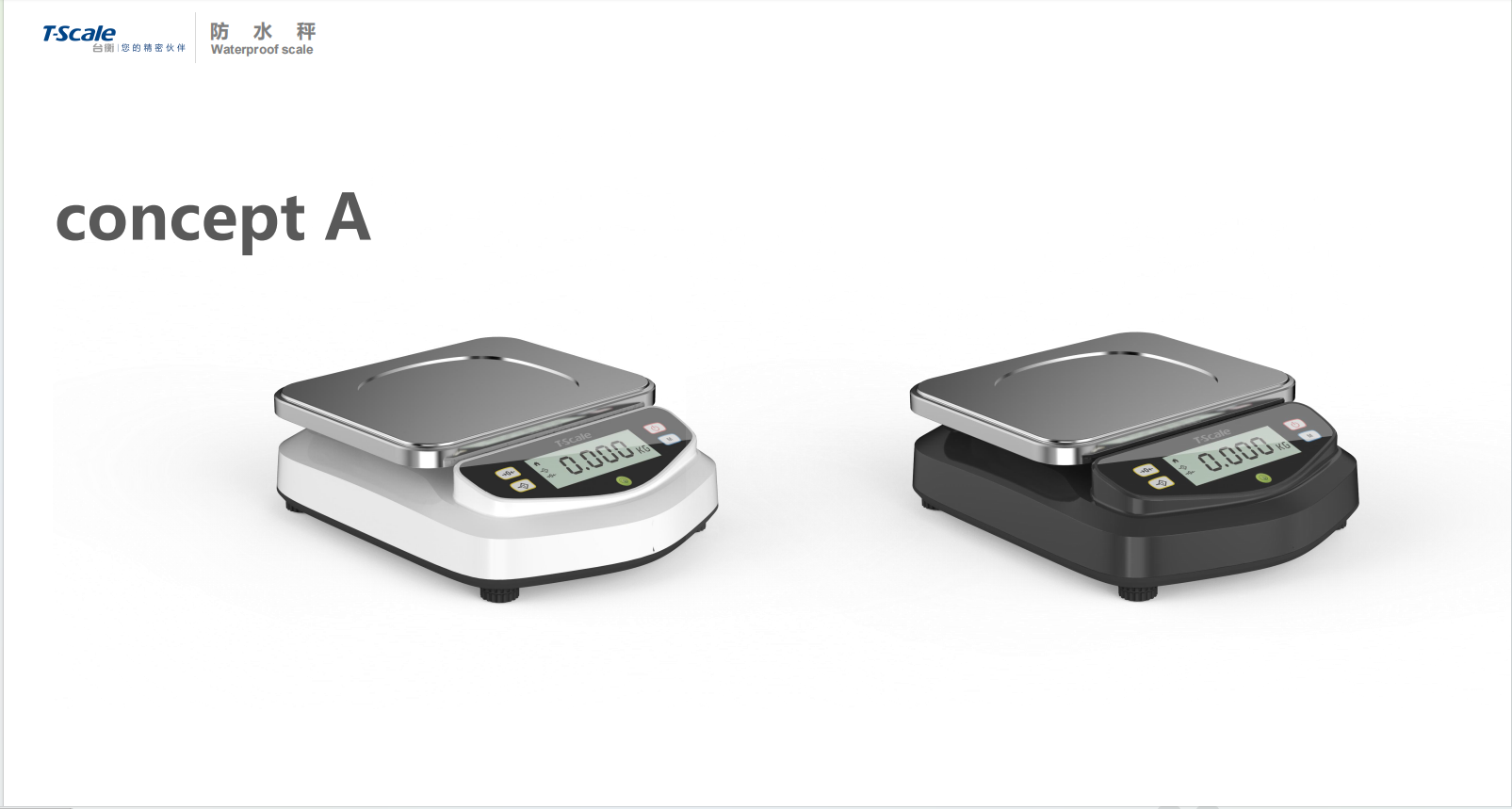

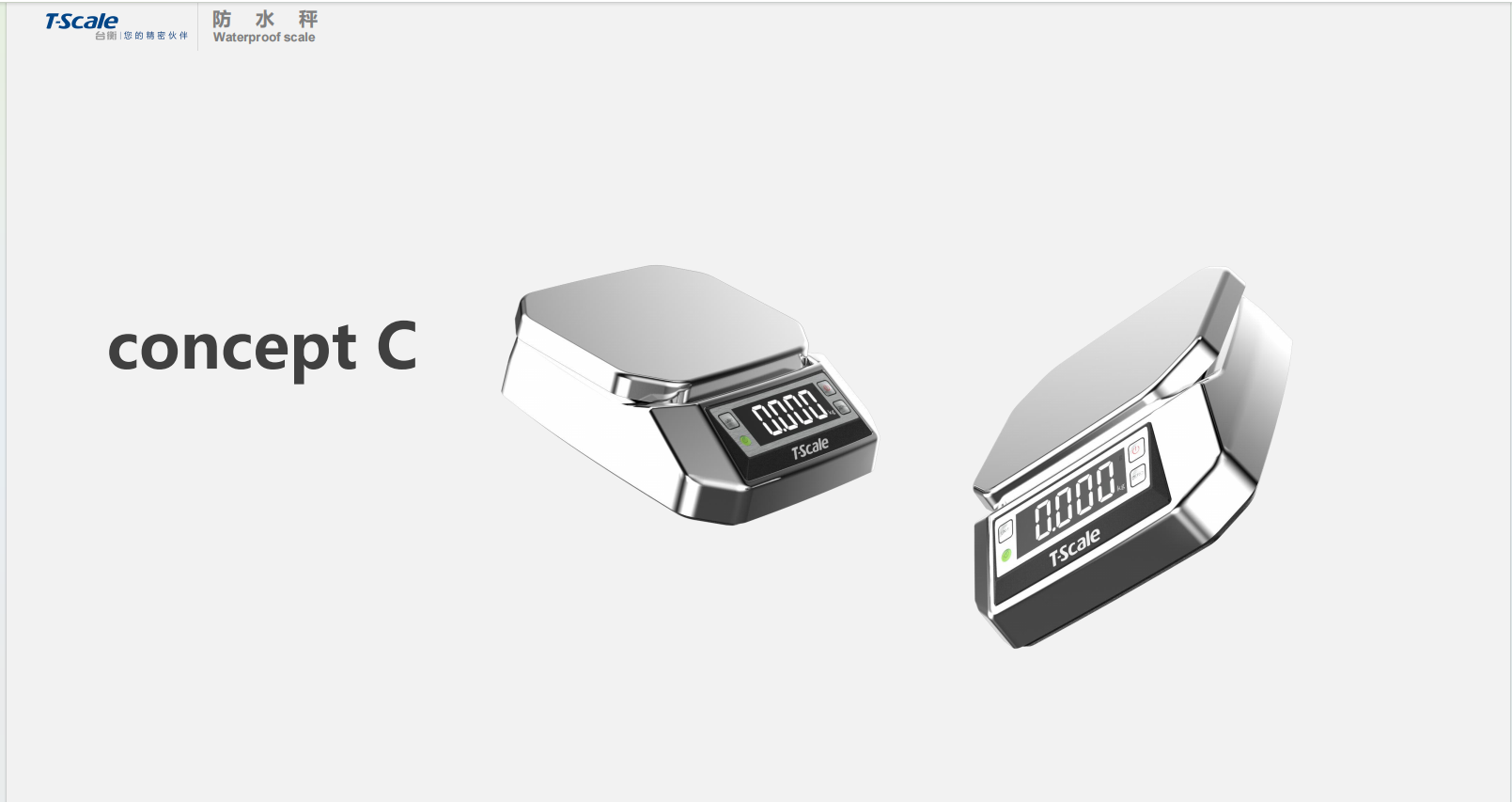

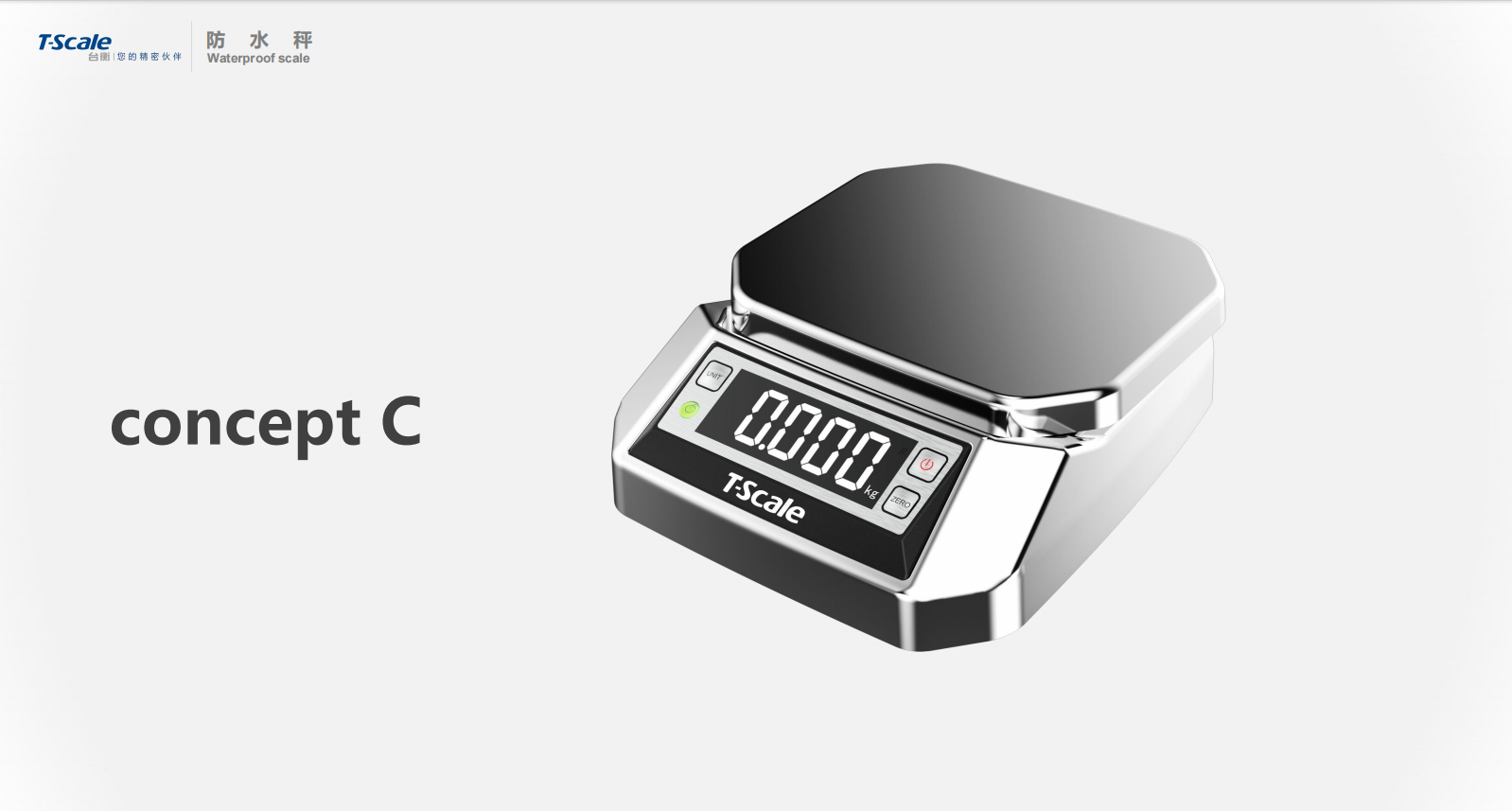

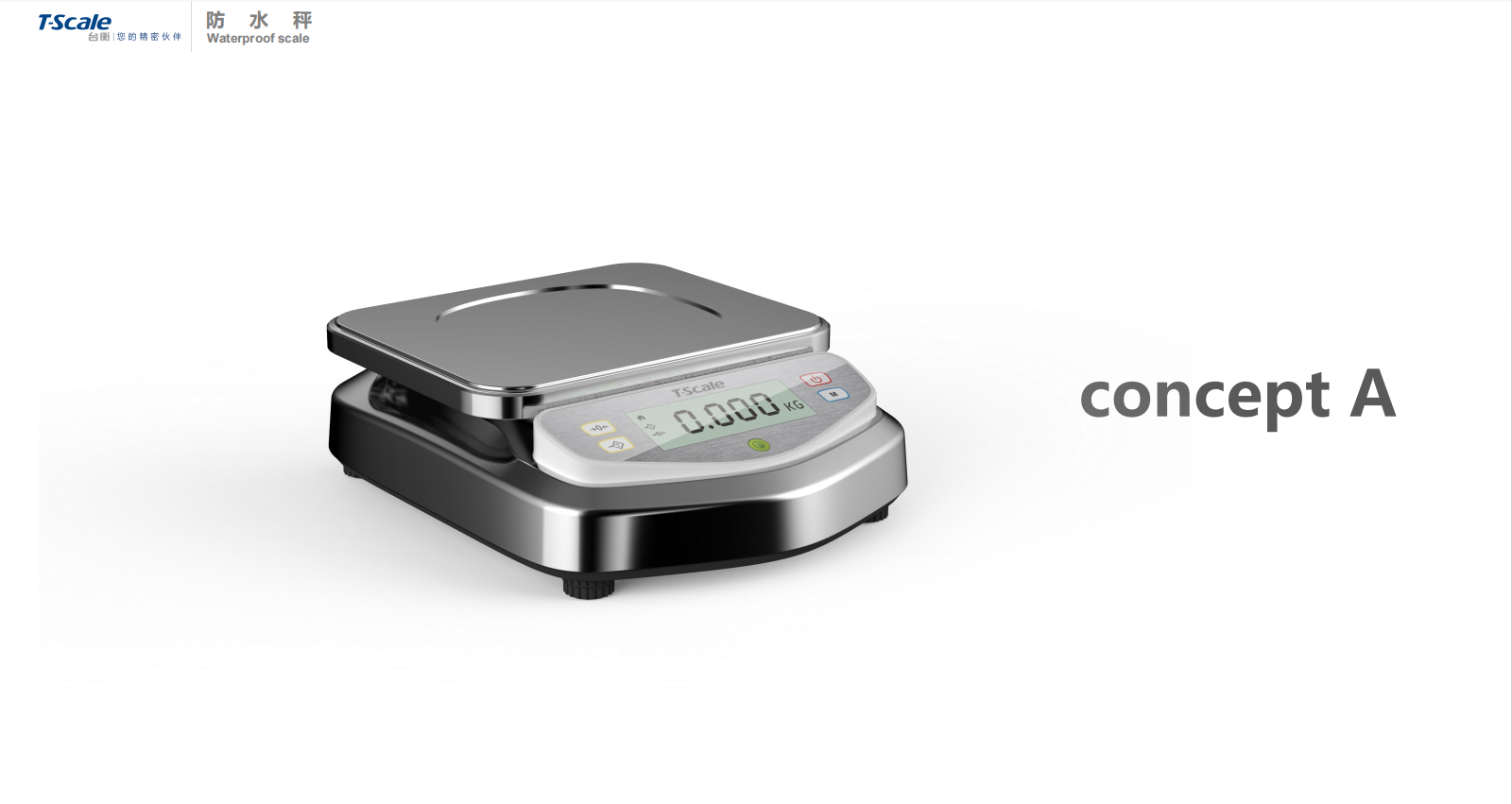

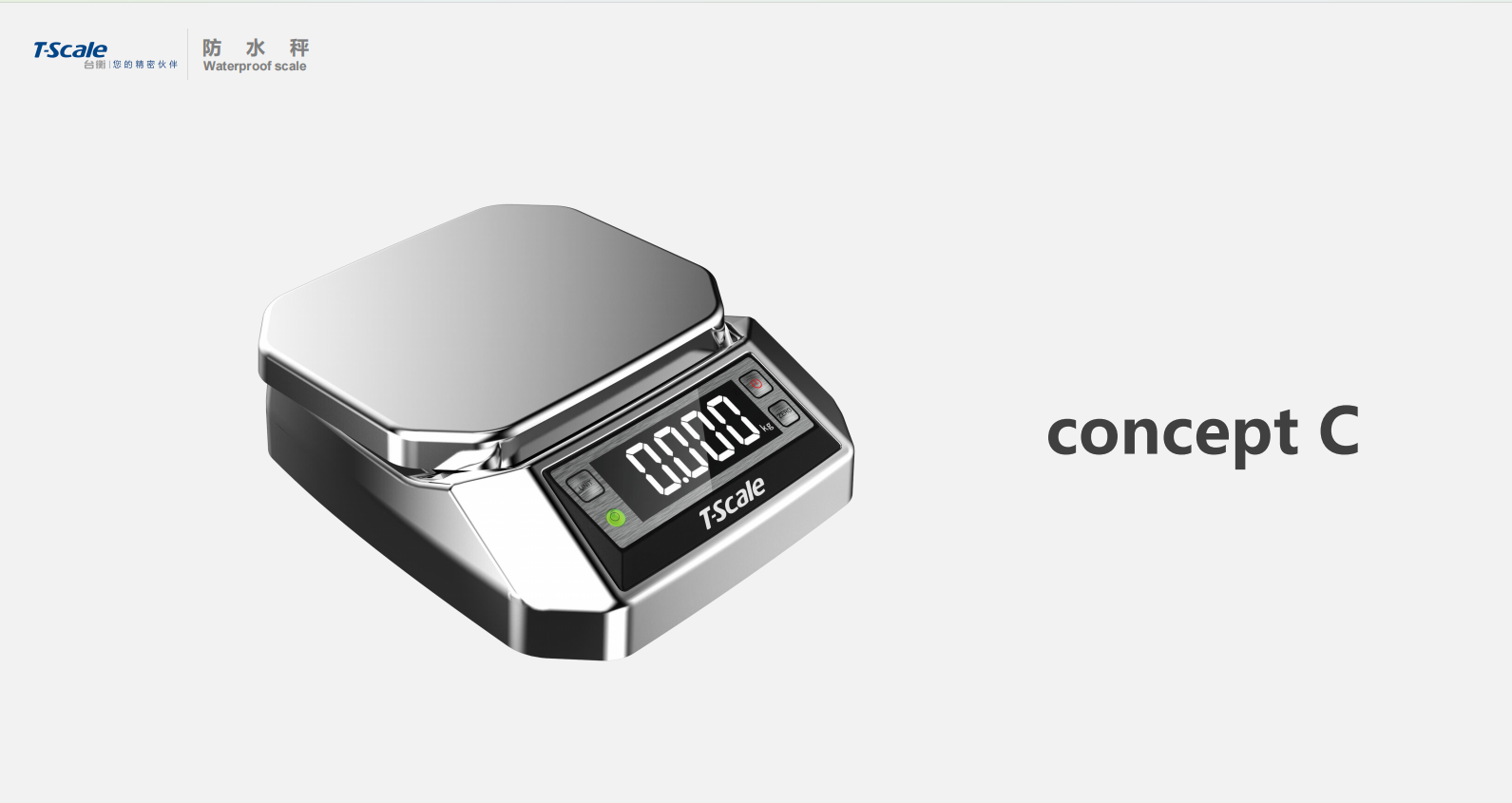

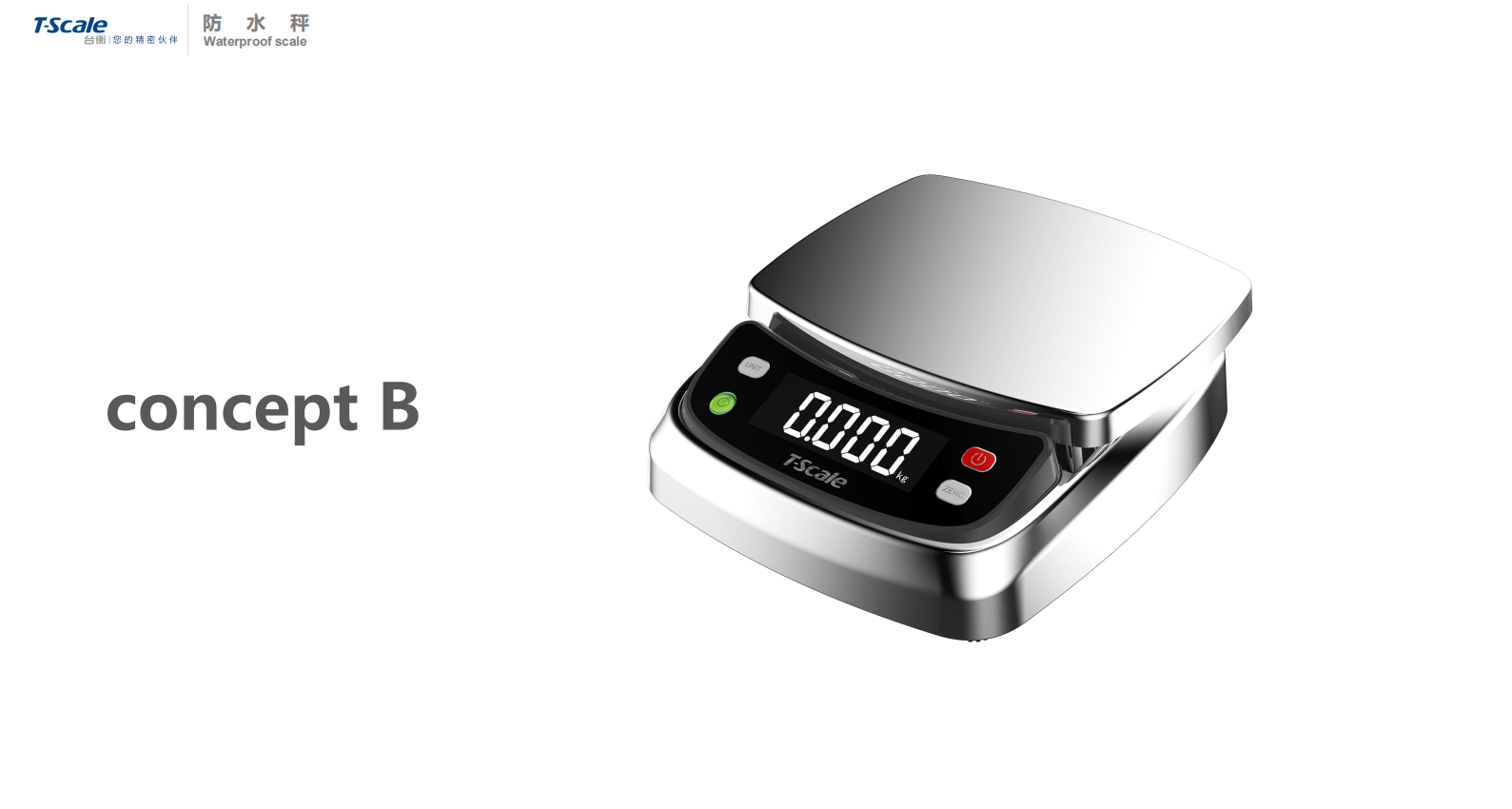

Display and operation details: the inclined display panel of scheme a is adapted to the visual angle of standing operation, the high-brightness digital tube of scheme B is still clearly visible under strong light, and the integrated key design of scheme c avoids stagnant water and has no dead angle during cleaning.
Anti-skid and moving details: the bottom of the fuselage is equipped with anti-skid foot pads to ensure the stability during weighing; The side of the curved fuselage of Scheme A is reserved with handling grooves, which is convenient for rapid transfer of equipment in the workshop and improves operation efficiency.
4. Ergonomics: Experience Optimization for Adapting Industrial Operations
Weighing operations in industrial scenarios are often accompanied by high-intensity, high-frequency use requirements, and the ergonomic design of this group of waterproof scales directly determines the operational efficiency:
Visual adaptation design: the inclination angle of the display panel is calculated by ergonomics, and the data can be read without lowering the head during standing operation, thus reducing neck fatigue. Highlight digital tube and large font display enable operators to quickly identify weighing results in noisy workshops.
Operation logic optimization: the key layout is concentrated on the right side of the panel, which is in line with the habit of right-hand operation. The key adopts a convex design, which can be triggered accurately when wearing gloves to avoid misoperation in humid environment.
Clean and friendly design: the non-angular body and integrated panel reduce the cleaning dead angle, and the silicone waterproof rubber strip can be removed and replaced, which is convenient for maintenance after long-term use and meets the high-frequency cleaning requirements of industrial scenes.
From the perspective of waterproof sealing structure to the display panel, the design of this group of electronic waterproof scales always revolves around the "practical value of industrial scenes. It conveys professionalism with restrained aesthetics, solves pain points of wet scenes with detailed design, optimizes operation experience with ergonomics, and finally realizes the symbiosis of "accurate weighing" and "durable waterproof", providing a practical paradigm for the design of commercial weighing instruments. SOGOT DESIGN: www.soogot.com
