Project Name: IVD Cell Analyzer Design
Cooperation content: design analysis | appearance design | structural design | prototype production | accompanying running assistance
1. Design Analysis
Use scenario: laboratory, third-party medical laboratory, used for quantitative and morphological AI identification of formed elements such as blood cells, pleural effusion and ascites, urine, etc.
Core appeal:
• High throughput-≥ 120 samples per hour, zero manual microscopy;
• Zero cross contamination-negative pressure waste liquid circuit of disposable counting board;
• Fast maintenance -5min module level replacement, downtime <1h.

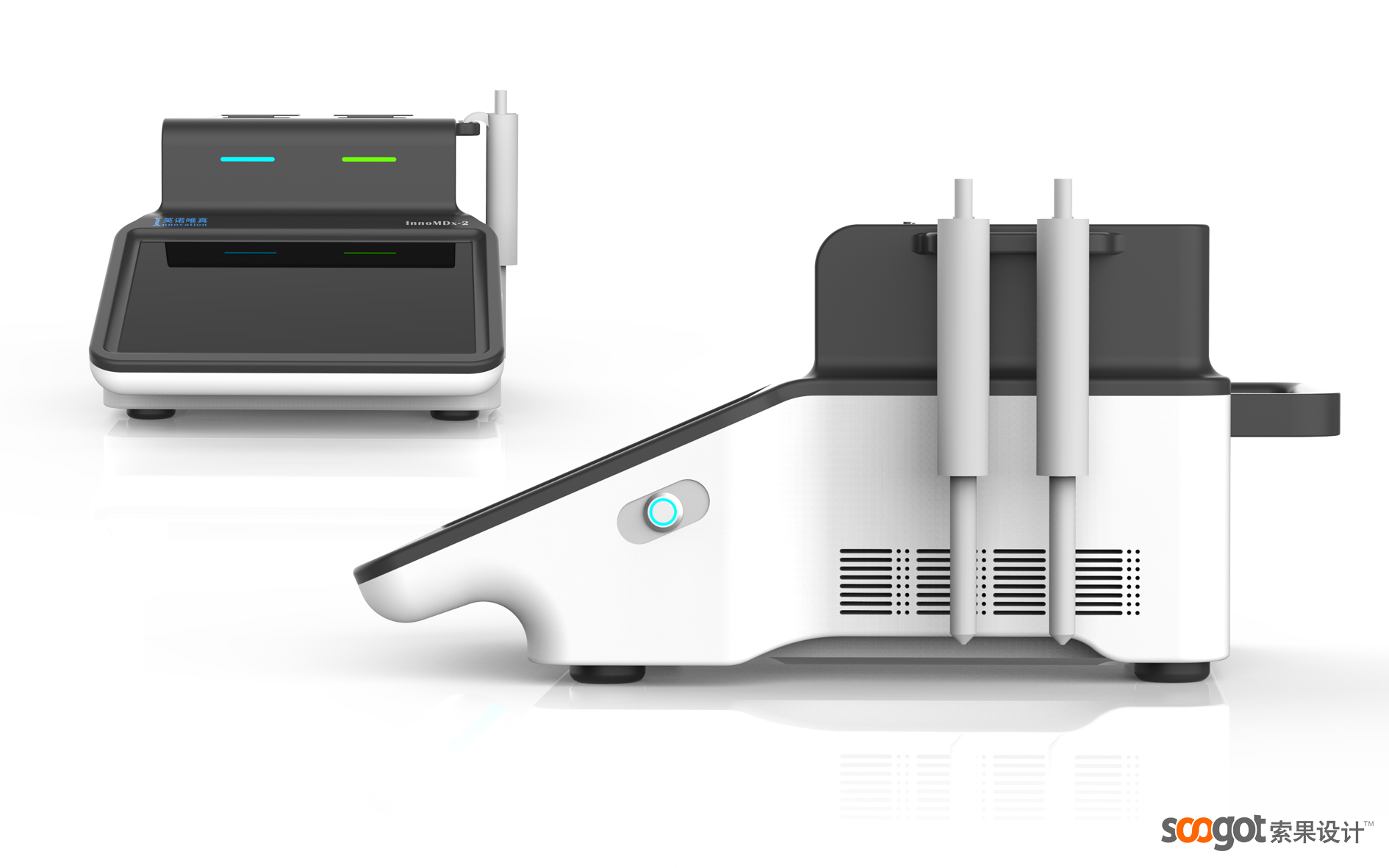

2. Design Language
Form: upper and lower "wings" suspension design, implying "unfolding wings for life"; Forward 7 ° operating surface to reduce user bending.
Color: medical white main body deep space gray anti-collision belt lake blue state light belt, calm sense of science and technology, suitable for laboratory gray environment.
Material: 1.5mm sheet metal antibacterial powder coating for shell; High corrosion-resistant 316L stainless steel in sampling area, resistant to sodium hypochlorite for 10,000 times.

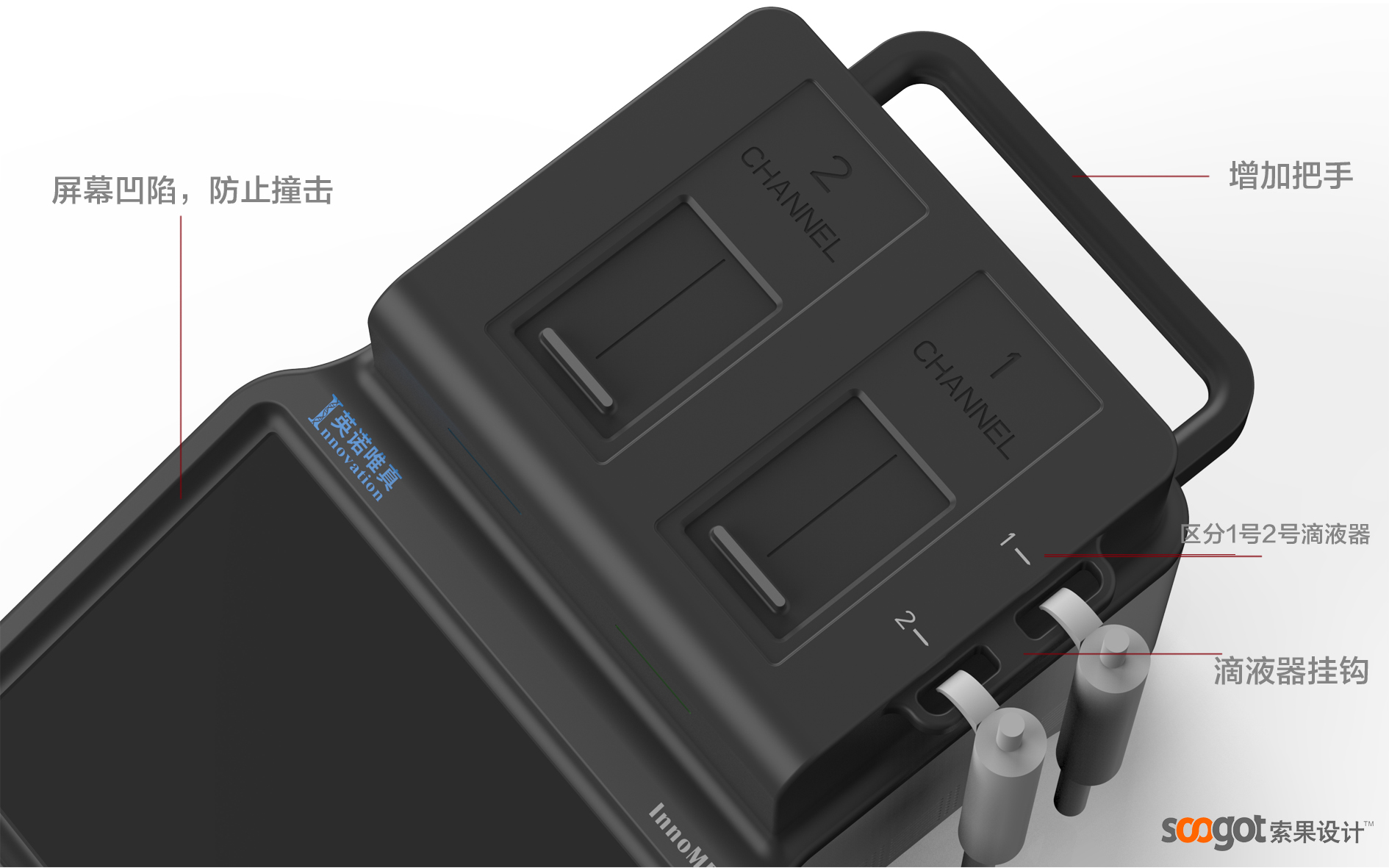

3. Design Details
magnetic suction door hidden handle:
Without exposed handle, the magnetic door can bounce open by 1.5N; During maintenance, the door can be folded and attached to the wall at 180 degrees, covering an area of <0.2m ².
Modular drawer bin:
Reagents, counting plates, waste liquid three drawers bottom-up "waterfall" layout, gravity flow, reduce the pump tube.
Visual counting board track:
• Transparent viewing window LED side lighting, the technician can visually confirm the bubble in the panel, reduce the invalid count.
Light strip status reminder:
The lake blue light belt is embedded in the waist line, running breathing, waiting for constant light, alarm flash, and can be identified from 30m.
quick release pump valve module:
The front magnetic attraction panel is behind the pump valve integrated module, which can be pulled out as a whole by turning two screws without falling off, and the maintenance is less than 5min.
4. ergonomics
Operating height:
The injection port is 900mm from the ground, suitable for Asian women P50 elbow height (960mm), standing without shoulder lifting.
Dosing posture:
• Sampling platform 15 ° down, test tube inserted obliquely, wrist to maintain neutral position, reduce carpal tunnel pressure.

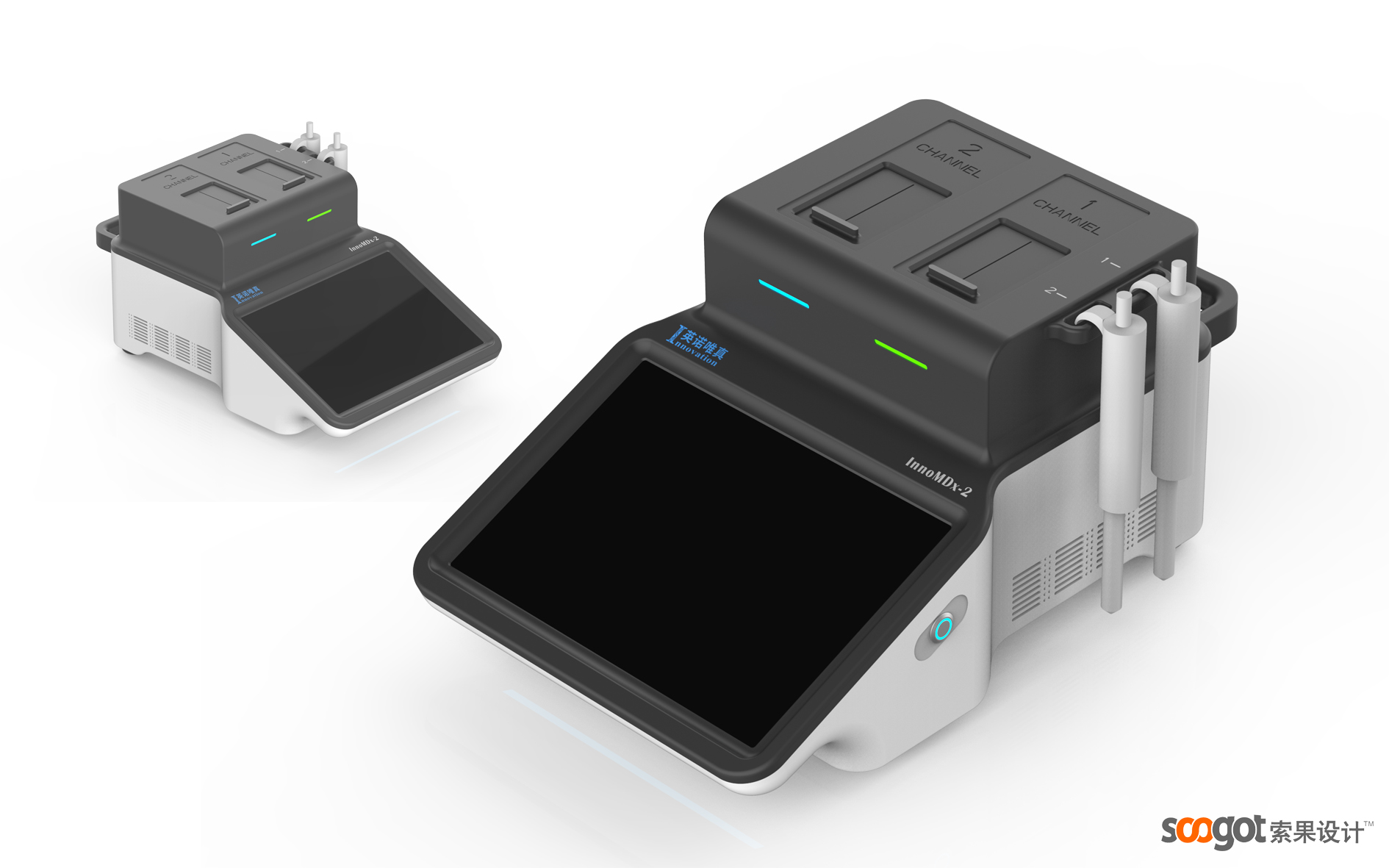

Perspective:

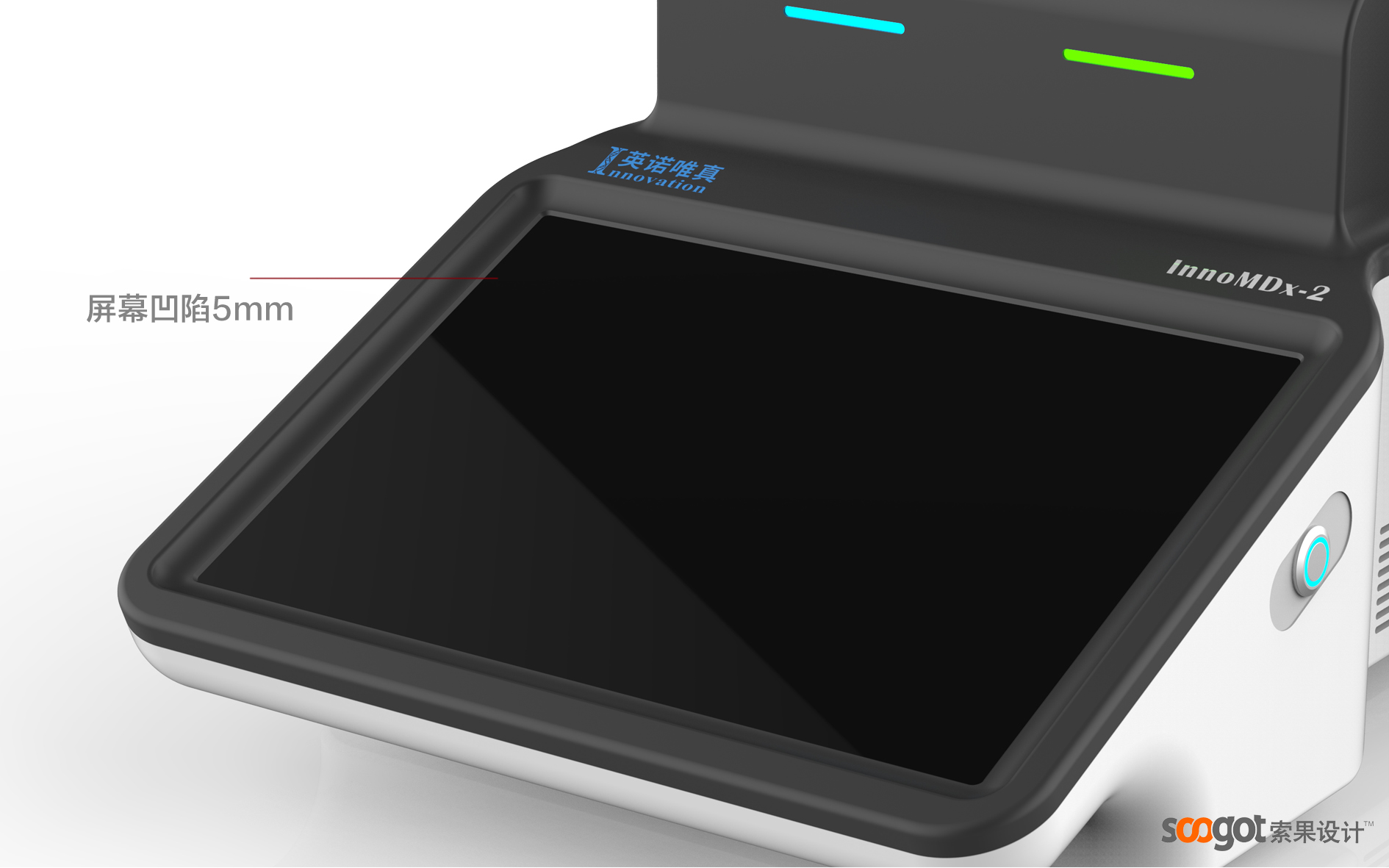

• 15.6 "touch screen tilt angle of 20 °, the doctor can head-up, cervical anterior extension <10 °.
Maintenance Altitude:
The pump valve module has a drawing height of 700mm and can be operated by squatting without bending over and climbing the ground.
Movement and positioning:
The base has 5 100mm medical silent wheels, the first two are equipped with electromagnetic brakes, thrust <40N, and female technicians push with one hand.
Summary
IVD cell analyzer integrates high-speed counting, AI identification and modular maintenance into one device in the form of "unfolding double wings" suspension. Magnetic suction doors, waterfall drawers and lake blue light belts make the inspection process as simple as opening drawers, truly realizing the intelligent cell morphology diagnosis of "high throughput, zero pollution and fast maintenance.. SOGOT DESIGN: www.soogot.com
