Modeling of earphone cover and head beam surface for AirPods Max;
Only two surface modeling models that I think are more important are included;
The modeling explanation of the three tubes is relatively few, because it is a relatively simple and complicated process of repeated surface mixing, and there are many similar processes on the Internet.

rhino,rhinoceros,modeling,AirPods Max,Three pipe mixing,Eggshell noodles,headset,course,

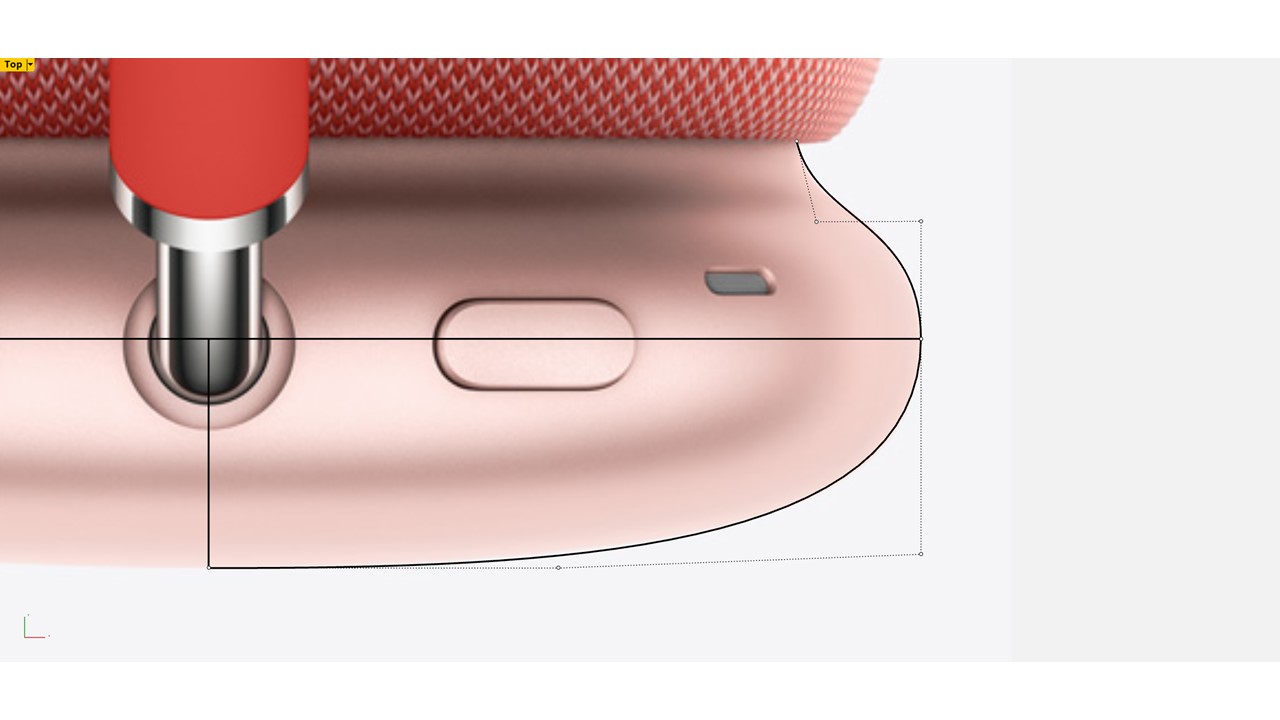

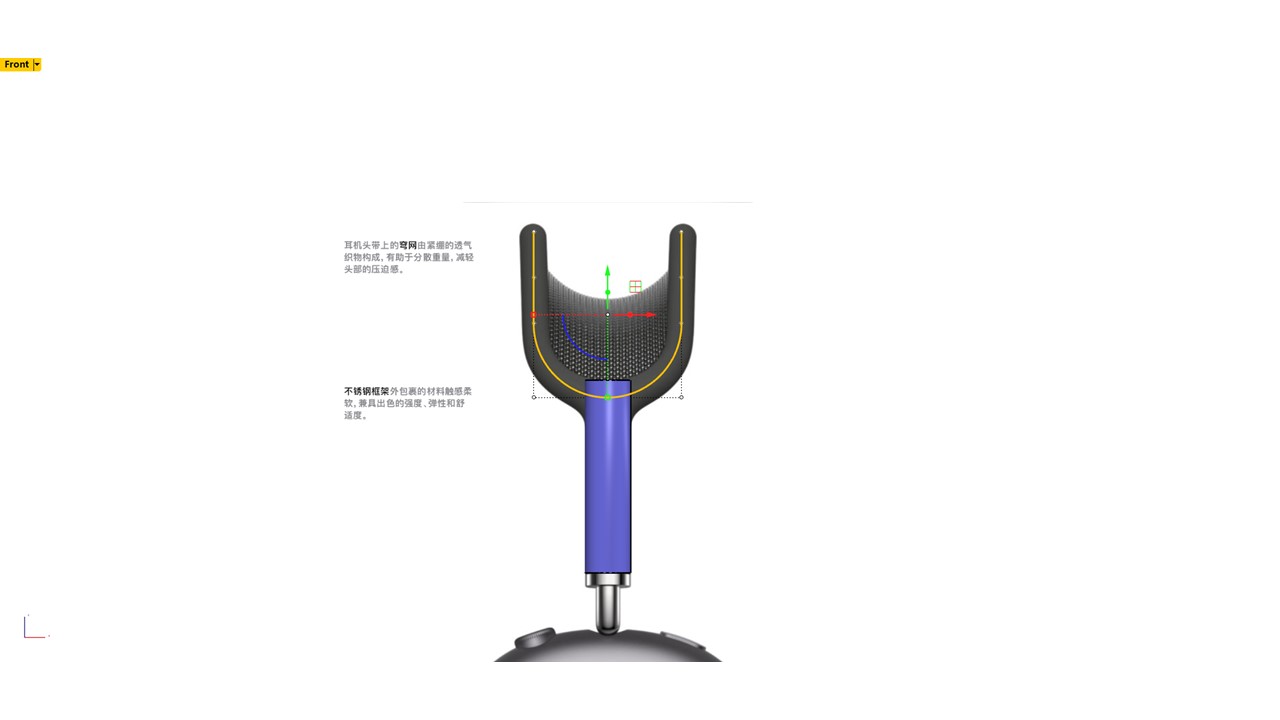

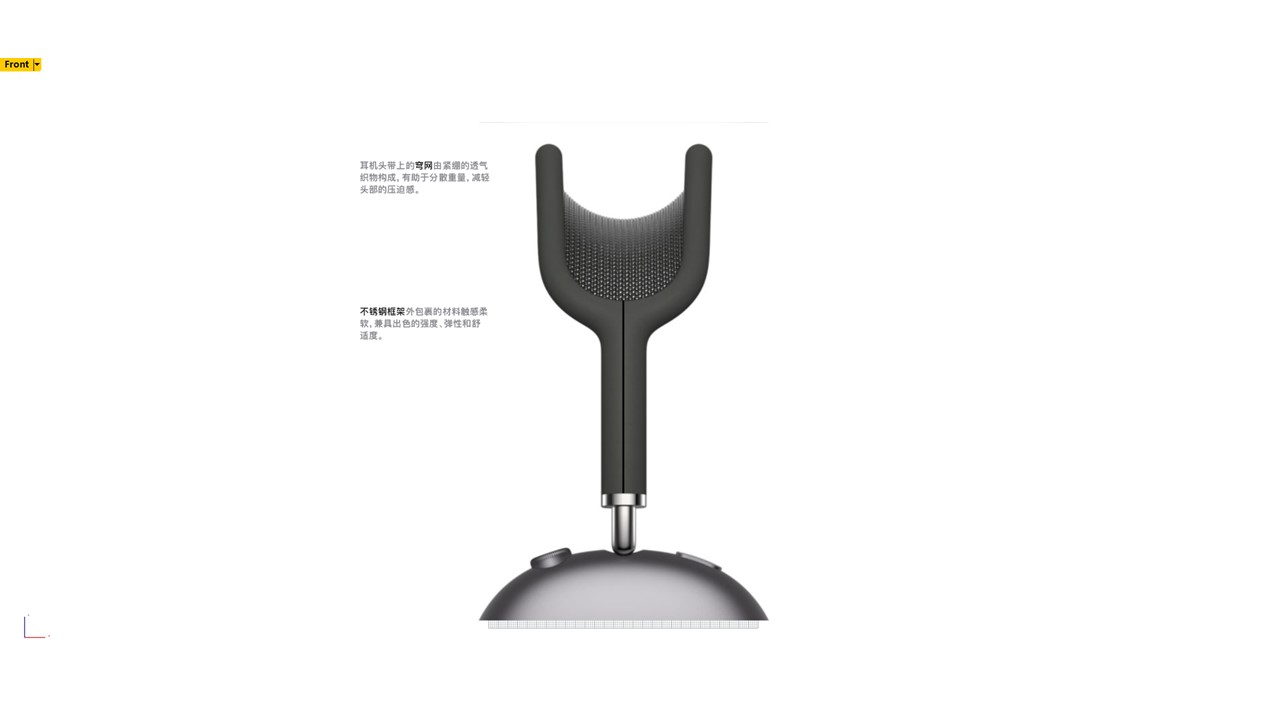

The screenshot of the official website is used to draw lines.

rhino,rhinoceros,modeling,AirPods Max,Three pipe mixing,Eggshell noodles,headset,course,

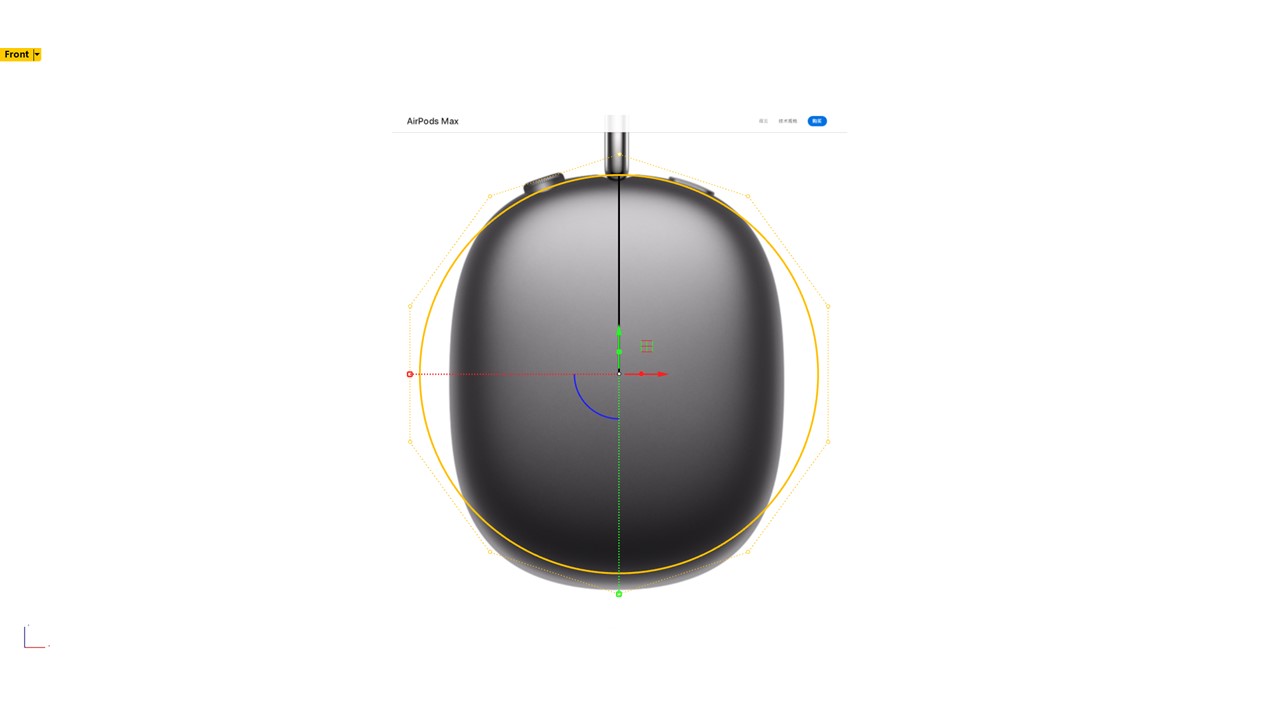

The picture is imported into rhino, and the 5th order 10-point plastic circle is drawn.

rhino,rhinoceros,modeling,AirPods Max,Three pipe mixing,Eggshell noodles,headset,course,

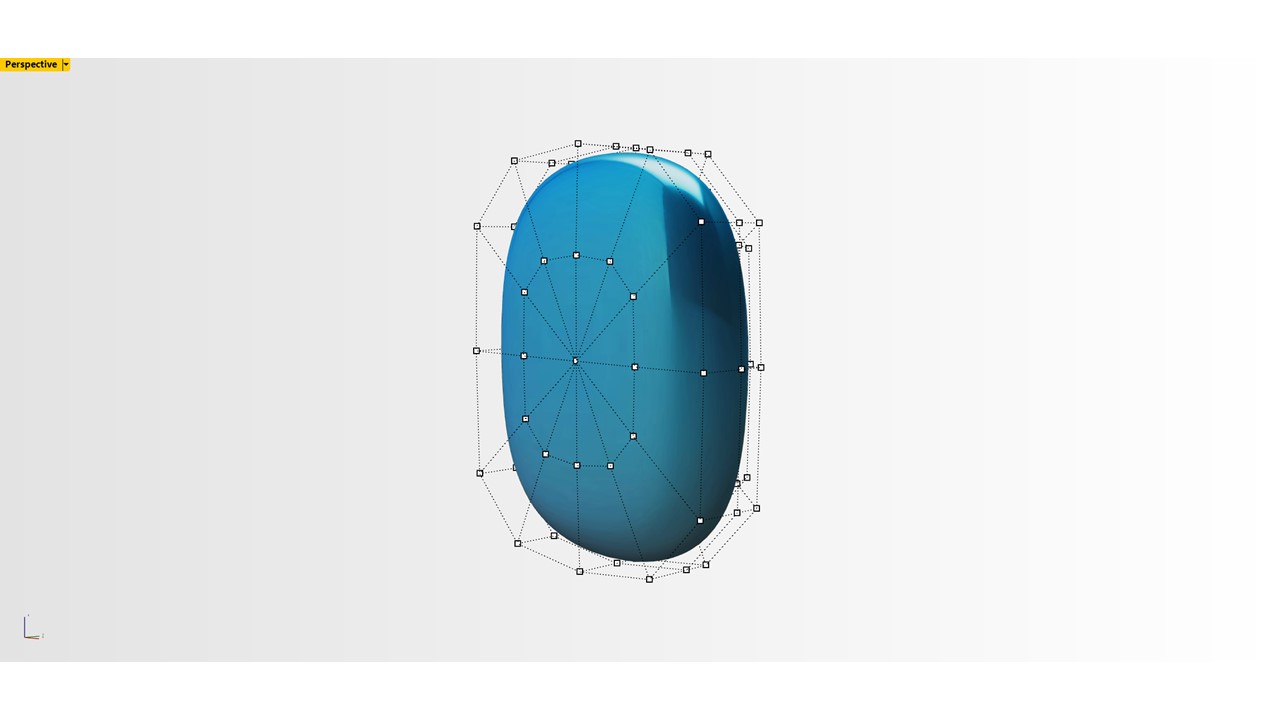

If the points are found to be insufficient, the reconstruction is 5th order 12 points, and the control points are adjusted to adapt to the contour;

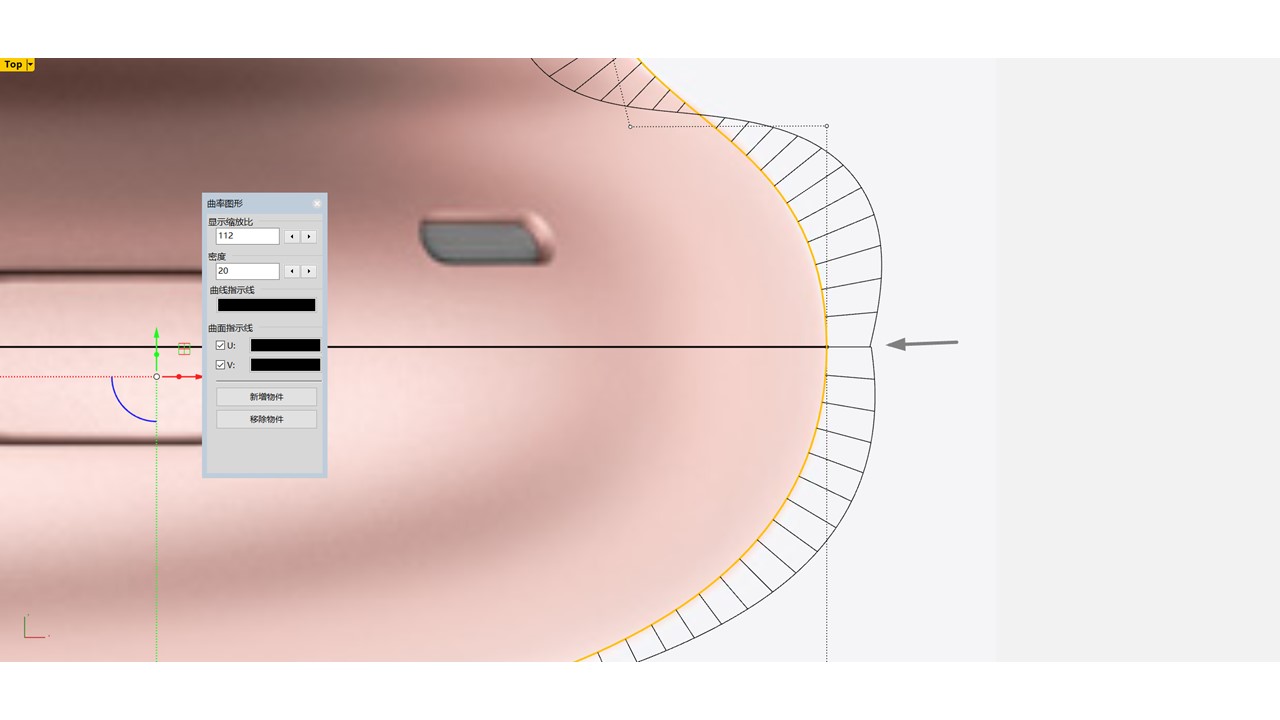

Observe the curvature comb, not bad

rhino,rhinoceros,modeling,AirPods Max,Three pipe mixing,Eggshell noodles,headset,course,

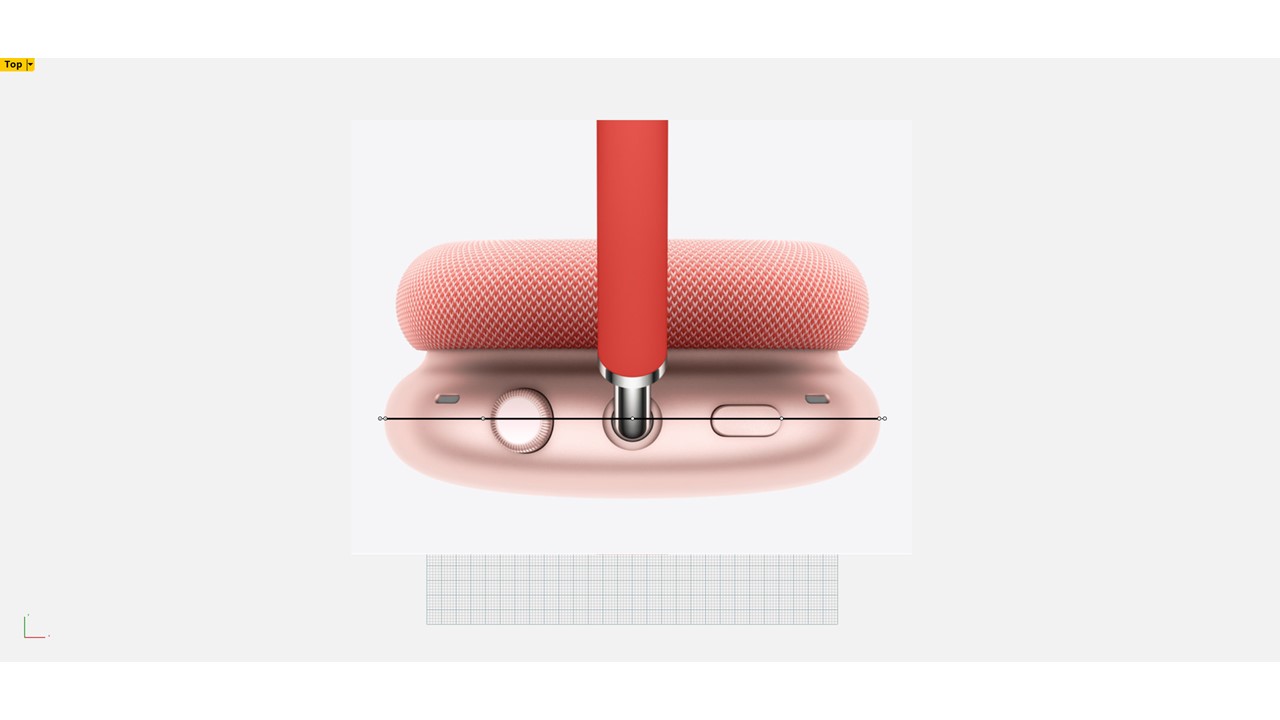

Import the top view and adjust the position.

rhino,rhinoceros,modeling,AirPods Max,Three pipe mixing,Eggshell noodles,headset,course,

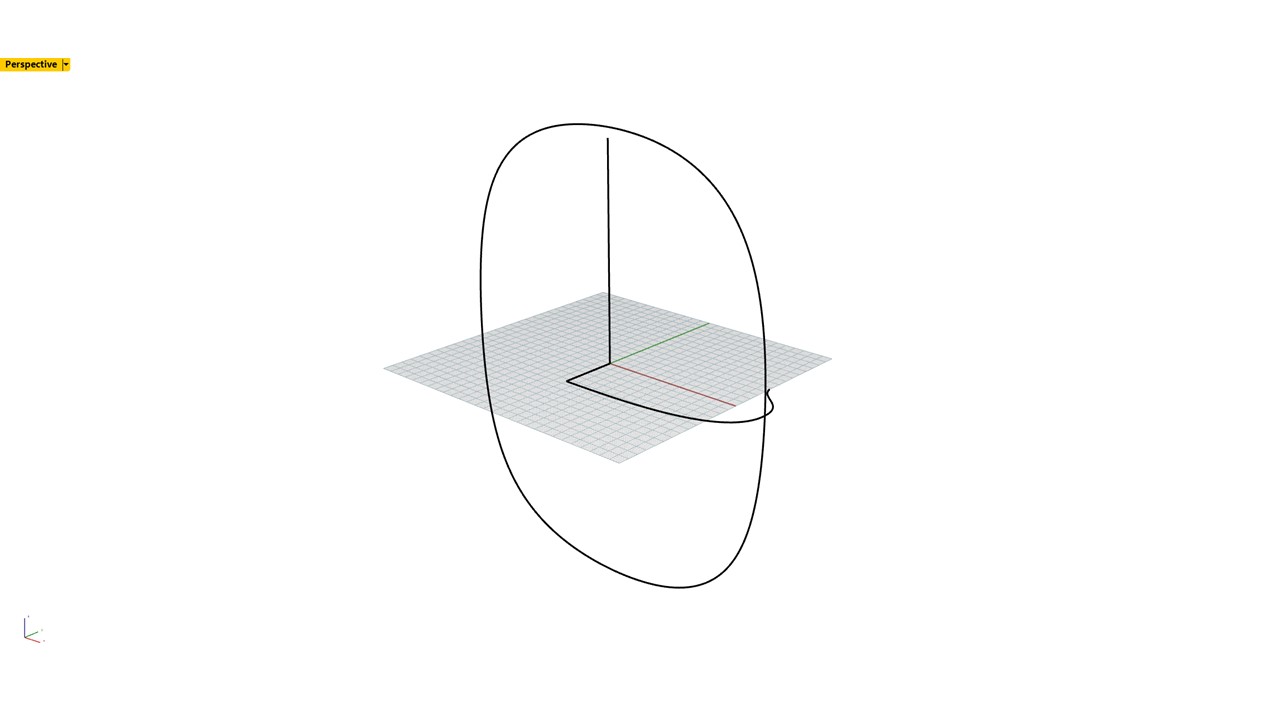

Draw two contours with the simplest 3-order 4-point curve;
Note that the intersection point is tangent

rhino,rhinoceros,modeling,AirPods Max,Three pipe mixing,Eggshell noodles,headset,course,

Observe the curvature comb

rhino,rhinoceros,modeling,AirPods Max,Three pipe mixing,Eggshell noodles,headset,course,

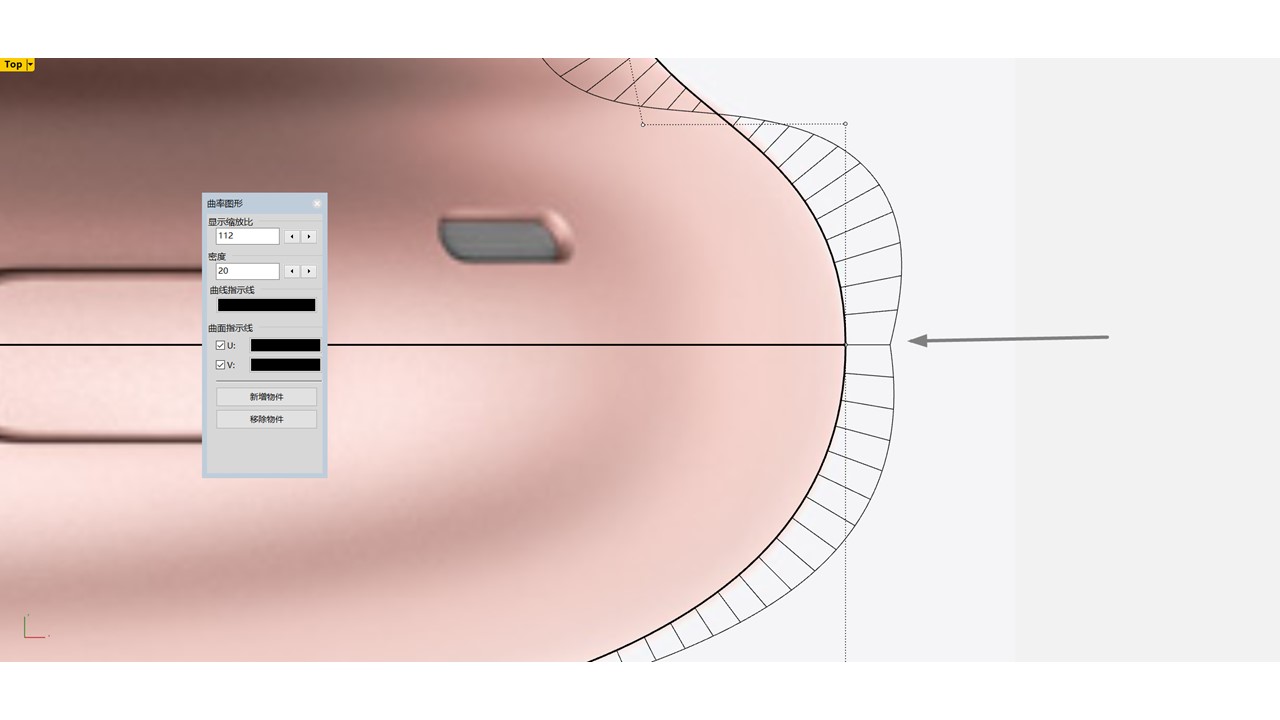

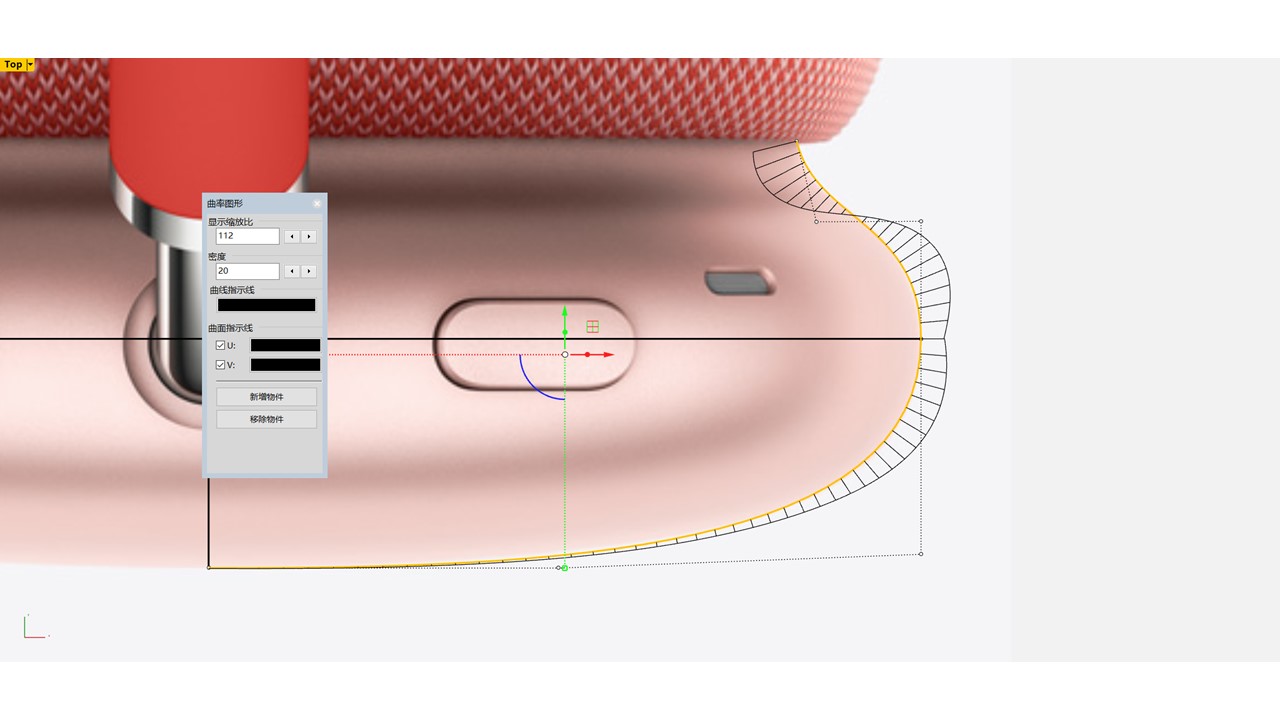

There is a break difference in the curvature comb at the intersection point, indicating that the intersection point is tangent continuous but not curvature continuous.

rhino,rhinoceros,modeling,AirPods Max,Three pipe mixing,Eggshell noodles,headset,course,

Use the convergence curve command to make the curvature of the upper line connect the lower line;

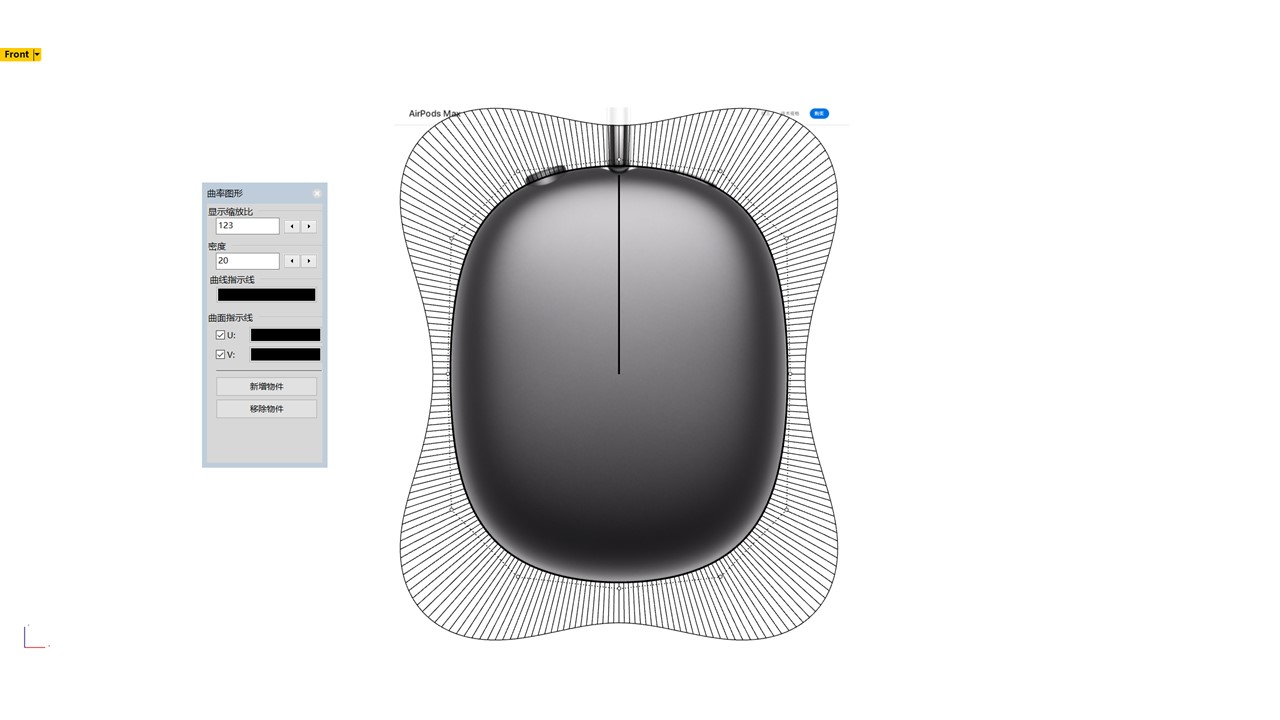

Observe the curvature comb again, no break difference, perfect (also can ask for a high point, so that the curvature comb smooth transition)

rhino,rhinoceros,modeling,AirPods Max,Three pipe mixing,Eggshell noodles,headset,course,

Earphone cover curve drawing completed

rhino,rhinoceros,modeling,AirPods Max,Three pipe mixing,Eggshell noodles,headset,course,

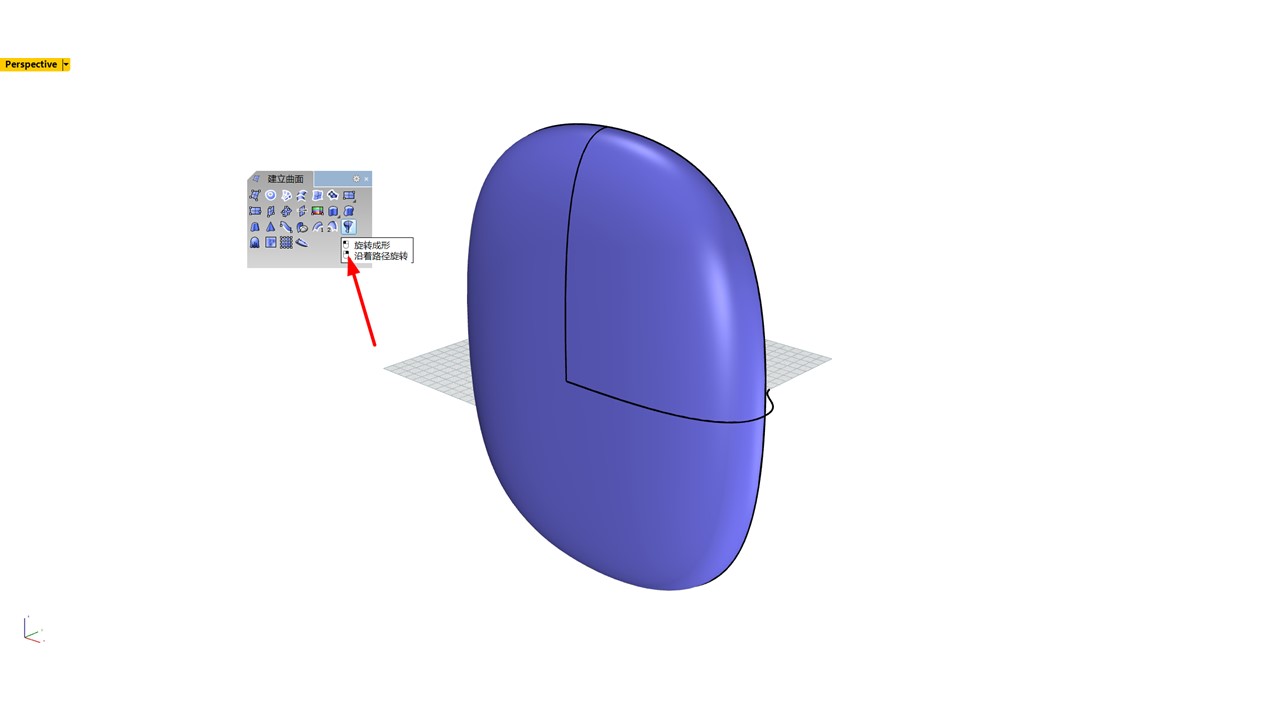

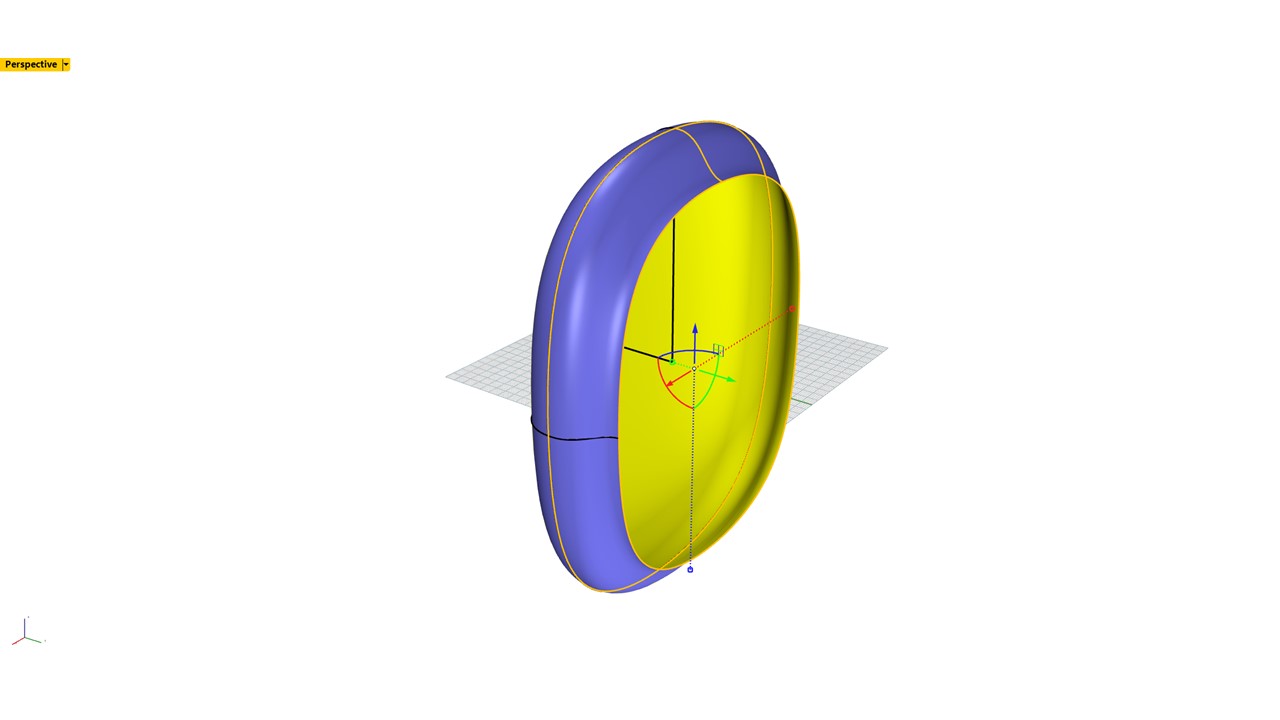

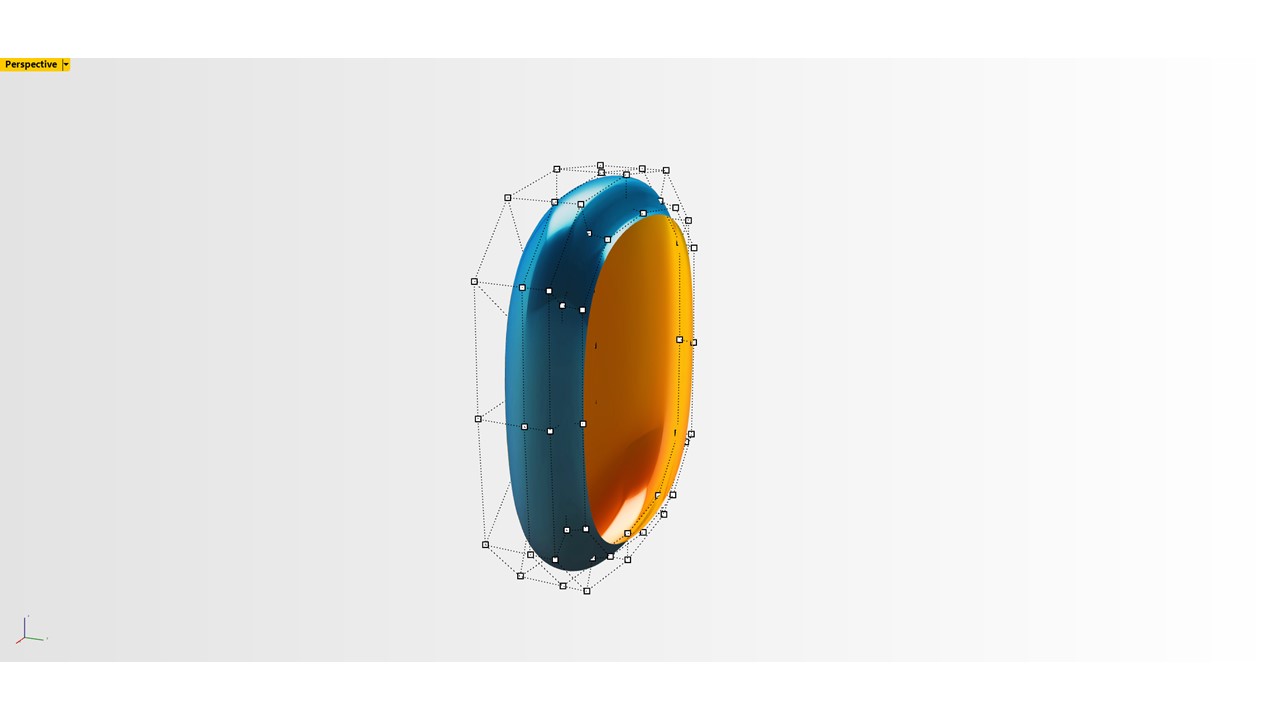

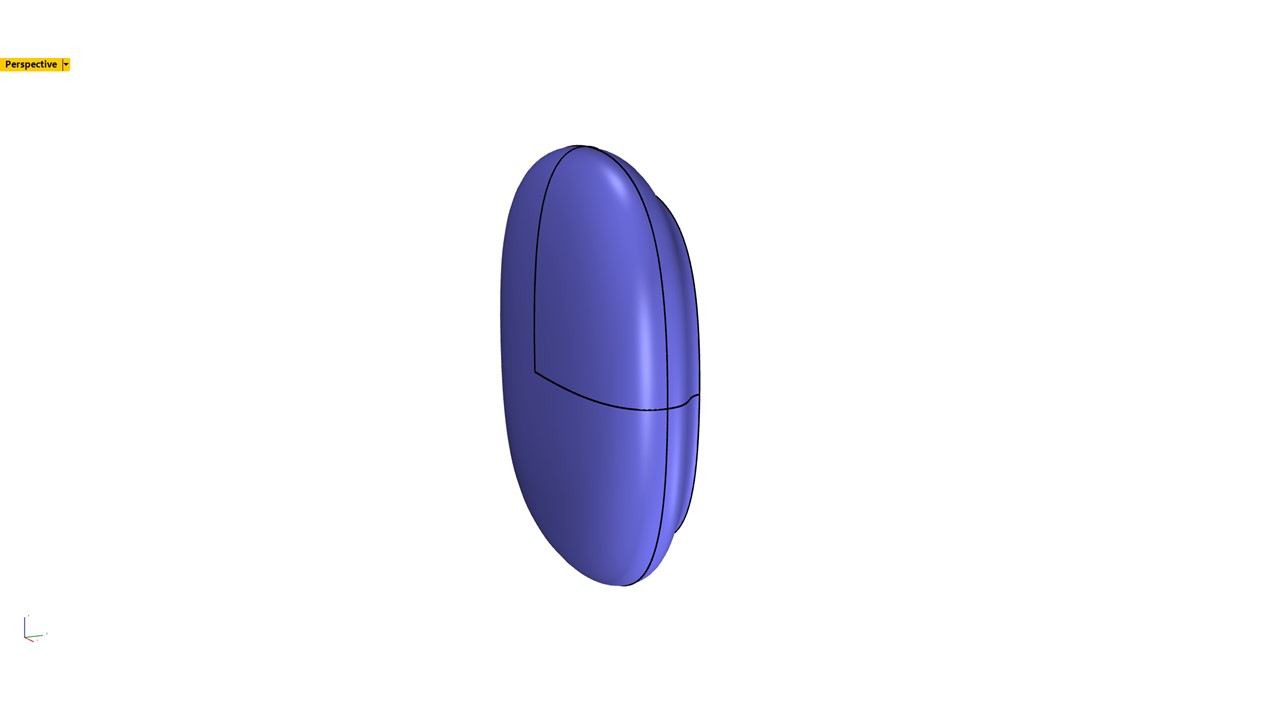

Use the Rotate Along Path command to draw the front and back surfaces

rhino,rhinoceros,modeling,AirPods Max,Three pipe mixing,Eggshell noodles,headset,course,
rhino,rhinoceros,modeling,AirPods Max,Three pipe mixing,Eggshell noodles,headset,course,
rhino,rhinoceros,modeling,AirPods Max,Three pipe mixing,Eggshell noodles,headset,course,
rhino,rhinoceros,modeling,AirPods Max,Three pipe mixing,Eggshell noodles,headset,course,

Control point perfect

rhino,rhinoceros,modeling,AirPods Max,Three pipe mixing,Eggshell noodles,headset,course,
rhino,rhinoceros,modeling,AirPods Max,Three pipe mixing,Eggshell noodles,headset,course,
rhino,rhinoceros,modeling,AirPods Max,Three pipe mixing,Eggshell noodles,headset,course,
rhino,rhinoceros,modeling,AirPods Max,Three pipe mixing,Eggshell noodles,headset,course,
rhino,rhinoceros,modeling,AirPods Max,Three pipe mixing,Eggshell noodles,headset,course,
rhino,rhinoceros,modeling,AirPods Max,Three pipe mixing,Eggshell noodles,headset,course,
rhino,rhinoceros,modeling,AirPods Max,Three pipe mixing,Eggshell noodles,headset,course,
rhino,rhinoceros,modeling,AirPods Max,Three pipe mixing,Eggshell noodles,headset,course,
rhino,rhinoceros,modeling,AirPods Max,Three pipe mixing,Eggshell noodles,headset,course,
rhino,rhinoceros,modeling,AirPods Max,Three pipe mixing,Eggshell noodles,headset,course,
rhino,rhinoceros,modeling,AirPods Max,Three pipe mixing,Eggshell noodles,headset,course,
rhino,rhinoceros,modeling,AirPods Max,Three pipe mixing,Eggshell noodles,headset,course,

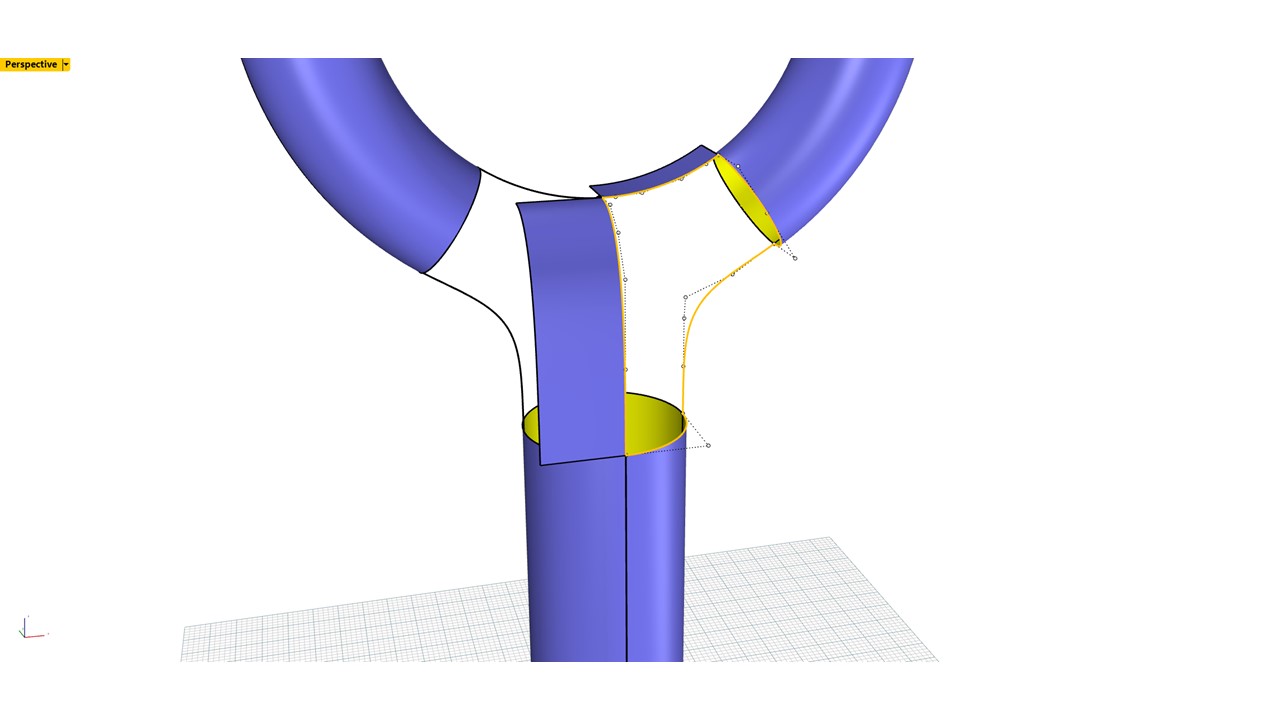

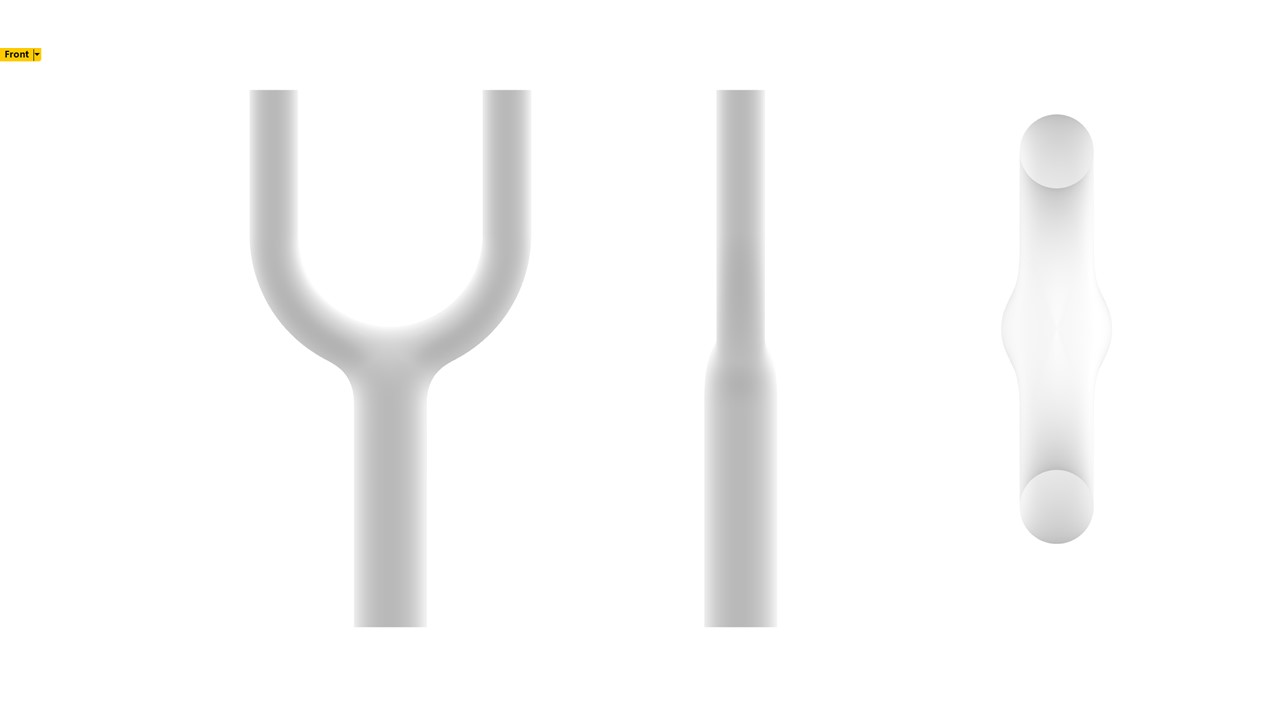

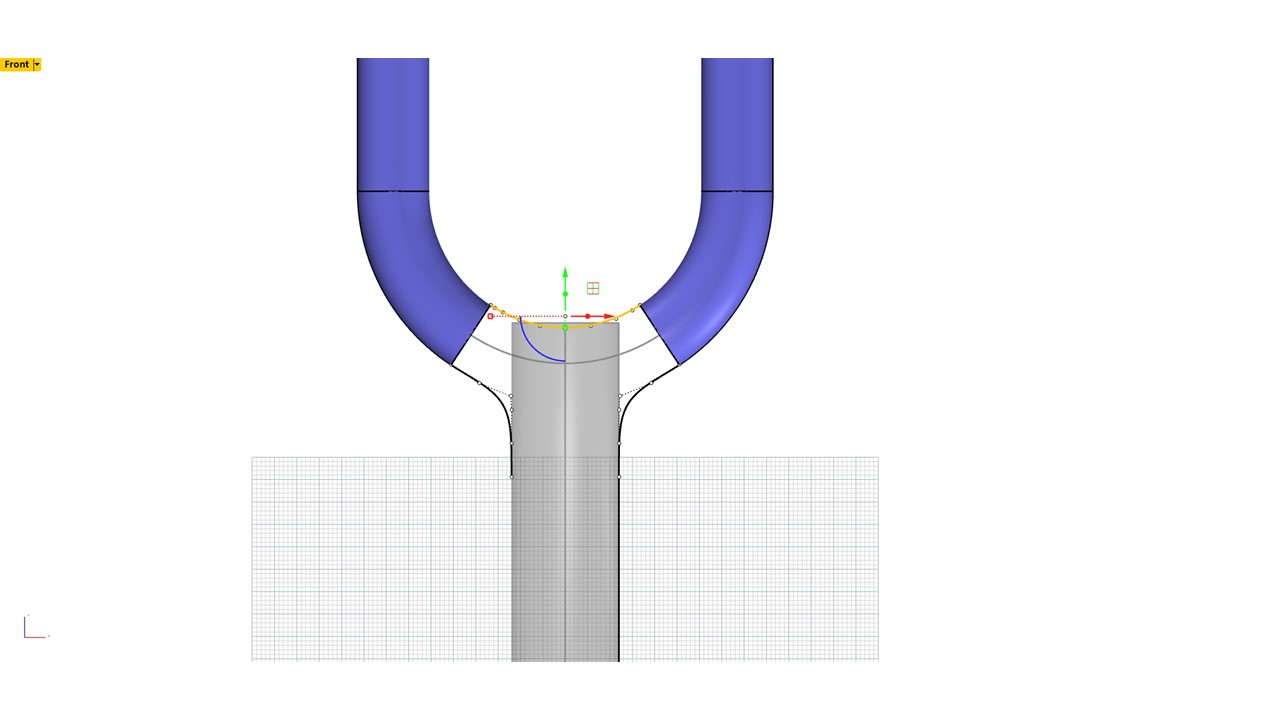

The two most important lines

rhino,rhinoceros,modeling,AirPods Max,Three pipe mixing,Eggshell noodles,headset,course,
rhino,rhinoceros,modeling,AirPods Max,Three pipe mixing,Eggshell noodles,headset,course,
rhino,rhinoceros,modeling,AirPods Max,Three pipe mixing,Eggshell noodles,headset,course,
rhino,rhinoceros,modeling,AirPods Max,Three pipe mixing,Eggshell noodles,headset,course,
rhino,rhinoceros,modeling,AirPods Max,Three pipe mixing,Eggshell noodles,headset,course,

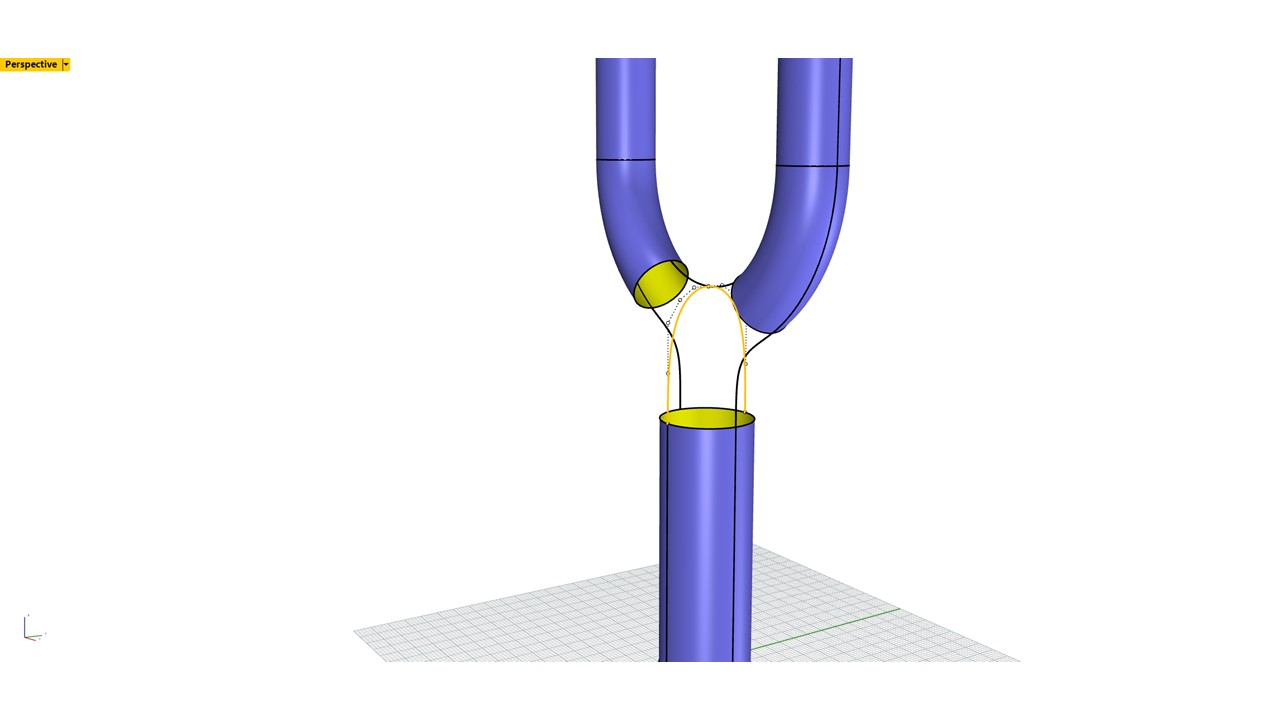

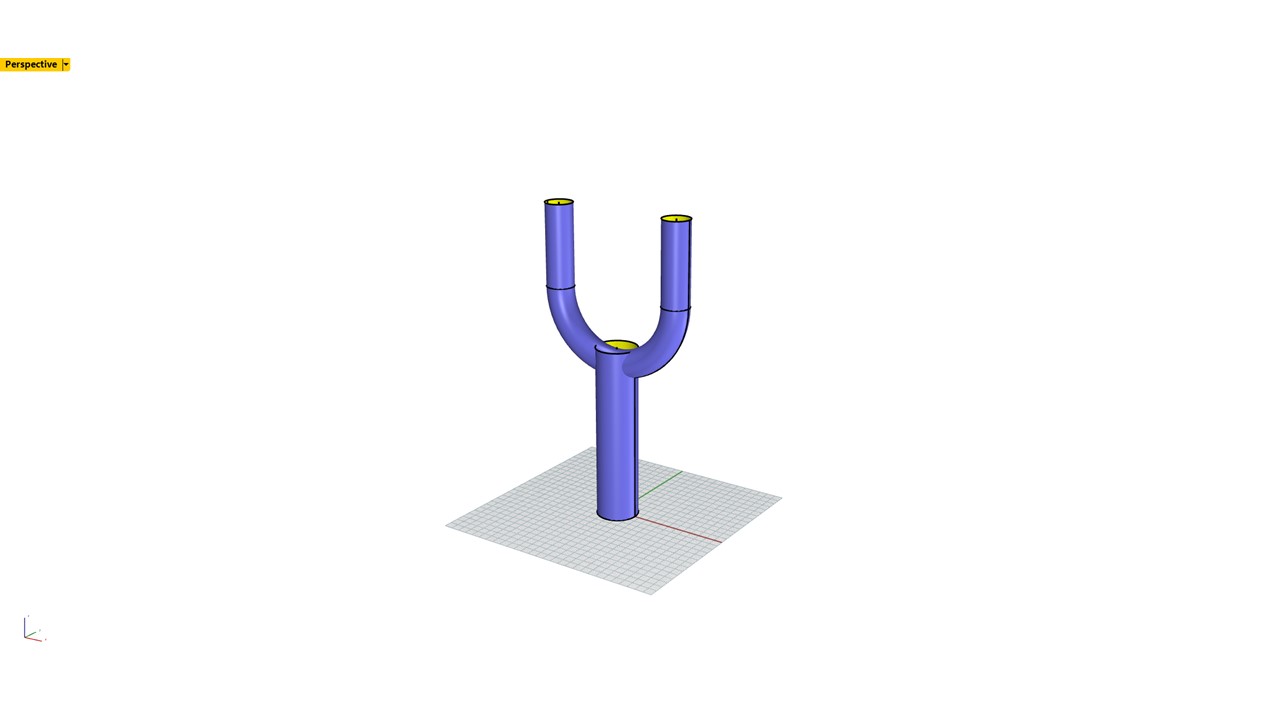

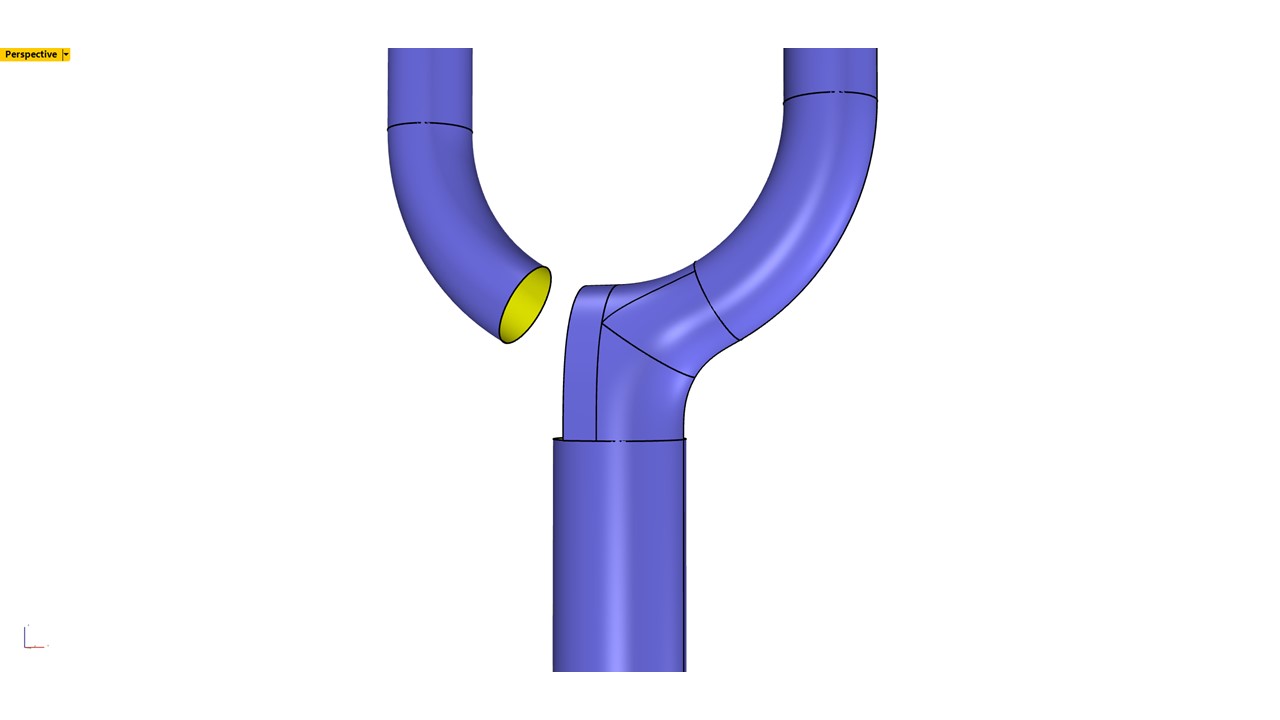

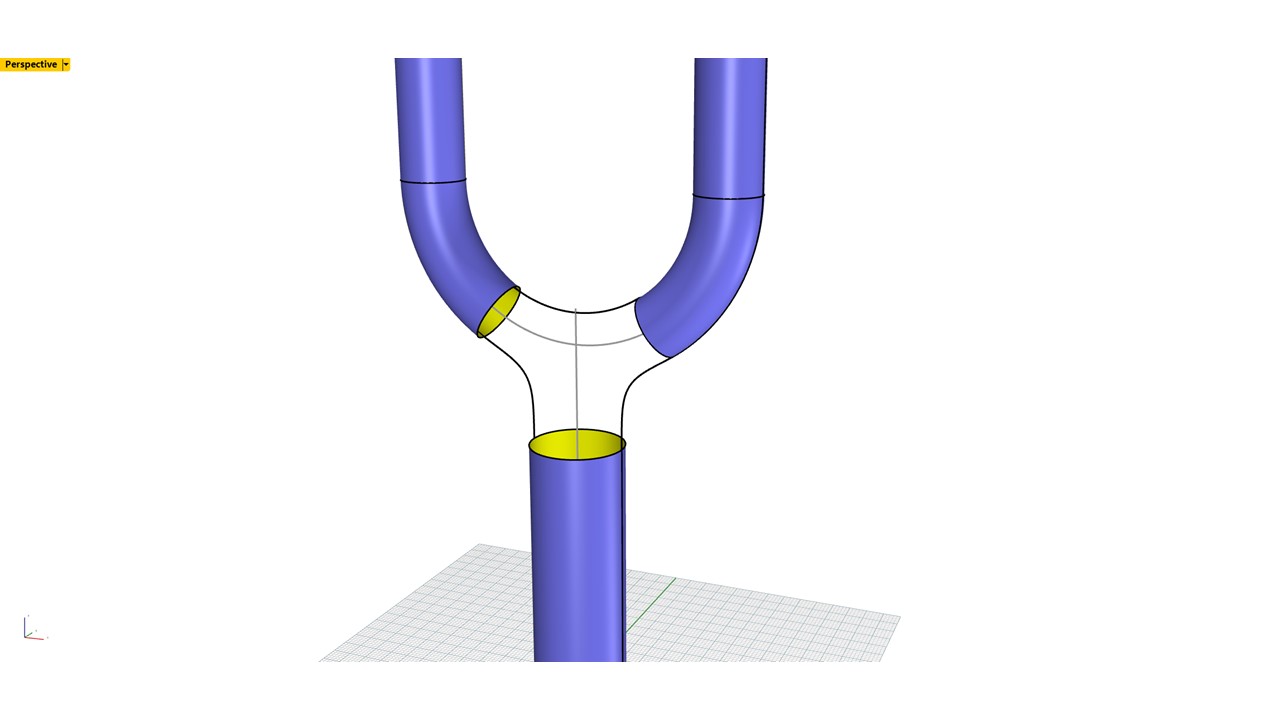

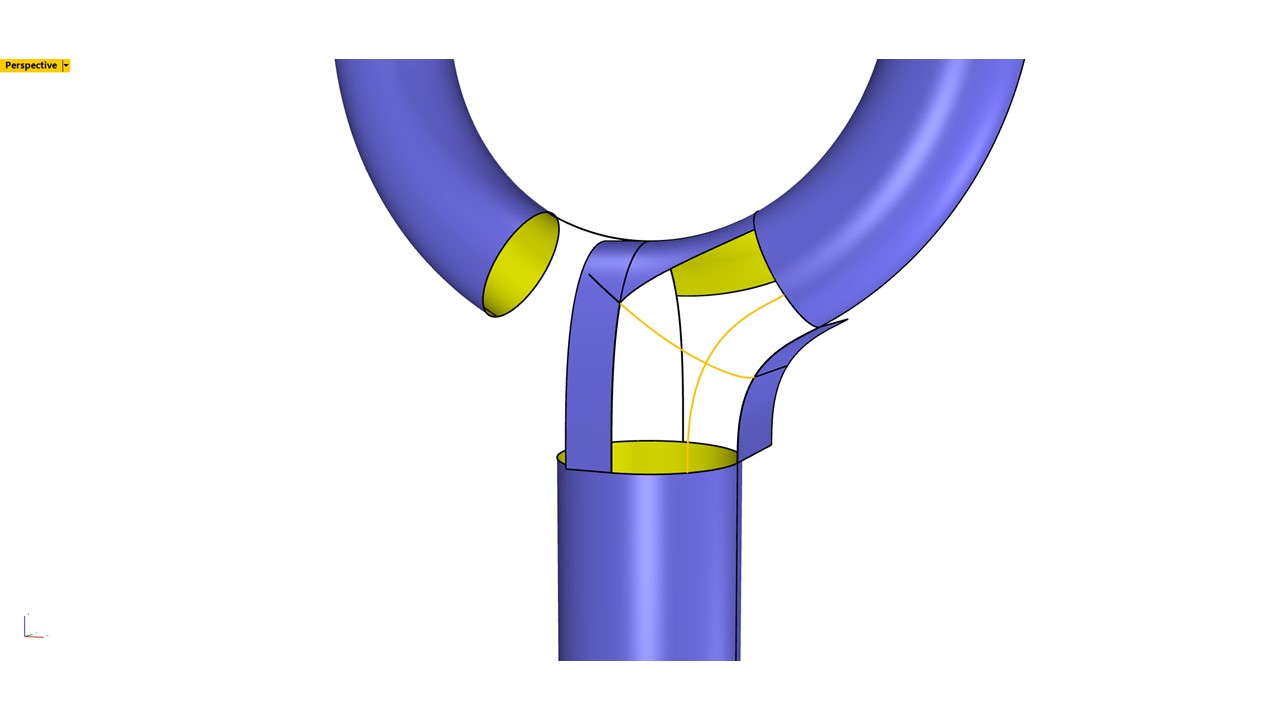

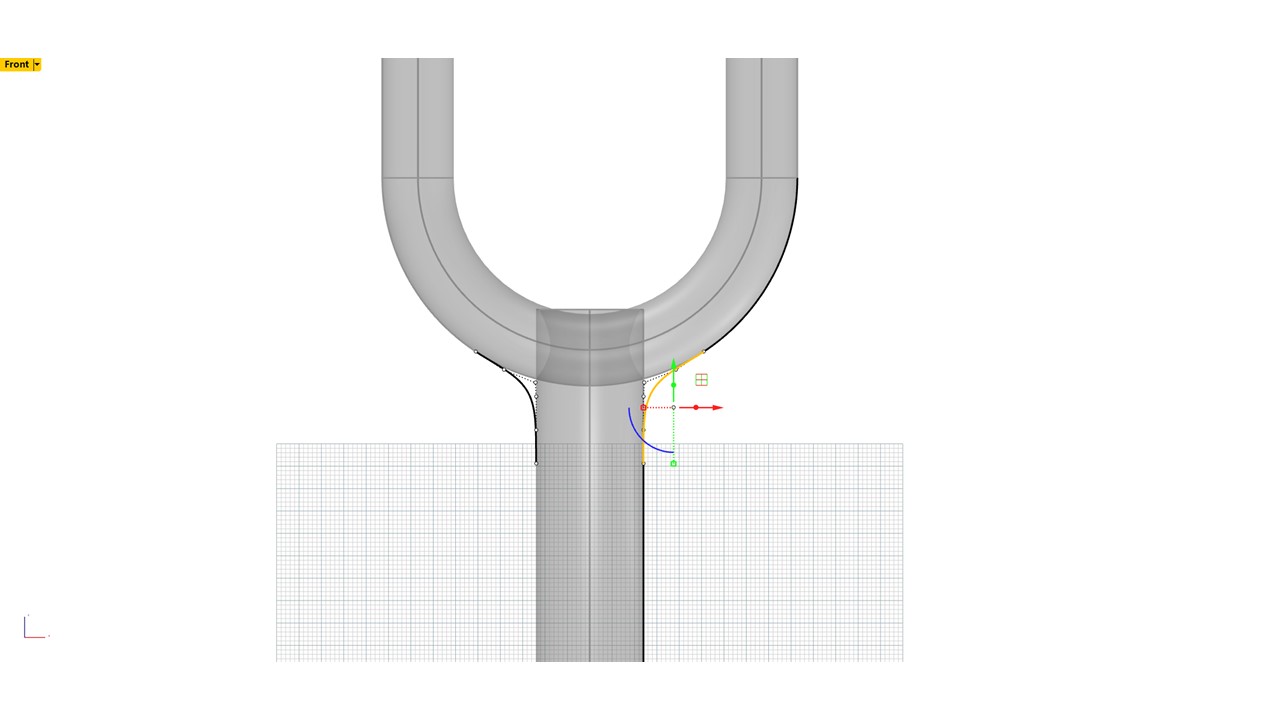

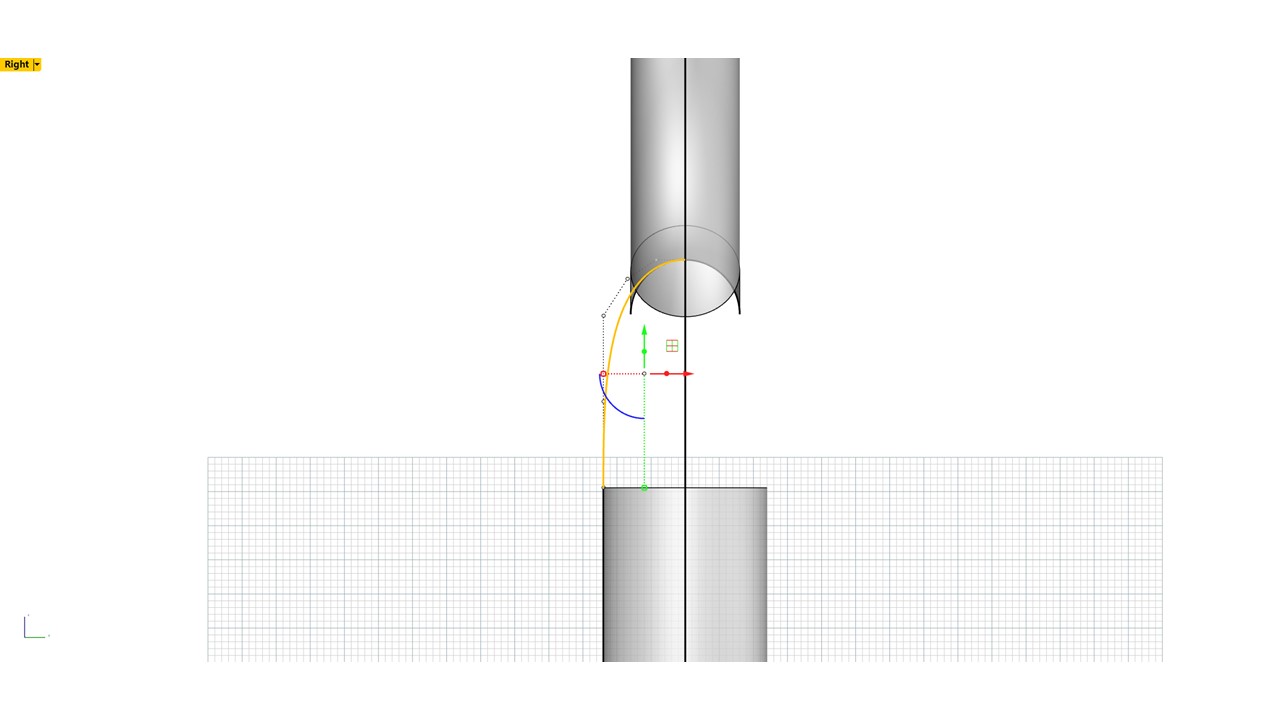

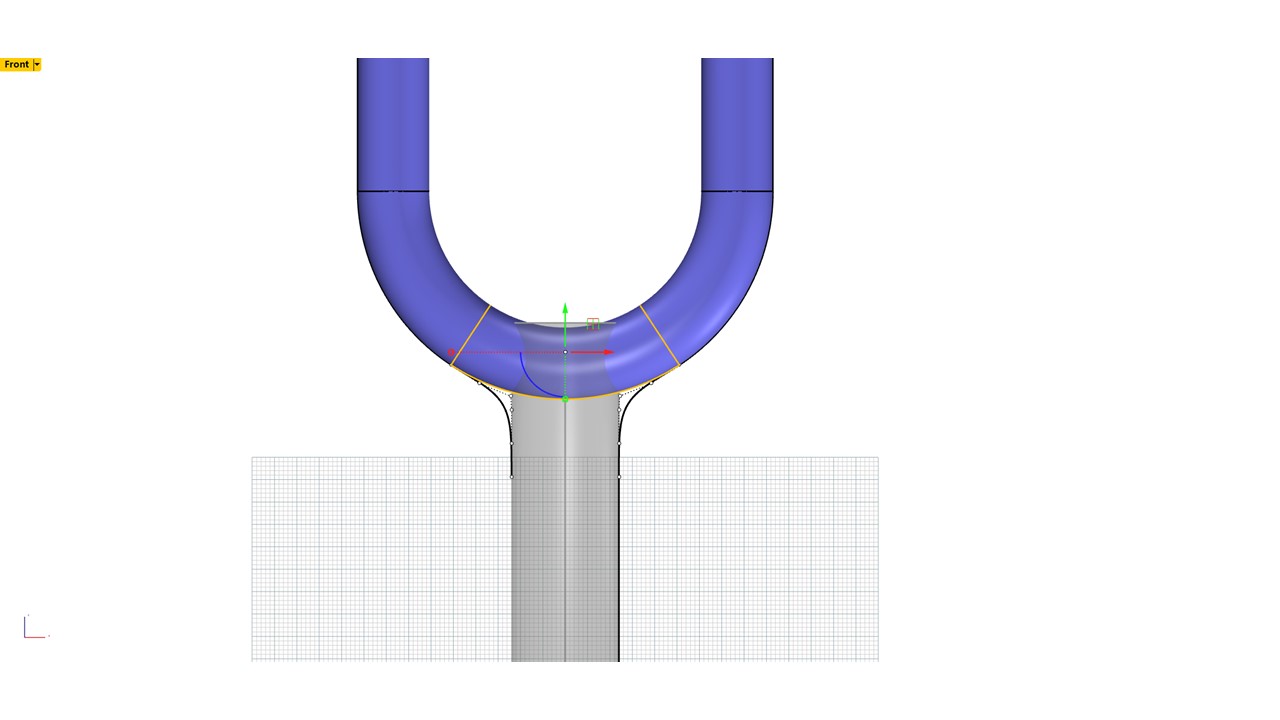

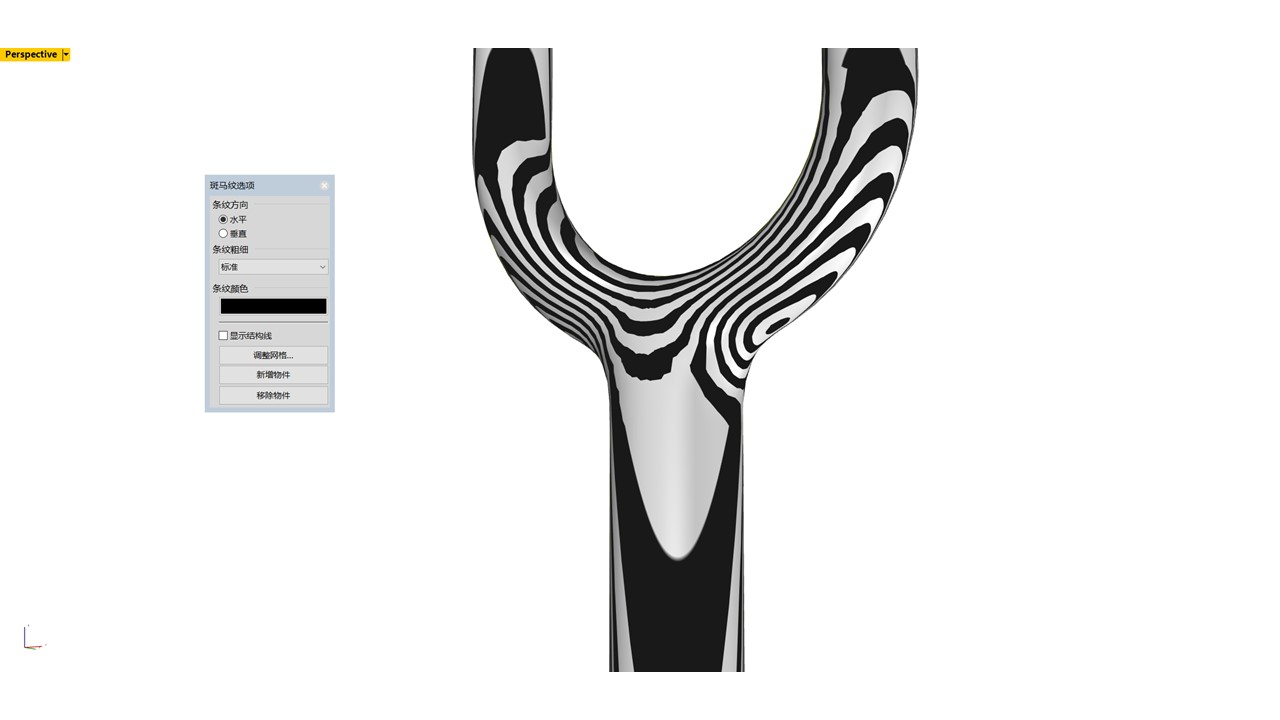

Three-pipe mixed connection completed


Conclusion:
The production is relatively fast, without fine details, and the curved surface is not very good;
The three-tube part feels that its facet is still too troublesome. Do you have a simple way?
