There are many modeling videos about a generation of Airpods on the Internet.
Even a great god can complete the modeling of the main surface with one surface.
But....

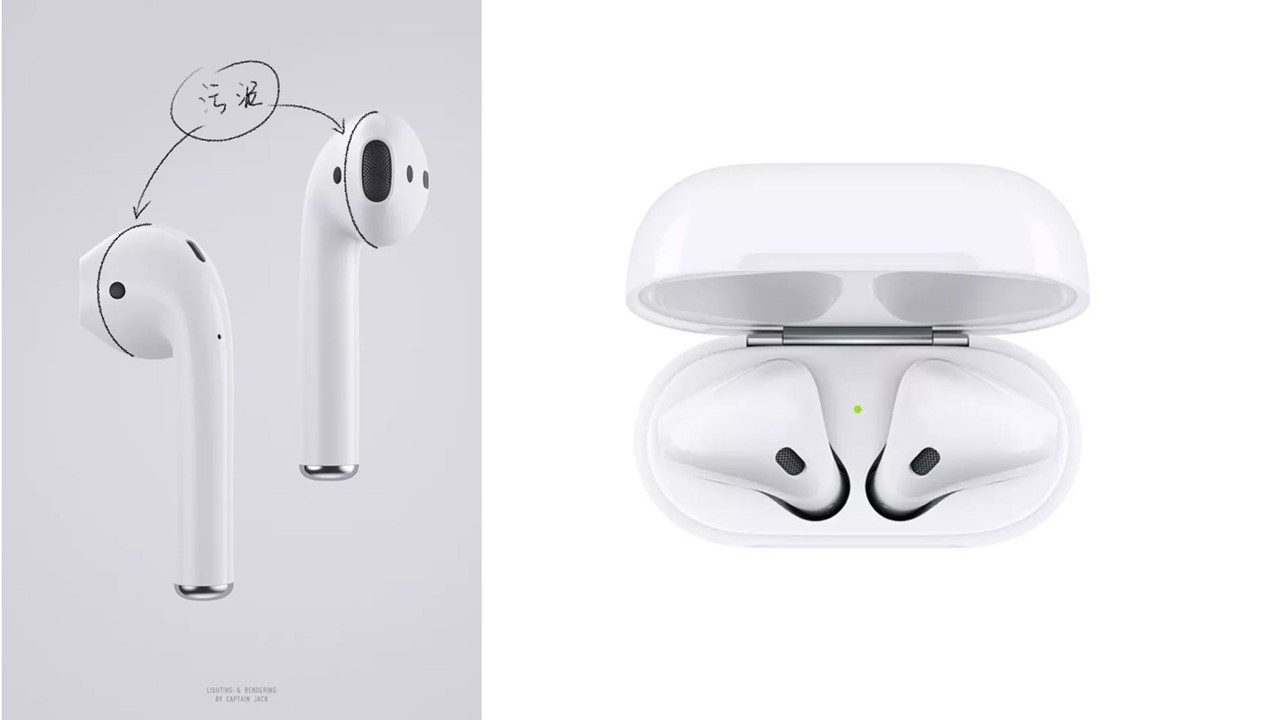

One day a particularly conspicuous generation of Airpods split gaps emphasized by sludge
It caused me to think about modeling ideas......

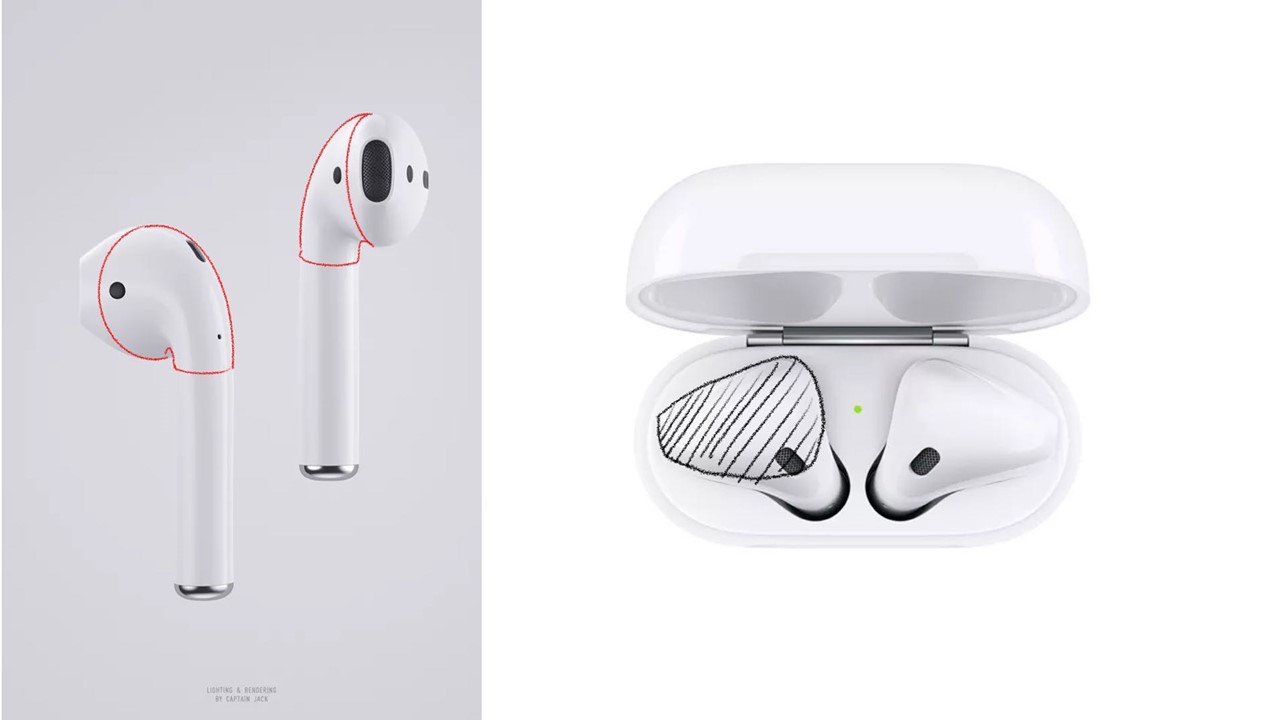

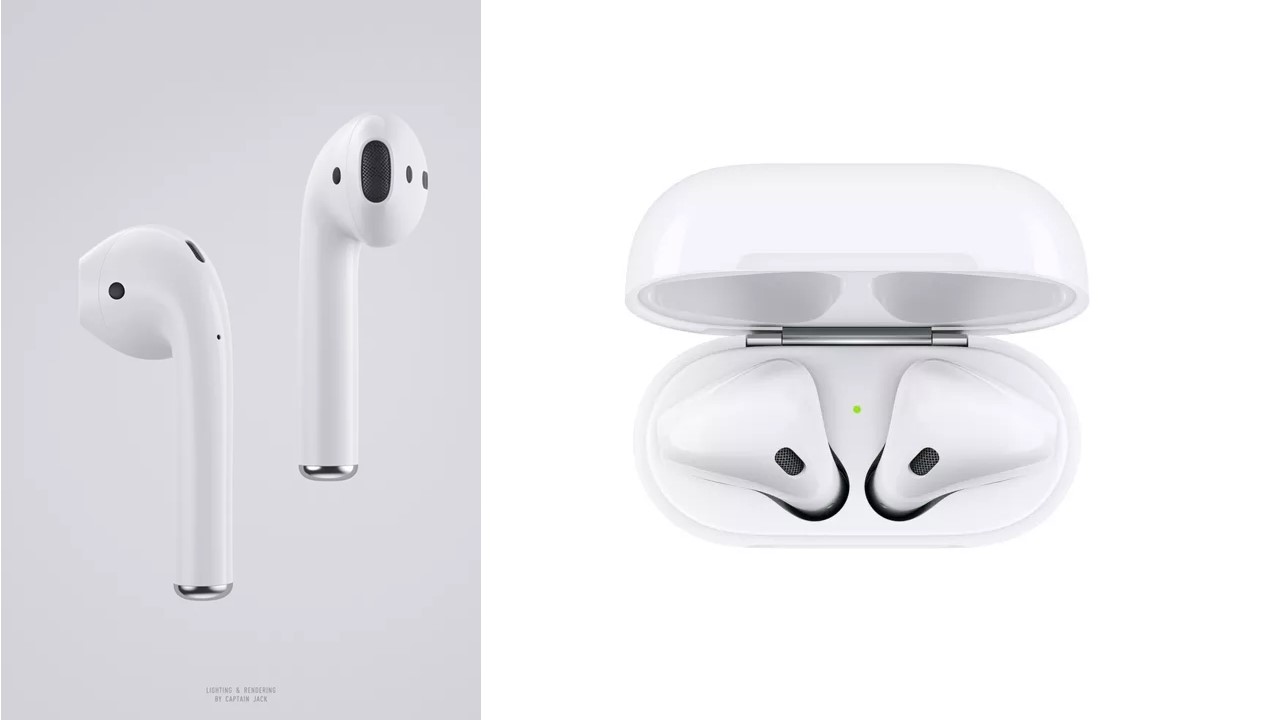

In the screenshot of the network, you can also see less obvious seams.

The effect after being attached by sludge is emphasized

I guess (I haven't made earphone products):
In the actual design and modeling process, it is less likely to use a surface to complete the surface modeling of this product;
For a relatively high possibility, first consider the shape of the cochlea, and then consider the shape of the suspension and the shape of the battery compartment.

so......

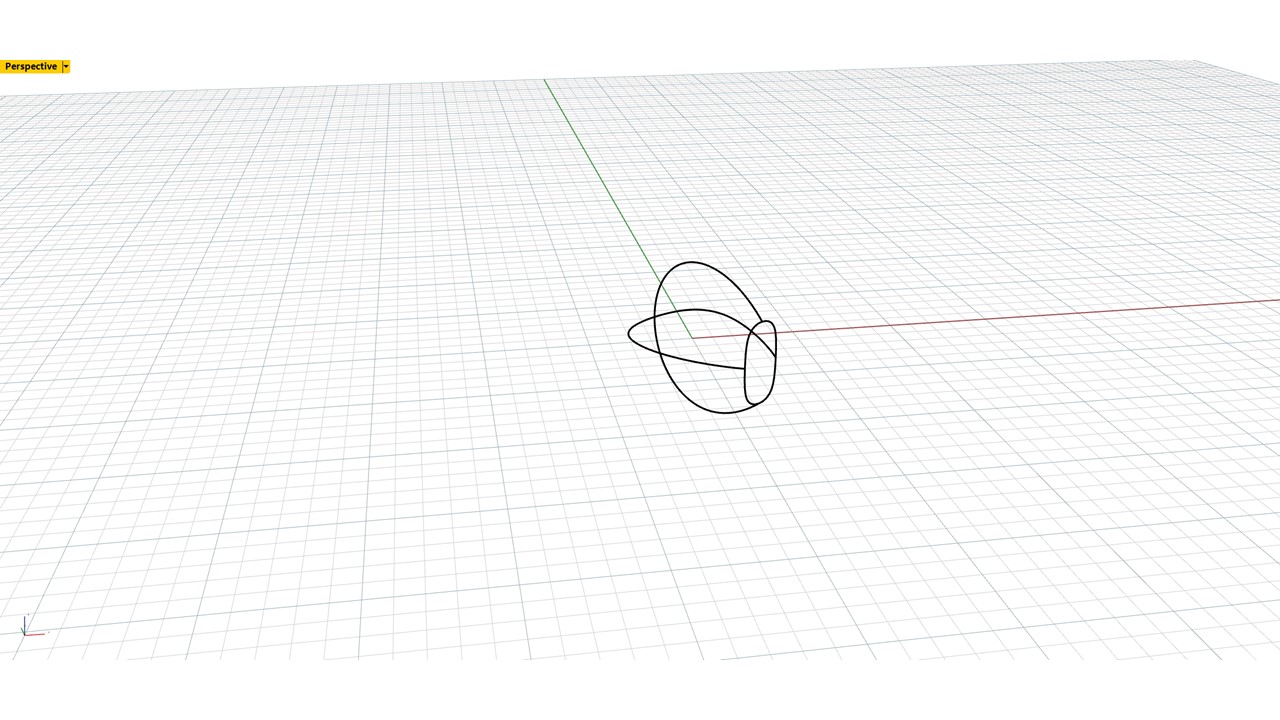

Draw a line

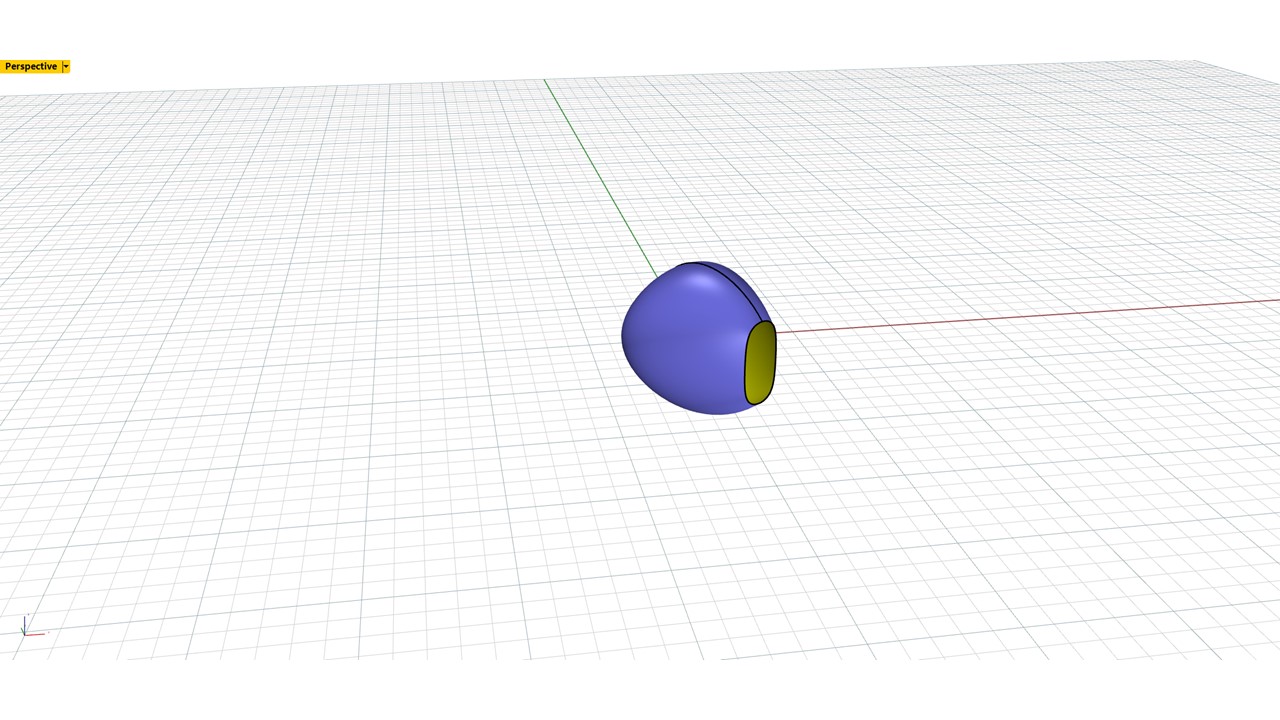

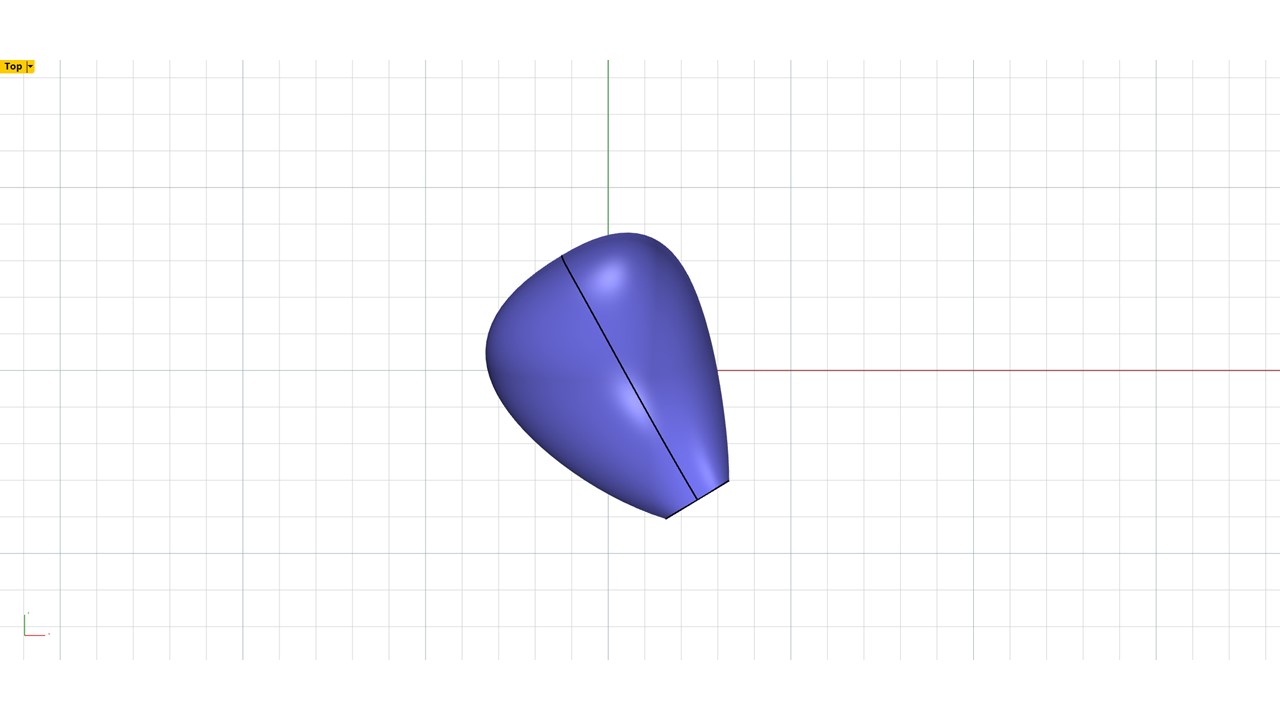

Make a bean

Adjust the surface

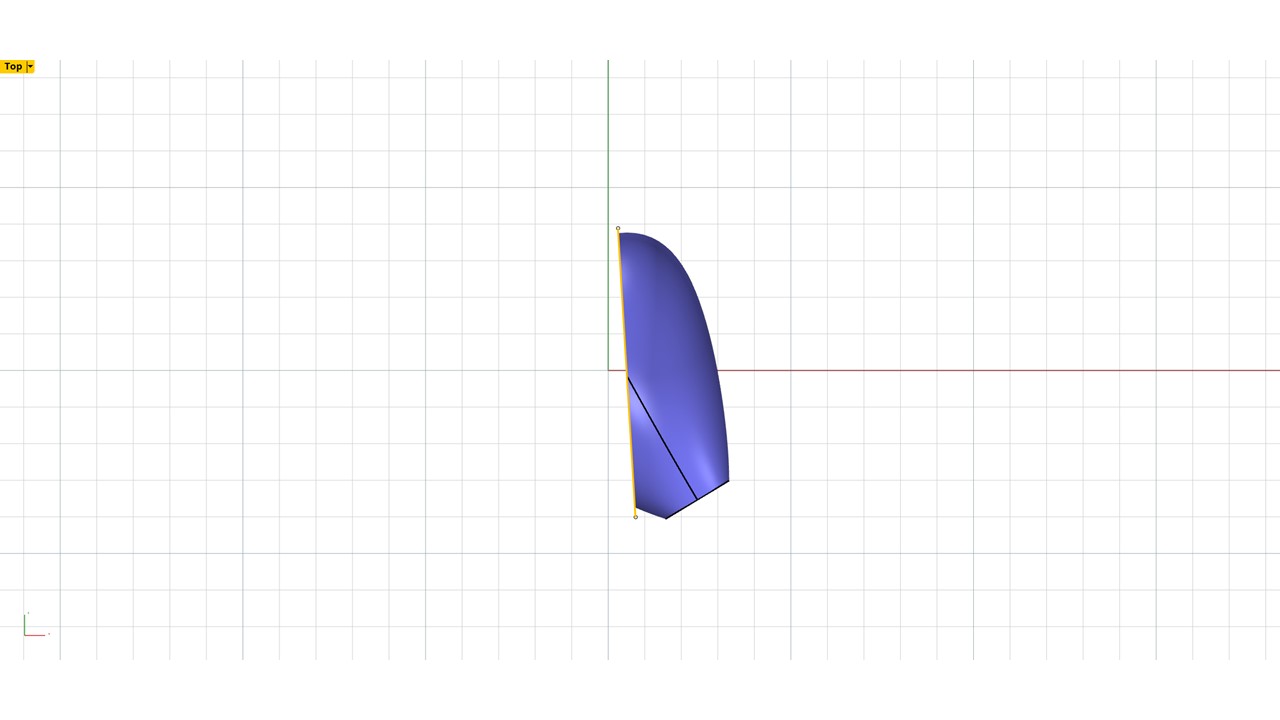

Split from top view

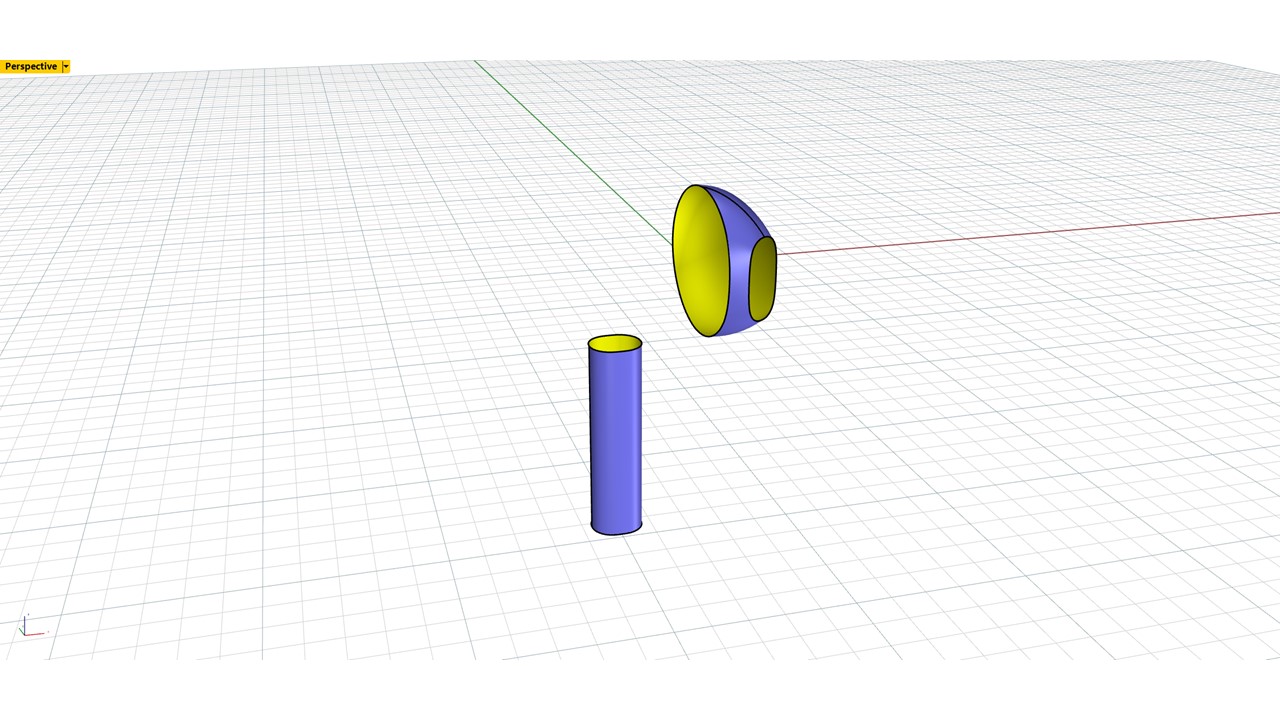

Pull a battery compartment

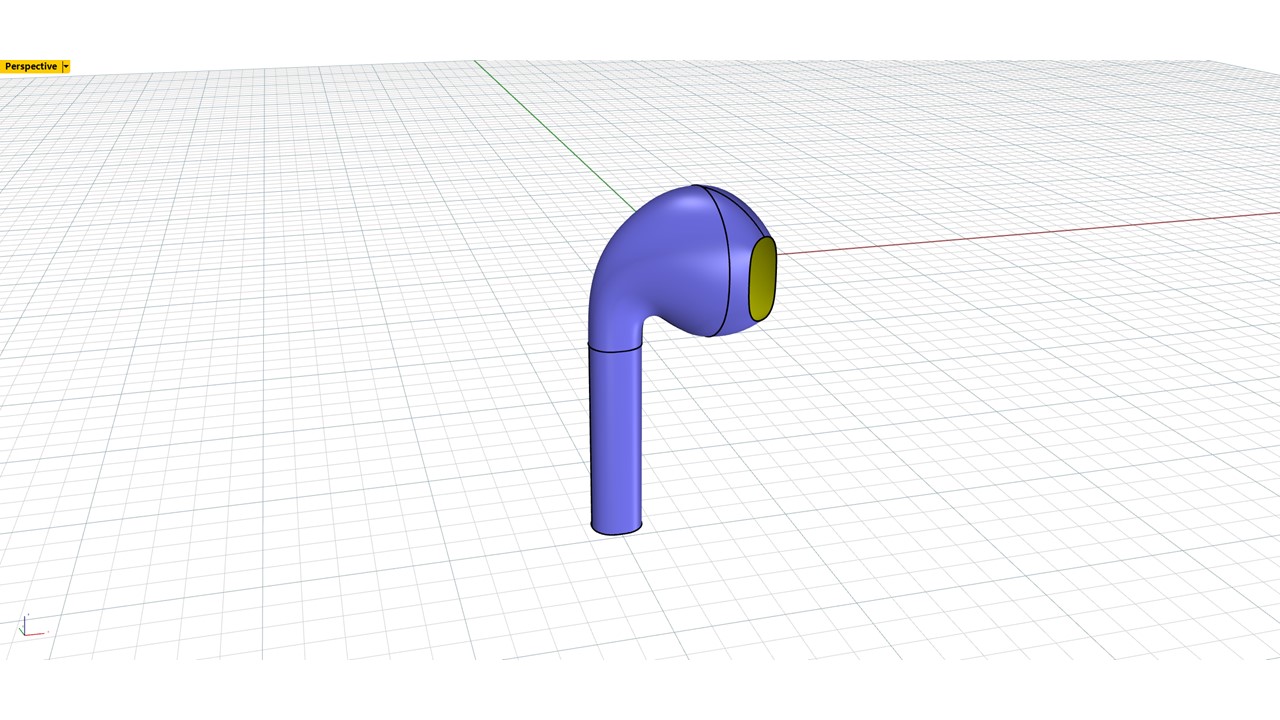

Mixed connection!!

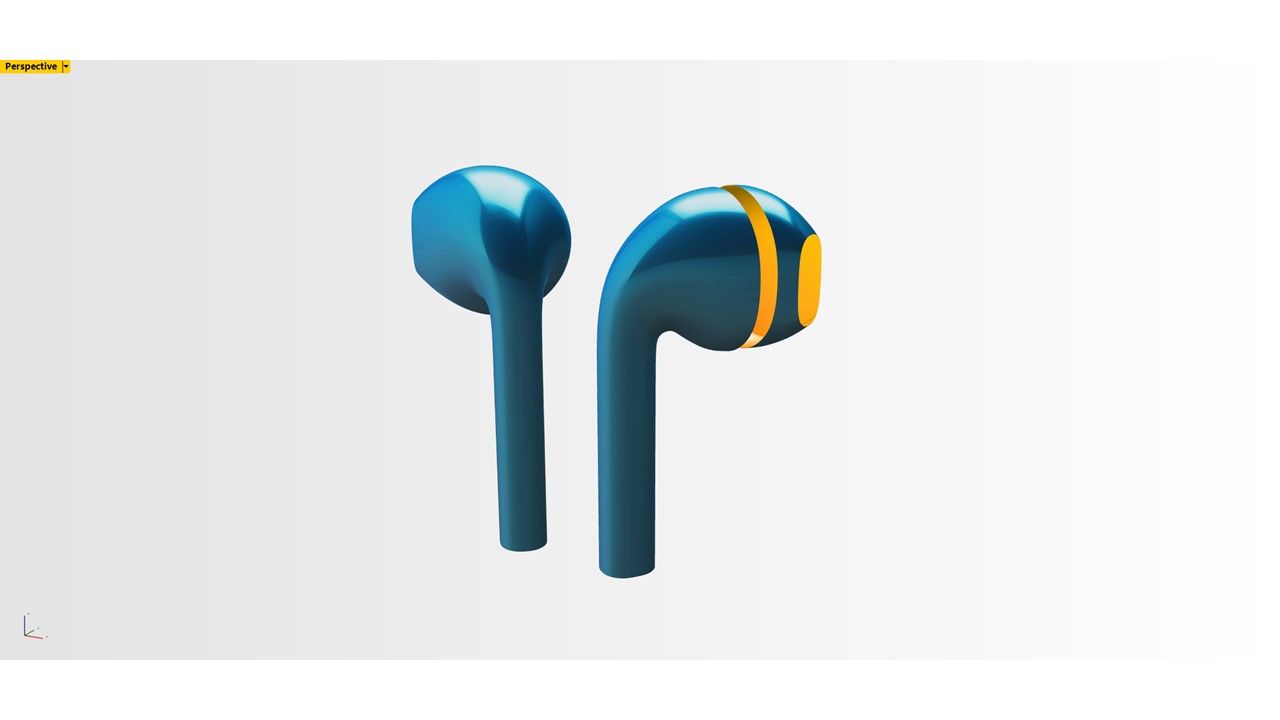

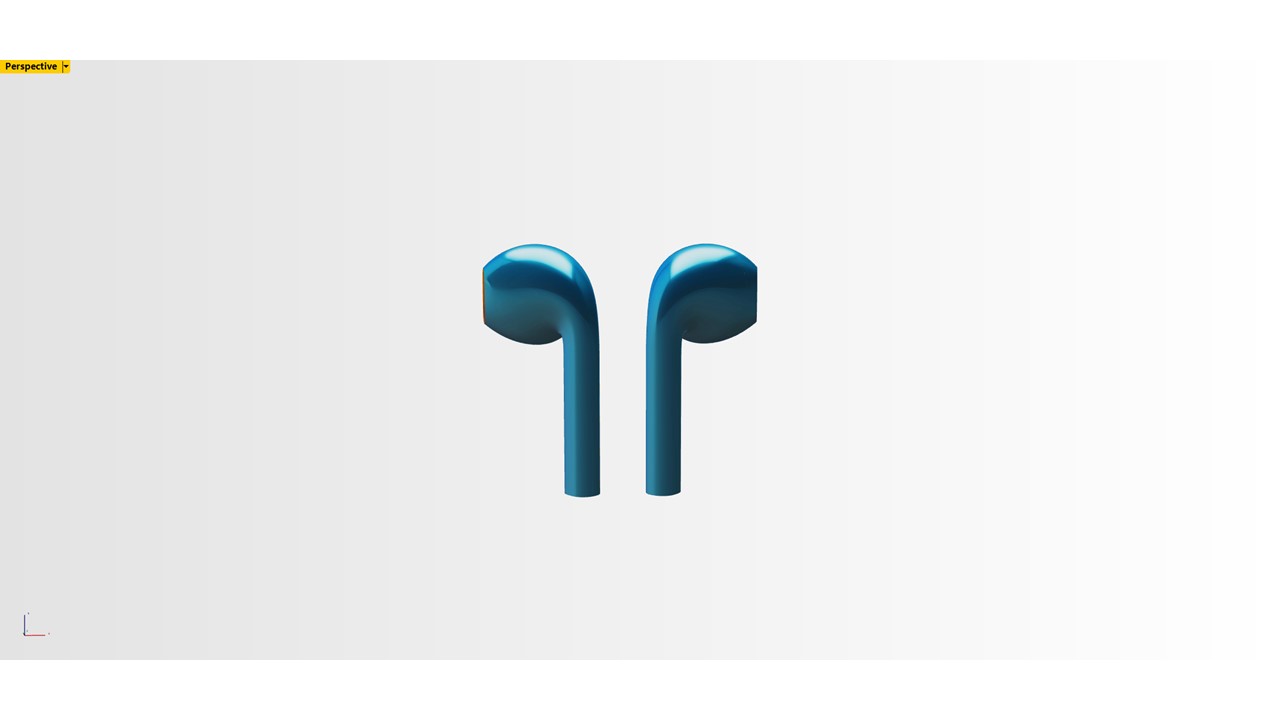

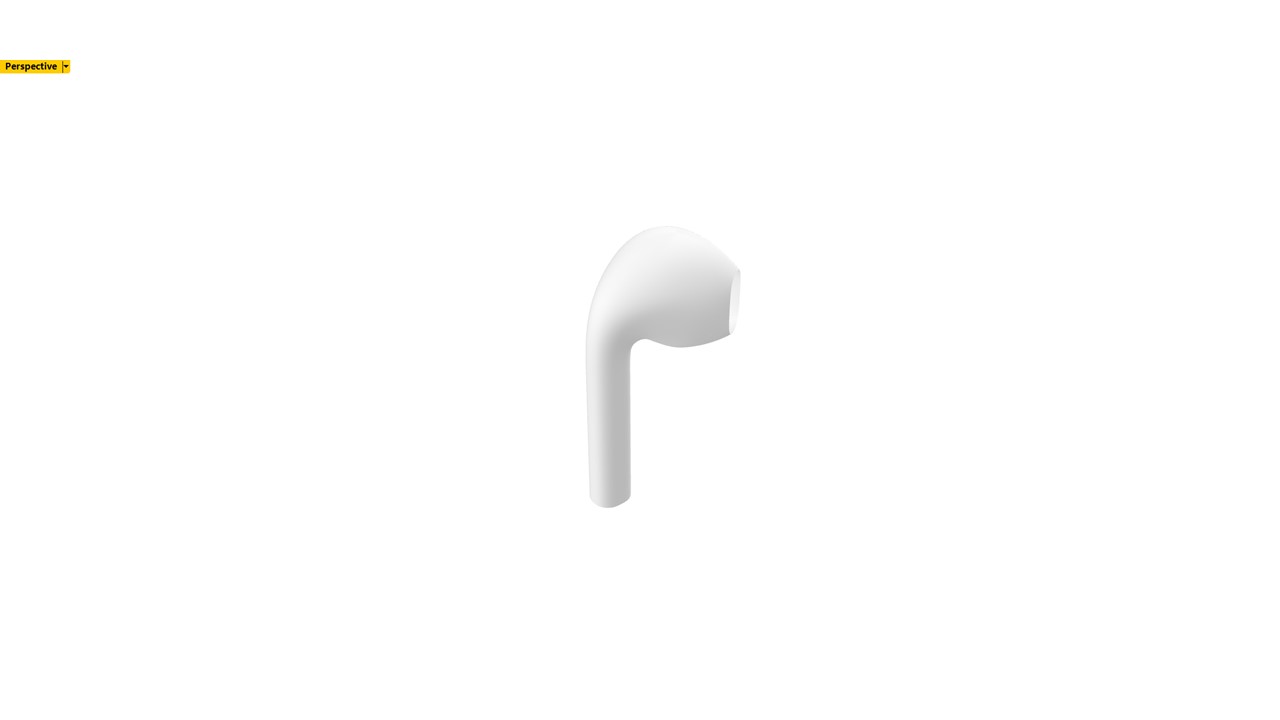

Finished!

Even the parts have been completed!!!!

Conclusion:
Most of the time, we have learned the cool modeling skills through various ways.
However, in actual work, it is found that the modeling logic taught to you cannot be applied.
Therefore, skills should be learned, but more suitable modeling logic should be built according to the actual situation of the project.
What will be built in the next phase?
