Partner Client: Well-Known Confidential Client
Project Name: Appearance Design of Ladder Medical High-Flux Neural Signal Acquisition Equipment (Scheme A)
Collaboration Scope: Design Analysis | Industrial Design | Structural Design | Prototype Fabrication | Ongoing Support and Assistance
1. product overview and background
This high-throughput neural signal acquisition device, launched by STAIR MED (Step Medical) in July 2023, is a professional-grade medical instrument for modern neuroscience research and clinical brain-computer interface applications. The design language of scheme A reflects the transformation trend of contemporary medical equipment from "cold equipment" to "intelligent partner", which injects strong humanistic care and scientific and technological aesthetics while ensuring functionality.
2. Design Language Analysis
2.1 color strategy: the balance between medical professional sense and scientific and technological temperature
Scheme A uses black and white two-tone as the main visual system, the black panel carries the core operation area and signal interface, and the white base provides stable visual support. This color scheme has multiple considerations:
Black upper cover: effectively weakens the visual pressure brought by the high-density electrode array, and at the same time, it acts as a "technical black box" to imply its internal complex signal processing capabilities.
White base: convey the clean and safe sense of medical environment, and harmoniously integrate with the common white tone environment in hospitals
Green brand logo: inject vitality into the black and white tone, green represents health and vitality in the medical context, STAIR MED's step-by-step Logo design The gradual upgrading of metaphor technology and the hierarchical transmission of neural signals
2.2 Morphological Language: Dialogues of Oblique Tension and a Stable Base

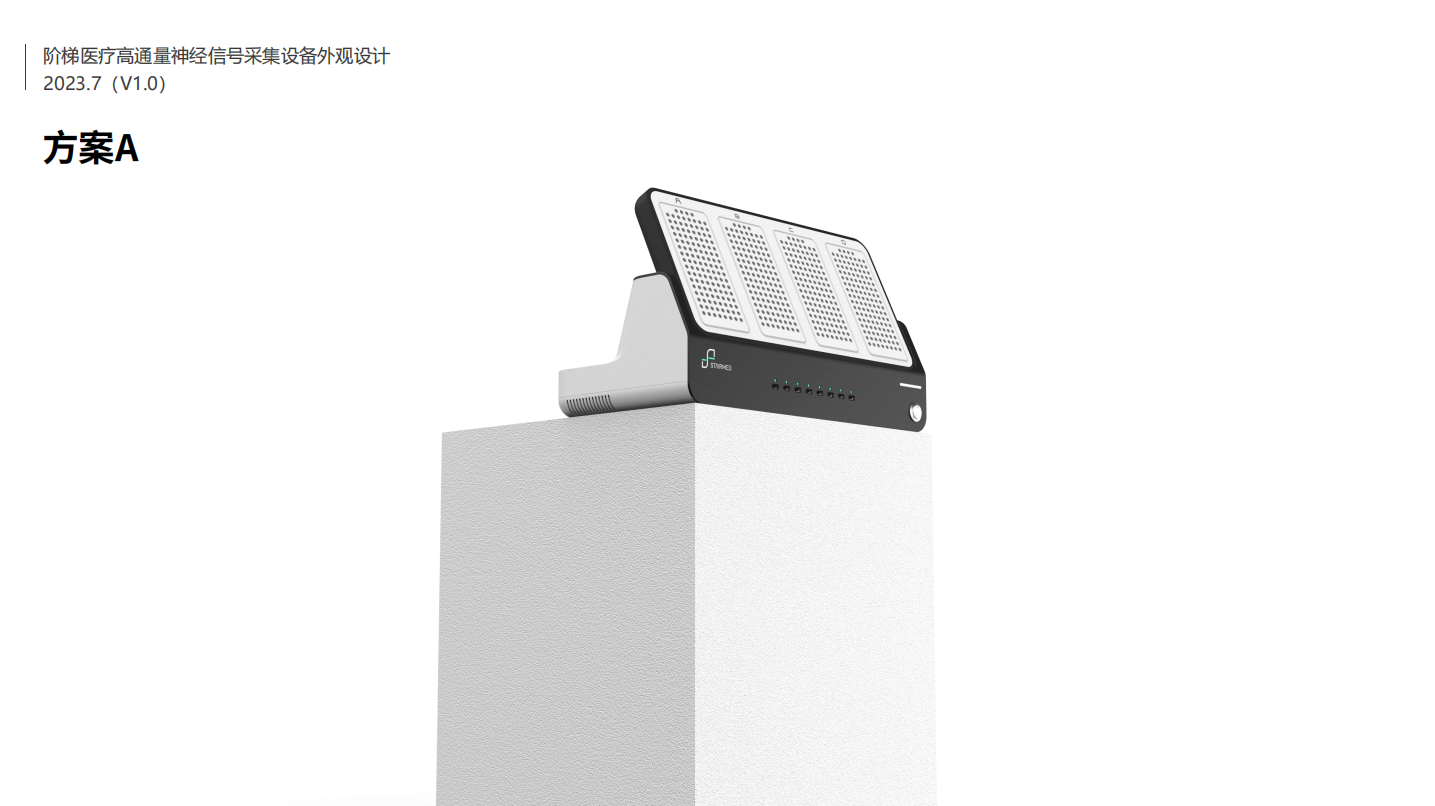

The whole device presents a wedge-shaped inclined form, breaking the square stereotype of traditional medical equipment. This design borrows the friendly gestures of modern consumer electronics (e. g. smart speakers, display stands) to make the device appear less "intimidating" (intimidating) in a laboratory environment. The tilt angle of 65 ° is carefully calculated, which not only ensures the visibility of the operation panel, but also maintains the stability of the center of gravity of the equipment.
Interpretation of 3. core design details
3.1 electrode array panels: a visual representation of functional density

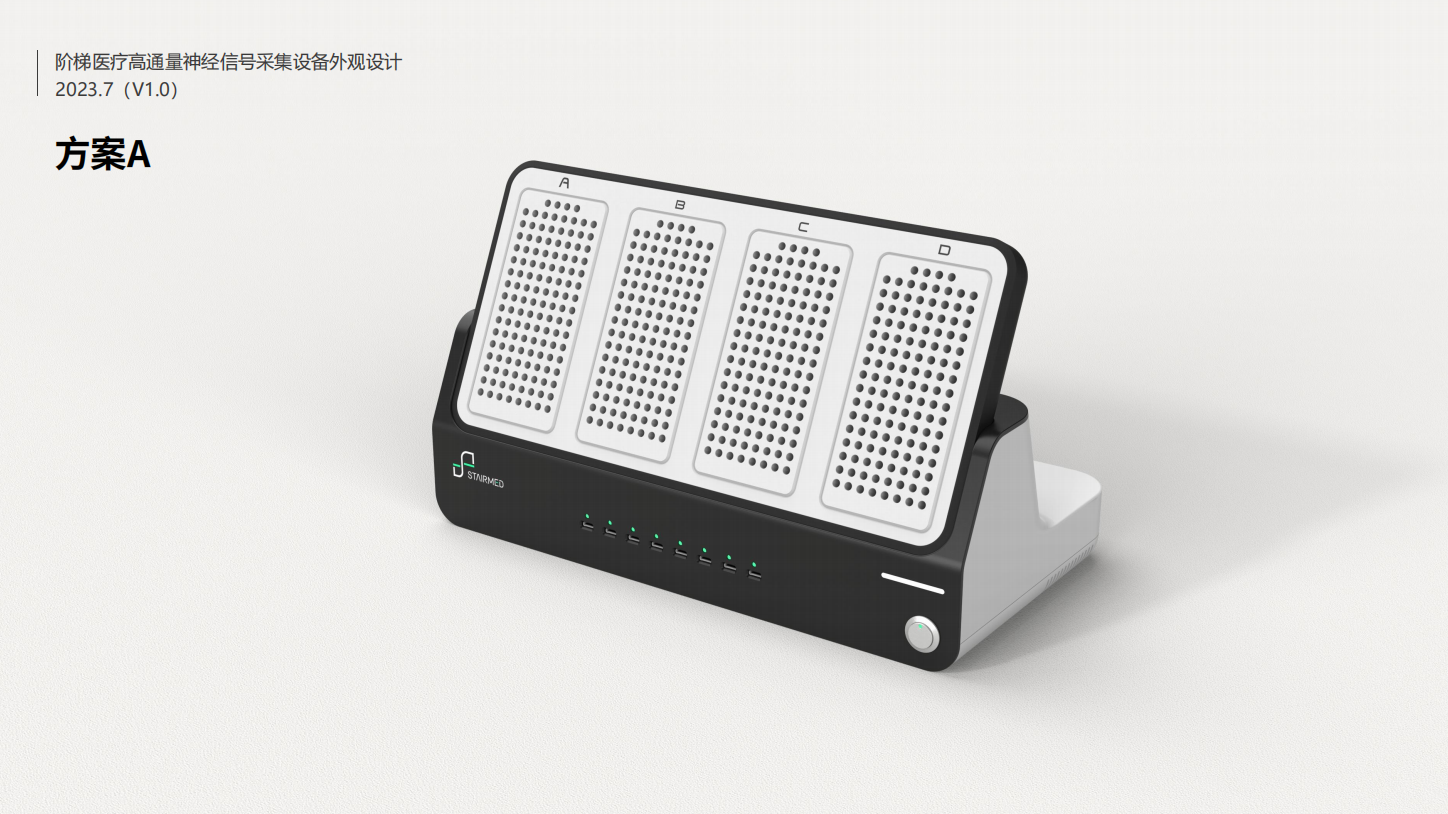

Four rectangular areas (labeled A, B, C, D) on the front of the device are high-density microelectrode array interfaces, each area is filled with a regularly arranged matrix of circular holes. This design detail is worthy of in-depth analysis:
Modular partition: four-zone independent design supports multi-channel parallel acquisition to meet the technical positioning of "high throughput"
Array arrangement: regular dot matrix patterns form a strong sense of technology and order, implying the accuracy and systematicness of data collection.
Clear identification: the letter identification of A/B/C/D adopts concise sans serif font, which is convenient for laboratory personnel to quickly locate and record.

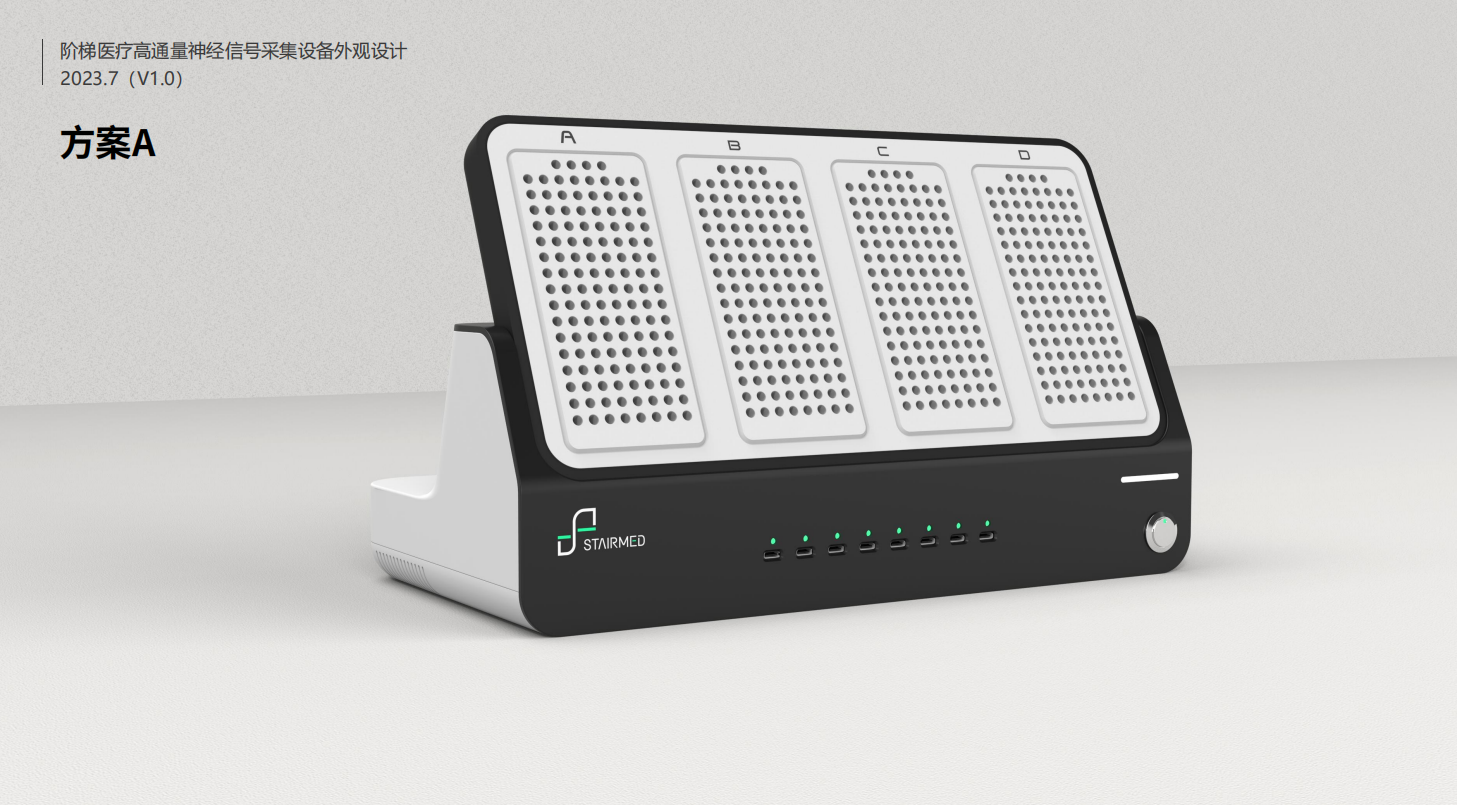

3.2 Status Indicator System: The Wisdom of Implicit Interaction
A row of green LED indicators under the panel forms the status feedback system for the device. The design follows the "Calm Technology" philosophy-providing low-interference visual confirmation during normal operation and attracting attention only in abnormal conditions. The dotted distribution of green light spots on the black background not only simulates the pulse signal image of neurons, but also avoids the anxiety caused by the warning lights of traditional medical instruments.
Contemporary interpretation of 3.3 mortise and tenon structure

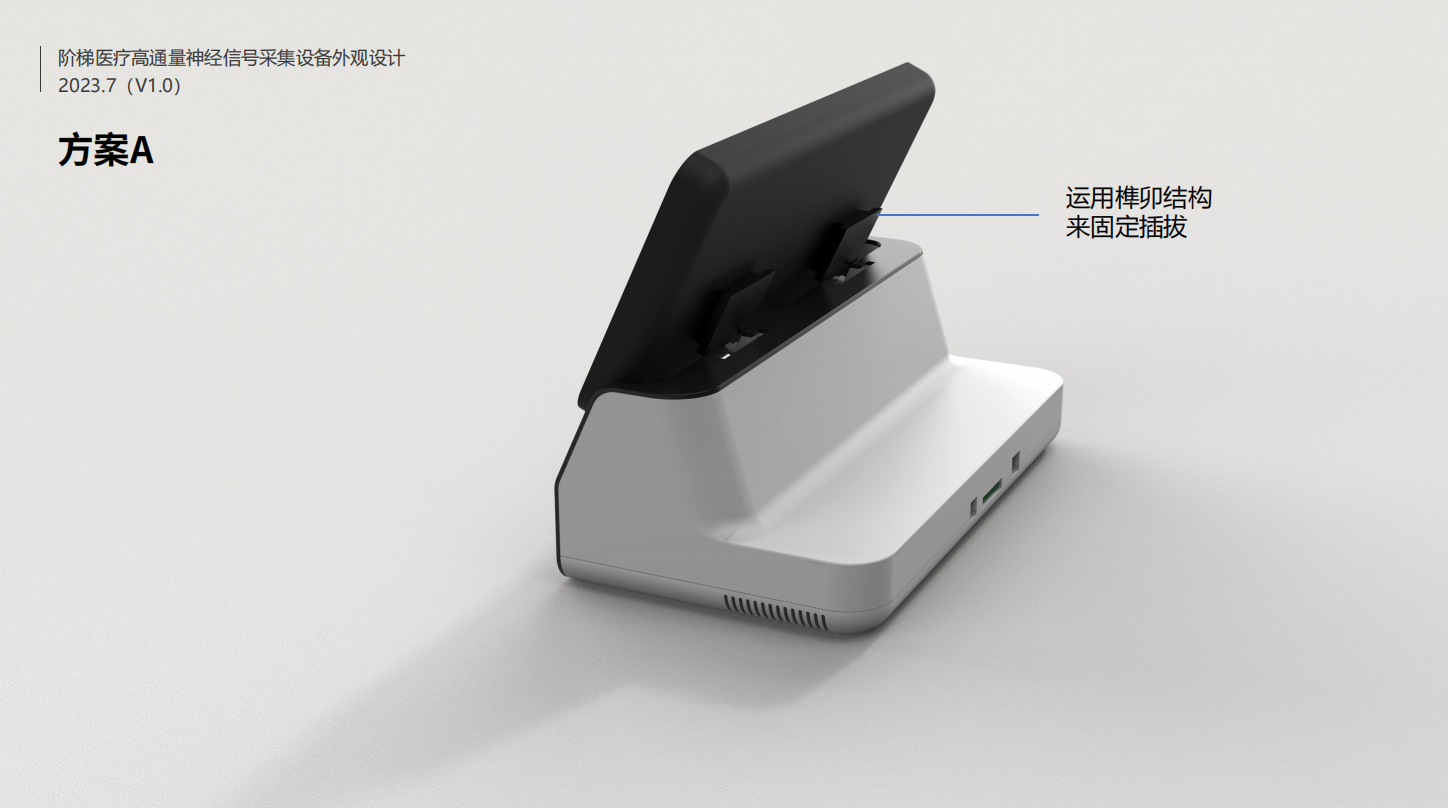

The most subtle design detail of option A is the mortise and tenon fixing structure used in the back. This design translates traditional Chinese woodworking wisdom into the language of modern industry:
Screwless aesthetics: Eliminates the damage of screw holes on the back of traditional equipment and maintains the integrity of the surfaces
Quick disassembly and assembly capability: supports convenient separation of electrode module and base for easy cleaning, maintenance and upgrade iteration
Structural reliability: The mortise and tenon joint mechanism provides a stable physical connection to ensure the stability of signal acquisition in medical scenarios
3.4 human-computer interaction interface
The circular knob/button on the right side is made of metallic material and forms the visual focus on the black panel. Its size and position conform to Fitts's Law-easy to locate and high fault tolerance. The white strip indicator next to the knob may have both power and operating status displays, forming an intuitive closed loop of "operation-feedback.
4. ergonomic depth considerations

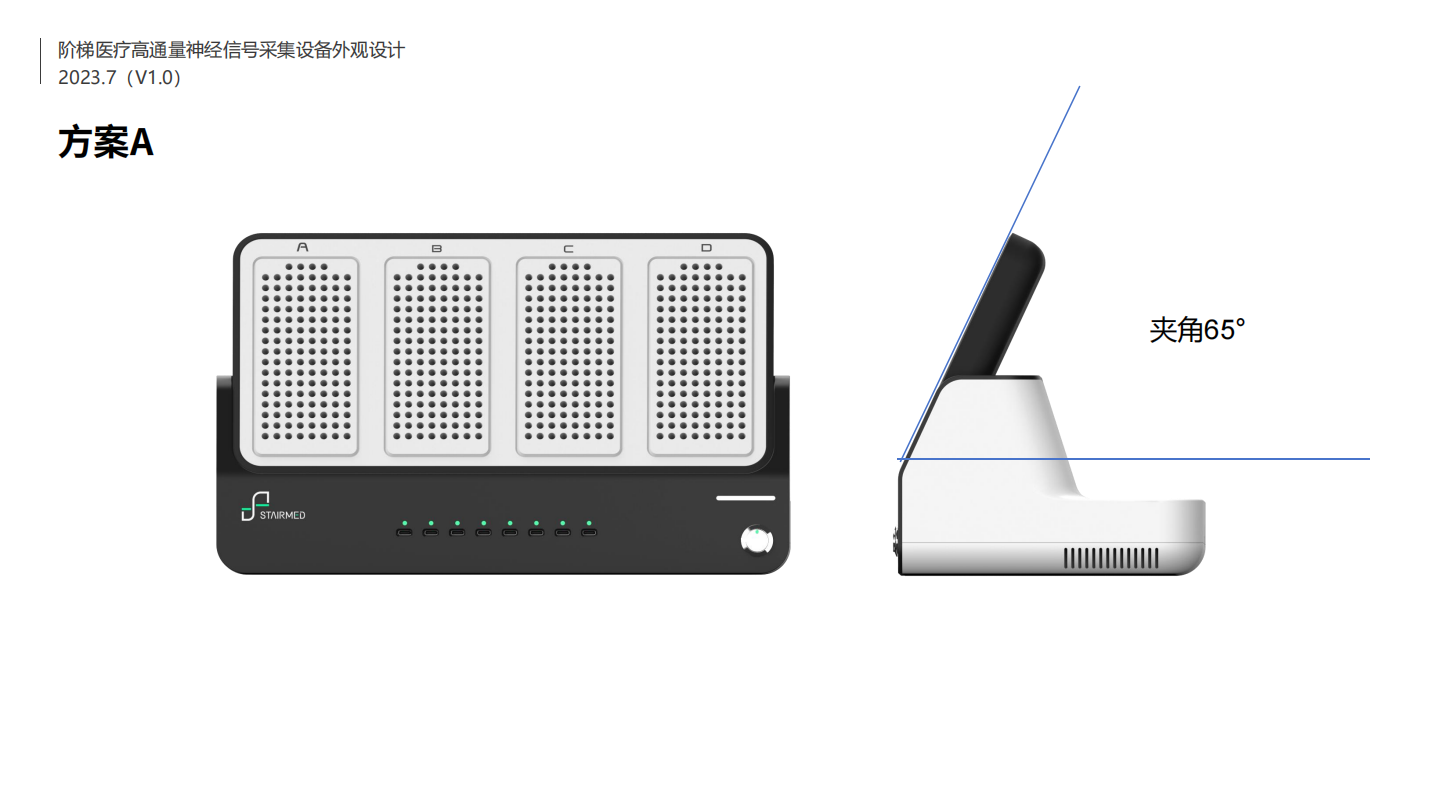

4.1 viewing angle optimization: the scientific basis for a 65 ° tilt angle
The 65 ° tilt angle design of plan A is not arbitrary, but is based on the natural line of sight angle of the operator when standing or sitting. In the laboratory environment, researchers usually operate standing or sit on a bar stool. This angle ensures that they can clearly observe the electrode connection status without excessively lowering their heads or adjusting their posture. Meanwhile, the inclined surface reduces the reflection of the ambient light at the electrode interface, and improves the operation accuracy.
140.00cm degree and operation space

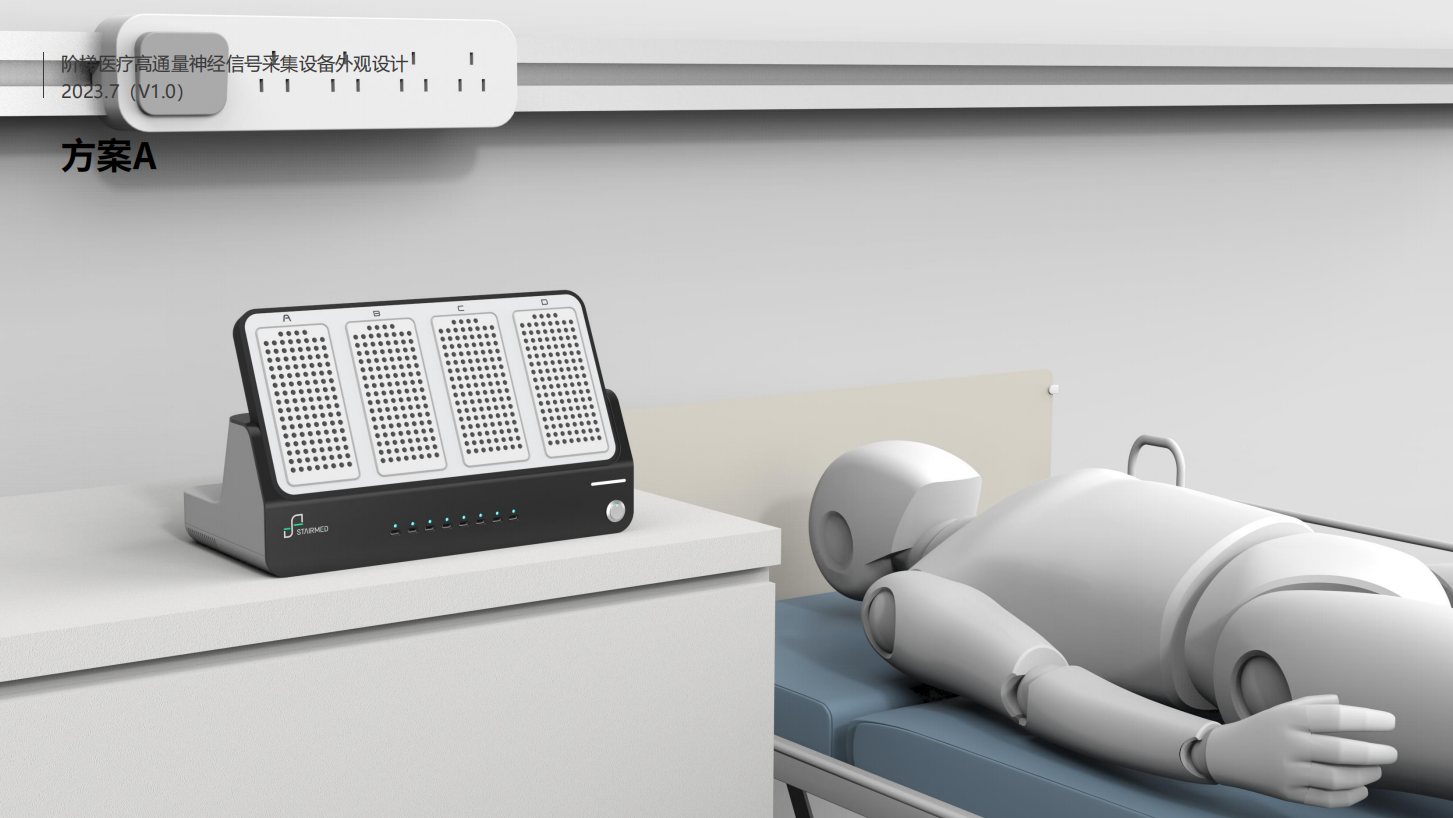

From the proportional relationship between the equipment and the simulated puppet in the rendering diagram, it can be seen that the overall scale of scheme a is controlled within the desktop level (the estimated length, width and height are about 30 × 20 × 15cm). These 33.33cm inches enable it to be flexibly deployed in various scenarios such as laboratory tables, operating room carts or ward bedside tables. The "ear-like" extension on both sides of the base not only provides a handling point, but also prevents the equipment from accidentally slipping under the pull of dense cables.
4.3 Thermal Management and Thermal Design
The grid-like heat dissipation holes visible at the bottom show that the design team fully considered the thermal load caused by high-flux signal processing. The heat dissipation holes are located at the bottom and rear of the equipment, which not only ensures the air circulation efficiency, but also avoids the discomfort caused by directly facing the operator, and reflects the care for the user's long-term work experience.
5. Scene Adaptation and Emotional Design
The design of scheme A fully considers the complexity of the medical scenario. In an ICU or neurological laboratory, the device needs to meet both:
For healthcare workers: Intuitive and easy to understand, reducing training costs
For patients: reduce the fear of technology and avoid the psychological pressure of "being monitored"
For maintenance personnel: Modular construction facilitates quick maintenance
The overall "mild tech feel" of the device-neither as frivolous as consumer electronics nor as cold as traditional medical devices-balances these needs. The tilted screen posture seems to be "listening" rather than "examining". This subtle anthropomorphic feature helps to establish a trust relationship between doctors and patients.
6. Summary
The Ladder Medical High-Throughput Neural Signal Acquisition Device (Scheme A) is a model of the deep integration of functionalism and emotional design. Through the color strategy of black and white contrast, the man-machine optimization of 65 inclination, the intelligent translation of mortise and tenon structure and the modular functional layout, it successfully transforms the complex neuroscience technology into an accessible and reliable medical product form. With the rapid development of brain-computer interface technology, this device not only meets the technical requirements of high-throughput signal acquisition, but also promotes the popularization and humanization of high-end medical equipment with the power of design. it shows the vision of making cutting-edge medical technology gradually enter daily medical practice. Sogo Design: www.soogot.com
