Project Name: Breast biopsy needle appearance design
Cooperation content: design analysis | appearance design | structural design | prototype production | accompanying running assistance
As a core interventional device for the diagnosis of breast diseases, the appearance design of this breast biopsy needle takes "clinical precision operation" as the core, and finds a precise balance between professional medical attributes and humanistic care. Through soft colors, fitting the shape of the human body and fine details, it makes cold medical devices have both professional rigor and psychological comfort, and has become a design example of "function and experience symbiosis" in the field of breast diagnosis.
1. Design Orientation: Dual Bearing of Professional Diagnosis and Humanistic Care
The core positioning of the breast rotary biopsy needle is "a professional interventional device that serves accurate diagnosis to relieve patient anxiety". It not only needs to meet the functional requirements of high-precision puncture and rotary cutting in clinical practice, but also needs to alleviate the psychological pressure of female patients when facing breast examination through friendly appearance design. The design starts from the "dual-dimensional needs of doctors and patients", making the device not only an accurate tool for medical staff, but also a psychological comfort carrier for patients, realizing the deep unity of "professional medical performance" and "humanistic care experience.
2. design language: soft aesthetic transfer professional temperature
In the scene of breast diagnosis, the visual language of the instrument directly affects the patient's psychological feelings. The design language of this biopsy needle is the embodiment of "soft aesthetics:
Color system: Break the cold color convention of traditional medical equipment, with soft pink and purple as the main color, with pure white and metallic silver as embellishment. Pink purple not only conforms to the visual preference of women, but also conveys warm and friendly feelings, which can effectively relieve the tension of patients. White and metallic silver continue the professional texture of medical equipment, making the color reach a balance between "comfort" and "specialty.

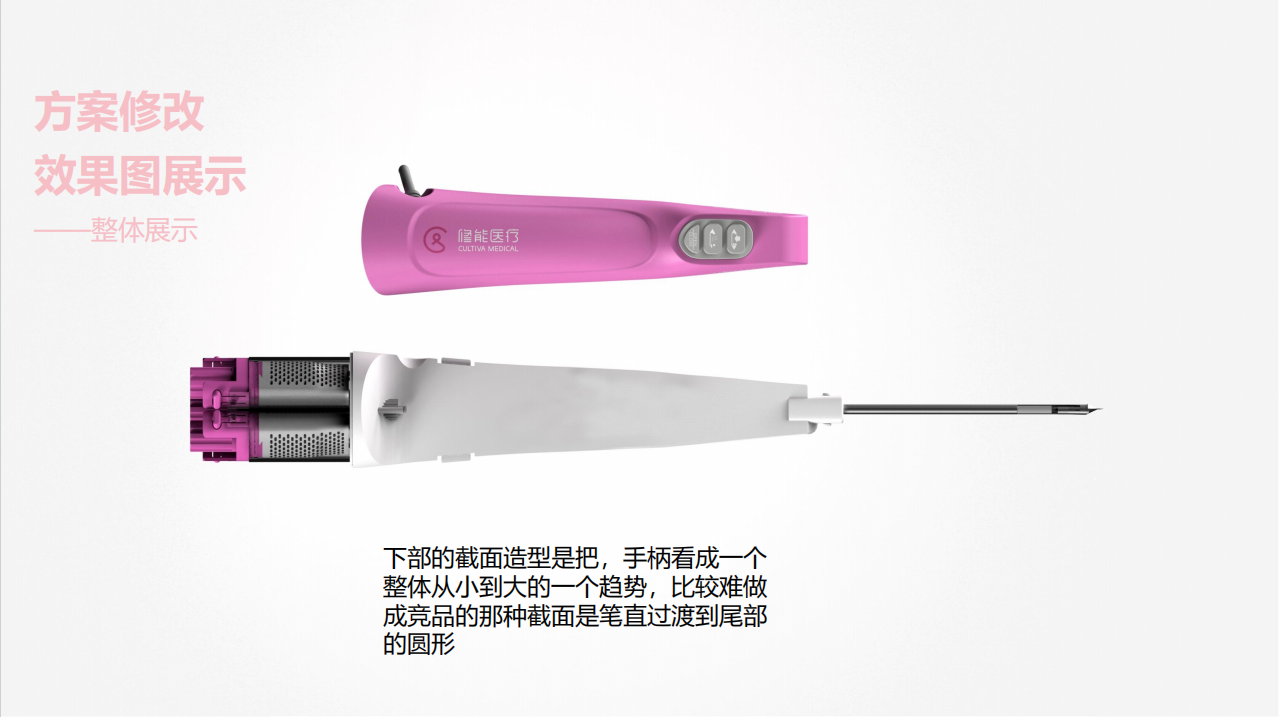

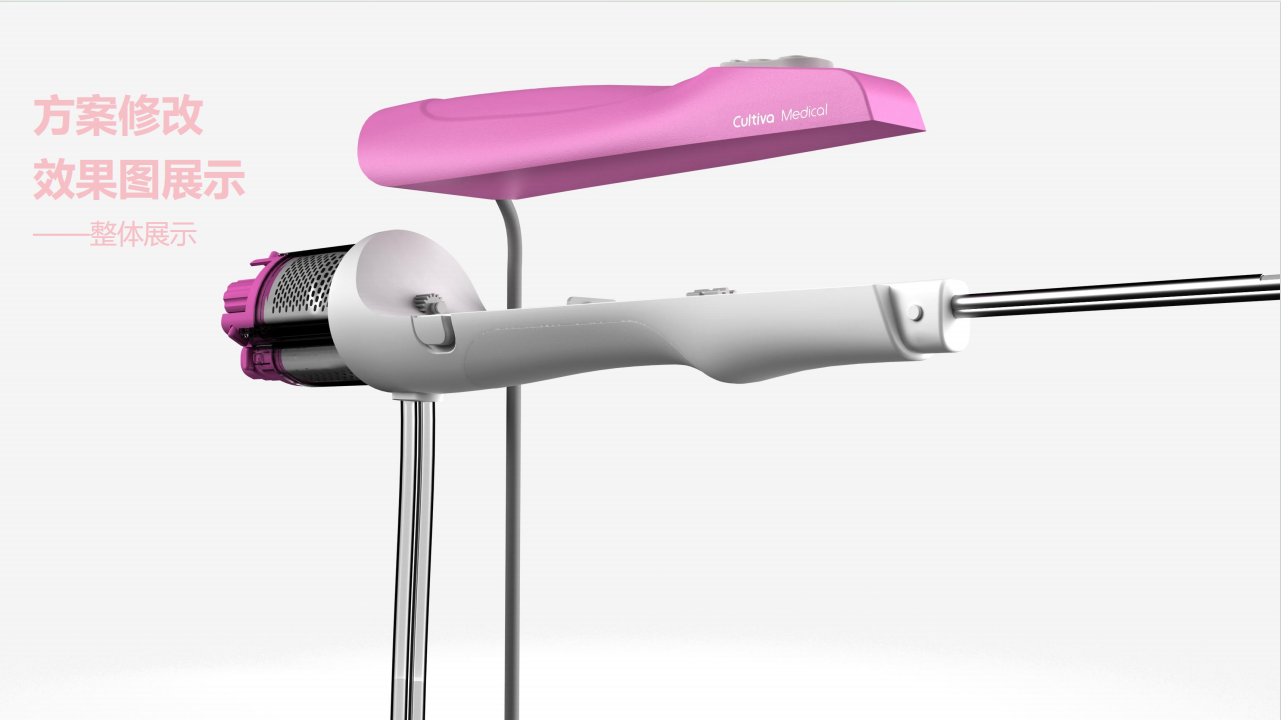

Morphological language: the whole adopts smooth curved surface modeling, and the transition from the handle to the needle body is natural and round, without sharp edges and corners, which not only avoids scratching the skin or gloves during operation, but also weakens the "cold feeling" of the instrument ". The curve of the handle fits the arc of the palm, which visually conveys the friendly feeling of "fitting the human body", so that patients and medical staff can feel the designed temperature.
Material logic: the main body is made of medical-grade ABS plastic, which has both light weight and durability. Skin-friendly TPE soft rubber is embedded in the grip area of the handle to improve the stability when wearing gloves. The needle body is made of stainless steel to ensure puncture strength while the surface is polished to reduce tissue friction and improve patient comfort.
3. design details: function-oriented precision landing
Every adjustment of the appearance details points to the actual pain points of the clinical operation:

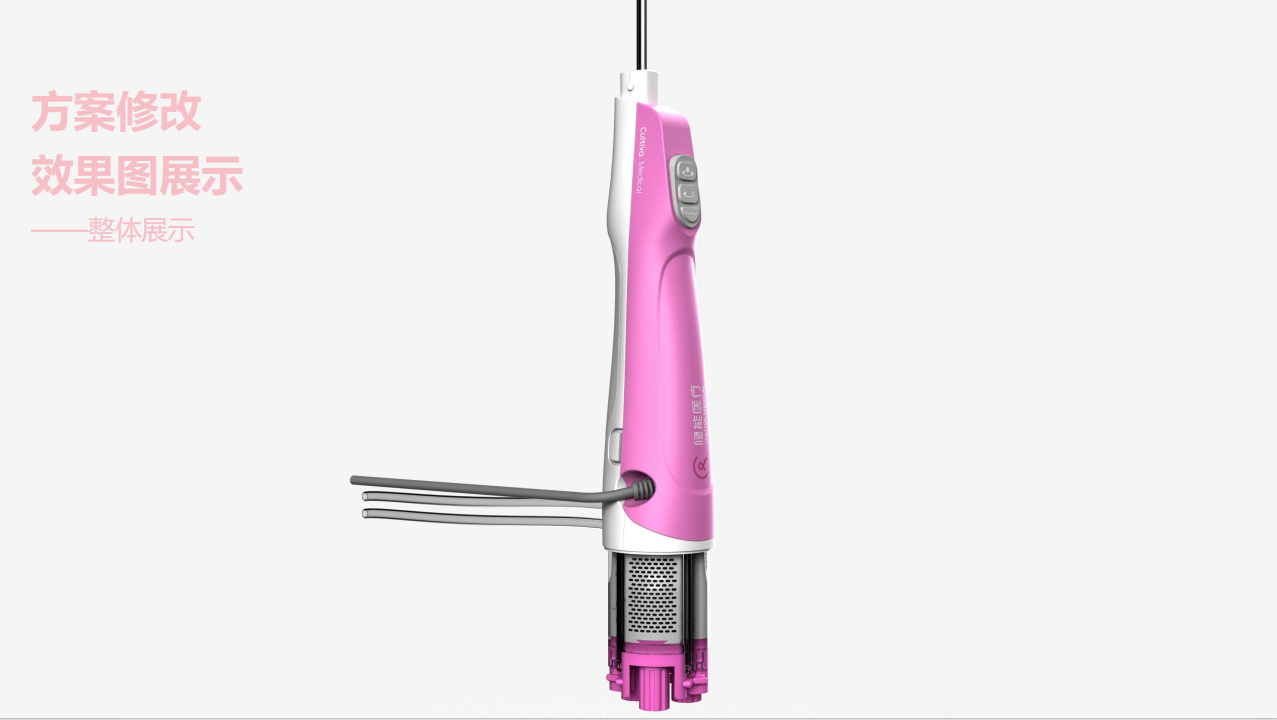

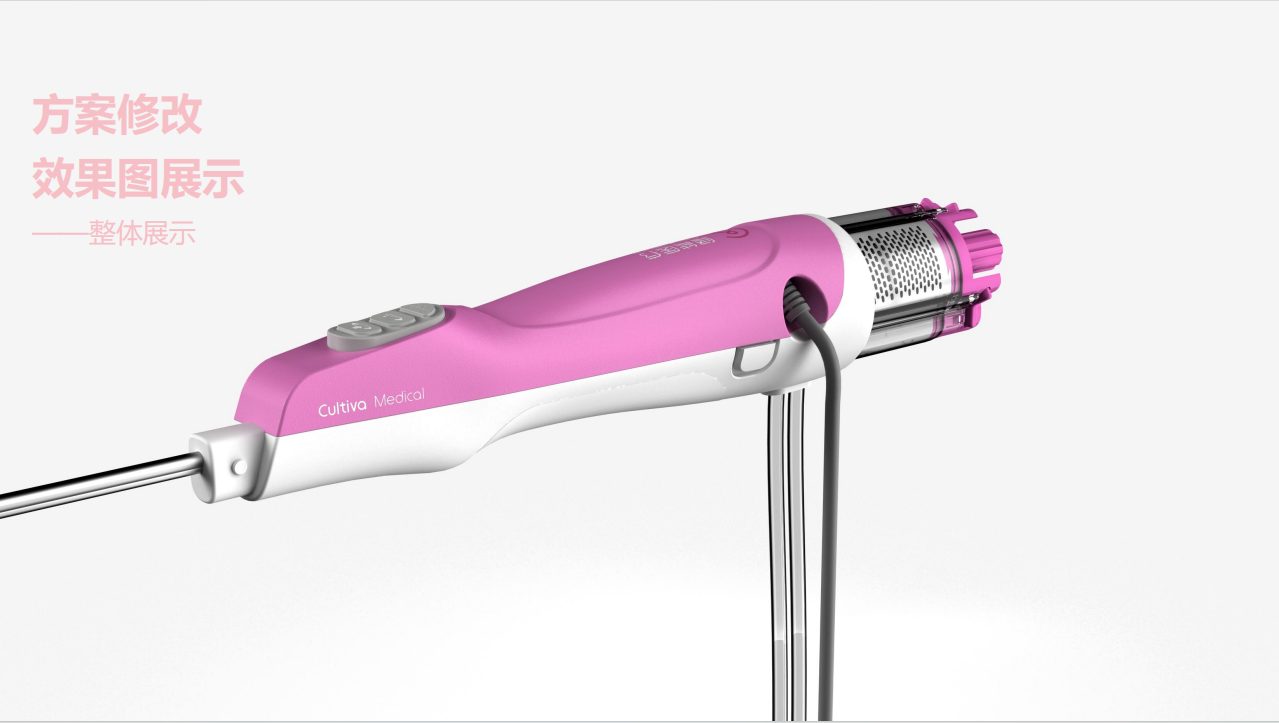

Pipeline storage design: the double pipelines are parallel to the side of the handle and fixed by arc-shaped grooves to avoid winding or pulling of the pipelines during operation, which not only ensures clear surgical vision, but also improves operation safety.
Heat dissipation and cleaning details: the grille ventilation hole design at the root of the needle body ensures the heat dissipation efficiency of the equipment for long-term operation. The integrated injection-molded handle has no obvious gap, which is convenient for high-temperature disinfection after operation and meets the requirements of aseptic management in medical scenes.

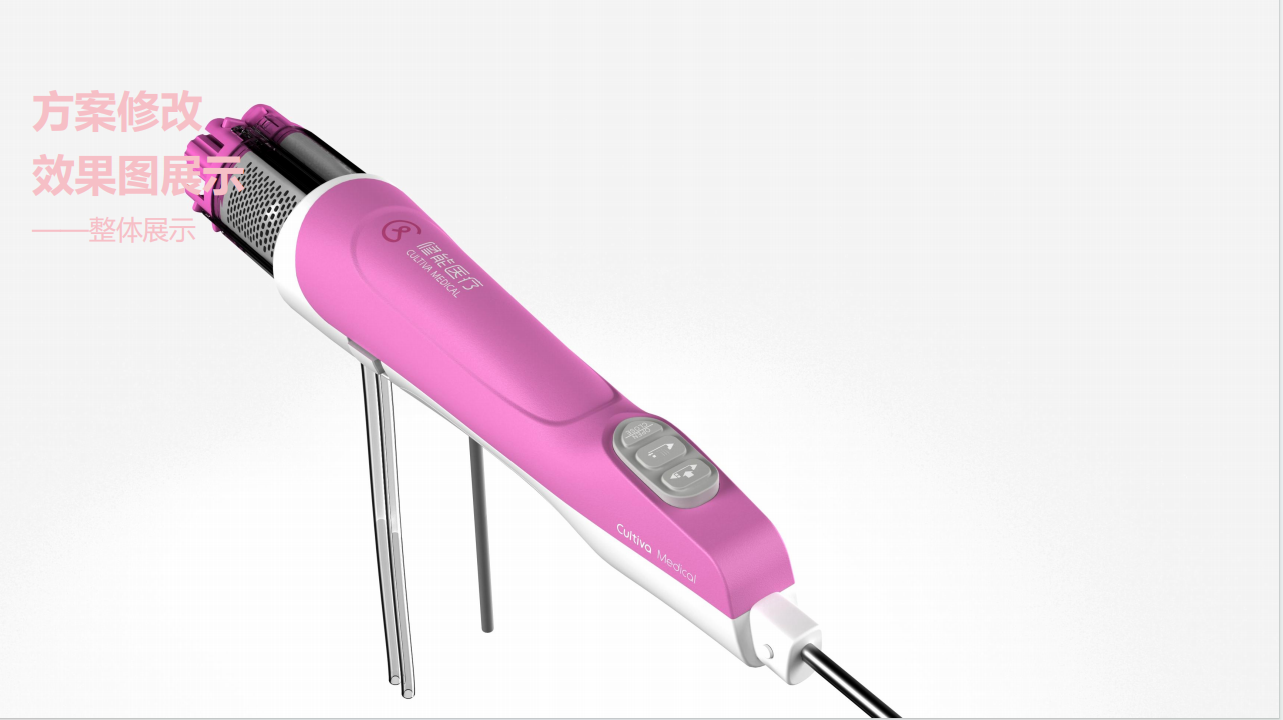

Status prompt design: the indicator lights and keys on the side of the handle are arranged in the golden visual area of the medical staff, so that the status of the equipment can be observed without lowering the head, which improves the operation efficiency and reduces the interference to patients.
4. Ergonomics: Doctor-patient Dual-dimensional Experience Optimization
The ergonomic design of this breast biopsy needle takes into account the operation efficiency of medical staff and the examination experience of patients:
Medical operation adaptation: the curved surface shape of the handle fits the natural holding posture of the palm, dispersing the fatigue of the hand due to long-term operation; The key position is set in the area easily accessible by the thumb, and the parameter adjustment can be completed by holding it with one hand, thus improving the operation efficiency.
Patient experience optimization: the soft color and round shape of pink and purple reduce the psychological pressure of patients visually; The smooth surface of the needle body and the fine polished tip reduce the discomfort during puncture and improve the comfort of the inspection process.
Safety interaction design: the fixed groove of the pipeline, the anti-skid texture of the handle and the anti-accidental touch structure of the needle body further reduce the operation risk of both doctors and patients, and make the whole diagnosis process safer and more at ease.
From color selection to pipeline storage, the design of this breast biopsy needle always revolves around "clinical value" and "humanistic care. It delivers professional temperature with soft aesthetics, lands functional requirements with precise details, optimizes doctor-patient experience with humanized design, and finally realizes the symbiosis of "medical professional attribute" and "psychological comfort effect", which provides a practical paradigm for the design of breast diagnostic equipment. SOGOT DESIGN: www.soogot.com
