Customer/Lei Bai V300 Mouse
Time/2012 listing
Design/zhouhongchao

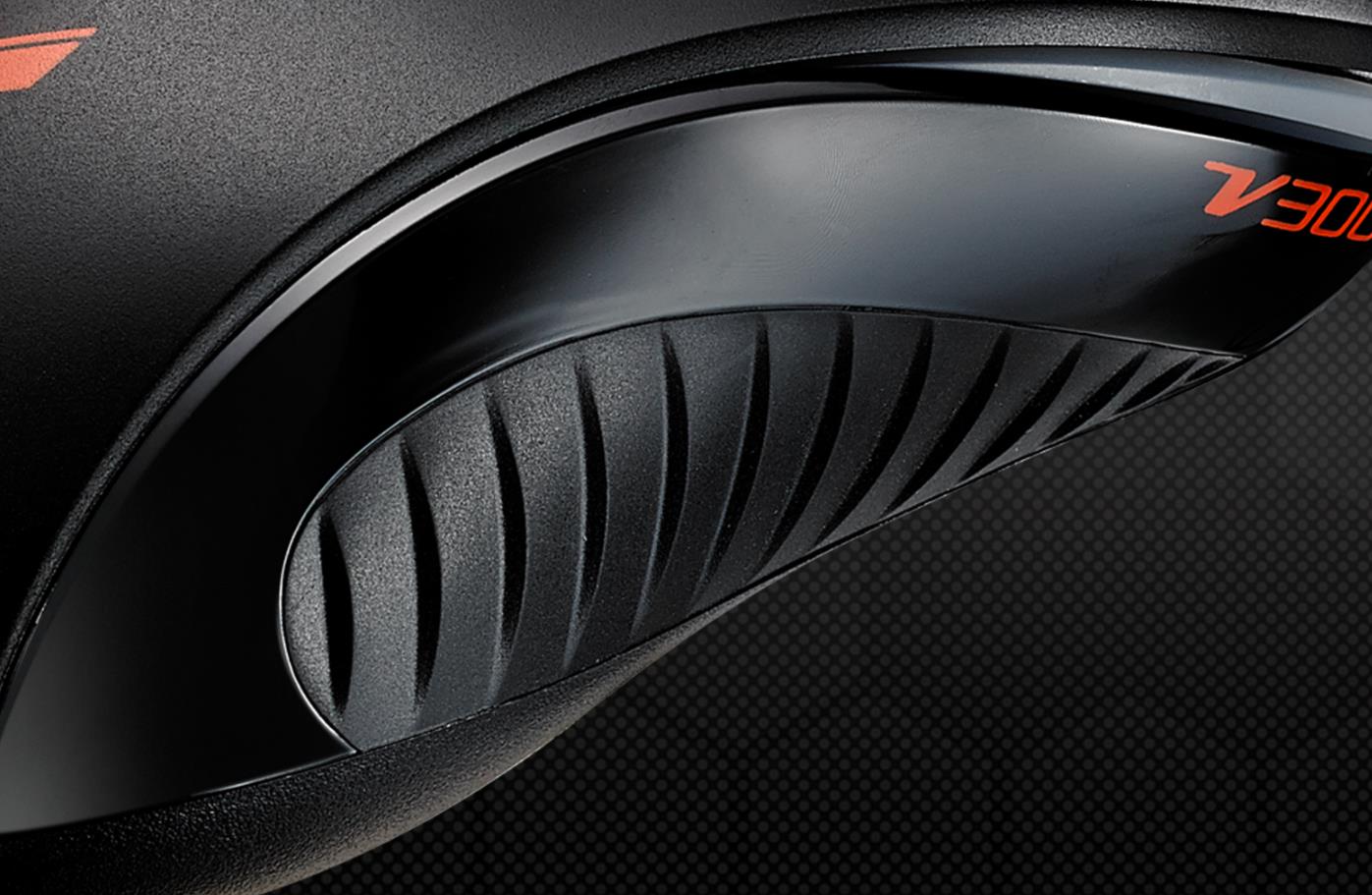

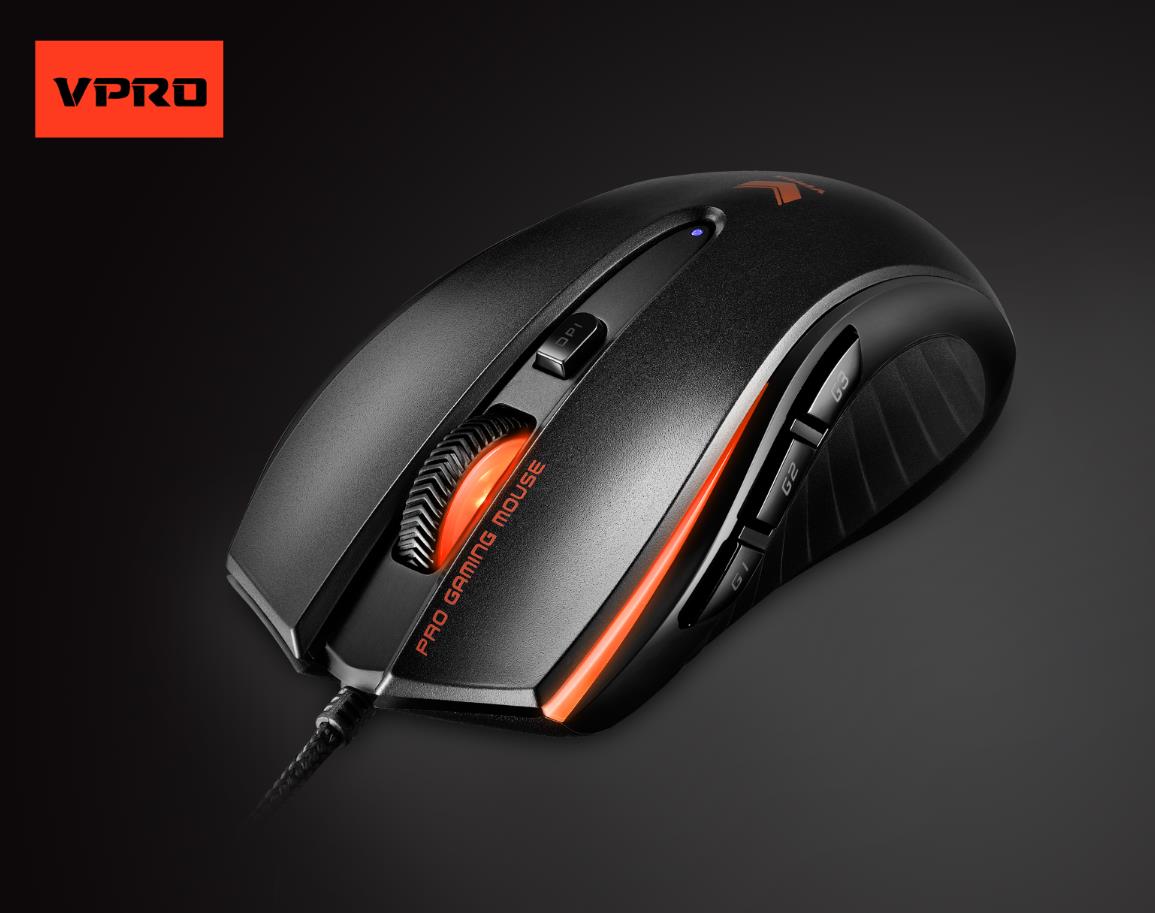

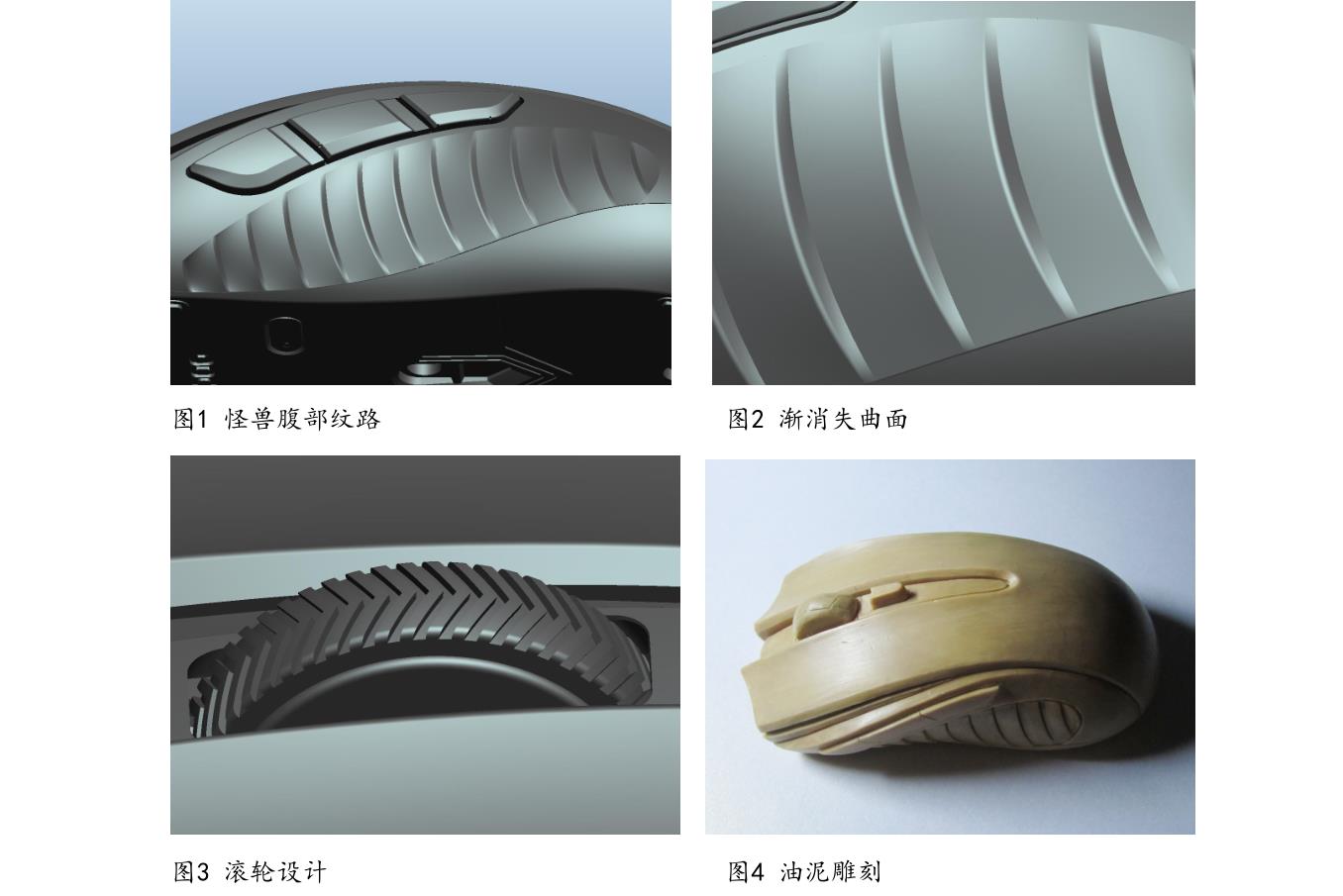

It is positioned as a mid-range product, and high-end materials such as metals are not selected. The design focuses on lighting effects, game elements and subtle designs. Design lighting effect: stepped design, so that the light band is on the second step. The advantage is that the light band can be seen in the three views of the mouse. In 2012, the design can only expose a length of 40mm in the bottleneck of the light guide material. The material is soft and white PC material and diffuser is added, and the best formula is selected for experiments. Game elements: reflect the game products can start from the outer outline, shape, symbol, part, light effect. However, serialized planning found that it is difficult to keep the above under the brand language (see the exploration of modeling design for details). Local addition of elements is a good way. It can not only feel the familiarity of the game but also does not interfere with the brand style. It can select the "monster abdomen" under the game scene and apply it to the mouse side skirt (Figure 1). Also, due to the guidance of design principles, it is divided into curves in, however, at least 10 are grasped when grasping, and each small face should fit the thumb as much as possible, and the depth should not be too deep. after model tests and investigation of the user's hand feeling, each small face is 8mm horizontally, and the edge gradually disappears the curved surface (fig. 2), thus satisfying the characteristics of no oil stain accumulated in the depression, large contact area of the thumb, no hand melting, and close to the abdomen of the monster. Ensure the unity of use experience and game elements. The initial construction of the series of symbols: the roller is a common part, which should be subdivided into high-end and design standards. V is the basic figure in the roller design, and the silicone softness, the number of stripes, the spacing of stripes and the fillet of the stripe edge are fully tested (fig. 3). 120 are arrayed along the axis, the silicone softness is 30 degrees, the number of stripes is 50, the spacing of stripes is 0.5mm, the angle above the stripes is convenient to clean sweat, and the fillet of the stripe edge makes the fingers not stiff. It is not suitable to make a big breakthrough in the form. It is enough to exaggerate the curve around the mature form. The oil sludge carving technique is mainly used (Figure 4) to gradually improve the form and man-machine surface.
