This product is developed by the original leading industrial design of Shunde, and deeply cultivates the subdivision scene of vehicle travel. In view of the limitations of the traditional vehicle-mounted single-head fan air supply range, the appearance of cheap homogenization, single adjustment angle and other industry pain points, the innovative use of dual-fan module layout, to create a dual-head global circulation air supply scheme. Out of the market conventional long, square car fan shape shackles, with double round turbine unit to build the core visual symbols, taking into account the car's narrow space man-machine adaptation, driving safety and interior aesthetics, for passenger cars, new energy car owners groups, open up high-end car electrical differentiation track.

Design ID Innovation – Shaping a Formal Language

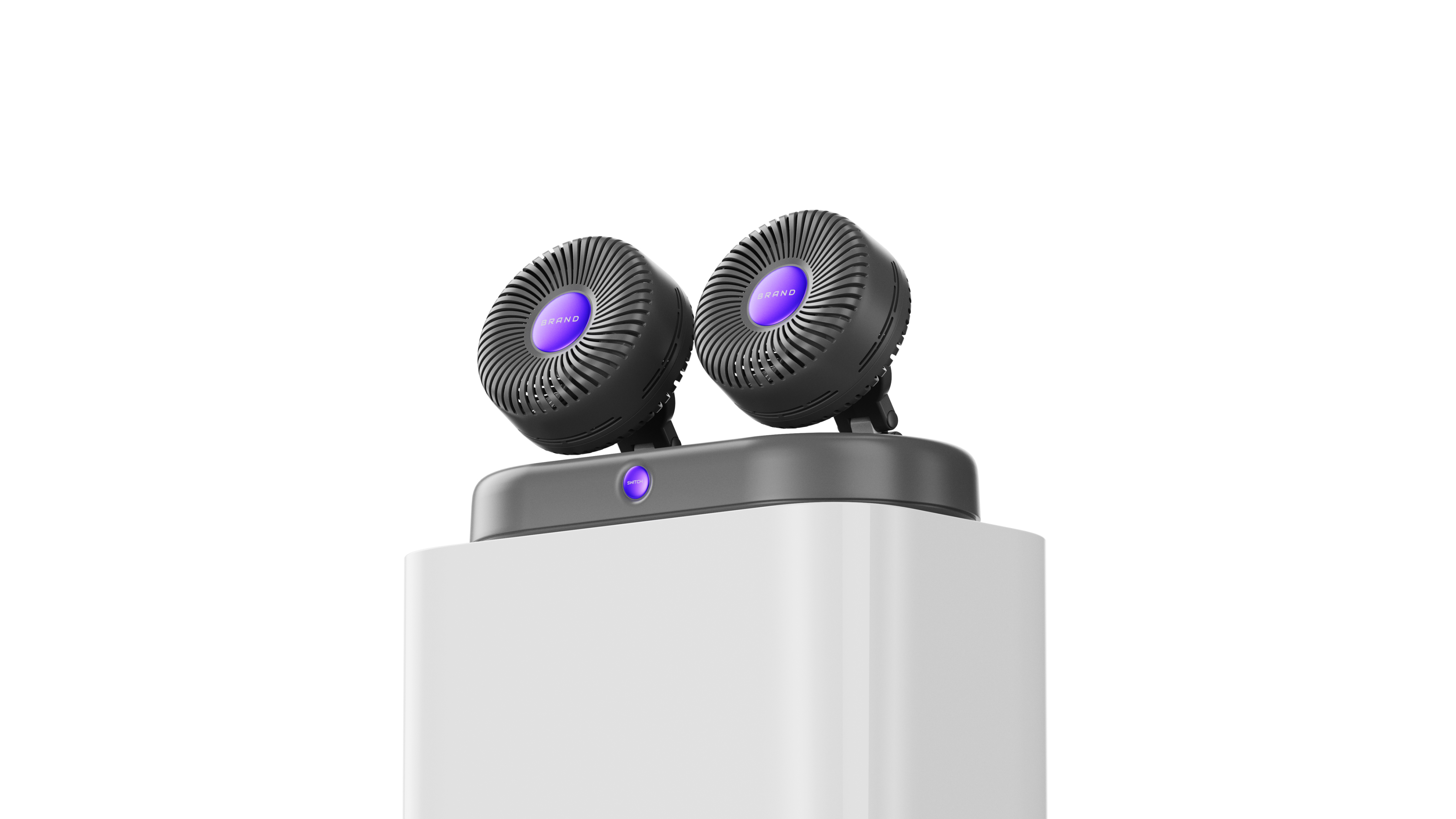

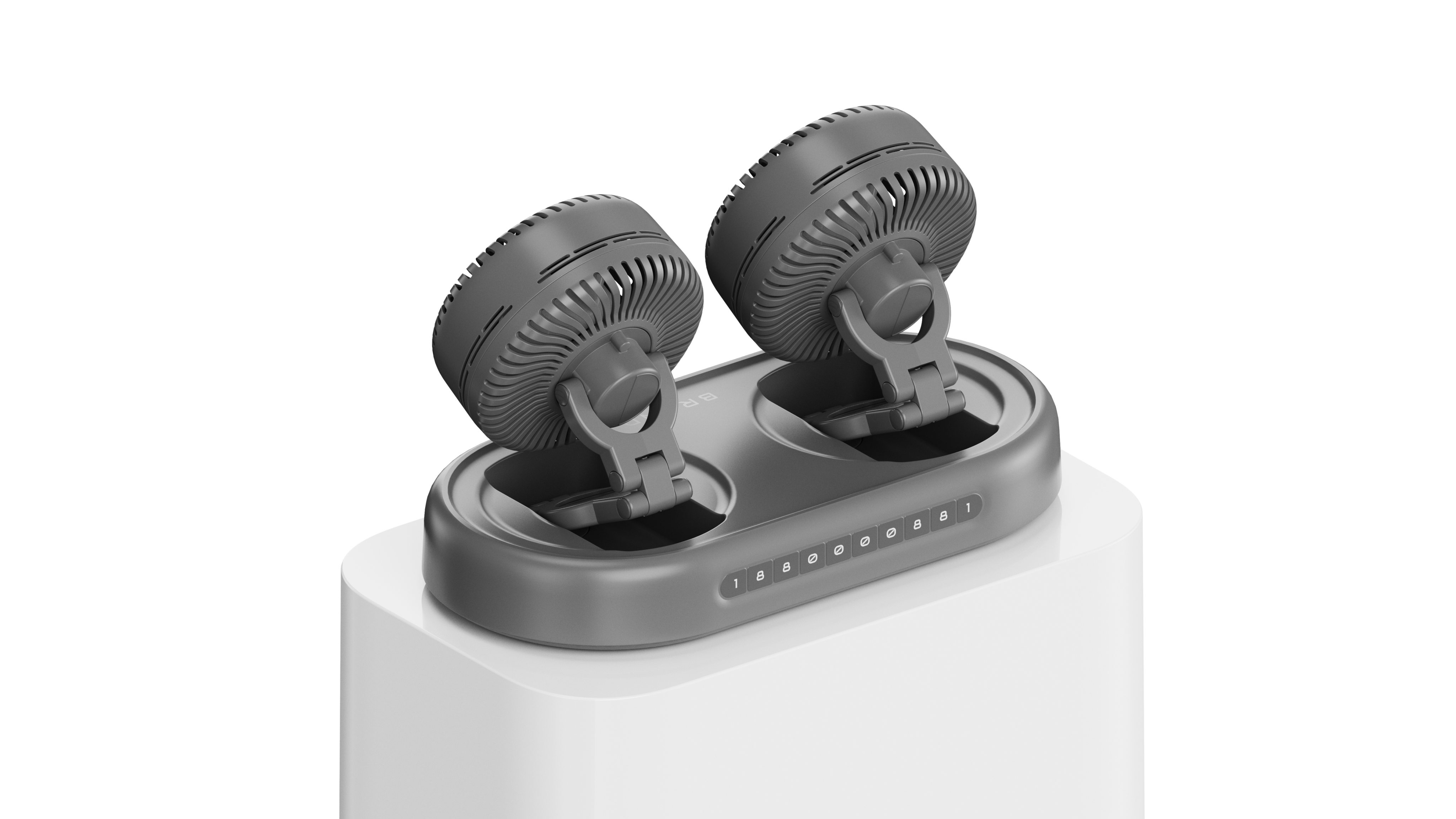

The whole machine adopts the combination structure of double turbine circular wind head and integrated arc base, and the double circular wind unit forms a balanced visual sense of confrontation. The radial gradient grille of the wind cover is integrally formed, and the texture echoes the dynamic characteristics of airflow, and the function and appearance texture coexist. The windhead is equipped with a universal articulated bracket, which supports up and down pitching and left and right free rotation of 360 degrees to realize independent directional air supply at multiple angles. The base adopts rounded runway-shaped contour without sharp edges and corners to avoid potential traffic collision hazards. The extremely simple and single-point solid keys are centrally arranged to maintain the complete and smooth appearance of the shell. Two sets of structural schemes are developed simultaneously in one environment: the universal bracket version can be lifted/the embedded base version can be tiled, the central control and armrest box placement requirements of different models can be adapted, and the iterative selection of brand diversified products can be given.

CMF Color and Material Strategy (Original Color Scheme Planning by Yijing)

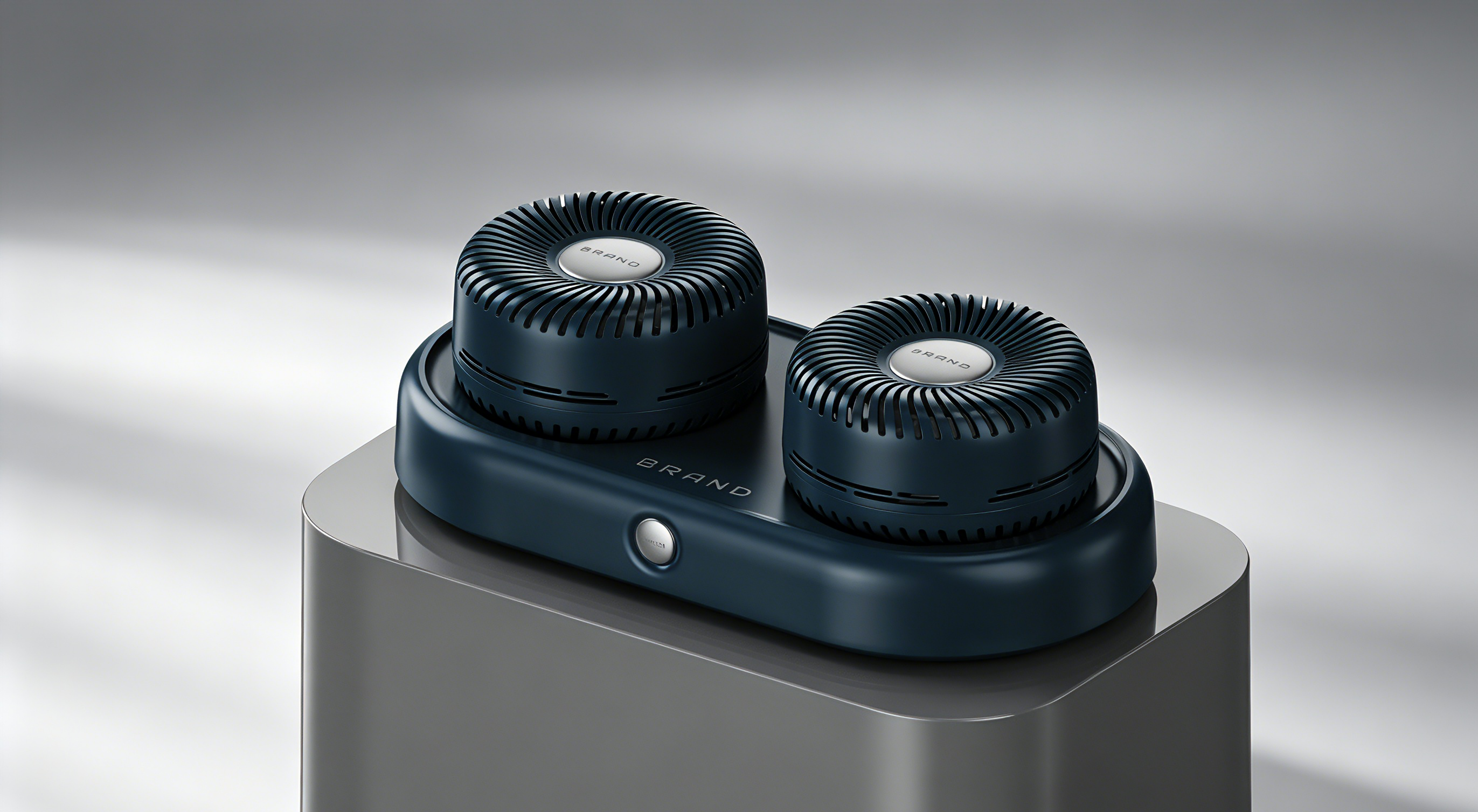

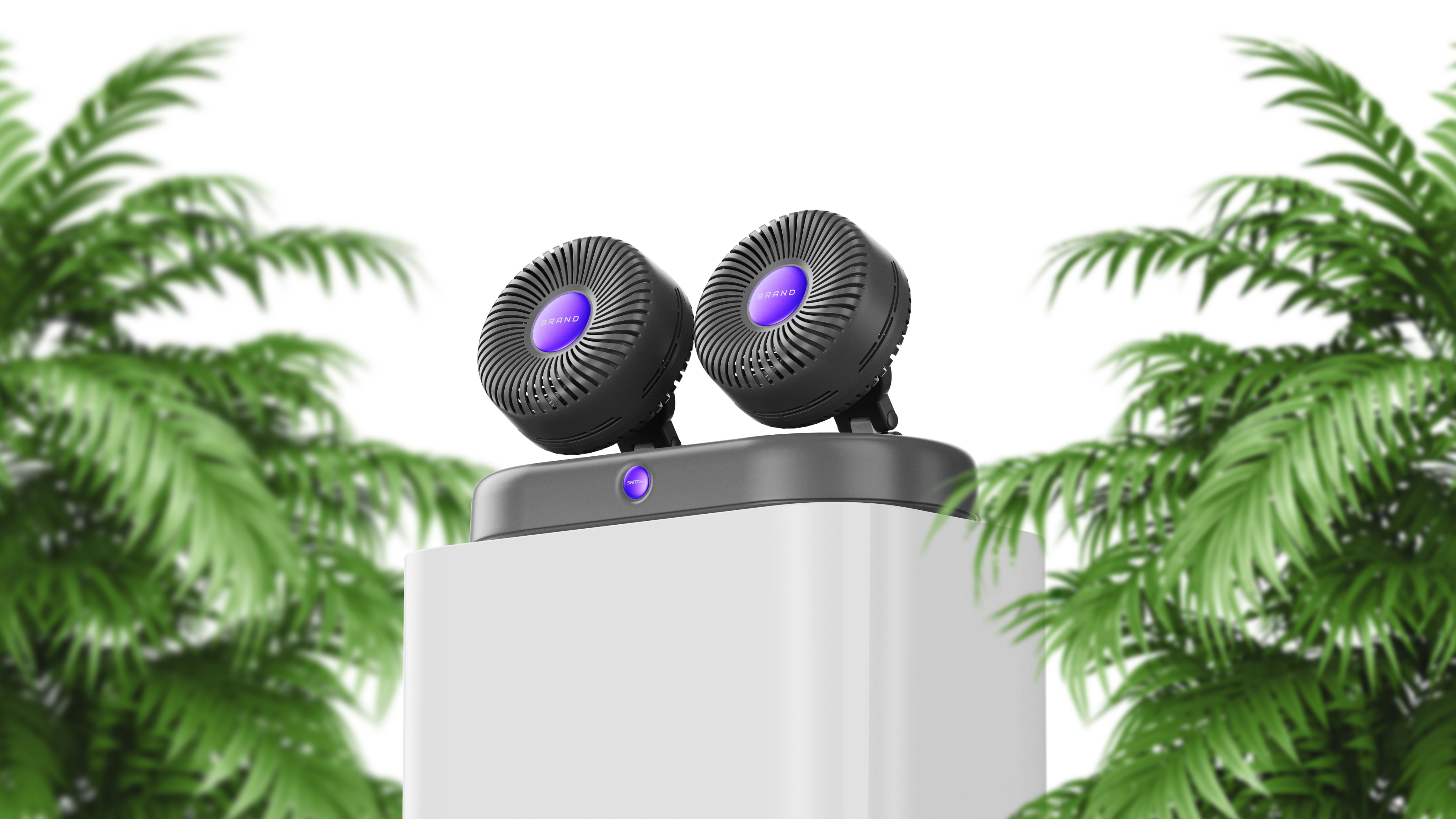

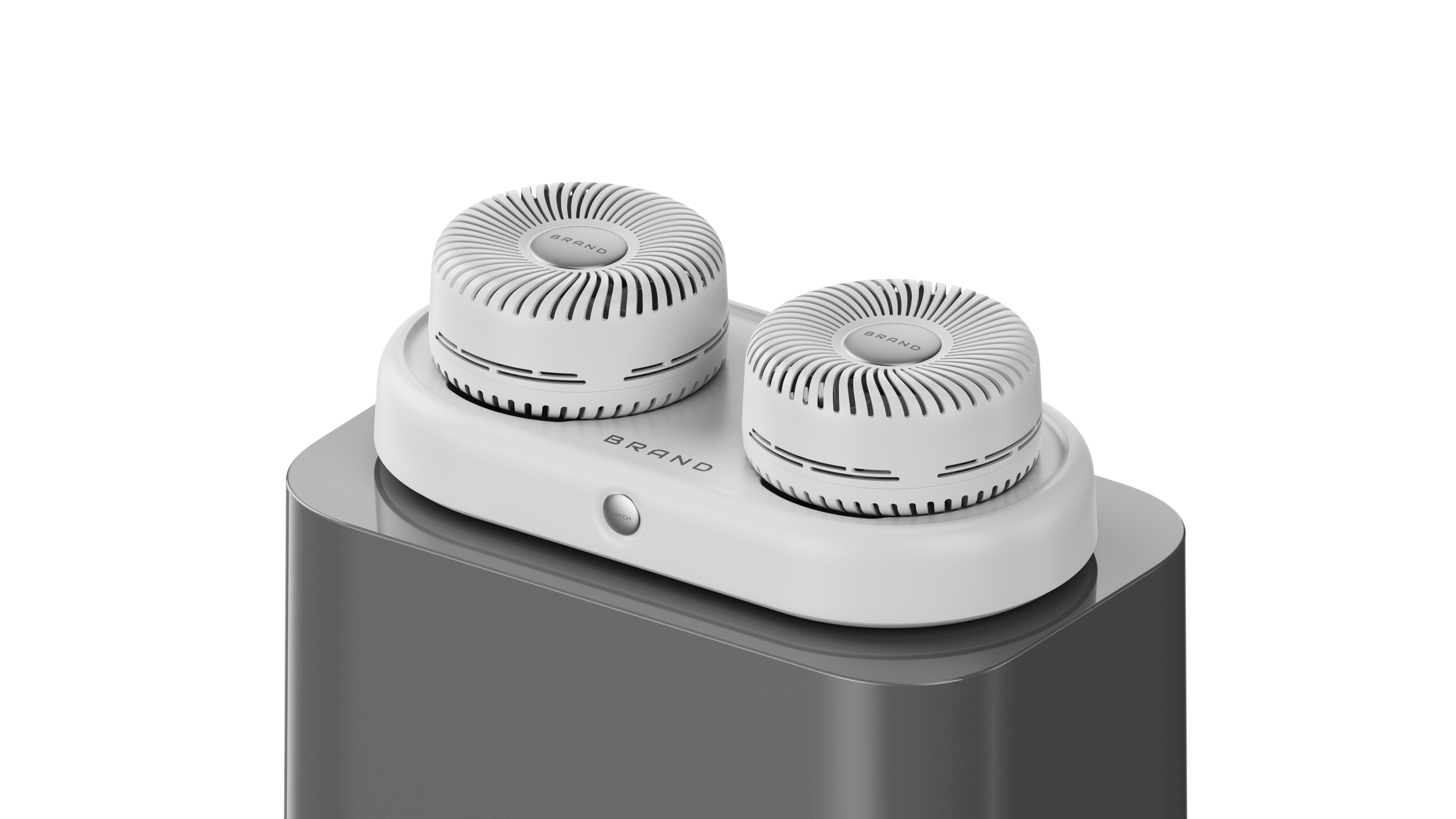

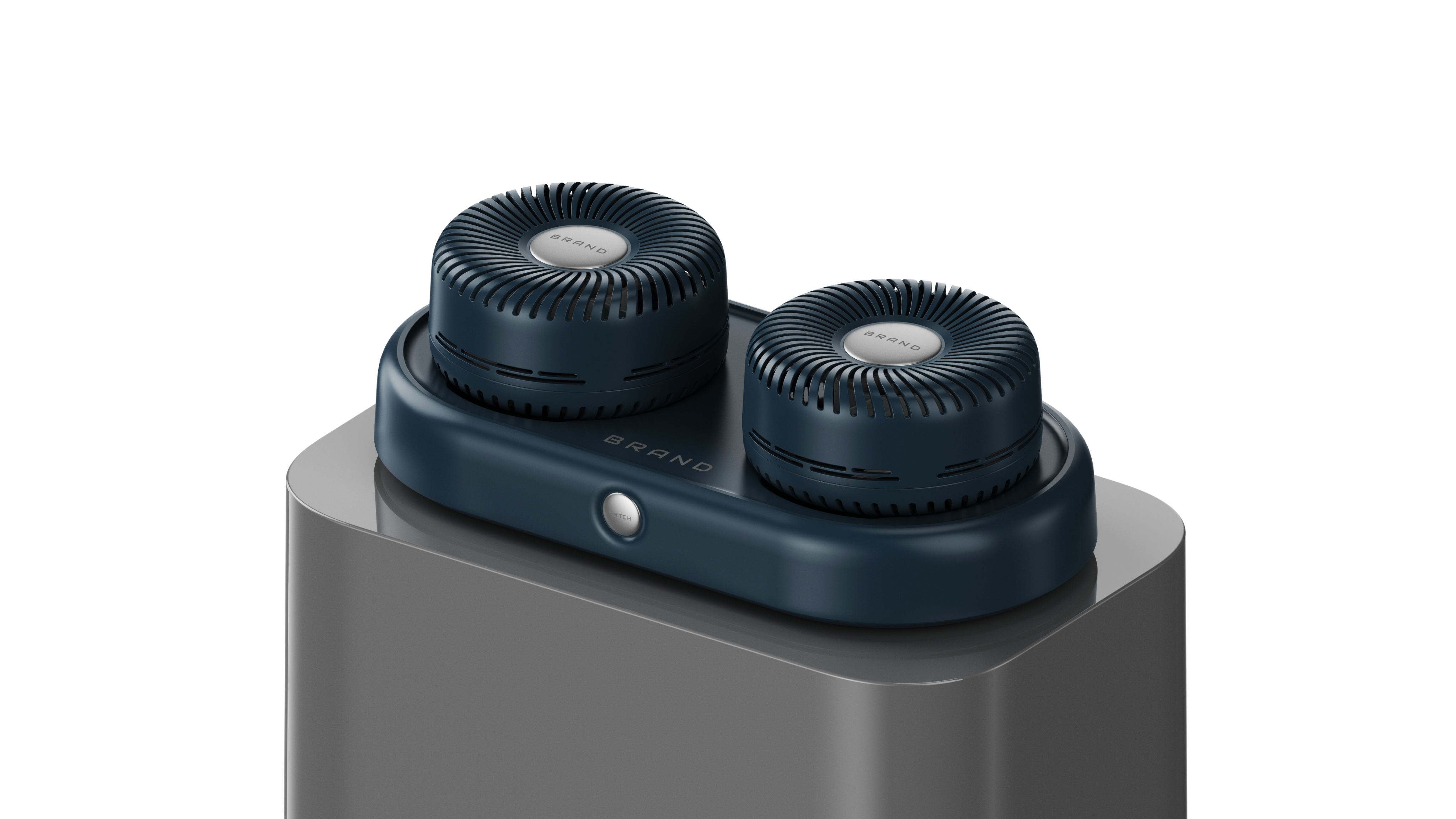

Color system planning around the mainstream color system of automotive interiors:▫Minimal black and white scheme: light white fuselage with dark gray limelight, suitable for white, light gray, beige simple interior;▫Deep sea purplish blue scheme: low saturation matte dark blue, with metal silver decorative cover, suitable for new energy and dark sports cockpit; Optional purple atmosphere lamp embellishment version, low light key light adapts to the night atmosphere in the car, giving consideration to both functionality and atmosphere. The shell is made of fine matte spraying technology, which is anti-fingerprint, high temperature resistant and not easy to leave traces of sun exposure, and meets the weather resistance requirements of vehicle-mounted products.

Ergonomics and Mass-Production Implementation Design
The left and right fans of the double-head independent global air supply system can be adjusted individually and at multiple angles to realize the front double-person partitioned air supply, and solve the pain points of the blowing competition and the dead angle of the air supply in the car; the universal shaft is adjusted by damping, and it is not easy to automatically offset the wind direction on bumpy roads.

The safety man-machine of the vehicle scene considers the round corner treatment of the whole machine to prevent sharp protrusions. Compact body size, does not block the driving line of sight, does not interfere with the shift operation; The anti-skid structure of the base is reserved for the scene, which is suitable for the plane placement in the car.

Complete mass production pre-control Shunde industrial design output original appearance ID, dual-version modeling scheme, joint optimization of rotating shaft structure appearance, shell draft evaluation, assembly clearance specification, full set of CMF color plates and commercial rendering; Fully considering the high temperature resistance requirements of on-board plastic, the difficulty of mold forming, and balancing the appearance texture and production cost, the scheme can directly connect the structure and the mold team to the ground for mass production.

A Design Thinking
On-board electrical appliances should not only be functional accessories, but also an extension of the cockpit interior. We abandon the cheap auto parts style and use the balanced double circle geometric language to shape the high-level simple temperament. The independent circulation of double air ducts is realized in the limited fuselage, so that practicality and cockpit aesthetics can be unified, and travel ventilation products suitable for aesthetic upgrading of contemporary car owners are created.
