Product Design of Smart Cat Villa

2025-04-23 Pet Supplies 3899 24 34

予仁工业设计

China · Tools&Equipment

2025-04-23 Pet Supplies 3899 24 34

Product Creative Design Product Appearance Design Product Structure Stacked Structure Innovative Design Prototype Assembly and Functional Test Results Transformation
@ Yuren Enquiry Phone -18736030158
@ Yuren Industrial Design Official Website-https://www.yurendesign.com/
@ Yuren Industrial Design-Product Innovation Design Supply Chain Service Provider
@ Yuren Design Service-Product Design | Appearance Design | Structural Design | Electronic Development | Hand Model | Manufacturing

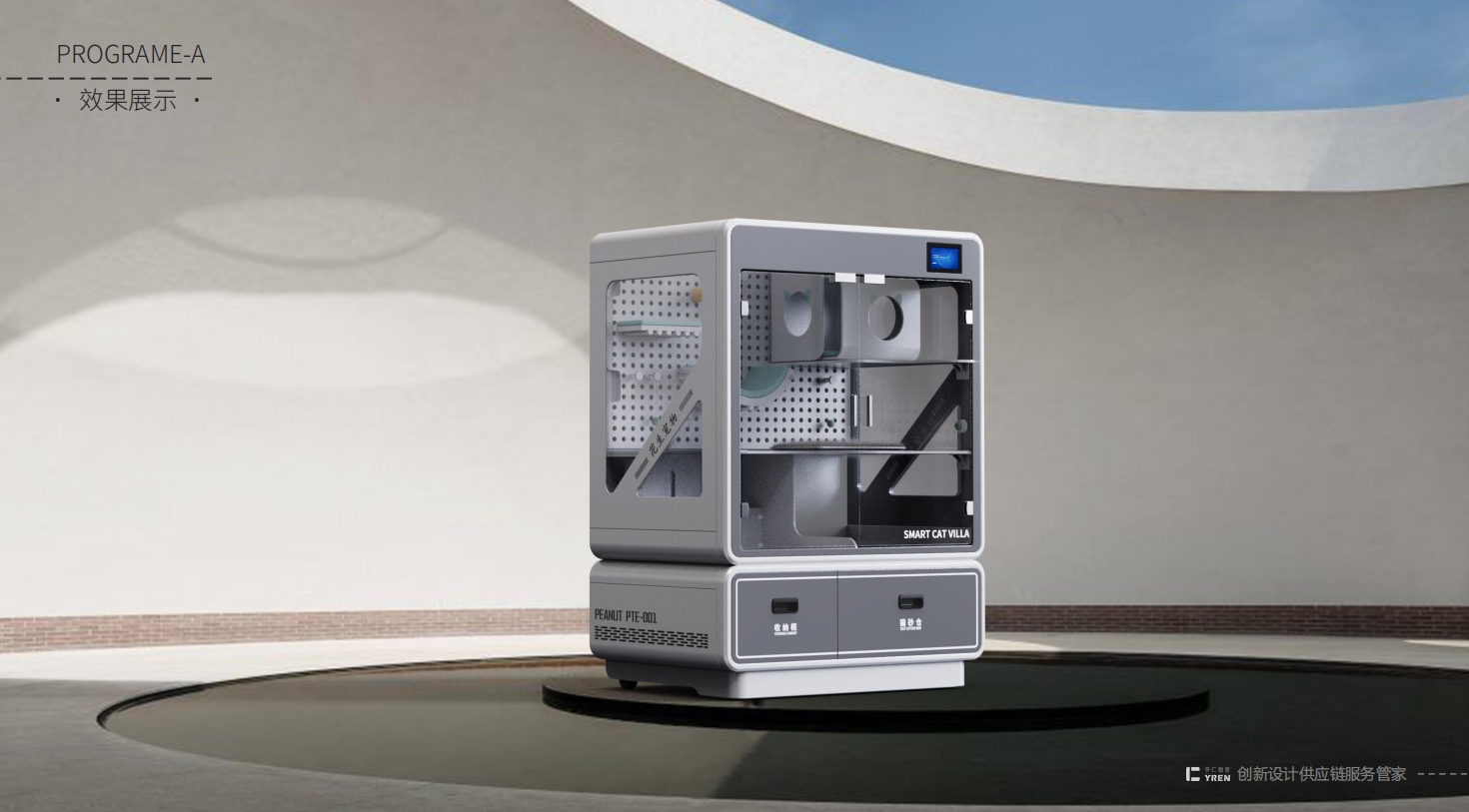

Smart Cat Villa: The main purpose is to create a luxurious smart cat room, which can satisfy users who are not at home and can better take care of the cat, and can better observe the various states of the baby cat.
There is a 360 ° Internet of Things camera without dead angle inside, capable of remote monitoring and dialogue;
Networking air conditioning, in the mobile phone side can easily ensure the cat villa space temperature and humidity;

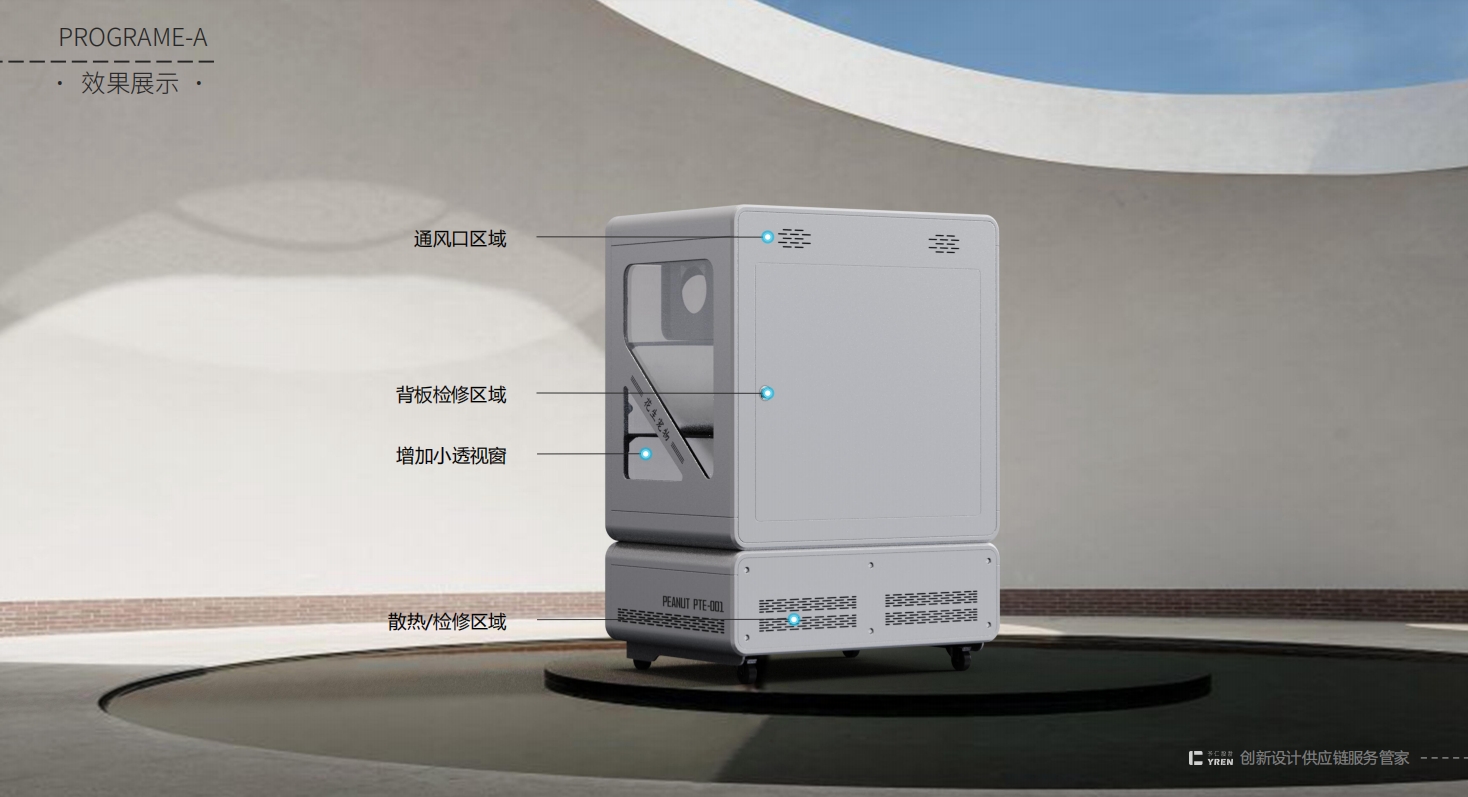

Fresh air system to ensure that the air in the villa space is always fresh;
The automatic feeder and water feeder can automatically feed according to a preset program;
Automatic litter box, a good solution to the problem after a meal;

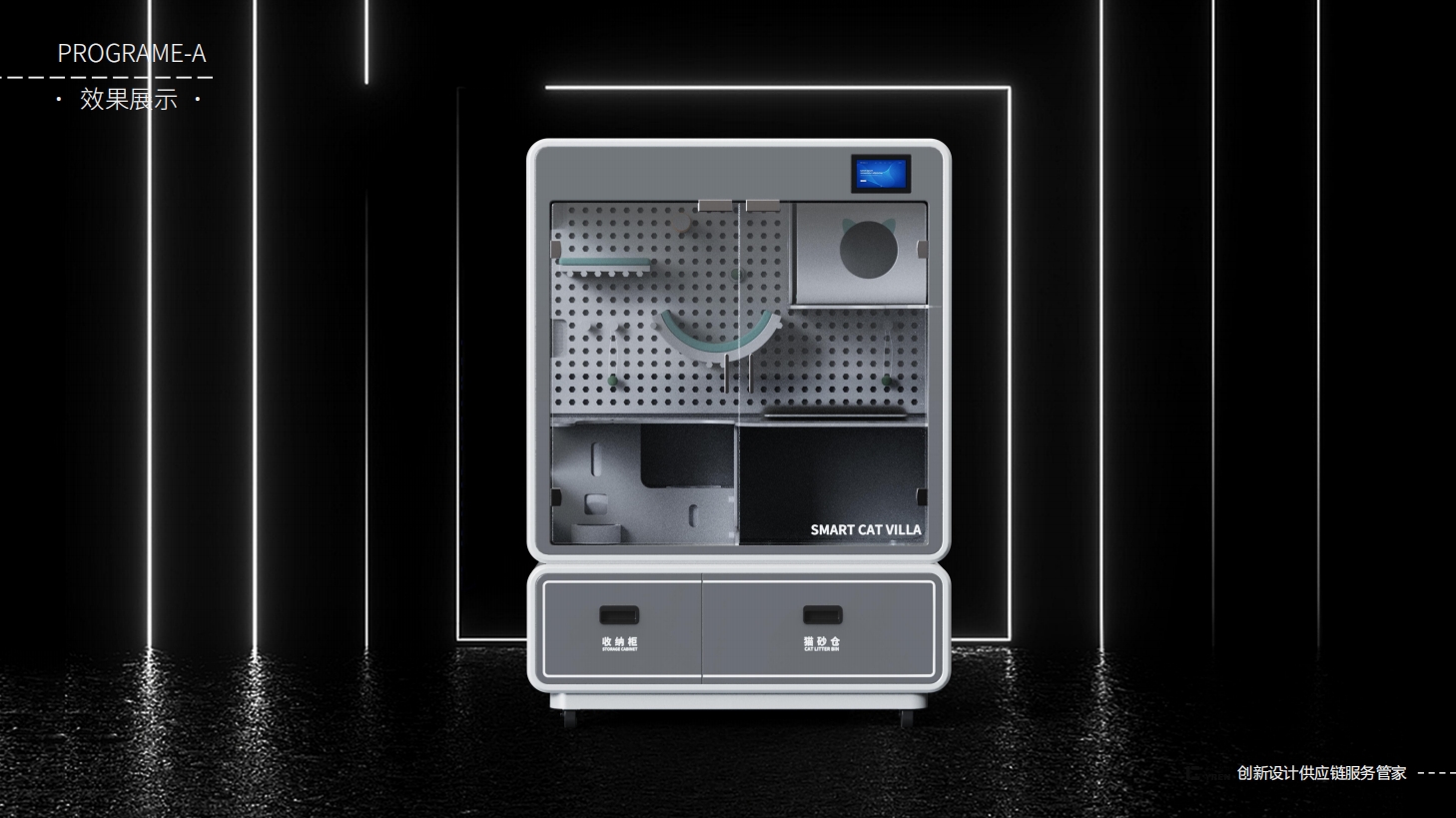

Cat climbing frame & cat nest, entertainment and rest are all available.

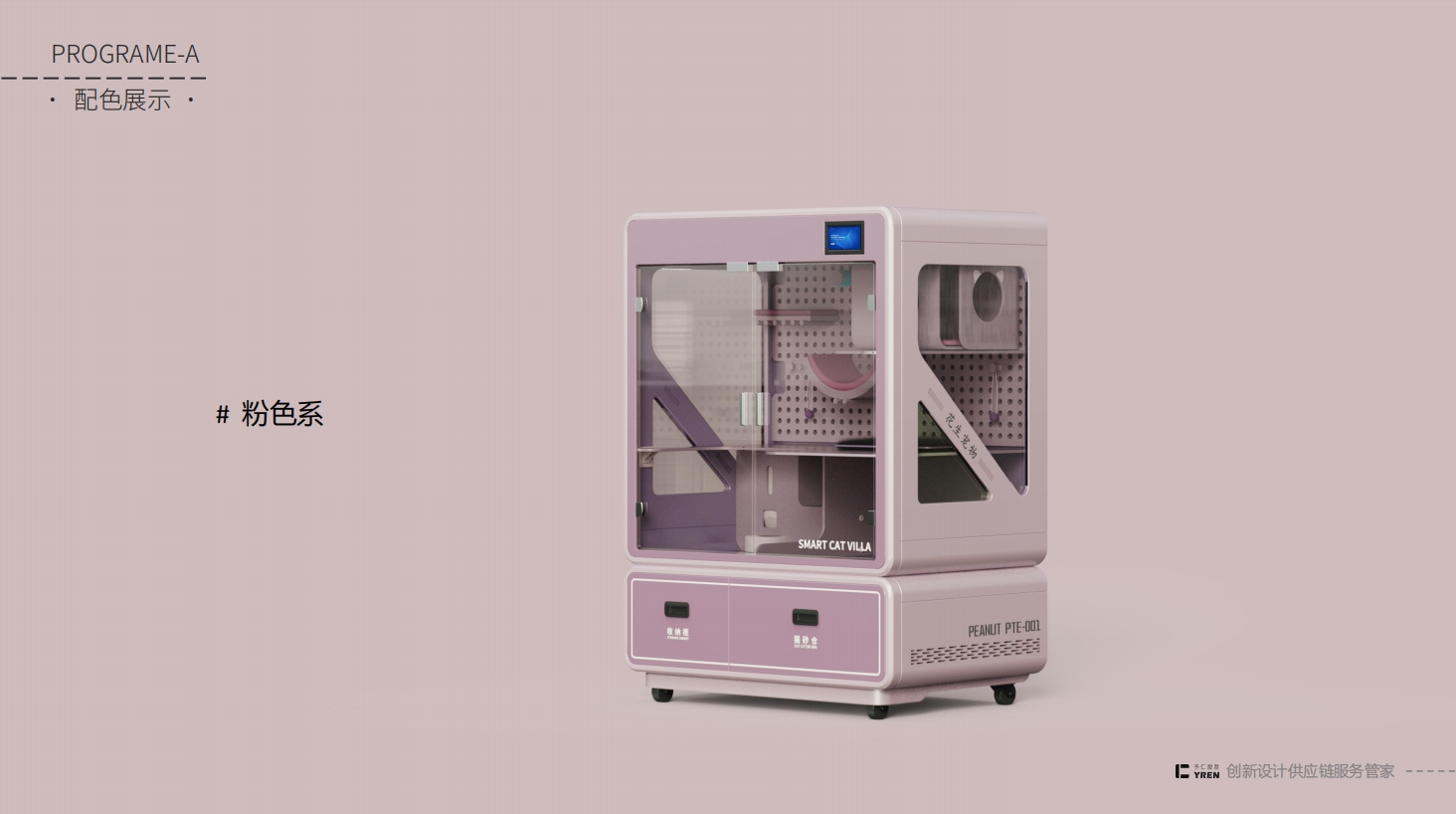

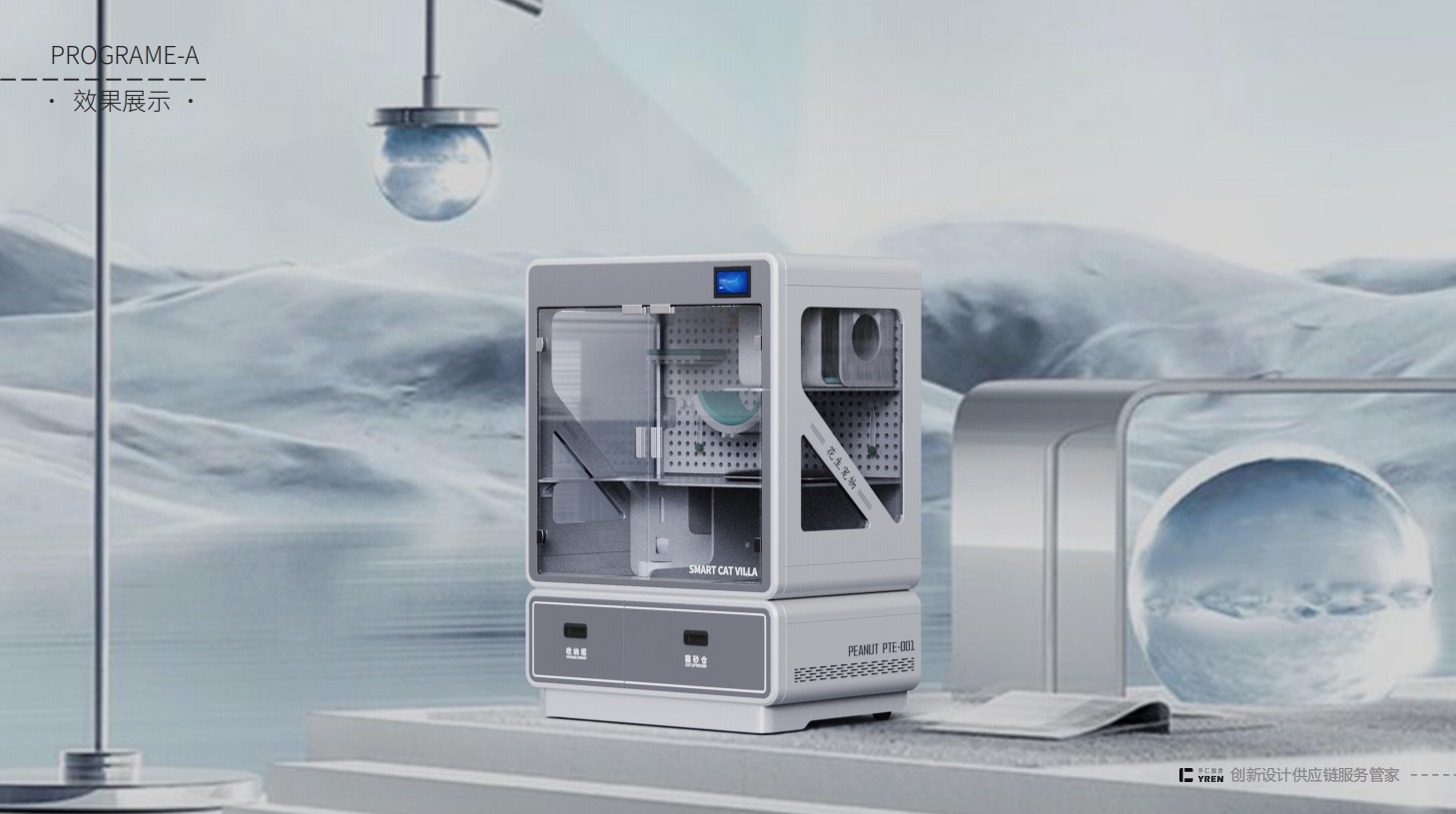

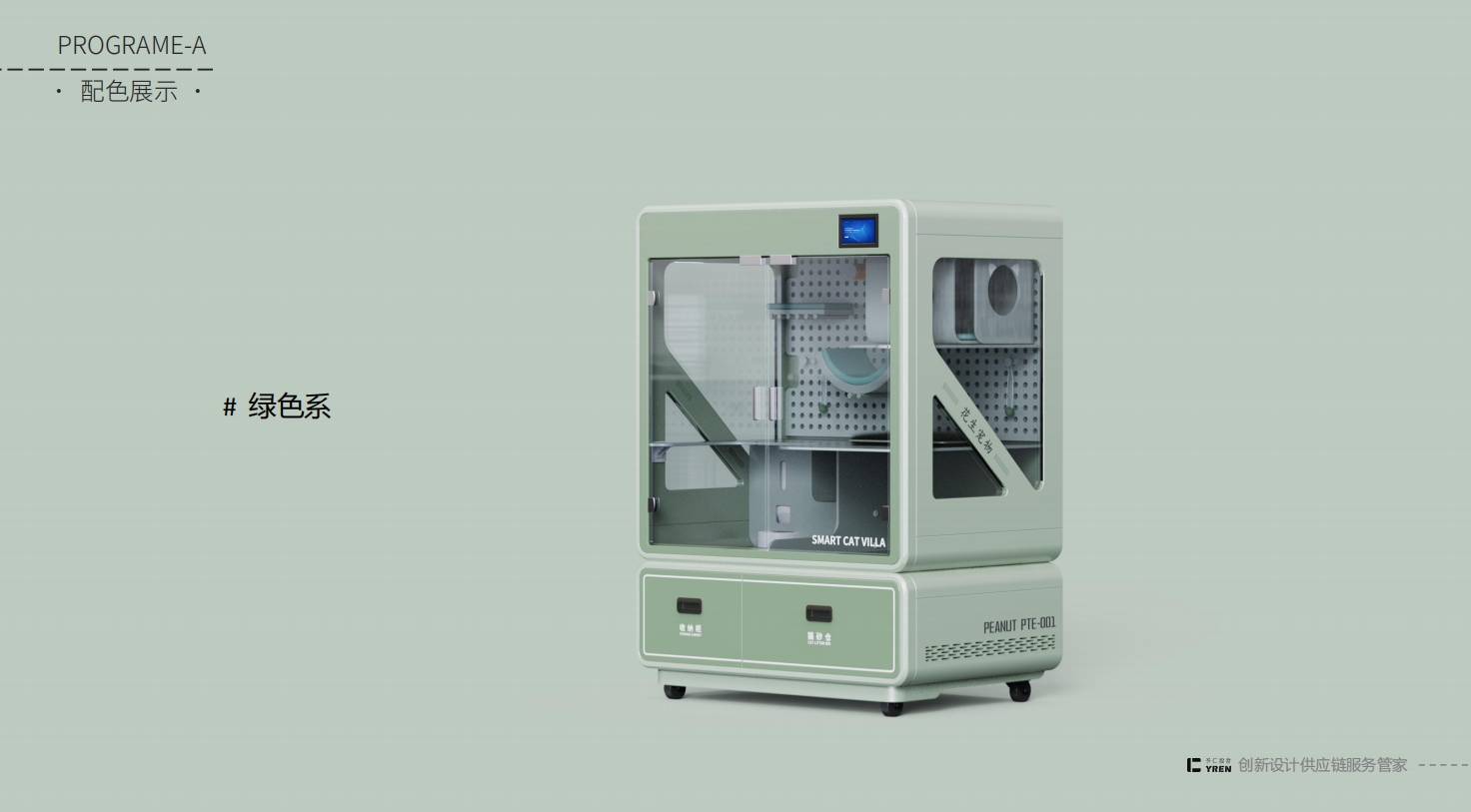

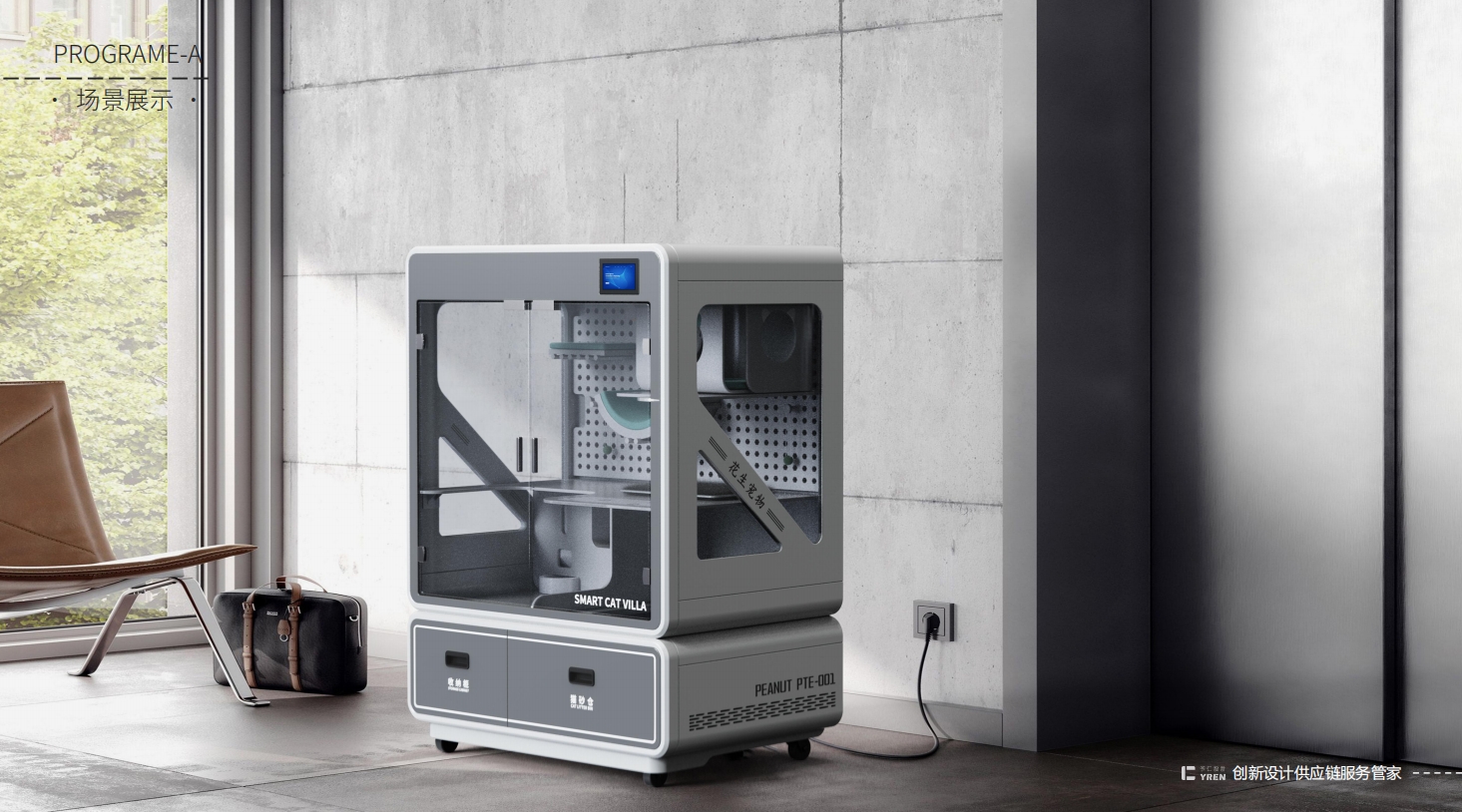

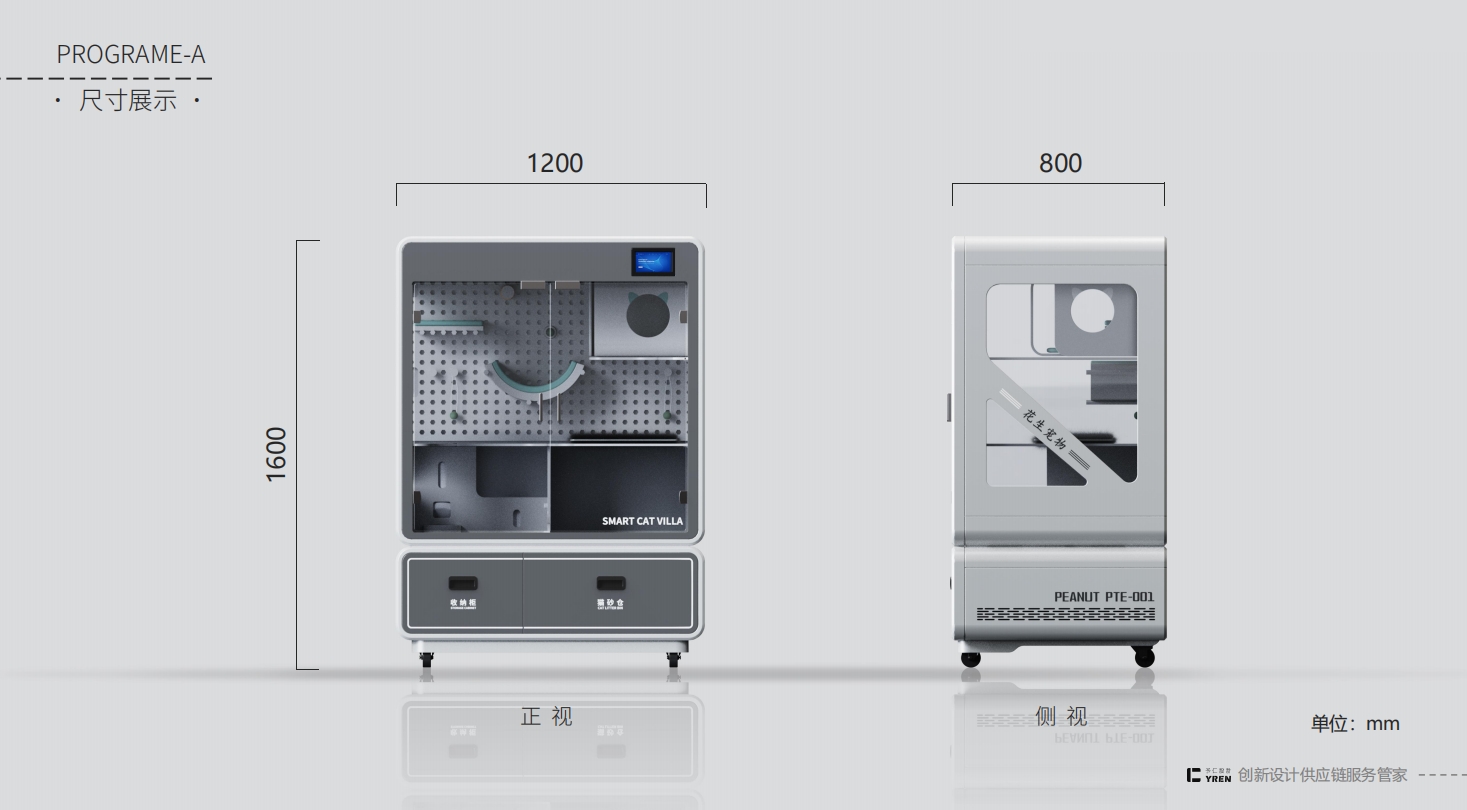

Since the size is defined as 1600*1200*800mm and there are weighing requirements inside, sheet metal is designed inside as the weighing frame during structural design, and abs board is used for plastic suction forming outside. Surface process gray and white particle paint, highlighting the characteristics of the product's strong and heavy. The design style is simple and suitable for various home environments, and also for better floor production.

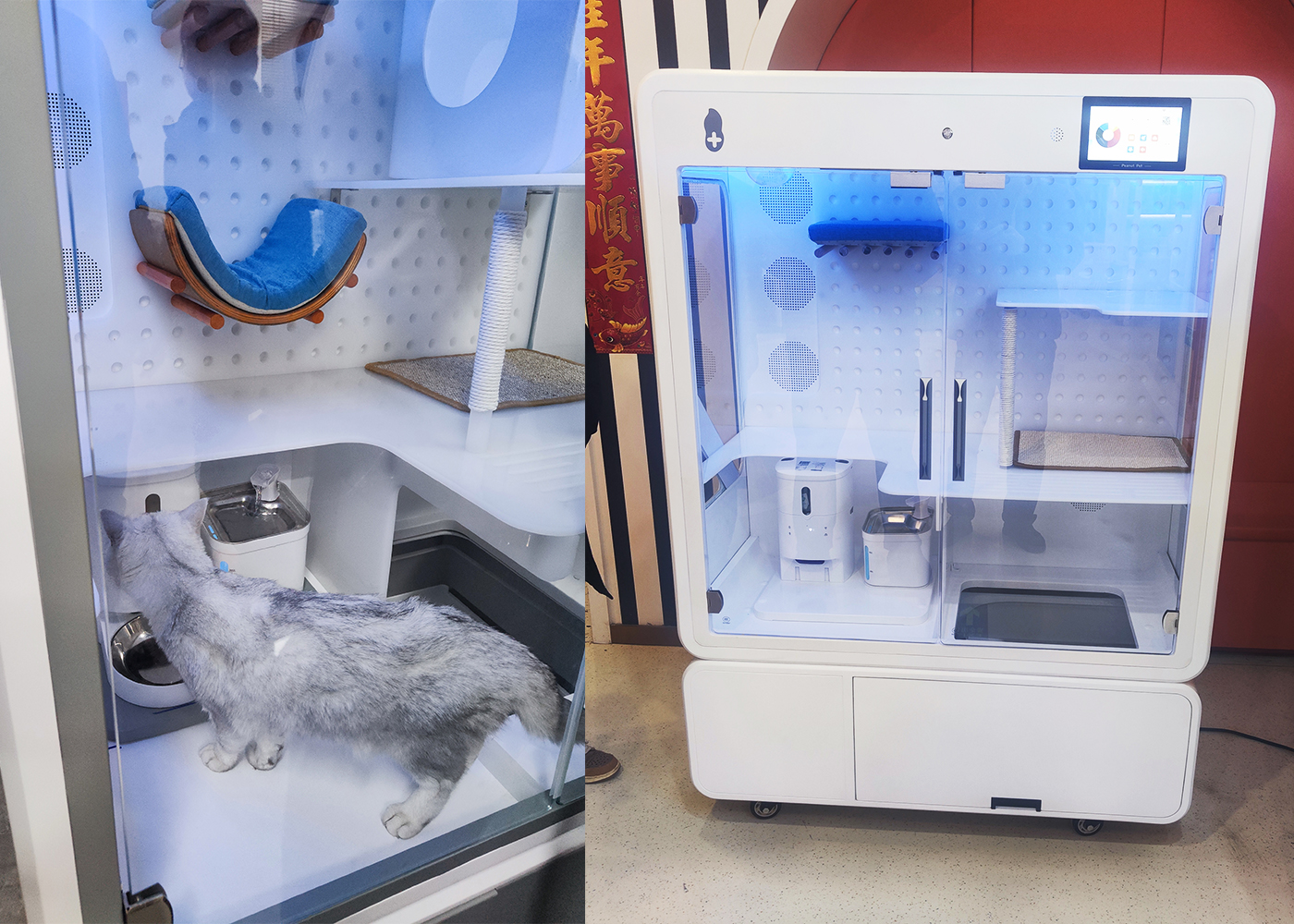

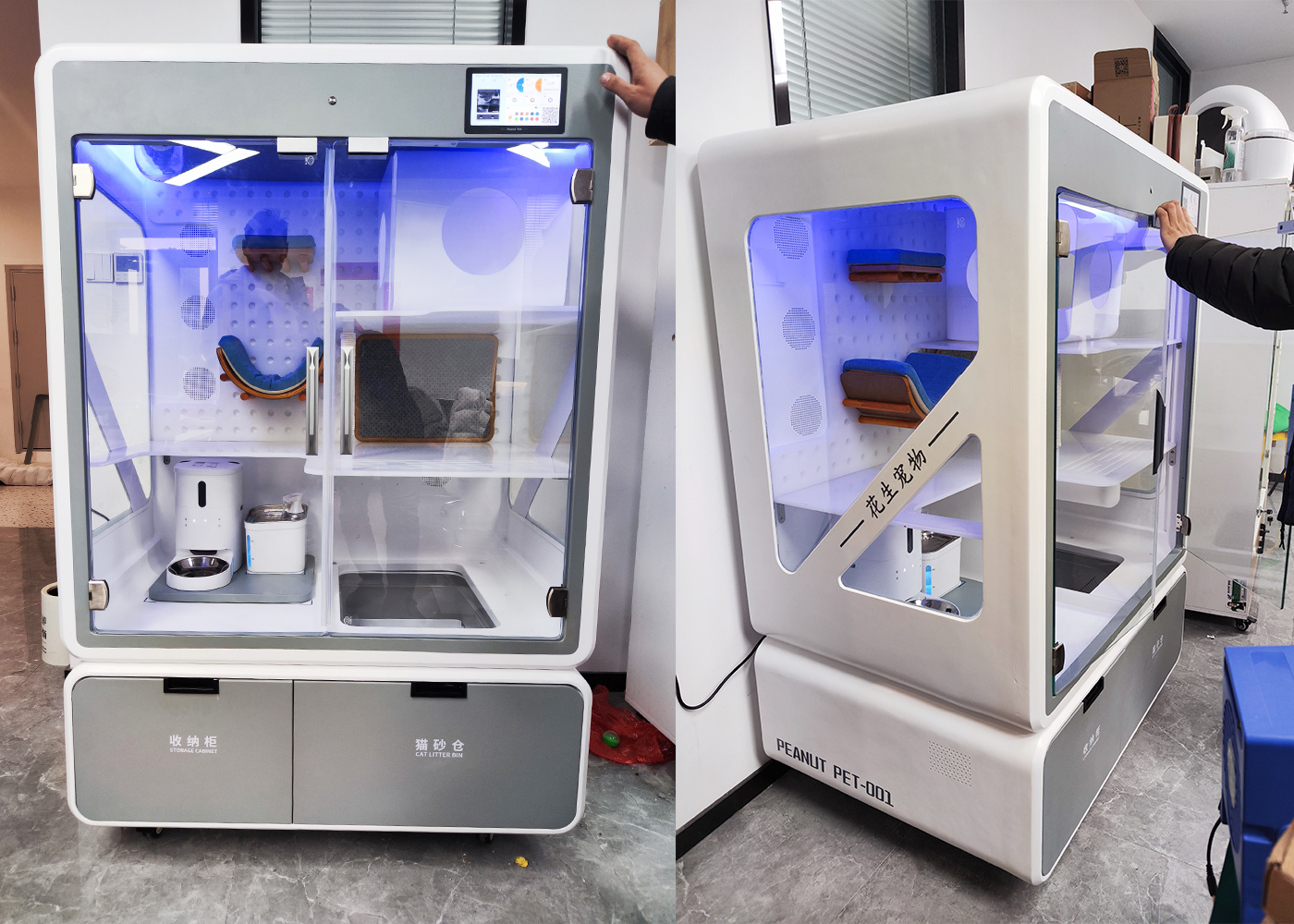

(Photo of prototype attached)

Cat Room，Cat nest，Cat Villa，Smart Cat Villa，Blister products，Pet Supplies & Pet，Sheet metal products，

34 34

Lx 2025-09-19

At first glance, it feels too much like equipment, which is not to say that it must not work. We have done pet drying boxes before, and there are also options for industrial style. Cost is the first priority. Anyway, it is used for work in pet shops. However, you are a bit extravagant in pet shops, and it is estimated that only shops with higher gear will be willing to give up. Besides some personal opinions on this product, 1. The upper edge of the side observation window is not flush with the edge of the front door, and the lower part of the front is also a similar problem, which is not aligned with the door line. If it cannot be made as large as the door line, you can consider using a whole board and opening the left and right inside. 2. The door seems to be fixed by the upper magnetic attraction without a lock? Is the material glass? I feel that this kind of usage scene is more secure than the traditional framed one. It is not easy to break after being knocked, and the vision is almost the same. It should be OK to change into acrylic. 3. The left and right observation windows should not be too regular, with cartoon points and lower heat dissipation holes. The form of pattern net can be considered to reduce the sense of equipment. 4. Handler can try light color, black is very eye-catching.

忘了这般 2025-05-15

The appearance style is too strong, the whole is a sheet metal cabinet, it feels difficult to attract women.

予仁工业设计Owner 2025-05-16

Well, in fact, there is a more compatible scheme, but considering the landing cost and implementability, we still chose a relatively conservative and easy-to-implement scheme

Write a comment

哇-哈哈 2025-05-06

Will the whole body shake a little? If the sheet metal is replaced with plastic material inside, the cat may shake some timid cats when jumping up and down. If the sheet metal cat jumps up and down, some cats will also be afraid. These small details should have a headache when designing.

予仁工业设计Owner 2025-05-06

Because the skeleton is made of metal, the stability is acceptable, the middle layer board and the back hole board are made of environmentally friendly pp board, which is non-toxic and odorless, and has good toughness and durability, because the materials used are very thick and the cost is also very large. Optimization space

PJID 2025-05-05

When will there be a cow and horse villa

Let's think about what to eat for lunch

PJID 2025-05-06

I eat pig's feet in Guangdong

安风 2025-05-01

Don't look at the title thought it was the host

予仁工业设计Owner 2025-05-04

😂😂

梅微斯 2025-04-29

this one is quite expensive

予仁工业设计Owner 2025-04-29

Guess

淘美 2025-05-06

Between 3500 and 5000. Provided that there is no peer.

It is impossible to be so cheap. Look at the detailed introduction of blister inside and outside. If the cost of opening the steel mold is very high and the sheet metal of the laminate is added, the cost is not low (the amount of normal cat villas will not be particularly large, which will make the cost difficult to spread). Add glass, automatic cat litter box and automatic feeding. The cost will not be low.

it is true that the cost of small batch production is high, and the internal function configuration is also very complete, and the cost will be controlled by simple allocation in various aspects later.

哇-哈哈 2025-05-07

At the beginning of the design, the parts were as common as possible, and the mold opening was reduced, which has already saved some costs. The mold money may be shared lower for a period of time in the later period. The glass + plastic cost base has little room for change. It is suggested that the electric feeder should be optional or sold separately. The litter box is equipped with manual and automatic as standard. These two are the biggest cost-saving places in the later period, and there are not many other places to be saved, at most, the top layer of small cushion is removed, and the cat scratching cushion and the fur climbing column can be selected, but only the cat scratching cushion can be removed. The cat climbing column cannot be removed as a supporting structure.

淘美 2025-05-07

It's too expensive to sell.
