Today, I would like to talk to you about a story about "ID drawing is cool for a while and mass production disaster field is realized.

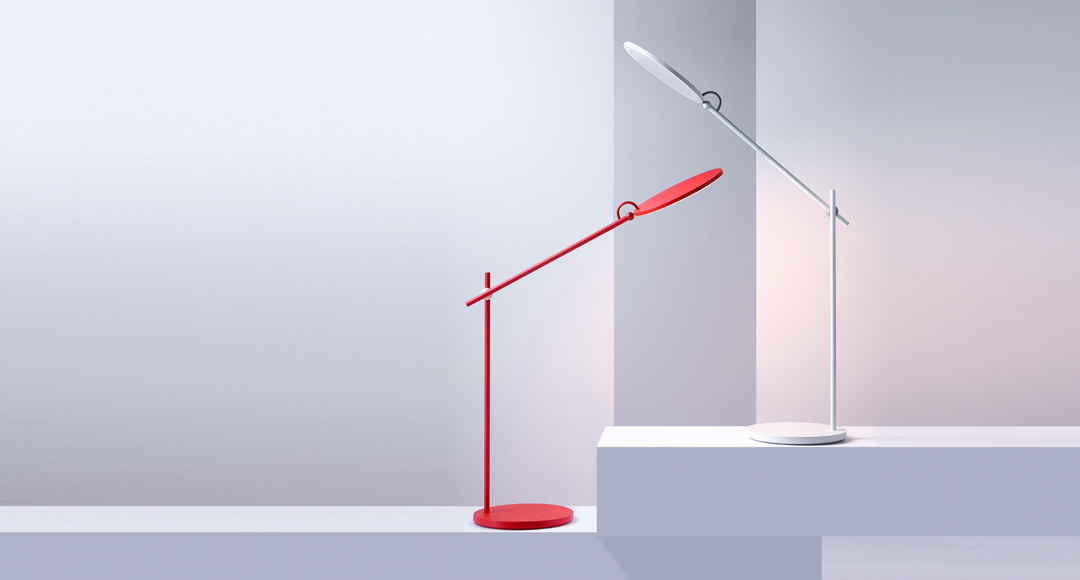

Glory Pro-Selection nimova Intelligent Eye Protection Desk Lamp PRO is a AA-level intelligent eye protection desk lamp with great design sense. The product is jointly completed by nimova and Huawei's research and development team. The product is composed of basic elements of points, lines and surfaces. The overall appearance is completed in one go without any redundant elements. Between the creative decorative desk lamp and the professional eye-protecting desk lamp, the glory pro-selection of nimova intelligent eye-protecting desk lamp PRO has found a perfect balance.


As an eye-protecting desk lamp, it is very qualified to choose nimova intelligent eye-protecting desk lamp PRO in honor: national AA illuminance, German TüV low blue light certification, national CQC certification, automatic balance dimming, multi-scene mode... reading, student homework completely HOLD;

As a tide object that positions the top and matches the youth, we want to restore the most natural appearance of a table lamp: there is no such complicated and huge rotating shaft, no decorative shell of racking brains transition surface, and no aluminum alloy sandblasting anode lamp pole with cheap texture and easy light gathering.

What is the most natural appearance? We drew a sketch on the paper, well, two big round faces, two thin light poles, there should be a joint at the connection place, draw two circles, the rotating shaft is too thin to walk the line, well, then fly the line out. All right, ID done!

Just kidding, the ID has just begun. After several rounds of confirmation of the appearance of the hand board, the industrial design master set the adjustment: thin, thinnest, thinnest, thinnest. From this, the disaster really began: the thickness of the lamp panel was adjusted from 15mm to 10mm in the proposal. In order to be the thinnest, the mobile phone was directly challenged and adjusted to the thickness of the mobile phone (7.9mm). The diameter of the lamp pole was also adjusted from 15mm to the thin finger (9.9mm). The diameter of the large rotating shaft was adjusted to 22mm! Update the drawings to the innovative research and development of Lao Wang next door.

I think, if it is in any other product company, such a drawing is thrown over, it will probably be like this:

The light pole design is so thin, have you considered the strength of the material? Have you considered the line? Have you considered the feasibility of the structure and production process?

The lamp panel design is so thin, have you considered heat dissipation? Have you considered the assembly plan? Have you considered the production efficiency?

The design of the rotating shaft is so small, have you ever seen such a small table lamp rotating shaft? Have you considered the service life? Have you considered the fixing method?

Soul nine asked, unable to parry, can only silently go back to change the drawings, thicker, thicker, bigger, well, another standard was born.

However, fortunately, under the ravages of the company ID for more than ten years, our comrade Lao Wang has already developed an indestructible body. soldiers have come to shield the water from the earth. they have both the bottom line and can challenge the limit: no one has ever played with a desk lamp like this. it is a bit interesting. try it!
Regarding the process of trying, I think that after nimova has become a leading brand in subdivision, this lamp should be able to be written into a memoir with 300 pages. But today, I will only talk about industrial designers who are "proud" (killing them will not change my appearance!) The ups and downs behind it.

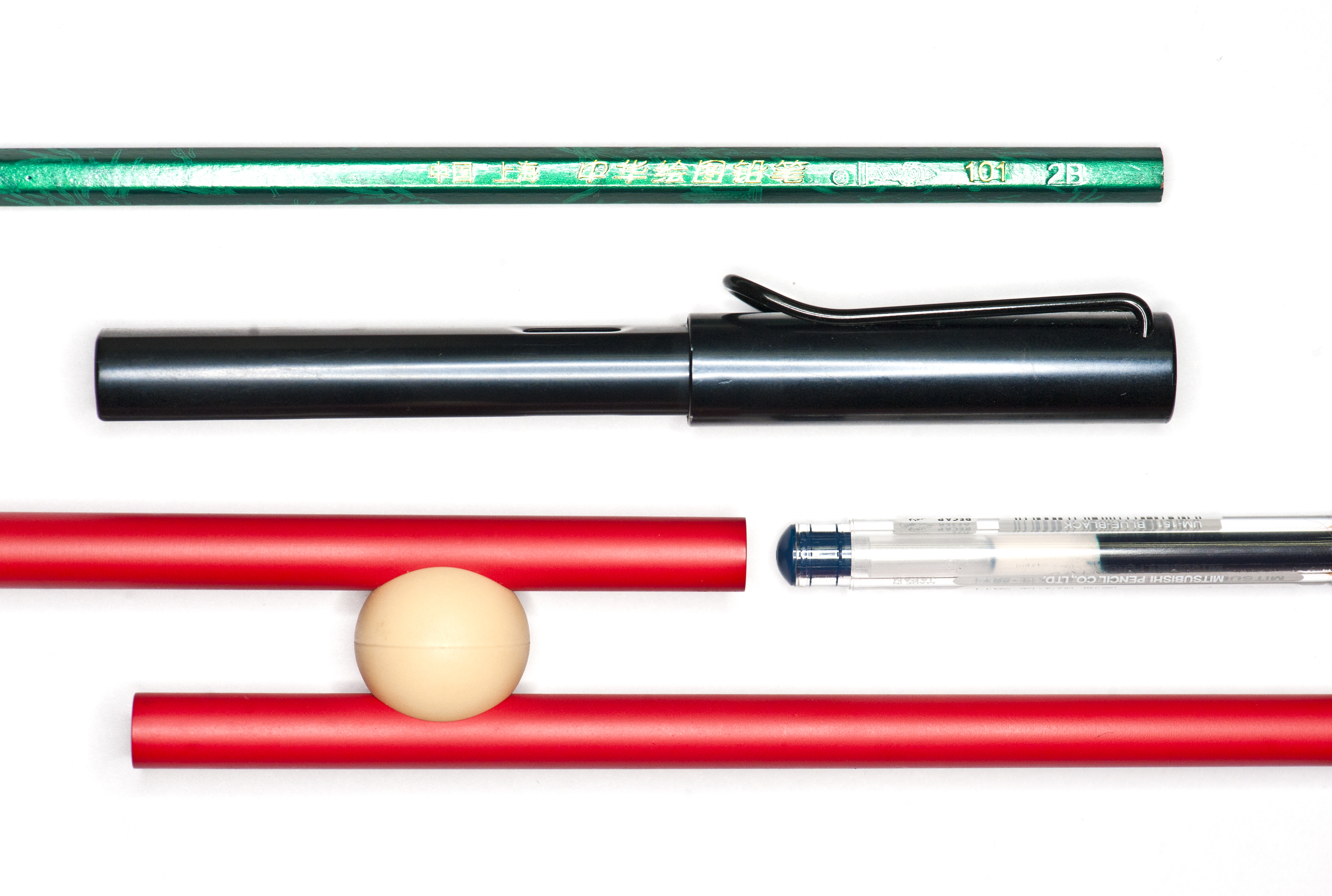

Stick to 9.9
9.9 is the favorite of ID people, which reflects the designer's persistence in moral integrity. Why can't we reach 10? Are you kidding? 0.1 added. Do you know how incongruous the whole look is? The aesthetic feeling has been completely destroyed and incongruous! For the thinnest pole in the history of this lamp, material engineers and structural engineers fell into endless darkness.

What material is used to realize the 9.9mm lamp pole? There is no doubt that the 6-series aluminum alloy profile with the best comprehensive performance of machining and surface treatment is the first choice. The mold is cast down. Once the first round of test mold products are assembled, the aluminum alloy is overwhelmed and the waist is pressed.

The cantilever of the lamp pole is too long, and the 9.9mm vertical lamp pole is seriously deformed. When adjusting the angle of the lamp panel, the shaking is serious, and the desk lamp cannot stand still within 2 seconds. The 6th series is not good, but try the 7th series. The results of the second round of installation have not improved at all, and everyone has fallen into silence.

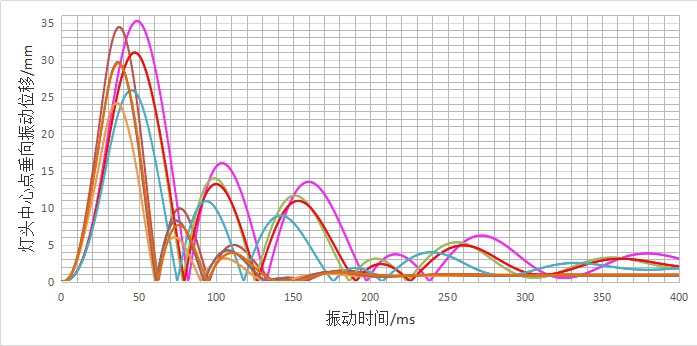

9.9 can't do it, how much can it be? I asked my colleagues in the automobile division to analyze through CAE, and we got a trend analysis. To solve the problem of deformation and shaking, either the lamp plate will lose tens of grams, or the aluminum lamp pole will be thickened to 11.6mm.

Lose weight, a gram is hard to reduce. The lamp panel has achieved the extremely ultra-thin 7.9. In order to achieve this thickness, the "two-color injection molding" of the lower capital has been used. The plastic cover plate has reached 1.2mm. The lamp bead and the light guide plate are already the thinnest in order to achieve the national AA grade. The direct relationship between the heat dissipation aluminum plate and the temperature rise is even more difficult to move. Lao Wang suggested to make an 11.6mm appearance manual office, and everyone should review it together. A group of people compared the 9.9 with the 11.6 prototype silently speechless, finally ID said, still 9.9 good-looking, hard everyone to think of another way.

Lao Wang is crazy, but the project still has to continue. If the thickness is not discussed, the material will be changed. Aluminum is not good, only steel can be added. Use the idea of making armaments to make lamps (secretly, Lao Wang designed military products)

Steel means that all the aluminum alloy related mold jigs that have been opened are completely invalid, which means that new process suppliers must be redeveloped.

Steel means that the weight doubles and the load of the lamp pole shaft doubles. It means that the cost of materials has risen and the cost of processing has soared!

However, the steel can successfully complete the 9.9mm dead line, which can perfectly solve the problem of shaking and deformation of the vertical rod. In front of us is the eternal PK of shape and cost, a battle without a winner.

On the premise that the material cost cannot be changed, the processing efficiency is improved, and the additional cost increase caused by the change of material and process is reduced as much as possible.

The process is very complicated, because the change of materials caused the overall project to be delayed by more than two months than expected, and almost failed to catch up with the most important press conference of customers in the first half of the year. The support and affirmation of partners is the driving force for our persistence.

9.9mm is obviously not the "optimal design solution" for desk lamp poles. The "optimal design solution" should be plastic injection molding first, followed by 6-series aluminum profiles. The diameter and aperture should be large enough to facilitate threading and the strength should be good enough. Surface treatment gives priority to plastic etching without treatment, followed by aluminum sandblasting anode. The optimal design solution should not be the designer's design guide, on the contrary, it is actually the magic spell of engineering, technology and procurement to suppress the designer's crazy ideas. Don't insist on madness occasionally, where do you get the excellent design?


Mini shaft

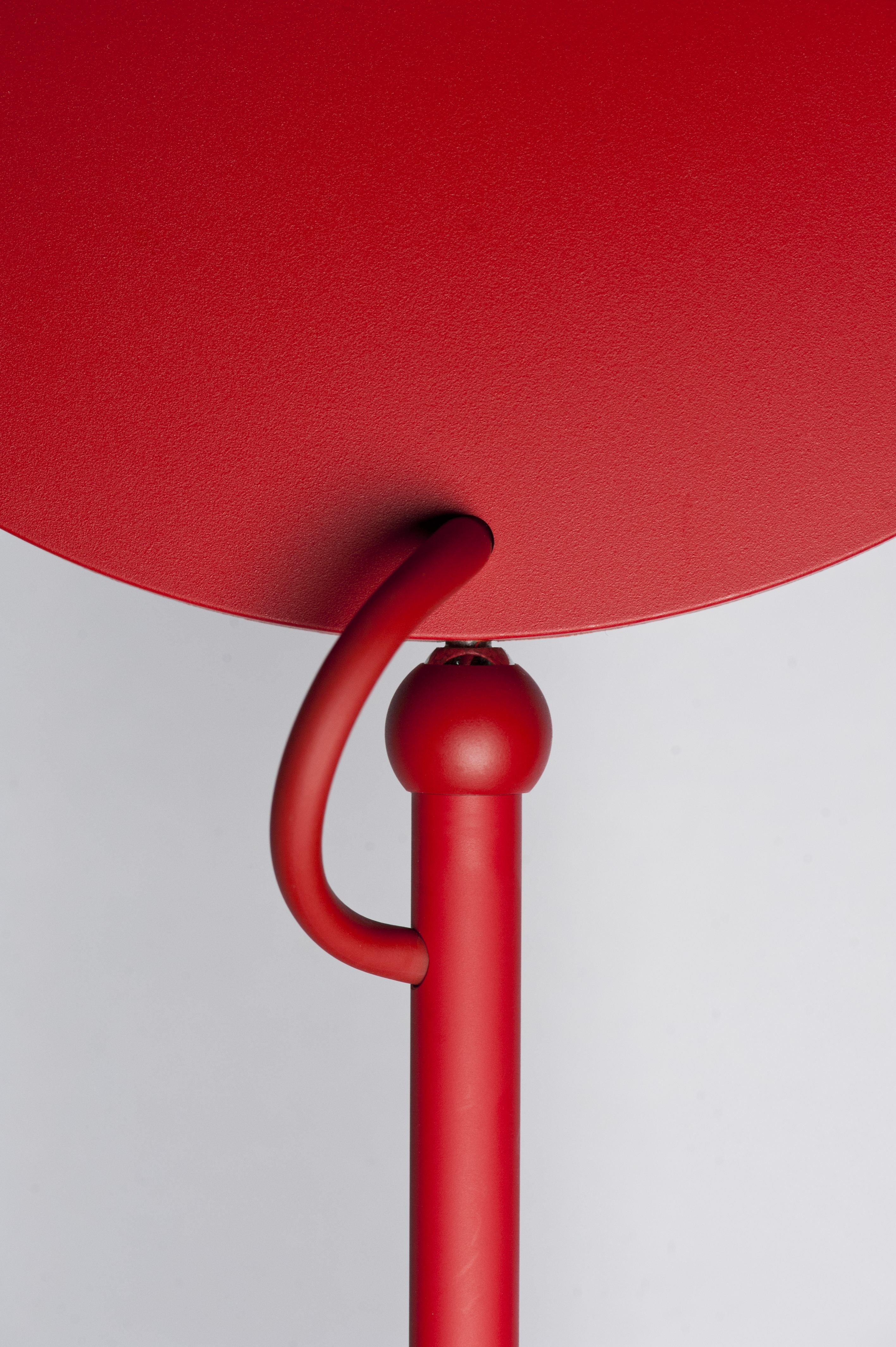

The spherical rotating shaft of peanut size can realize rotation and free adjustment, which is like this.

It looks nothing special, isn't it just a ball shaft? Yes, but the difference is actually quite big: most of the ball shafts are fastened manually, and the diameter is large enough, so the friction is relatively easy to obtain. In a ball shaft with such a small diameter, removing the external adjustment nut, to obtain sufficient life and sufficient friction, it is basically impossible to complete the task, no one has ever played like this!

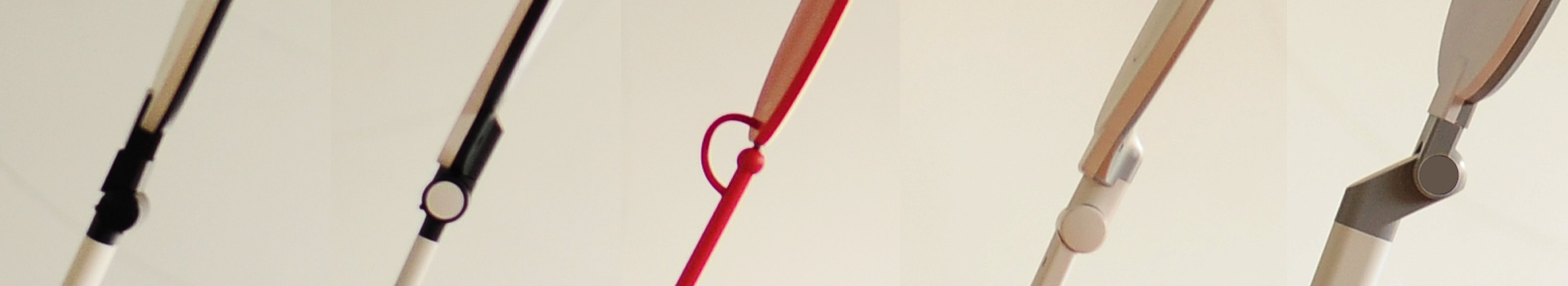

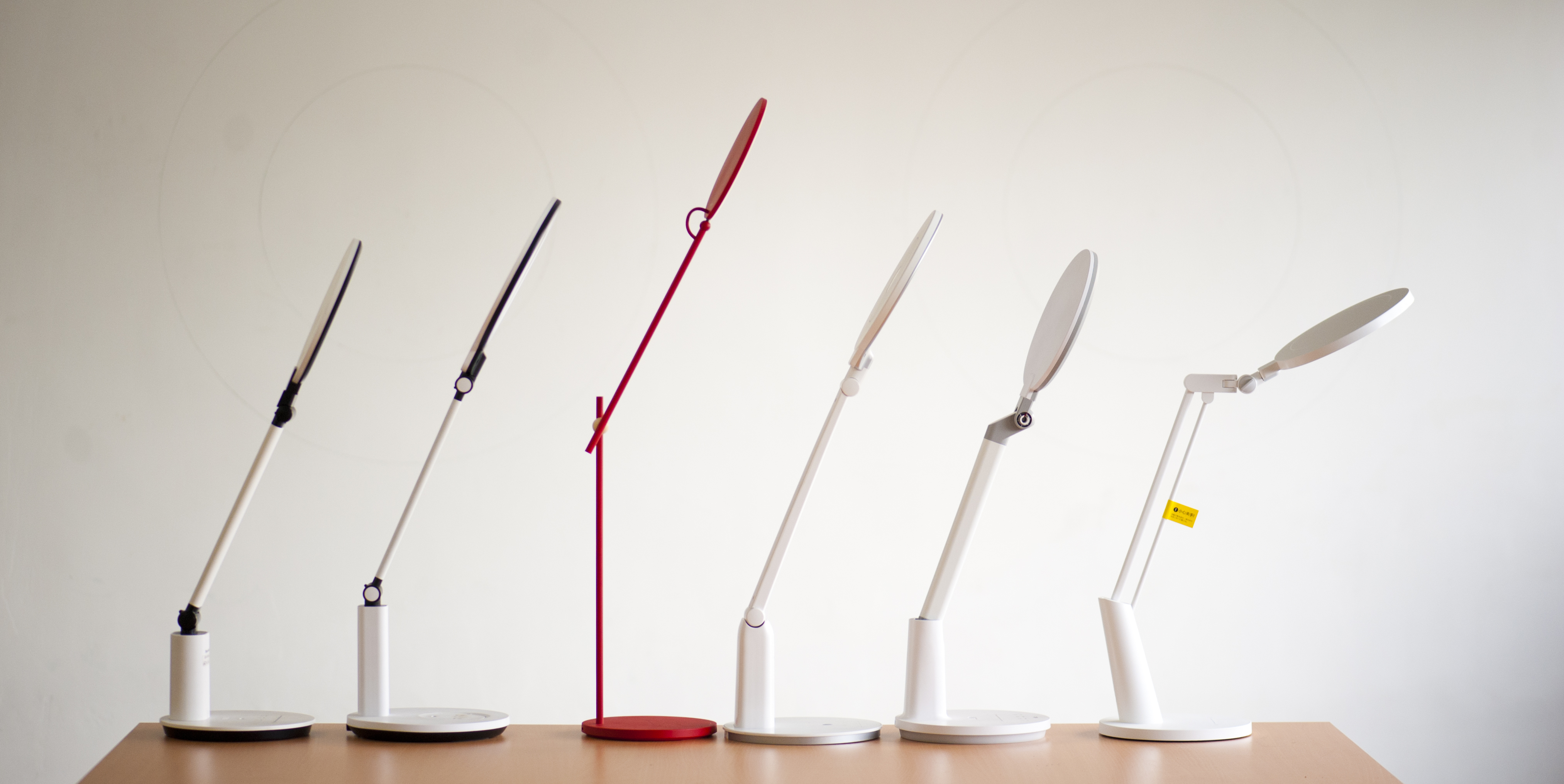

Let's take a group of comparisons. In order to realize the degree of freedom in two directions, the ordinary playing method is very optimal. It is O to make two rotating shafts. The convex place is convex and the convex place is convex. The digging is short. So easy, why bother to make any appearance innovation in the rotating shaft part where reliability is absolutely the first!

And we, the screw shell to do the dojo, through countless experiments to verify, countless times to modify the mold and process, the final perfect;

Simple realization of modeling is not the most difficult, "integrated molding technology" (CNC machining) can almost do everything, the most rare is to ensure the life and adjust the hand feeling.

At the beginning, the service life was basically no more than 50 times. After playing a few times, it was either broken or loose. The structure was repeatedly optimized, the surface treatment process was tried, and the molding process was switched from 50 times to 100 times, to 500 times and to 2000 times.

Conventional rotating shaft, the general life of 2000 times is qualified, 5000 times is a great conscience quality, through our unremitting efforts, the life of mini rotating shaft has exceeded 10000 times! Seemingly weak, but in fact, the heart is strong!


Lighting is not the same

The essence of a lamp is light. It is not a qualified product to let ID be cool.
For 8mm lamp panels, there may be only two choices, OLED or side-emitting LED. OLED is very good and the price is very good. How to play a little trick on the light source and play a little character?

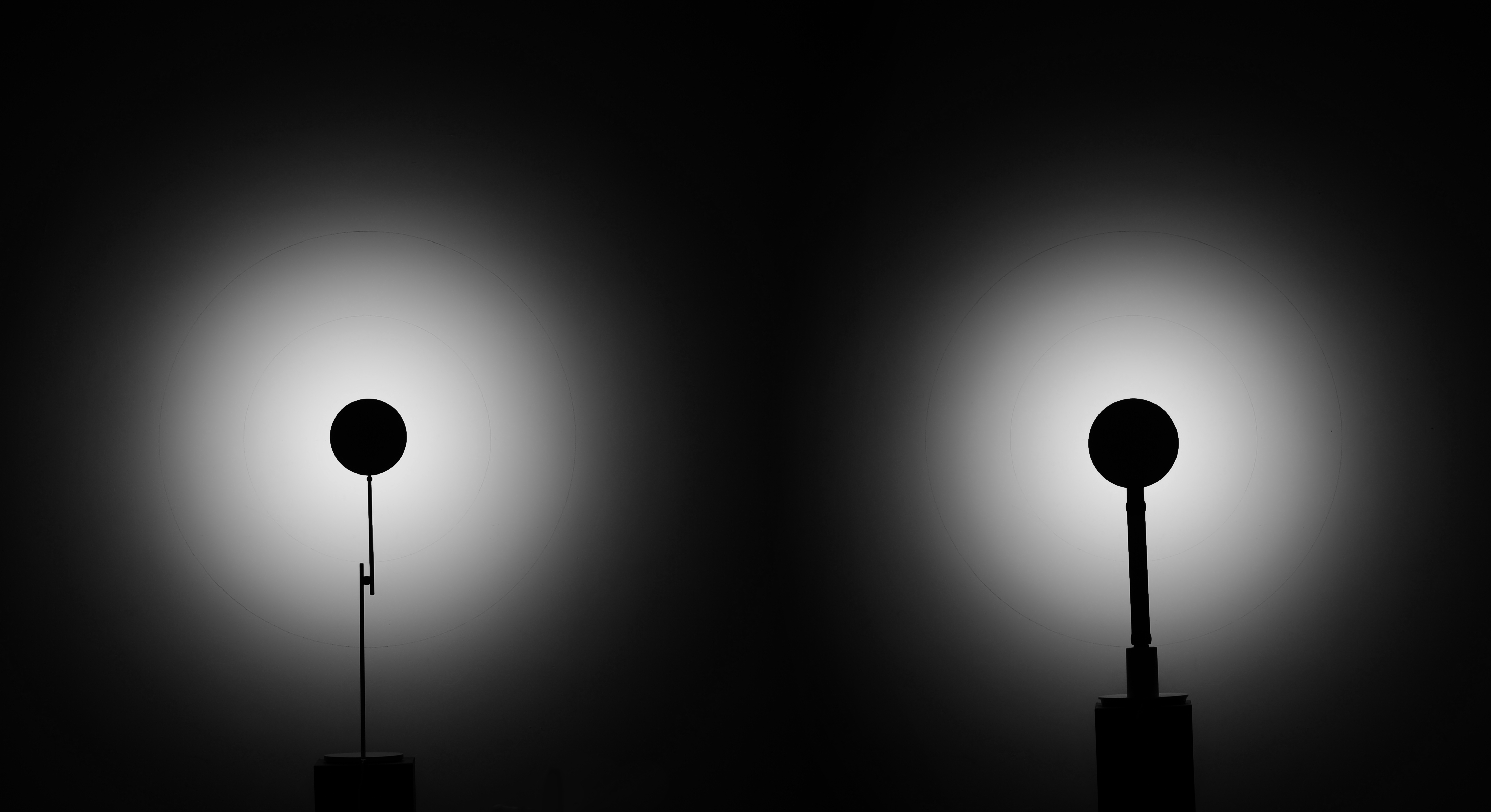

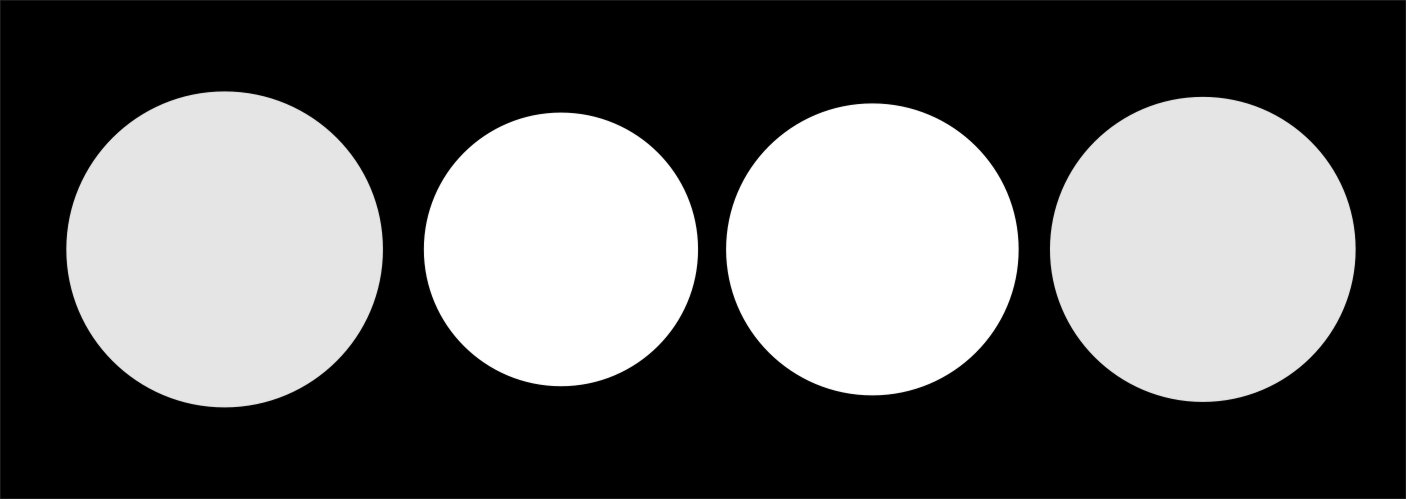

Traditional desk lamps, it is basically impossible to distinguish Zi Chou Yin Mao in the dark. Let's feel the above picture:

The picture is not a real shot. If you have to take a real shot, it will definitely be the same in half an hour. Why don't we save some energy to have a chat.

The cloud elder brother, who has more than ten years of optical design experience, appeared in the mirror. his operation was as fierce as a tiger. when he looked at the effect, the analysis results showed that he could reach the national AA standard. the luminous surface was vaguely shaped and interesting, but it was almost interesting. Several rounds of optical analysis, proofing verification, modification and verification, the final effect is like this:

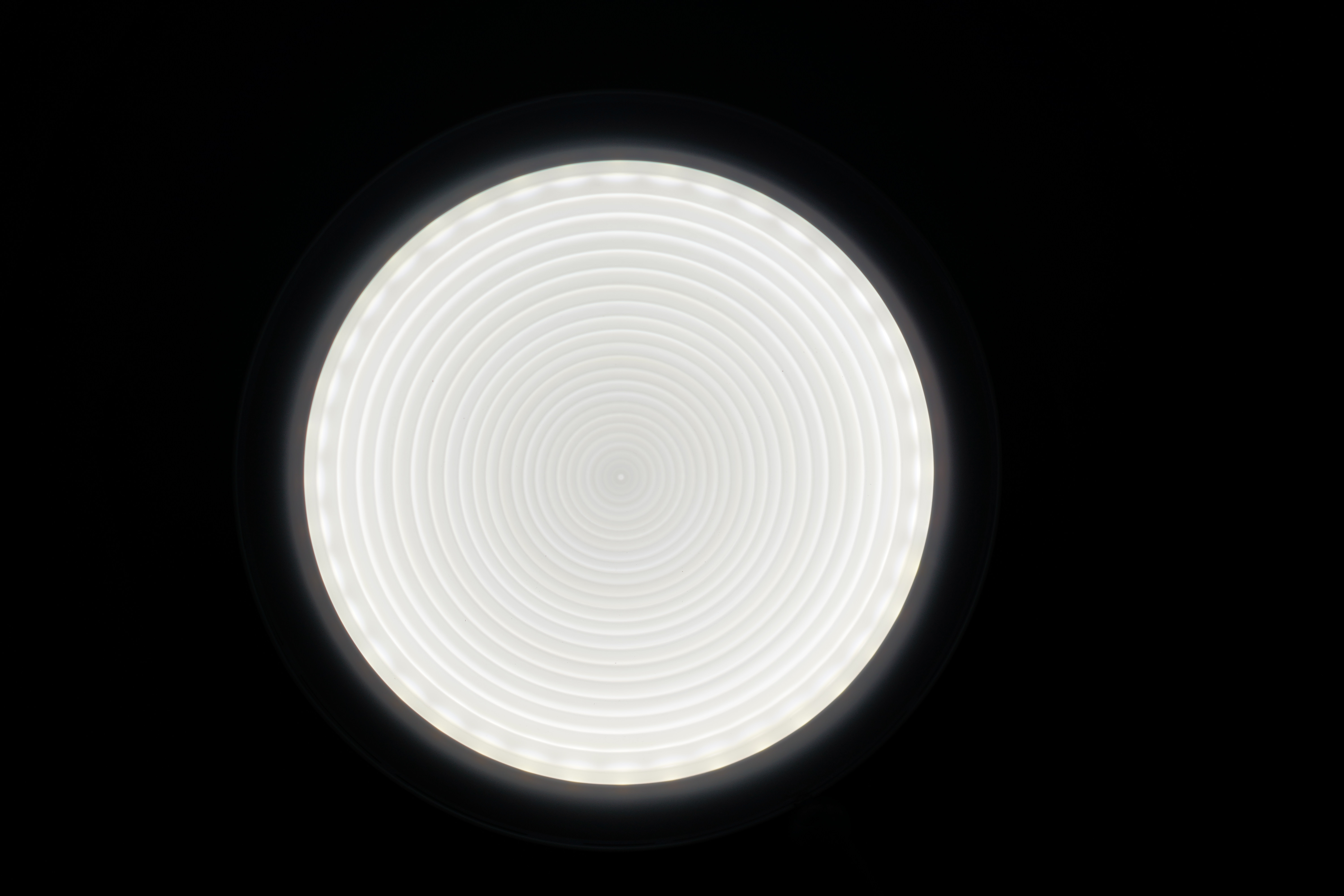

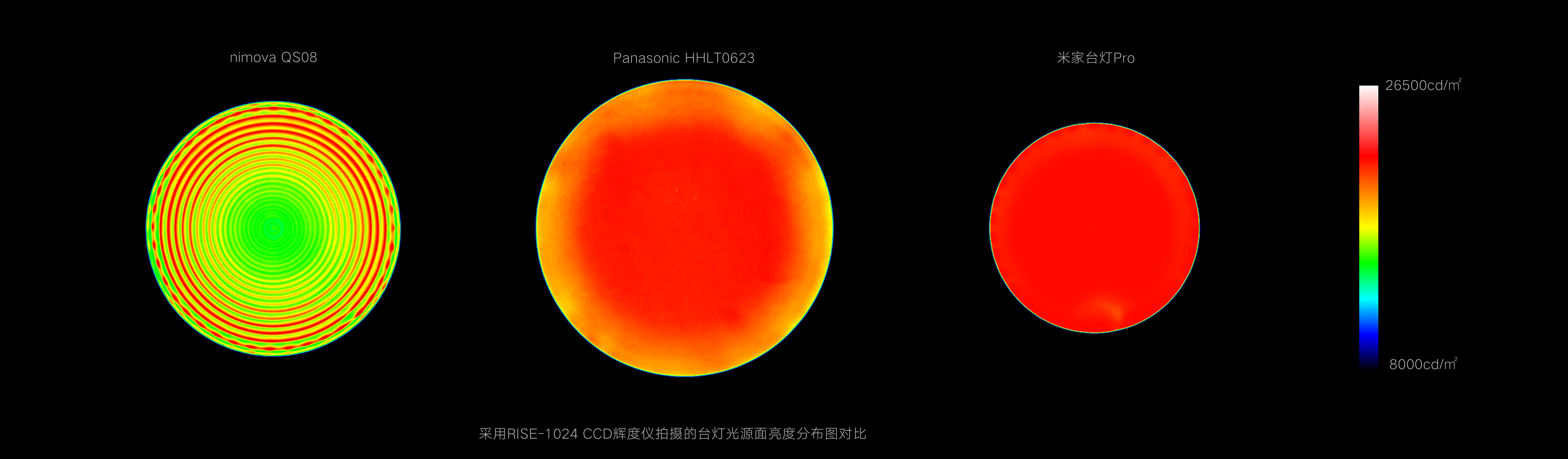

Of course, in addition to the identifiability of circular ripples, they have a very big effect on optics. The refractive surface is used to direct light distribution to achieve a wider and more uniform effect. There is no proof of empty space, and there is a picture and the truth.

Compared to the AA category champion, the light range and uniformity are slightly better in the same smart dimming state.

I don't look at the glowing surface, what's the point of doing a circle? Maybe it's just that one day you need to show your friends a cool desk lamp, so you won't shake your eyes when you turn the lamp plate. However, please don't watch for a long time with amorous feelings. After all, your eyes will be vexed if you look at anyone for a long time.

In addition to thin, thin and light, the details of other parts can be written in about 800,000 words. Without repeating them one by one, I may occasionally write small stories in nimova's official public number.

Write at the end

In addition to getting fat in the adult world, there is nothing simple about it. The road to mass production is difficult and dangerous, and there are many hidden reefs. Compared with more complicated and great products, our experience is not worth it at all. I just want to borrow our past to encourage your persistence in your growth. People must always have ideals. How can it be realized without persistence!

It is good to stick to oneself, provided that the position of design in the company is high enough, and at the same time there are all kinds of teammates who can help God. Both are indispensable. Of course, if you know CMF well in addition to first-class design ability, have a clear production process, have a close relationship with suppliers, and occasionally hit the faces of engineers, you will also have the opportunity to get things done.
